Quintessence square. The system solution for excellent visual comfort

Large luminaire spacing, high uniformity and excellent visual comfort

Show products

Quintessence square in the application

Individualize Quintessence square for your use case

With our “ERCO individual” service we offer you extensive options for the individualization of series products as well as support in the development of sophisticated special luminaires. In order to match Quintessence square even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:

  • Reflector: coated matt gold, matt silver or matt champagne
  • Mounting frame: 10,000 further colors
  • Control: Lutron

Do you have further requirements with the product?

Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}} {{strasse2}}
{{/strasse2}} {{ort}}
{{staat}}

Product features in detail

1

2

3

4

5

6

1

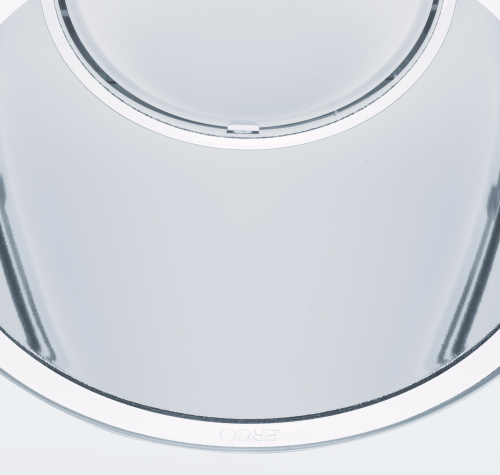

ERCO low brightness reflector

  • Downlight: cut-off angle 40° from horizontal
  • Aluminum, anodized, satin matt

or

Wallwasher reflector

  • Cut-off angle 80° from horizontal
  • Aluminum, anodized, satin matt

2

ERCO LED module

  • High-power LEDs: warm white (2700K or 3000K) or neutral white (3500K or 4000K)
  • Directional luminaire with collimating lens made of optical polymer

3

Diffuser or lens

  • Made of optical polymer
  • Diffuser lens, wide flood, extra wide flood or lens system, wallwash
  • Directional luminaire with Spherolit lens narrow spot, spot or flood

4

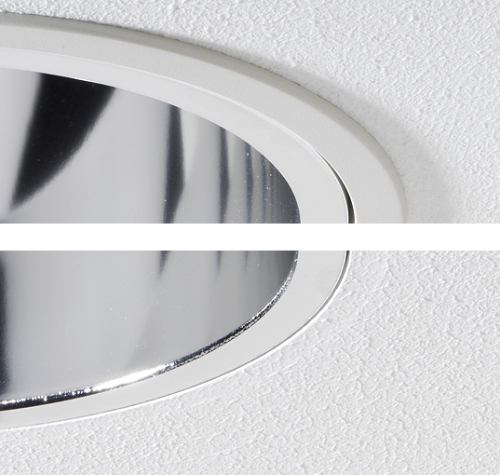

Mounting frame

  • Covered mounting detail
  • Fixing for ceiling thicknesses of 1-30mm
  • Polymer, white
  • For flush mounting: mounting frame to be ordered separately, fixing for ceiling thicknesses of 1/2" - 1" / 12.5–25mm

5

Housing

  • Cast aluminum, designed as heat sink
  • Fixing frame: polymer, black
  • Directional luminaire: 0°-20° tilt, 360° rotation. Lockable angles of tilt and rotation

6

Control gear

  • Switchable, trailing edge dimmable or 0-10V dimmable

Trailing edge dimmable version:

  • Operation at 120V: Dimming with external dimmers possible

Quintessence square: Light effect and planning aid

Lighting tool

Light distribution

Ambient lighting produced by wide beam light distribution.

Downloads

Request now: Quintessence square for your next project

We will be happy to provide you with an offer, support you with sampling and be available to answer specific planning questions.
