Starpoint. Filigree and efficient

Recessed luminaires for salesrooms, hotels, restaurants and homes

Starpoint

Covered or flush mounting possible

All recessed luminaires are supplied with covered mounting detail. Flush mounting details are available as accessories.

Starpoint

Suitable for workplaces

In tight mounting situations, every millimetre counts for the right recess depth of a luminaire. ERCO has therefore developed luminaires with a shallow recess depth to provide excellent light quality in areas with limited installation space.

Starpoint

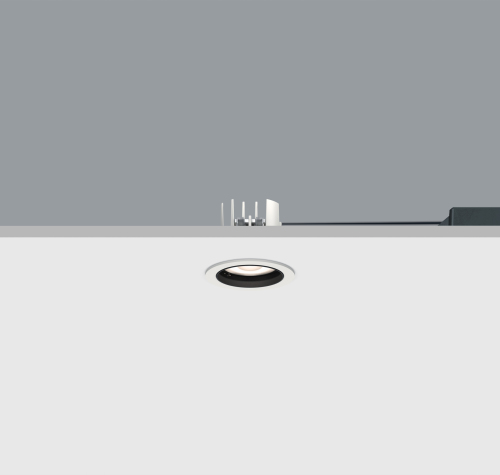

Small luminaire dimensions

Small luminaires appear unobtrusive and direct the focus onto the light. Small luminaire dimensions are convenient particularly in compact spaces.

Starpoint

Für Arbeitsplätze geeignet

ERCO develops luminaires on the premise of efficient glare control and high visual comfort. UGR values are provided as an orientation around the current standards. The lighting design particularly for downlights, however, should be based on the individual arrangement of the luminaires in the room rather than on standard values.

Structure and characteristics

1

2

3

4

5

1

ERCO lens system

  • Made of optical polymer
  • Light distributions: wide flood, extra wide flood or oval flood

2

ERCO LED module

  • High-power LEDs on metal-core PCB
  • Light colours: warm white or neutral white

3

Anti-glare cone

  • Optical cut-off 30°
  • Polymer, black

4

Housing

  • Cast aluminium, powder-coated, designed as heat sink
  • Covered mounting detail: folding spring fixing for ceiling thicknesses of 1-25mm
  • Flush mounting detail: fixing for ceiling thicknesses of 12.5-25mm
  • Mounting ring: polymer, white

5

Control gear

  • Switchable, phase dimmable or DALI dimmable
  • Phase dimmable version: dimming with external dimmers possible (trailing edge)

Integrated unobtrusively as a filigree light source into the ceiling, the downlight of the Starpoint range provides efficient ambient lighting. Using the wide light distribution, it illuminates large areas, whereas the oval version marks out pathways. The shallow recess depth of the luminaire makes for a very discreet appearance that proves an optimal fit in the home. The lumen package of Starpoint downlights lends itself particularly for use in hotel rooms or homes. With covered or flush mounting detail, the luminaire caters to different design solutions..


Pictures of application


System overview 220V-240V/50Hz

  • Downlights
  • Downlights oval flood

General lighting

Ambient lighting produced by wide beam light distribution.

Downlights

Wide beam, rotationally symmetrical light distribution for general lighting.

  • LED
  • 8W
  • 600lm - 830lm
  • Wide flood, Extra wide flood

Downlights

For uniform ambient lighting, the spacing (d) between two Starpoint downlights may be up to approximately 1.25 times the height (h) of the luminaire above the working plane.

Arrangement: d ≤ 1.25 x h

Application: rooms with low ceilings, e.g. lobbies or medical practices.

The wall offset should be half the luminaire spacing.

Arrangement: a = d / 2
