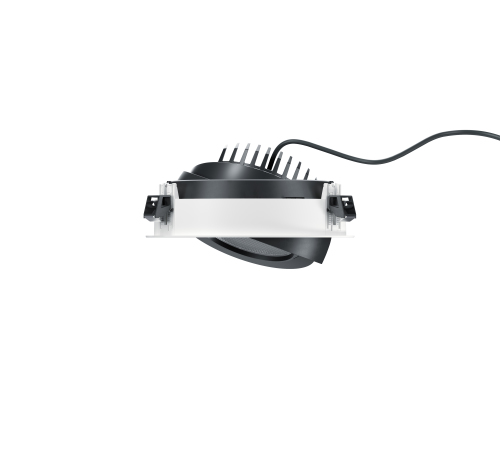

Gimbal. Cardanically adjustable

Recessed spotlight with a compact high-precision swivel mechanism

Gimbal

Oval flood can be freely rotated

All round Spherolit oval flood lenses can be rotated freely allowing easy adjustment to site conditions and lighting demands.

Gimbal

Shallow recess depth

In tight mounting situations, every millimetre counts for the right recess depth of a luminaire. ERCO has therefore developed luminaires with a shallow recess depth to provide excellent light quality in areas with limited installation space.

Gimbal

Gimbal suspension

The smallest change in the angle of tilt, particularly of luminaires mounted in high ceilings, has a huge effect on the beam position – a gimbal suspension system facilitates optimum alignment of the luminaires.

Gimbal

Covered or flush mounting possible

All recessed luminaires are supplied with a covered mounting detail. Flush mounting rings are available as accessories.

Structure and characteristics

1

2

3

4

5

1

ERCO Spherolit lens

  • Light distributions: narrow spot, spot, flood, wide flood, extra wide flood, oval flood or wallwash
  • Oval flood rotatable through 360°

2

ERCO LED module

  • High-power LEDs on metal-core PCB
  • Light colours: warm white or neutral white
  • Collimating lens made of optical polymer

3

Mounting ring

  • Covered mounting detail
  • Fixing for ceiling thicknesses of 1-25mm (size 4) or 1-30mm (sizes 5-7)
  • Polymer, white
  • For flush mounting: mounting ring to be ordered separately, mounting for ceiling thicknesses of 12.5–25mm

4

Luminaire

  • Black
  • Cast aluminium, powder-coated
  • Gimbal suspension: polymer
  • 0°–40° tilt

5

Control gear

  • Switchable, phase dimmable or DALI dimmable
  • Phase dimmable version: dimming with external dimmers possible (trailing edge)

Gimbal suspension is widely prevalent in technology and is a concept that is as old as Leonardo da Vinci, who suggested its use for nautical compasses. In lighting technology, gimbals are an elegant solution for pinpoint adjustment of the luminaires. Gimbal recessed spotlights transform this principle into the era of digital lighting - with a highly precise and convenient swivel mechanism in a compact design that stands apart from conventional approaches and enables shallow recess depths. Different sizes and wattages for the full spectrum of light distributions make Gimbal ideal as a system for differentiated lighting design with focus on the high-contrast presentation of objects. With its unique technoid appearance in the ceiling, Gimbal lends itself perfectly to retail projects as well as to museums and other public buildings.


Pictures of application


System overview 220V-240V/50Hz

  • Recessed spotlights
  • Recessed floodlights
  • Recessed lens wallwashers

Accentuation

Emphasis of objects or architectural elements.

Recessed spotlights

Very narrow to wide beam, rotationally symmetrical light distribution for accent lighting.

  • LED
  • 2W - 38W
  • 210lm - 4920lm
  • Narrow spot, Spot, Flood

Recessed spotlights

Gimbal recessed spotlights accentuate artwork, products and architectural details effectively. The ideal angle of tilt (α) for this is around 30°. The object is modelled without distorting the effect as a result of excessive shadowing. It also prevents shadows cast by the observer.

Arrangement: α = 30°
