Gimbal with mounting bracket. The highly diverse special tool

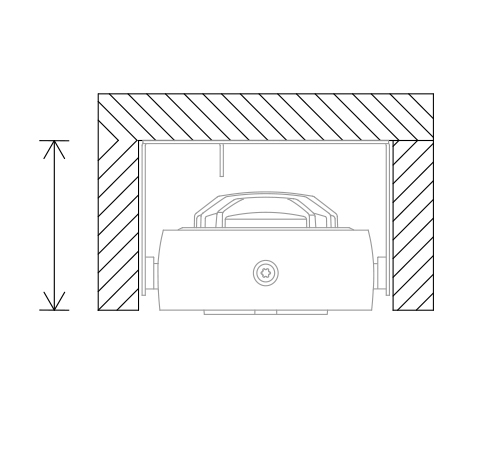

Versatile lighting technology with cardanic suspension, optimised for mounting in channels

Show products

Gimbal with mounting bracket in the application

Individualise Gimbal with mounting bracket for your use case

With our “ERCO individual” service we offer you extensive options for the individualisation of series products as well as support in the development of sophisticated special luminaires. In order to match Gimbal with mounting bracket even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:

  • Connection: 3- or 5-pole plug with connection cable (Wago or Wieland)
  • Housing: 10,000 further colours

Do you have further requirements with the product?

Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}} {{strasse2}}
{{/strasse2}} {{ort}}
{{staat}}

Product features in detail

1

2

3

4

1

ERCO Spherolit lens

  • Light distributions: narrow spot, spot, flood, wide flood, extra wide flood, oval flood or wallwash
  • Oval flood 360° rotation

2

ERCO LED-module

  • High-power LEDs: warm white (2700K or 3000K) or neutral white (3500K or 4000K)
  • Collimating lens made of optical polymer

3

Luminaire

  • Black
  • Cast aluminium, powder-coated

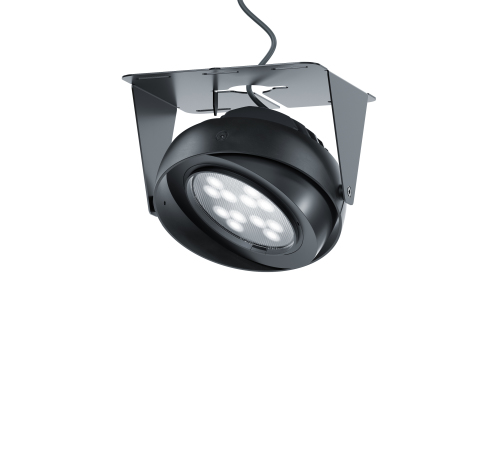

  • Gimbal suspension: polymer

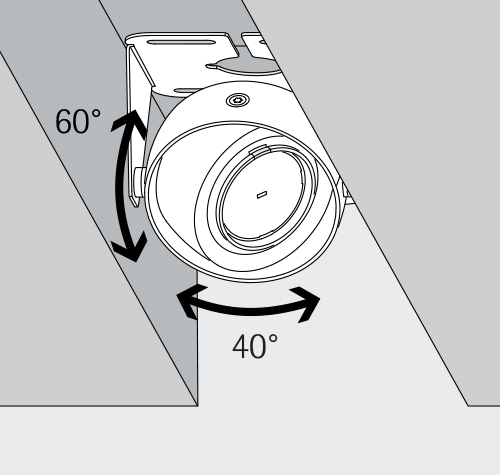

  • Pivotable through 0°–40°, pivotable through 60° in the longitudinal direction of the channel
  • Mounting bracket: steel, powder-coated

4

Control gear

  • Switchable, phase dimmable, DALI dimmable or Casambi Bluetooth
  • Phase dimmable version: Dimming with external dimmers possible (trailing edge)

Gimbal with mounting bracket: Light effect and planning aid

Lighting tool

Light distribution

Downloads

Request now: Gimbal with mounting bracket for your next project

We will be happy to provide you with an offer, support you with sampling and be available to answer specific planning questions.

Your contact data:

The fields highlighted in red must be filled out correctly!

free of charge and without obligation

Your data will be handled confidentially. For further information see Data protection declaration.

Configure Gimbal with mounting bracket
