Skim. Lighting design for any architecture

The versatility of Skim as a separate, flat surface-mounted luminaire

Skim

Small luminaire dimensions

Small luminaires appear unobtrusive and direct the focus onto the light. Compact luminaire dimensions are convenient particularly in small spaces.

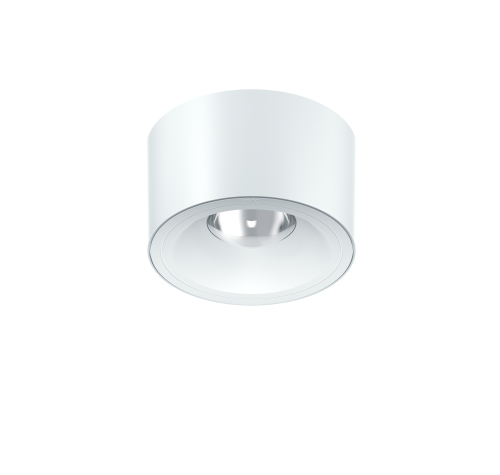

Skim

Excellent price/performance ratio

Skim surface-mounted luminaires offer an attractive price to performance ratio particularly for projects with budget issues.

Skim

Suitable for workplaces

ERCO develops luminaires on the premise of efficient glare control and high visual comfort. UGR values are provided as an orientation around the current standards. The lighting design particularly for downlights, however, should be based on the individual arrangement of the luminaires in the room rather than on standard values.

Structure and characteristics

1

2

3

4

5

1

ERCO lens system

  • Made of optical polymer
  • Light distributions: wide flood, extra wide flood or oval flood

2

ERCO LED module

  • High-power LEDs on metal-core PCB
  • Light colours: warm white or neutral white

3

Anti-glare cone

  • White (RAL9016)
  • Optical cut-off 30°
  • Polymer

4

Cylinder

  • White (RAL9010)
  • Cast aluminium, powder-coated
  • Ceiling fixture: metal

5

Control gear

  • Switchable, phase dimmable or DALI dimmable
  • Phase dimmable version: Dimming with external dimmers possible (trailing edge)

Skim as a surface-mounted downlight is designed for ceiling structures that prevent recessed mounting. It features the same characteristic lens system made of optical polymer as the Skim range of recessed luminaires. Available with different distribution options and in sizes 3 and 5, Skim surface-mounted luminaires combine efficiency with visual comfort, making them ideal for a wide variety of applications: in offices and administration buildings, shops and public places. The exclusive, flat design of the housing made of cast aluminium ensures sophisticated thermal management. Skim surface-mounted luminaires are a straightforward alternative to recessed luminaires and the optimal lighting solution particularly for new, energy-efficient buildings with formidable, thermally activated concrete ceilings. Details such as snap hooks to secure the luminaire or the optional spacers for surface-mounting facilitate the installation still further.


Pictures of application


System overview 220V-240V/50Hz

  • Surface-mounted downlights
  • Surface-mounted downlights oval flood

General lighting

Ambient lighting produced by wide beam light distribution.

Surface-mounted downlights

Wide beam, rotationally symmetrical light distribution for general lighting.

  • LED
  • 8W - 28W
  • 840lm - 3690lm
  • Wide flood, Extra wide flood

Surface-mounted downlights

For optimum general lighting, the luminaire spacing (d) between two Skim surface-mounted downlights may, as a rough guide, be up to 1.5 times the height (h) of the luminaire above the working plane.

Arrangement: d ≤ 1.5 x h

The wall offset should be half the luminaire spacing.

Arrangement: a = d / 2
