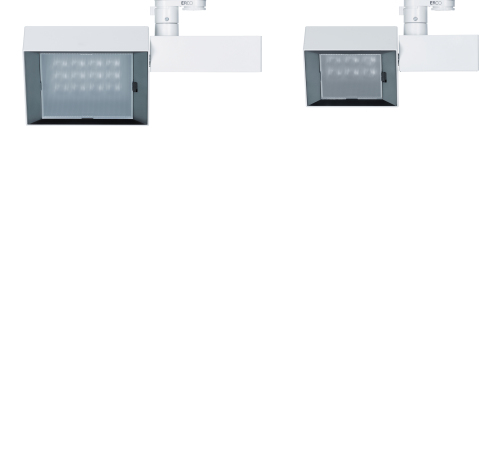

Opton. The lighting tool for shop lighting

Flexible and low-cost illumination for salesrooms

Opton

High lumen packages for very high illuminances

High brightness contrasts help you direct attention. To this end, the product range includes luminaires with high lumen packages.

Opton

Small luminaire dimensions

Small luminaires appear unobtrusive and direct the focus onto the light. Compact luminaire dimensions are convenient particularly in small spaces.

Opton

Excellent price/performance ratio

The entry-level products offer an attractive price to performance ratio particularly for design tasks focused on economy.

Structure and characteristics

1

2

3

4

5

6

1

ERCO Spherolit lens

  • Light distributions: narrow spot, spot, flood, wide flood, extra wide flood, oval flood or wallwash
  • Oval flood adjustable through 90°

2

ERCO LED module

  • High-power LEDs on metal-core PCB
  • Light colours: warm white or neutral white
  • Collimating lens made of optical polymer

3

Light head

  • White (RAL9002) or silver
  • Cast aluminium, powder-coated
  • 0°-90° tilt
  • Frame: polymer, black

4

Housing

  • White (RAL9002) or silver
  • Polymer
  • Rotatable through 360° on turning adapter

5

Control gear

  • Phase dimmable
  • Dimming with external dimmers possible (trailing edge) and potentiometer for brightness control 1%–100% on the luminaire

6

ERCO turning adapter for 2-circuit track

Opton is ideal for shop windows and salesrooms thanks to a particularly low height and a high luminous flux. ERCO achieves this with the intelligent positioning of control gear and luminaire head. The cast aluminum luminaire head ensures a long life thanks to sophisticated thermal management. In combination with efficient photometrics, Opton allows for highly economical and energy-efficient illumination. Variable distribution options further ensure flexible lighting solutions without compromising on the light quality. Opton - the ideal tool for shop lighting.


Pictures of application


System overview 120V/60Hz, 277V/60Hz

  • Spotlights
  • Floodlights
  • Lens wallwashers

Accentuation

Emphasis of objects or architectural elements.

Spotlights

Very narrow to wide beam, rotationally symmetrical light distribution for accent lighting.

  • LED
  • 2W - 24W
  • 210lm - 3300lm
  • Narrow spot, Spot, Flood

Spotlights

Opton spotlights accentuate artwork, products and architectural details effectively. The ideal angle of tilt (α) for this is around 30°. The object is modelled without distorting the effect as a result of excessive shadowing. It also prevents shadows cast by the observer.

Arrangement: α = 30°


Planning data for download 120V/60Hz, 277V/60Hz


Product overview 120V/60Hz, 277V/60Hz
