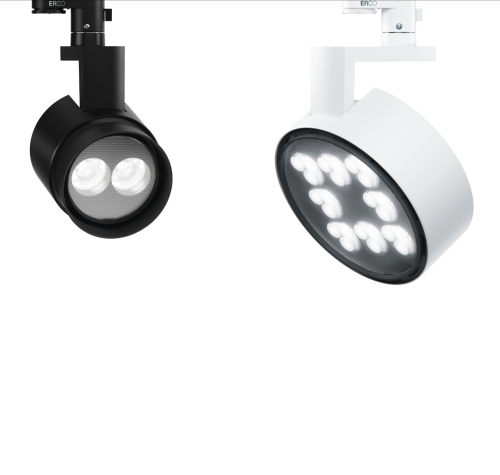

Parscan. Systematic diversity

The elegant and universal spotlight system for museums and shops

Structure and characteristics

1

2

3

4

5

1

ERCO Spherolit lens

  • Light distributions: narrow spot, spot, flood, wide flood, extra wide flood, oval flood or wallwash
  • Oval flood: rotatable through 360°

2

ERCO LED module

  • High-power LEDs on metal-core PCB
  • Light colours: warm white or neutral white
  • Collimating lens made of optical polymer

3

Housing and bracket

  • White (RAL9002), black or silver
  • Cast aluminium, powder-coated
  • 0°-90° tilt
  • Bracket on turning adapter rotatable through 360°
  • Internal wiring

4

Control gear

  • Phase dimmable or DALI dimmable
  • Phase dimmable version: Dimming with external dimmers possible (trailing edge) and potentiometer for brightness control 1%–100% on the luminaire

5

ERCO turning adapter for 2-circuit track

System overview

120V/60Hz, 277V/60Hz

Lighting tool

Light distribution

Emphasis of objects or architectural elements.

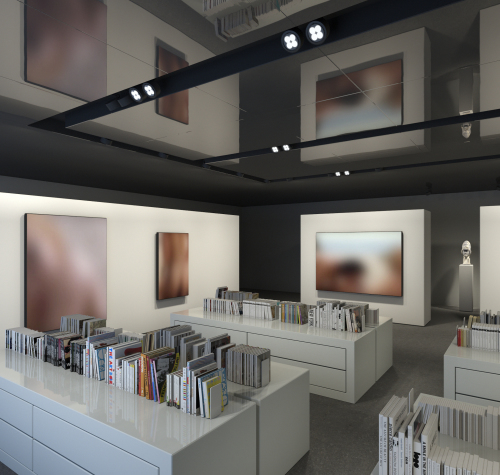

Pictures of application
