Pantrac. Lighting effects for ceilings

This ceiling washlight makes the task of creating uniform uplighting incredibly easy

Pantrac

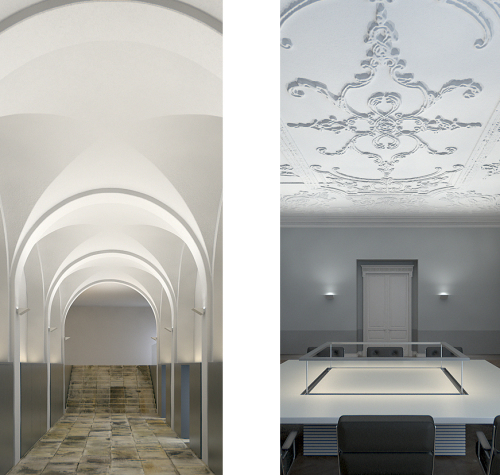

Wide or deep beam

The Spherolit lenses with wide or deep beam option permit adjustment of the light distribution to suit the relevant lighting task.

Pantrac

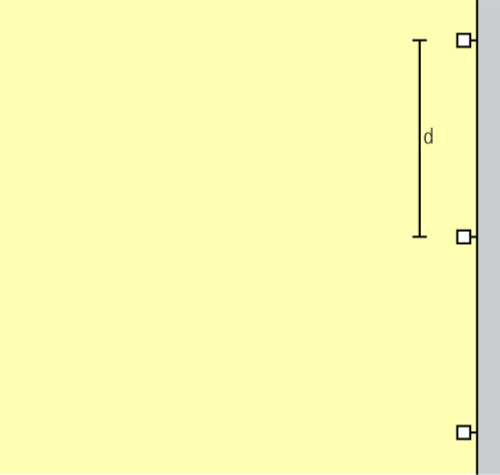

Large luminaire spacing for ceiling wallwashing

ERCO’s efficient photometrics enable selected luminaires to be spaced particularly far apart, thereby minimising the number of luminaires required.

Pantrac

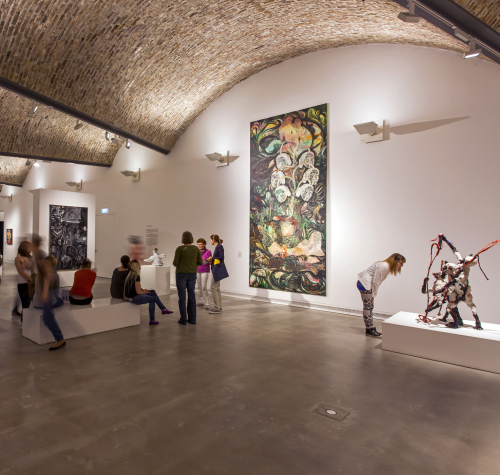

Excellent uniformity

To meet the stringent standards of vertical illuminance, ERCO has developed luminaires specifically to produce exceptionally uniform levels of illuminance.

Structure and characteristics

1

2

3

4

5

1

ERCO Spherolit lens

  • Light distributions: wide beam or deep beam

2

ERCO LED module

  • High-power LEDs on metal-core PCB
  • Light colours: warm white or neutral white
  • Collimating lens made of optical polymer

3

Cover frame

  • Polymer, black lacquered

4

Housing and wall plate

  • White (RAL9002)
  • Cast aluminium, powder-coated

5

Control gear

  • Phase dimmable or DALI dimmable
  • Phase dimmable version: Dimming with external dimmers possible (trailing edge)

Pantrac wall-mounted luminaires focus on adding lighting effects to ceilings. The luminaires bring out the support structure and lend rooms a higher appearance. Ceilings decorated with stucco and paintings are given a new dimension. Pantrac blends into its architectural surroundings. The archetypal cubic design remains unobtrusive letting the luminaire recede into the background. The luminaire is available in different sizes with a range of light distribution patterns. This ensures optimum illumination of the ceiling with a minimum number of luminaires. In this way, Pantrac represents not only an effective, but also a cost-efficient, lighting solution.


Pictures of application


System overview 220V-240V/50Hz

  • Ceiling washlights

General lighting

Ambient lighting produced by wide beam light distribution.

Ceiling washlights

Asymmetrical washlighting for uniform illumination of the ceiling.

  • LED
  • 12W - 24W
  • 1260lm - 3300lm

Ceiling washlights

Illuminated ceilings produce a high and spacious impression of the room. The distance of Pantrac to the ceiling depends on the design criteria, but should not be less than 0.8m. In rooms with a ceiling height of 3m, this corresponds roughly to the height of the door frame.

Arrangement: a > 0.8m

The distance (d) of luminaires with wide beam light distribution may be up to 4 times the ceiling offset (a).

Arrangement: d = 4 x a

The distance (d) of luminaires with deep beam light distribution may be up to 3 times the ceiling offset (a).

Arrangement: d = 3 x a
