Lightmark. Precise light of minimalist elegance

The efficient bollard luminaire with good visual comfort for the illumination of pathways and open areas

Lightmark

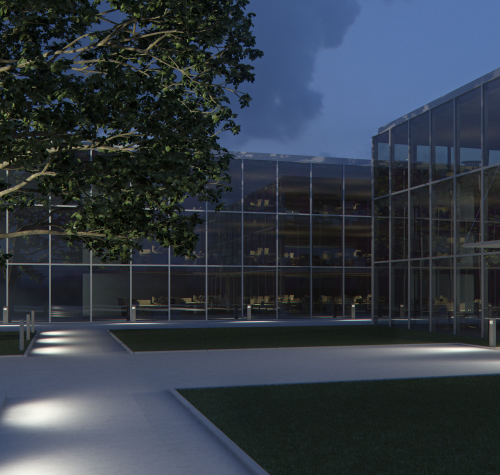

Wide or deep beam

The luminaires in the ERCO product range cover a wide variety of lumen categories and therefore offer an appropriate solution for a large number of lighting tasks.

Lightmark

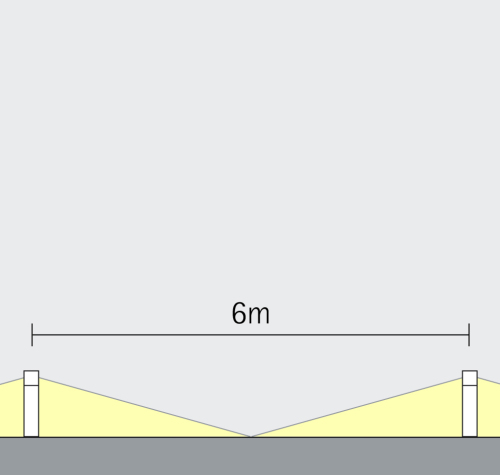

Large luminaire spacing

ERCO’s efficient photometrics enable selected luminaires to be spaced particularly far apart, thereby minimising the number of luminaires required.

Structure and characteristics

1

2

3

4

5

6

1

ERCO Spherolit lens

  • Light distributions: wide beam or deep beam

2

ERCO LED module

  • High-power LEDs on metal-core PCB
  • Light colours: warm white or neutral white
  • Collimating lens made of optical polymer

3

Luminaire

  • Graphit m
  • Corrosion-resistant cast aluminium, No-Rinse surface treatment
  • Double powder-coated
  • Optimized surface for reduced accumulation of dirt
  • Non-reflective safety glass

4

Bollard

  • Corrosion-resistant aluminium profile, No-Rinse surface treatment
  • Graphit m, double powder-coated
  • Tamper-proof screws

5

Control gear

  • Phase dimmable
  • Operation at 120V: Dimming with external dimmers possible (trailing edge)
  • Operation at 277V: switchable

6

Base plate

  • For mounting on concrete plinth or accessories

Lightmark bollard luminaires focus the attention very naturally on any architectural setting. Using the wide light distribution, Lightmark illuminates pathways along walls or buildings evenly over an area wide enough to require a minimum number of luminaires. Their deep-beam version effectively lights squares or terraces. With their low-maintenance and smooth surface, Lightmark is a robust yet elegant bollard luminaire for the outdoor area. The light source is discreetly hidden to ensure glare-free light for passers-by. Thanks to dark sky technology, Lightmark bollard luminaires emit no spill light above the horizontal plane. The system design of the Lightmark range enables many different combinations of bollard and façade luminaires.


Pictures of application


System overview 120V/60Hz, 277V/60Hz

  • Floor washlights

Washlighting

Wide-beam illumination of pathways and open areas.

Floor washlights

Asymmetrical washlighting with a wide or deep beam for the illumination of pathways or squares.

  • LED
  • 6W
  • 630lm - 825lm

Floor washlights

Lightmark bollard luminaires with wide beam light distribution directed forward provide subtle light for a glare-free and uniform illumination of pathways.

For uniform washlighting of the ground, the luminaire spacing (d) may be up to 3m. The luminaires may be spaced apart even further for visual guidance.

Arrangement: d ≤ 3m

Lightmark bollard luminaires with deep beam light distribution directed forward provide subtle light for a glare-free and uniform illumination of open areas.
