Midipoll. See and be seen

Subtle grazing light on the striking, cross-shaped profile transforms Midipoll into a space defining element

Structure and characteristics

1

2

3

4

5

1

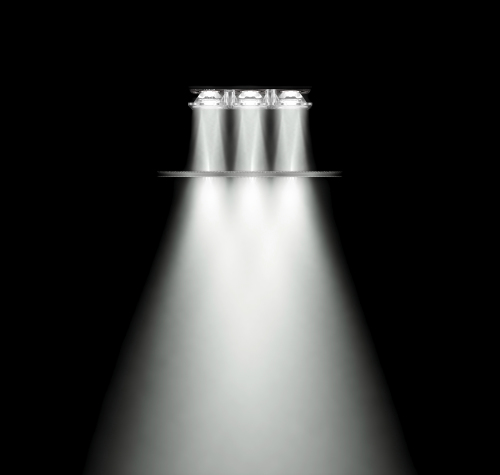

ERCO LED module

  • High-power LEDs on metal-core PCB
  • Light colours: warm white or neutral white
  • Collimating lens made of optical polymer

2

Cylindrical luminaire head

  • Corrosion-resistant cast aluminium, No-Rinse surface treatment
  • Graphit m, double powder-coated
  • Lower prismatic lens or Softec lens

3

Cross-shaped aluminium profile

  • Graphit m
  • Corrosion-resistant, No-Rinse surface treatment
  • Double powder-coated

4

Cylindrical housing

  • Corrosion-resistant cast aluminium, No-Rinse surface treatment
  • Graphit m double powder-coated
  • Optimized surface for reduced accumulation of dirt
  • Mounting accessories to be ordered separately

5

Control gear

  • Switchable
  • 24W: phase dimmable

Phase dimmable version:

  • Operation at 120V: Dimming with external dimmers possible (trailing edge)
  • Operation at 277V: switchable

System overview

120V/60Hz, 277V/60Hz

Lighting tool

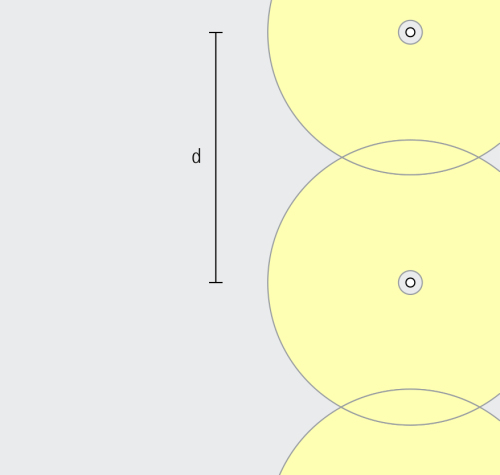

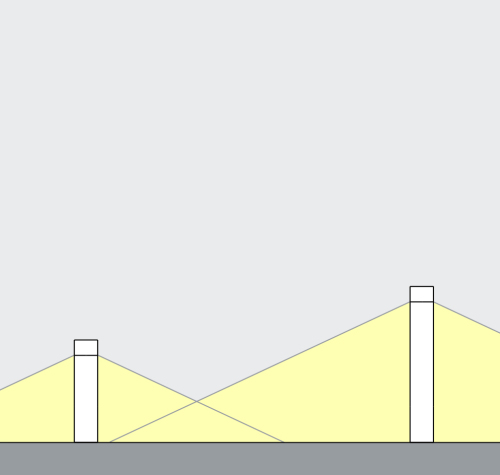

Light distribution

Wide-beam illumination of pathways and open areas.
