Cylinder. Universal and elegant

Façade lighting with many variations

Cylinder

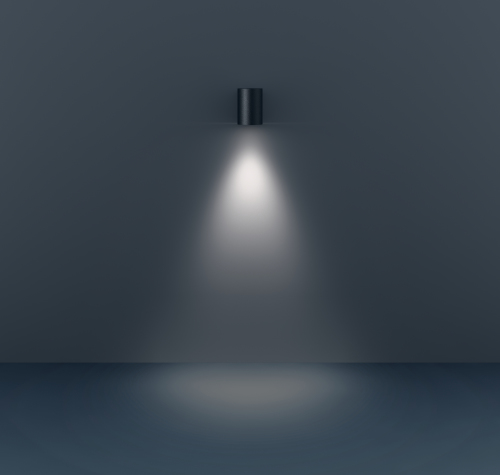

Different light distributions

Different light distributions let you adjust the light to suit the task at hand. The options range from very narrow accentuation through to wide beam floodlighting and even wallwashing.

Cylinder

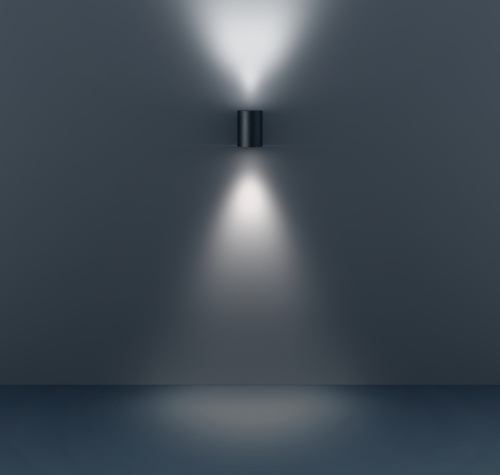

Decorative wall/façade lighting

Striking lighting effects produced by narrow or wide beams create an eye-catching feature and divide up the façade. The ERCO system design includes a wide variety of lighting solutions with upward or downward beam emission.

Structure and characteristics

1

2

3

4

5

1

Light aperture top

  • Spherolitlinse spot oder oval flood
  • Non-reflective safety glass

2

Light aperture bottom Size 2

  • Spherolit lens, oval flood
  • Reflector: aluminium, silver, bright anodized
  • Non-reflective safety glass

or

Size 3

  • Diffuser: glass, frosted
  • Low brightness reflector: aluminum, silver, specular anodized
  • Cut-off angle 30° from horizontal
  • Non-reflective safety glass

3

3

4

Housing and wall plate

  • Graphit m
  • Corrosion-resistant aluminum profile or corrosion-resistant cast aluminum, No-Rinse surface treatment
  • Double powder-coated
  • Optimized surface for reduced accumulation of dirt
  • Tamper-proof screw

5

Control gear

  • Switchable
  • 12W: phase dimmable

Phase dimmable version:

  • Operation at 120V: Dimming with external dimmers possible (trailing edge)
  • Operation at 277V: switchable

Accentuating historic façades with grazing light or structuring large sections of façade with light patterns are only some of the strengths displayed by Cylinder façade luminaires. The wide variety of distribution options includes direct, indirect and direct-indirect narrow or wide beams. For the purpose of conforming to the dark sky standard, the indirect distribution is inclined toward the façade to avoid spill light into the night sky. The direct distribution options include versions that pool the light in a semicircle on the ground or with a beam edge ending just before the façade. As a common denominator, all Cylinder façade luminaires produce the characteristic grazing light to emphasize textures on the façade.


Pictures of application


System overview 120V/60Hz, 277V/60Hz

  • Floor washlights
  • Façade luminaires

Washlighting

Wide-beam illumination of pathways and open areas.

Floor washlights

Asymmetrical washlighting with a wide beam for the illumination of pathways.

  • LED
  • 6W - 12W
  • 630lm - 1650lm
  • Spot, Oval flood

Floor washlights

Cylinder floor washlights with oval flood and spot light distribution, directed downward, provide subtle light for a glare-free and-with oval flood beam-uniform illumination of pathways near façades. The recommended mounting height (h) for floor washlights is 2m above the ground.

Arrangement: h = 2m

For uniform washlighting of the ground with oval flood distribution, the luminaire spacing (d) should equal the mounting height (h). The luminaire spacing for visual guidance, for example with the spot light distribution, depends on the design criteria.

Arrangement: d = h
