Kubus. Light from the box

Façade lighting and floor washlighting for outdoor and indoor areas with a single system design

Kubus

Wide or deep beam

The Spherolit lenses with wide or deep beam option permit adjustment of the light distribution to suit the relevant lighting task.

Kubus

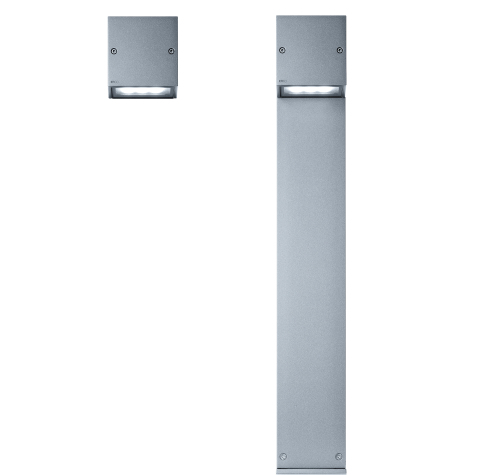

Different sizes

The luminaires in the ERCO product range cover a wide variety of lumen categories and therefore offer an appropriate solution for a large number of lighting tasks.

Structure and characteristics

1

2

3

4

1

Light aperture, floor washlight (bottom)

  • Softec lens as safety glass or non-reflective safety glass
  • Wide beam: sculpture lens or Spherolit lens
  • Deep beam: prism lens or Spherolit lens

or

Light aperture, façade luminaire (top)

  • Softec lens as safety glass or non-reflective safety glass
  • Spherolit lens spot or sculpture lens

2

ERCO LED module

  • High-power LEDs on metal-core PCB
  • Light colours: warm white or neutral white
  • Collimating lens made of optical polymer

3

Housing and wall plate

  • Graphit m
  • Corrosion-resistant cast aluminium, No-Rinse surface treatment
  • Double powder-coated
  • Optimized surface for reduced accumulation of dirt

4

Control gear

  • Switchable

During the day, Kubus is all but an inconspicuous structure on the wall - at night, however, the luminaire excels with exquisite light. Kubus is flexible. Using appropriate accessories, the luminaire can be mounted in or on the wall. Underlined with grazing light, wall surfaces are given a new dimension. Used along traffic routes, Kubus provides optimum visual comfort and reliable orientation for passers-by. In perfect understatement, Kubus combines highly efficient and maintenance-free optoelectronics with a very discreet appearance. Kubus floor washlights are also available as bollard luminaires.


Pictures of application


System overview 120V/60Hz, 277V/60Hz

  • Floor washlights
  • Façade luminaires

Washlighting

Wide-beam illumination of pathways and open areas.

Floor washlights

Asymmetrical washlighting with a wide or deep beam for the illumination of pathways or squares.

  • LED
  • 3W - 6W
  • 345lm - 825lm

Floor washlights

Kubus floor washlights with a wide beam light distribution provide subtle light for a glare-free and uniform illumination of pathways near façades. The recommended mounting height (h) for floor washlights is 0.8m above the ground.

Arrangement: h = 0.8m

For uniform washlighting of the ground, the luminaire spacing (d) may be up to 2 times the mounting height (h). The luminaire spacing for visual guidance may be up to 10 times the mounting height.

Arrangement: d ≤ 2 x h

Kubus floor washlights with a deep beam light distribution provide subtle light for a glare-free and uniform illumination of open areas near façades. The recommended mounting height (h) for floor washlights is 0.8m above the ground.

Arrangement: h = 0.8m


Planning data for download 120V/60Hz, 277V/60Hz


Product overview 120V/60Hz, 277V/60Hz
