Lightscan. Dynamic ceiling illumination for a wide spatial impression

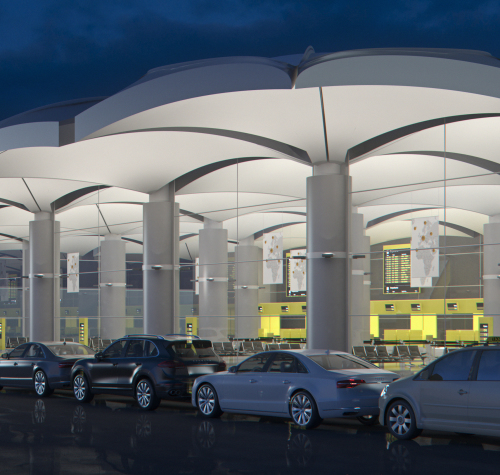

Using Lightscan façade luminaires to washlight ceilings in airports, train stations, arcades and passages

Lightscan

High lumen packages for very high illuminances

ERCO offers luminaires with high lumen packages to produce very high illuminances.

Lightscan

Large luminaire spacing for ceiling washlighting

ERCO’s efficient photometrics enable selected luminaires to be spaced particularly far apart, thereby minimising the number of luminaires required.

Lightscan

Ceiling washlights, wide beam or deep beam

The wide-beam light distribution of ceiling washlights illuminates cantilever roofs along the façade elegantly and efficiently. The deep-beam light distribution of ceiling washlights is ideal for the illumination of large ceiling areas.

Structure and characteristics

1

2

3

4

5

1

ERCO Spherolit lens

  • Light distributions: wide beam or deep beam

2

ERCO LED module

  • High-power LEDs on metal-core PCB
  • Light colors: warm white or neutral white
  • Collimating lens made of optical polymer

3

Cover frame

  • Cast aluminium, black, powder-coated
  • Safety glass

4

Housing and wall plate

  • Graphit m
  • Corrosion-resistant cast aluminium, No-Rinse surface treatment
  • Double powder-coated
  • Optimized surface for reduced accumulation of dirt

5

Control gear

  • 0-10V dimmable
  • Dimming with external dimmers possible (0-10V)

Lightscan façade luminaires give a light and spacious impression to ceilings especially in such formidable spaces as passages or train stations. The intense, uniform washlighting of the robust luminaire allows for economical illumination of the ceiling with luminaires spaced far apart, performing equally well in outdoor and indoor applications. High levels of luminous flux and efficient photometrics ensure an excellent level of brightness - particularly in large and high rooms. Two different light distributions - wide or deep beam - offer the perfect solution for the illumination of large ceiling areas. Maintenance-free optoelectronics guarantee maximum efficiency to help save our resources and result in lower operating costs.


Pictures of application


System overview 120V/60Hz, 277V/60Hz

  • Ceiling washlights

Washlighting

Wide-beam illumination of spatial zones.

Ceiling washlights

Asymmetrical washlighting for uniform illumination of the ceiling.

  • LED
  • 24W - 72W
  • 2520lm - 9900lm

Ceiling washlights

Uniform illumination using Lightscan gives a light and spacious impression to ceilings. The distance (a) of the luminaire to the ceiling determines the luminaire spacing (d) and depends on the design criteria. This distance (a) should be at least 0.8m.

Arrangement: a > 0.8m

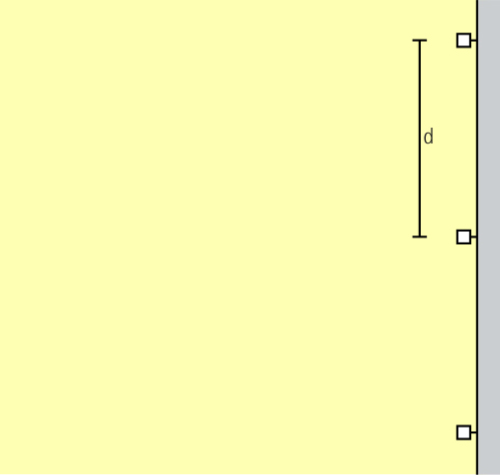

The distance (d) of luminaires with wide beam light distribution may be up to 4 times the ceiling offset (a).

Arrangement: d = 4 x a

The distance (d) of luminaires with deep beam light distribution may be up to 3 times the ceiling offset (a).

Arrangement: d = 3 x a
