Beamer. Maximum visual comfort for superior standards

In a typical spotlight design, the Beamer range delivers efficient accentuation and floodlighting of outdoor areas

Beamer

Oval flood can be freely rotated

The Spherolit lens oval flood in round luminaire heads can be rotated freely for optimum adjustment of the lighting on different objects.

Beamer

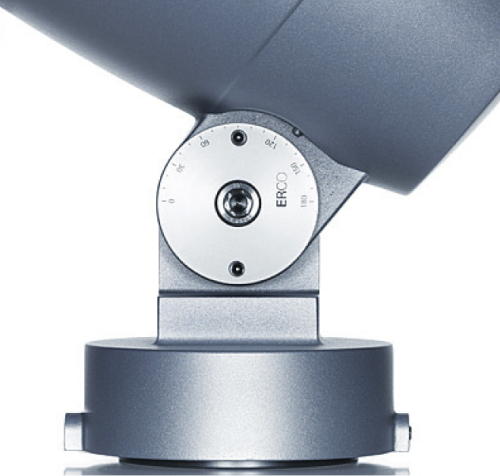

Lockable

The luminaire can be locked in position for secure fixing of the beam direction.

Beamer

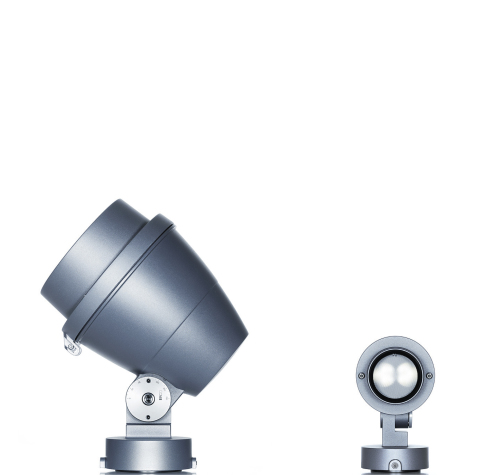

Different sizes

The luminaires in the ERCO product range cover a wide variety of lumen categories and therefore offer an appropriate solution for a large number of lighting tasks.

Structure and characteristics

1

2

3

4

5

6

1

ERCO Spherolit lens

  • Light distributions: narrow spot, spot, flood, wide flood or oval flood
  • Oval flood rotatable through 360°

2

ERCO LED module

  • High-power LEDs on metal-core PCB
  • Light colours: warm white or neutral white
  • Collimating lens made of optical polymer

3

Snoot

  • Corrosion-resistant cast aluminium, No-Rinse surface treatment
  • Graphit m, double powder-coated
  • Without spill light
  • Safety glass

4

Housing

  • Graphit m
  • Corrosion-resistant cast aluminium, No-Rinse surface treatment
  • Double powder-coated
  • Optimized surface for reduced accumulation of dirt

5

Control gear

  • Switchable
  • 14W narrow spot: phase dimmable

Phase dimmable version:

  • Operation at 120V: Dimming with external dimmers possible (trailing edge)
  • Operation at 277V: switchable

6

Mounting plate and hinge

  • Corrosion-resistant cast aluminium, No-Rinse surface treatment
  • Graphit m, double powder-coated
  • Luminaire rotatable through 300°
  • Hinge: 130° tilt
  • Internal wiring
  • Graduated disc: corrosion-resistant aluminium

Beamer stands for striking light effects for monuments, structures and vegetation. Protected by an exceptionally durable housing, the projector offers highly variable solutions for your lighting tasks. An additional snoot provides enhanced glare control for even higher levels of visual comfort and makes certain that the light shines only, and precisely, where it is needed. The mounting accessories help you install the Beamer wherever you need it. Thanks to the graduations on the hinge, the luminaire can be aligned with repetitive accuracy. The maintenance-free optoelectronics of the Beamer guarantee maximum efficiency to save our resources and result in lower operating costs.


Pictures of application


System overview 120V/60Hz, 277V/60Hz

  • Projectors
  • Floodlights

Accentuation

Emphasis of objects or architectural elements.

Projectors

Very narrow to wide beam, rotationally symmetrical light distribution for accent lighting.

  • LED
  • 4W - 36W
  • 420lm - 4950lm
  • Narrow spot, Spot, Flood

Projectors

The ideal angle of tilt (α) for accent lighting with Beamer projectors is around 30°. This emphasises the three-dimensionality of architectural details, sculptures or trees, without distorting the spatial impression with excessive shadowing.

Arrangement: α = 30°
