Gecko. Powerful light from a virtually invisible source

Glare-free accent lighting, floodlighting and wallwashing in the outdoor area

Gecko

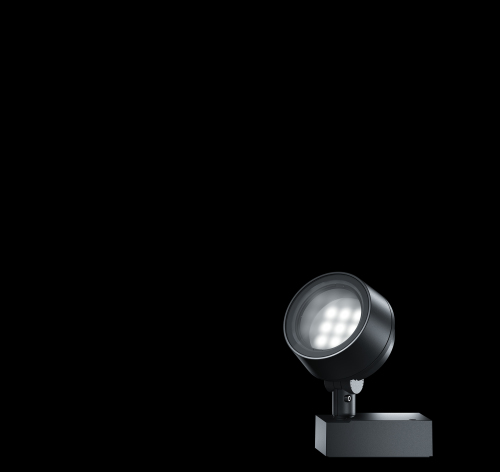

Enhanced visual comfort

ERCO has developed luminaires with special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.

Gecko

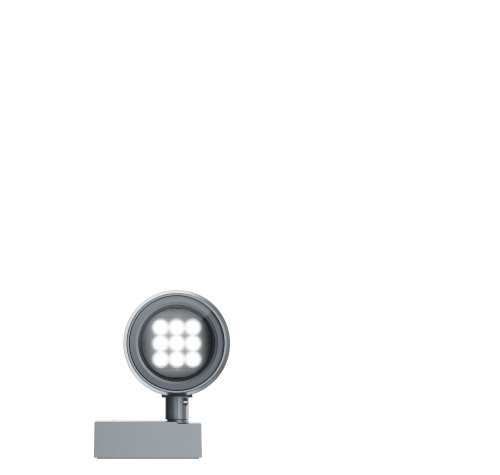

Small luminaire dimensions

Small luminaires appear unobtrusive and direct the focus onto the light. Small luminaire dimensions are convenient particularly in compact spaces.

Gecko

Oval flood can be freely rotated

All round Spherolit oval flood lenses can be rotated freely allowing easy adjustment to site conditions and lighting demands.

Structure and characteristics

1

2

3

4

5

6

1

ERCO Spherolit lens

  • Light distributions: narrow spot, spot, flood, wide flood, oval flood or wallwash
  • Oval flood rotatable through 360°

2

ERCO LED module

  • High-power LEDs on metal-core PCB
  • Light colors: warm white or neutral white
  • Collimating lens made of optical polymer

3

Light head

  • Corrosion-resistant cast aluminum, No-Rinse surface treatment
  • Graphit m, double powder-coated
  • Non-reflective safety glass

4

Housing and hinge

  • Corrosion-resistant cast aluminum, No-Rinse surface treatment
  • Graphit m, double powder-coated
  • Optimized surface for reduced accumulation of dirt
  • 130° tilt, rotatable through 360°
  • Hinge with scale and internal wiring

5

Mounting plate

  • Corrosion-resistant cast aluminum, No-Rinse surface treatment
  • Graphit m, double powder-coated
  • Optimized surface for reduced accumulation of dirt

6

Control gear

  • Phase dimmable
  • Operation at 120V: Dimming with external dimmers possible (trailing edge)
  • Operation at 277V: switchable

Gecko emanates refined power despite its compact form. This is achieved by combining a slightly conical shape with quality design details such as seamless transitions. With its fluid, round outlines, this outdoor lighting tool enhances gardens and parks as an adaptable design feature which integrates flexibly in any surroundings. The small housing conceals sophisticated photometric properties: Optionally producing a uniform wide beam or sharp-edged accent light, Gecko creates impressive façade and other outdoor lighting effects that require just a few of these luminaires. Excellent glare control ensures accent lighting, floodlighting and wallwashing from a virtually invisible light source. With a luminaire head that can be tilted and rotated in any direction, Gecko is quick and easy to adjust precisely to the required position, as its maintenance-free LED optoelectronics help to reduce the operating costs.


Pictures of application


System overview 120V/60Hz, 277V/60Hz

  • Projectors
  • Floodlights
  • Lens wallwashers

Accentuation

Emphasis of objects or architectural elements.

Projectors

Very narrow to wide beam, rotationally symmetrical light distribution for accent lighting.

  • LED
  • 8W - 18W
  • 840lm - 2475lm
  • Narrow spot, Spot, Flood

Projectors

The ideal angle of tilt (α) for accent lighting with Gecko projectors is around 30°. This emphasizes the three-dimensionality of architectural details, sculptures or trees, without distorting the spatial impression with excessive shadowing.

Arrangement: α = 30°


Planning data for download 120V/60Hz, 277V/60Hz


Product overview 120V/60Hz, 277V/60Hz
