Grasshopper. Small and mighty

Grasshopper luminaires deliver accent lighting, floodlighting and wallwashing for outdoor areas

Grasshopper

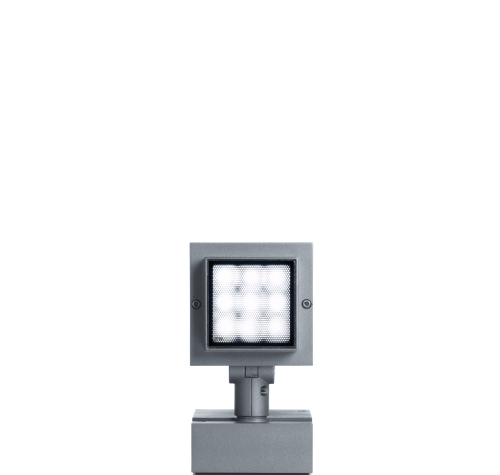

Small luminaire dimensions

Small luminaires appear unobtrusive and direct the focus onto the light. Small luminaire dimensions are convenient particularly in compact spaces.

Structure and characteristics

1

2

3

4

5

6

1

ERCO Spherolit lens

  • Light distributions: narrow spot, spot, flood, wide flood, oval flood or wallwash
  • Oval flood adjustable through 90°

2

ERCO LED module

  • High-power LEDs on metal-core PCB
  • Light colours: warm white or neutral white
  • Collimating lens made of optical polymer

3

Compact light head

  • Corrosion-resistant cast aluminium, No-Rinse surface treatment
  • Graphit m, double powder-coated
  • Non-reflective safety glass

4

Housing and hinge

  • Corrosion-resistant cast aluminium, No-Rinse surface treatment
  • Graphit m, double powder-coated
  • Optimised surface for reduced accumulation of dirt
  • 130° tilt, rotatable through 360°
  • Hinge with scale and internal wiring

5

Mounting plate

  • Corrosion-resistant cast aluminium, No-Rinse surface treatment
  • Graphit m, double powder-coated
  • Optimised surface for reduced accumulation of dirt

6

Control gear

  • Switchable or DALI dimmable

A prominent architectural detail, Grasshopper is designed for versatile use in the outdoor area. Whether it's accentuating information signs and objects or floodlighting trees or walls - you will find the right light distribution for every task. Their aluminium housing is exceptionally weather-resistant and can be mounted in any position. The luminaire head can be tilted and rotated in any direction. Maintenance-free optoelectronics guarantee maximum efficiency to save our resources and result in lower operating costs. Precise photometrics prevent spill light as a further eco-friendly factor.


Pictures of application


System overview 220V-240V/50Hz

  • Projectors
  • Floodlights
  • Lens wallwashers

Accentuation

Emphasis of objects or architectural elements.

Projectors

Very narrow to wide beam, rotationally symmetrical light distribution for accent lighting.

  • LED
  • 8W - 18W
  • 840lm - 2475lm
  • Narrow spot, Spot, Flood

Projectors

The ideal angle of tilt (α) for accent lighting with Grasshopper projectors is around 30°. This emphasises the three-dimensionality of architectural details, sculptures or trees, without distorting the spatial impression with excessive shadowing.

Arrangement: α = 30°


Planning data for download 220V-240V/50Hz


Product overview 220V-240V/50Hz
