Kona XS. Straightforward and compact

The small, sophisticated tool for outdoor lighting

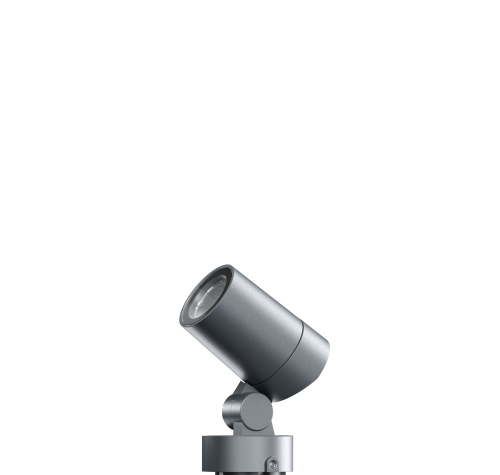

Kona XS

Small luminaire dimensions

Small luminaires appear unobtrusive and direct the focus onto the light. Small luminaire dimensions are convenient particularly in compact spaces.

Structure and characteristics

1

2

3

4

5

1

ERCO Spherolit lens

  • Light distributions: narrow spot, spot, flood, wide flood or wallwash

2

ERCO LED module

  • High-power LEDs on metal-core PCB
  • Light colours: warm white or neutral white
  • Collimating lens made of optical polymer

3

Luminaire head and housing

  • Graphit m
  • Corrosion-resistant aluminium, No-Rinse surface treatment
  • Double powder-coated
  • Optimized surface for reduced accumulation of dirt
  • Anti-glare cone: polymer, black lacquered
  • Non-reflective safety glass

4

Control gear

  • Switchable

5

Mounting plate and hinge

  • Corrosion-resistant aluminum, No-Rinse surface treatment
  • Graphit m, double powder-coated
  • Internal wiring
  • Hinge: 130° tilt
  • Mounting plate: 350° rotation

Not every outdoor lighting project requires a powerhouse approach-especially when used in frequently populated urban areas, in parks or around buildings. Kona XS is the smallest outdoor projector in the ERCO range, with a lighting technology reduced to what is essential-brilliant light of the familiar superb quality provided by Spherolit LED lens systems, with a huge range of distribution options. This enables precise and efficient lighting concepts without detracting from the magic of the night. Kona XS adopts the modern, tapered housing design of its larger cousins in the Kona range, with a smooth yet robust aluminum housing designed for easy installation and maintenance.


Pictures of application


System overview 120V/60Hz, 277V/60Hz

  • Projectors
  • Floodlights
  • Lens wallwashers

Accentuation

Emphasis of objects or architectural elements.

Projectors

Very narrow to wide beam, rotationally symmetrical light distribution for accent lighting.

  • LED
  • 2W - 6W
  • 210lm - 825lm
  • Narrow spot, Spot, Flood

Projectors

The ideal angle of tilt (y) for accent lighting with Kona XS projectors is around 30°. This emphasizs the three-dimensionality of architectural details, sculptures or trees, without distorting the spatial impression with excessive shadowing.

Arrangement: α = 30°
