Lightscan. Monumental appeal in digital form

Lightscan for sophisticated lighting tasks in outdoor areas

Lightscan

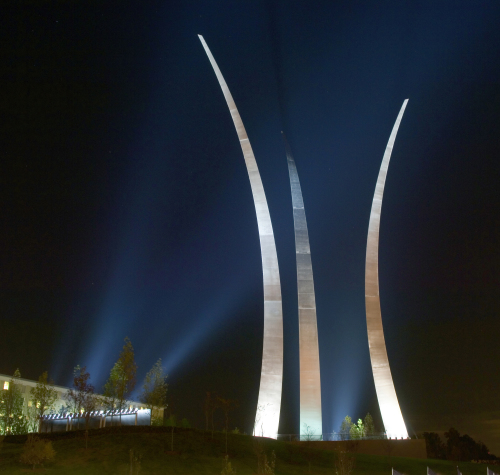

High lumen packages for very high illuminances

High-contrast accent lighting allows you to attract attention. ERCO provides an extensive range of efficient luminaires with high lumen packages designed specifically for this purpose.

Lightscan

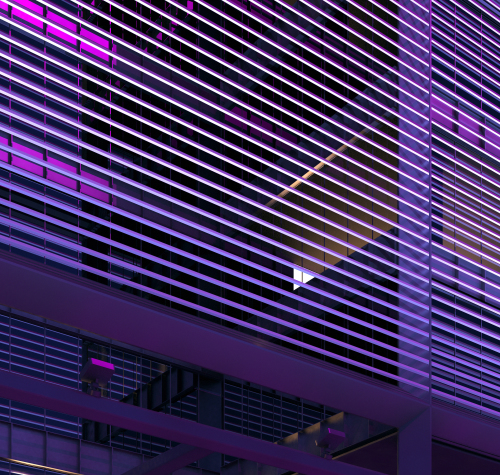

Coloured light

Coloured light can be used to design and change the surroundings by adding subtle or dramatic contrasts. LEDs provide you with a highly efficient and flexible tool to create coloured light.

Lightscan

Oval flood can be freely rotated

The Spherolit lens oval flood in round luminaire heads can be rotated freely for optimum adjustment of the lighting on different objects.

Lightscan

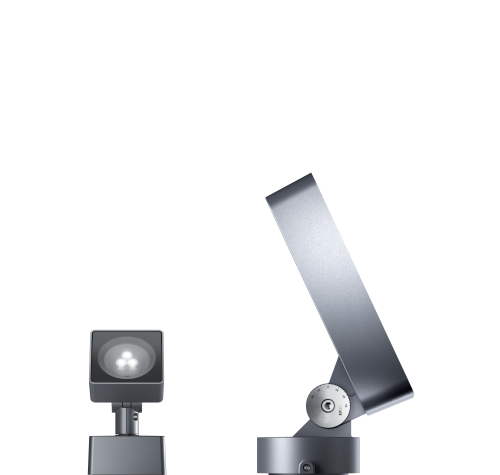

Different sizes

The luminaires in the ERCO product range cover a wide variety of lumen categories and therefore offer an appropriate solution for a large number of lighting tasks.

Structure and characteristics

1

2

3

4

5

6

1

ERCO Spherolit lens

  • Light distributions: narrow spot, spot, flood, wide flood, oval flood or wallwash
  • Oval flood rotatable through 360°

2

ERCO LED module

  • High-power LEDs on metal-core PCB
  • Light colours: warm white, neutral white or varychrome RGBW
  • Collimating lens made of optical polymer
  • Varychrome with highly reflective colour mixer

3

Housing

  • Graphit m
  • Corrosion-resistant cast aluminium, No-Rinse surface treatment
  • Double powder-coated
  • Optimised surface for reduced accumulation of dirt
  • Cover frame: black powder-coated
  • Safety glass

4

Control gear

  • Switchable or DALI dimmable

5

Hinge

  • Corrosion-resistant cast aluminium, No-Rinse surface treatment
  • Graphit m, double powder-coated
  • Internal wiring
  • 90° tilt
  • Graduated disc: corrosion-resistant aluminium

6

Mounting plate

  • Corrosion-resistant cast aluminium, No-Rinse surface treatment
  • Graphit m, double powder-coated
  • 240° rotation

Lightscan lends a new flair to outdoor lighting, yet cuts an equally fine figure indoors where applications call for a higher protection mode. Elegant look and highly efficient photometrics join to form a perfect symbiosis. Its high levels of luminous flux enable the illumination of buildings, walls or objects even where these are exceptionally tall or offer few options to position the projectors. A wide range of light distributions ensures that the light is projected only where it's needed. Lightscan is exceptionally weather-resistant, as its slim silhouette blends harmoniously with the surroundings. Its flush cover glass as a contributing factor looks the part, elegantly providing reliable protection, but is also most easy to clean. An extensive range of mounting hardware means the Lightscan effortlessly fulfils different requirements of its environment making it a versatile tool in lighting design. Maintenance-free optoelectronics guarantee maximum efficiency to help save our resources and result in lower operating costs.


Pictures of application


System overview 220V-240V/50Hz

  • Projectors
  • Floodlights
  • Lens wallwashers

Accentuation

Emphasis of objects or architectural elements.

Projectors

Very narrow to very wide beam, rotationally symmetrical light distribution for accent lighting.

  • LED
  • 18W - 96W
  • 1260lm - 13200lm
  • Narrow spot, Spot, Flood, Wide flood

Projectors

The ideal angle of tilt (α) for accent lighting with Lightscan projectors is around 30°. This emphasises the three-dimensionality of architectural details, sculptures or trees, without distorting the spatial impression with excessive shadowing.

Arrangement: α = 30°


Planning data for download 220V-240V/50Hz


Product overview 220V-240V/50Hz
