Compact. Efficient and economical

Brilliant light for roofed areas. Compact - ideal for outdoor use

Compact

Compact

Large luminaire spacing for wallwashing

Efficient photometrics allow specific luminaires to be spaced unusually far apart at up to 1.5 times the offset from the wall.

Compact

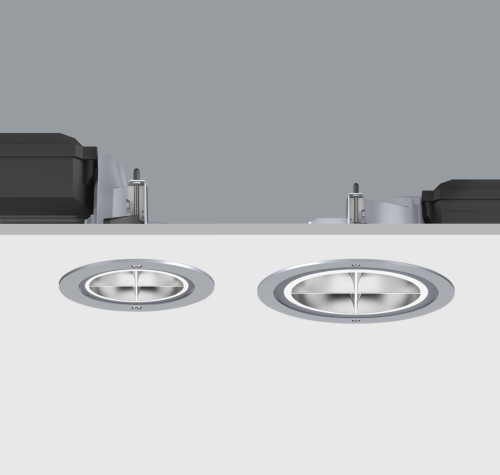

Different sizes

The luminaires in the ERCO product range cover a wide variety of lumen categories and therefore offer an appropriate solution for a large number of lighting tasks.

Compact

Structure and characteristics

1

2

3

4

5

6

1

ERCO lens system

  • Made of optical polymer
  • Light distributions: extra wide flood, oval flood or wallwash

2

ERCO LED module

  • High-power LEDs on metal-core PCB
  • Light colours: warm white or neutral white

3

Anti-glare ring with cross baffle

  • Optical cut-off 30° from horizontal
  • Polymer, aluminium vaporised, silver, ribbed

or

Wallwasher reflector

  • Optical cut-off 30° or 40° from horizontal
  • Polymer, aluminium vaporised, silver, ribbed, with diffuser on the underside

4

Cover ring

  • Corrosion-resistant cast aluminium, No-Rinse surface treatment
  • Silver, double powder-coated
  • Non-reflective safety glass

5

Housing

  • Corrosion-resistant cast aluminium, No-Rinse surface treatment
  • Silver, double powder-coated
  • Mounting with 2- or 3-point support and screw fixing. Max. ceiling thickness 1 3/16“
  • Side-mounted control gear:
  • polymer or cast aluminium, black

6

Control gear

  • Switchable or phase dimmable

Phase dimmable version:

  • Operation at 120V: Dimming with external dimmers possible (trailing edge)
  • Operation at 277V: switchable

The need for high performance lighting applies equally to the exterior environment. The Compact downlight combines brilliant light with the familiar durability of ERCO's other exterior solutions. Extra wide flood and oval flood as different light distributions enable its use in passageways and arcades as well as on the terrace of a private residence. Compact also supports superb vertical illuminance with its wallwashing distribution.


Pictures of application


System overview 120V/60Hz, 277V/60Hz

  • Downlights
  • Downlights oval flood
  • Lens wallwashers

General lighting

Ambient lighting produced by wide beam light distribution.

Downlights

Wide beam, rotationally symmetrical light distribution for general lighting.

  • LED
  • 8W - 32W
  • 840lm - 4400lm
  • Extra wide flood

Downlights

For uniform ambient lighting, the spacing (d) between two Compact downlights may be up to approximately 1.5 times the height (h) of the luminaire above the working plane.

Arrangement: d ≤ 1.5 x h

The wall offset should be half the luminaire spacing.

Arrangement: a = d / 2


Planning data for download 120V/60Hz, 277V/60Hz


Product overview 120V/60Hz, 277V/60Hz
