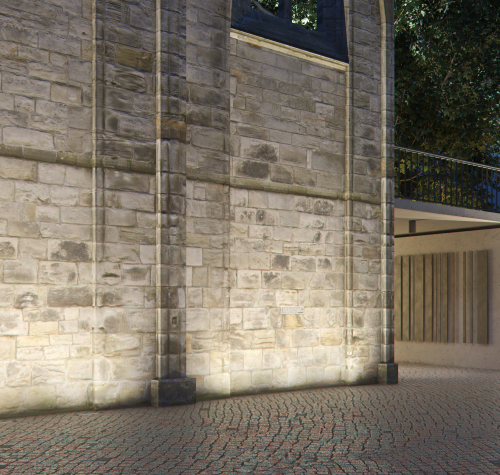

Site. Emphasizing wall structures for a three-dimensional effect

Grazing light wallwashers accentuate surface texture on walls and façades

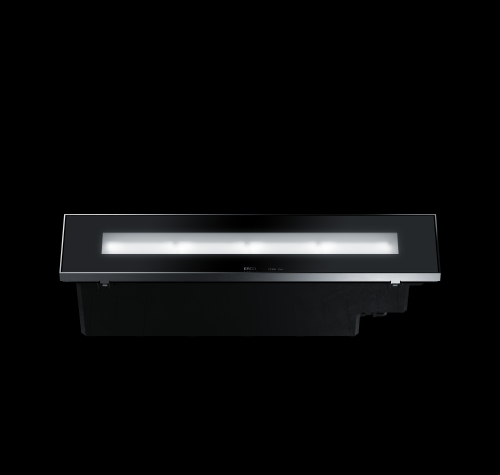

Structure and characteristics

1

2

3

4

5

1

Softec lens

    2

    ERCO LED module

    • High-power LEDs on metal-core PCB
    • Light colours: warm white or neutral white
    • Collimating lens made of optical polymer
    • Tiltable ±10°

    3

    Frame

    • Covered or flush mounting detail
    • Stainless steel
    • Safety glass: 3/8″ / 10mm, clear

    4

    Housing

    • Polymer, black
    • Longitudinally waterproof cable AWG14, L 31 1/2″ / 800mm
    • Installation with separate connection sleeve
    • Mounting in recessed housing: can be driven over by vehicles with pneumatic tires. Load 4500lb.wt / 20kN
    • Mounting in hollow floor only with covered mounting detail: mounting kit to be ordered separately

    5

    Control gear

    • Phase dimmable
    • Operation at 120V: Dimming with external dimmers possible (trailing edge)
    • Operation at 277V: switchable

    System overview

    120V/60Hz, 277V/60Hz

    Lighting tool

    Light distribution

    Vertical illuminance for brightening the surroundings and segmenting the exterior landscape.
