Nadir IP67 square. Elegant down to the last detail

Nadir ensures maximum visual comfort for light from indoor floor areas

Special features of Nadir IP67 square
View product description

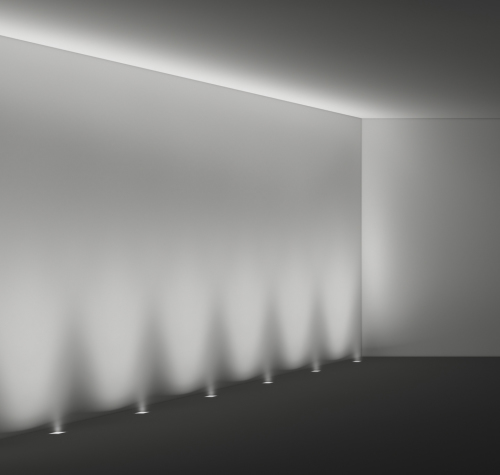

Grazing light

Grazing light wallwashers need to be positioned close to the wall for ideal effects.

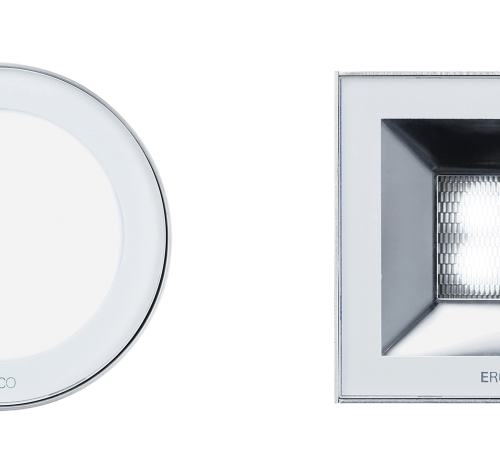

Available in round or square

The ERCO system design includes round and square versions to provide luminaires suited to the architecture and surroundings.

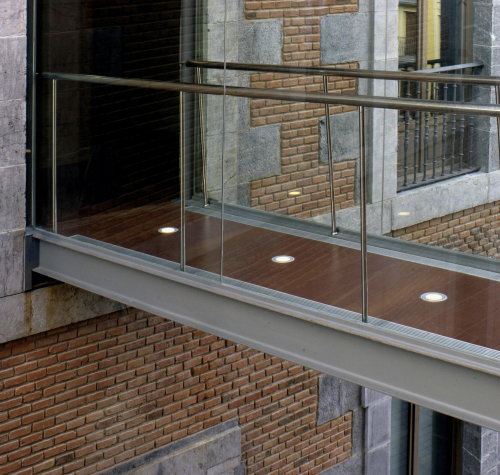

Shallow recess depth

For compact mounting situations, ERCO has developed luminaires with a shallow recess depth to provide excellent light quality in areas with limited installation space.

Bringing out wall surfaces, effectively illuminating architecture, marking out pathways: Nadir IP67 for indoor applications performs these and other tasks with peerless elegance. In square or round versions and with a discreet stainless steel mounting frame, the luminaire’s mounting is virtually flush with the floor. Needless to say, it can also be mounted covering the surrounding cut-out.

Nadir IP67 square in the application

Schloßgut WeissSchloßgut Weissenhaus Hotel, Weissenhaus. Markus- Diedenhofen Innenarchitektur, Reutlingen. moodworks, Lensahn. Photography: Frieder Blickle, Hamburg.enhaus Hotel, Weissenhaus / Germany. Markus- Diedenhofen Innenarchitektur, Reutlingen / Germany. moodworks, Lensahn / Germany. Photography: Frieder Blickle, Hamburg / Germany.

Duvetica flagship store, Milan. Architecture: Tadao Ando Architects & Associates, Osaka. Photography: Thomas Mayer, Neuss.

Schloßgut Weissenhaus Hotel, Weissenhaus / Germany. Markus- Diedenhofen Innenarchitektur, Reutlingen / Germany. moodworks, Lensahn / Germany. Photography: Frieder Blickle, Hamburg / Germany.

Steigenberger Hotel Handelshof, Leipzig / Germany. Architecture and lighting design: Markus-Diedenhofen Innenarchitektur, Reutlingen / Germany. Photography: Thomas Pflaum / AGON / VISUM.

Individualize Nadir IP67 square for your use case

With our “ERCO individual” service we offer you extensive options for the individualization of series products as well as support in the development of sophisticated special luminaires. In order to match Nadir IP67 square even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:

Do you have further requirements with the product?

Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}} {{strasse2}}
{{/strasse2}} {{ort}}
{{staat}}

Call an ERCO consultant: {{fon}}

Your contact partners worldwide

Product features in detail

1 ERCO Spherolit lens

Light distributions: spot or oval flood

2 ERCO LED-module

High-power LEDs: warm white (2700K or 3000K) or neutral white (3500K or 4000K)
Collimating lens made of optical polymer
0°-25° tilt
Directional spotlight rotatable through 90°

3 Perforated shield

Aluminum, silver, highly specular anodized

4 Safety glass

Clear, 1/4" / 6mm
Load 1124lb.wt / 5kN

5 Housing

For mounting in accessories
Corrosion-resistant cast aluminum, No-Rinse surface treatment
Black, double powder-coated
Cable 3xAWG14, L 19 11/16" / 500mm
Mounting accessories to be ordered separately
To avoid submersion in standing water provide local drainage

6 Control gear

Switchable

1 ERCO Spherolit lens

Light distributions: spot or oval flood

2 ERCO LED-module

High-power LEDs: warm white (2700K or 3000K) or neutral white (3500K or 4000K)
Collimating lens made of optical polymer
0°-25° tilt
Directional spotlight rotatable through 90°

3 Perforated shield

Aluminum, silver, highly specular anodized

4 Safety glass

Clear, 1/4" / 6mm
Load 1124lb.wt / 5kN

5 Housing

For mounting in accessories
Corrosion-resistant cast aluminum, No-Rinse surface treatment
Black, double powder-coated
Cable 3xAWG14, L 19 11/16" / 500mm
Mounting accessories to be ordered separately
To avoid submersion in standing water provide local drainage

6 Control gear

Switchable

Nadir IP67 square: Light effect and planning aid

120V/60Hz, 277V/60Hz

Lighting tool

Light distribution

Vertical illuminance for brightening and dividing the space.

Lighting technology
Luminaire arrangement

Grazing light wallwashers

Asymmetrical light distribution for grazing light on walls.

LED module
3W
320lm - 450lm
Grazing light wallwashers

Grazing light wallwashers

For grazing light at selected points, the distance (a) of Nadir IP67 grazing light wallwashers from the wall should be between 8" and 19".

Arrangement: 8" < a > 19"

Emphasis of objects or architectural elements.

Lighting technology
Luminaire arrangement

Directional luminaires

Narrow beam, rotationally symmetrical light distribution for accent lighting.

LED module
3W
320lm - 450lm
Directional luminaires

Directional luminaires

Experience has shown the ideal angle of tilt (a) for accent lighting with Nadir directional luminaires to be 20°. This ensures good modeling without excessive grazing light.

Arrangement: α = 20°

The arrangement (γ) of three luminaires positioned at an angle of 120° to each other allows for all-round illumination of objects in a room.

Arrangement: γ = 120°

Download Nadir IP67 square product brochure

Do you need further information?

I have a question about Nadir IP67 square.

Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}} {{strasse2}}
{{/strasse2}} {{ort}}
{{staat}}

Call an ERCO consultant: {{fon}}

Your contact partners worldwide

You can gladly send us an E-Mail or ask your question here

Name *

E-mail adress *

Telephone number

Project name *

Your role in the project

Postcode/ZIP

Your question *

Your data will be handled confidentially. For further information see Data protection declaration.

I wish to request a quotation.

You can gladly send us your quotation request per E-Mail or place it here

Tip: Use the watch function of the Product overview to request a quotation for several articles.

Name *

E-mail adress *

Telephone number

Project name *

Your role in the project

Postcode/ZIP

Project address

Which article are you interested in? *

Your data will be handled confidentially. For further information see Data protection declaration.

Configure Nadir IP67 square

120V/60Hz, 277V/60Hz

Similar to Nadir IP67 square

More luminaires from the Nadir family

Nadir IP67 round
Recessed floor luminaires

Impressive grazing light
Suitable for wet location (IP67)
Discreet stainless steel frame
