Quintessence square. Elegant accentuation and floodlighting

Square recessed spotlights and recessed floodlights for prestigious areas, exhibitions and salesrooms

Quintessence square in the application

Individualize Quintessence square for your use case

With our “ERCO individual” service we offer you extensive options for the individualization of series products as well as support in the development of sophisticated special luminaires. In order to match Quintessence square even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:

  • Cassette and mounting frame: 10,000 further colors
  • Control: Lutron

Do you have further requirements with the product?

Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}} {{strasse2}}
{{/strasse2}} {{ort}}
{{staat}}

Product features in detail

1

2

3

4

5

6

1

ERCO Spherolit lens

  • Light distributions: narrow spot, spot, flood, wide flood or oval flood
  • Oval flood 360° rotation

2

ERCO LED-module

  • High-power LEDs: warm white (2700K or 3000K) or neutral white (3500K or 4000K)
  • Collimating lens made of optical polymer

3

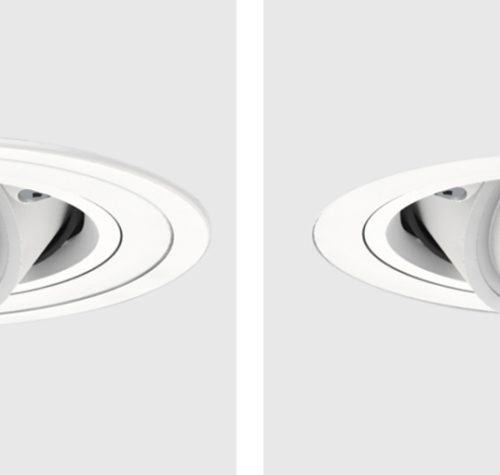

Flush or regressed cassette

  • Polymer, white

4

Mounting frame

  • Covered mounting detail
  • Fixing for ceiling thicknesses of 1-30mm
  • Polymer, white
  • For flush mounting: mounting frame to be ordered separately, fixing for ceiling thicknesses of 1/2" - 1" / 12.5–25mm

5

Housing

  • Cast aluminum

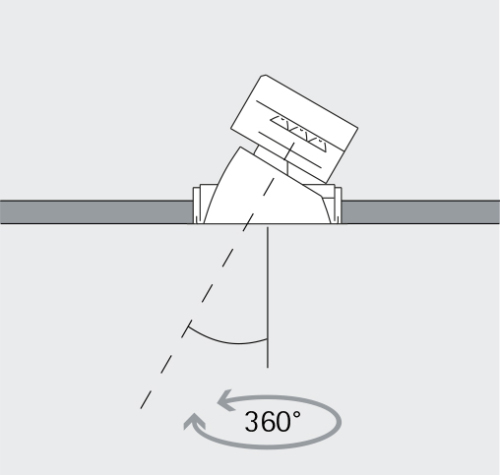

  • Pivotable through 0°–30° or 0°–40°, rotatable through 360°
  • Lockable angles of tilt and rotation
  • Anti-glare ring: polymer or cast aluminum, internal black lacquered, external white

6

Control gear

  • Switchable, trailing edge dimmable or 0-10V dimmable
  • Trailing edge dimmable version: Dimming with external dimmers possible

Quintessence square: Light effect and planning aid

120V/60Hz, 277V/60Hz

Lighting tool

Light distribution

Emphasis of objects or architectural elements.

Do you need further information?

I have a question about Quintessence square.

Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}} {{strasse2}}
{{/strasse2}} {{ort}}
{{staat}}

You can gladly send us an E-Mail or ask your question here



Your data will be handled confidentially. For further information see Data protection declaration.

I wish to request a quotation.

You can gladly send us your quotation request per E-Mail or place it here

Tip: Use the watch function of the Product overview to request a quotation for several articles.



Your data will be handled confidentially. For further information see Data protection declaration.

Configure Quintessence square

120V/60Hz, 277V/60Hz
