Floor washlights with a wide beam are ideal particularly for lighting pathways along walls and façades. Floor washlights with a deep beam are effective in illuminating open spaces such as squares or terraces.

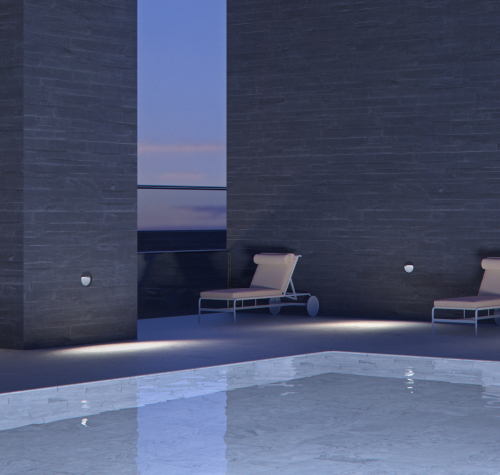

Visor façade luminaires focus the attention very naturally on any architectural setting. Using the wide light distribution, Visor illuminates pathways along walls or buildings evenly over an area wide enough to require a minimum number of luminaires. Their deep-beam version effectively lights squares or terraces.
"Beim Dorf" residential complex, Düsseldorf-Niederkassel. Architect: Lievens und Partner, Aachen. Lighting design: Ingenieurbüro Kiep + Braun, Wuppertal.
Hotel Lago, Ulm. Architect: Nething Generalplaner Ulm/Neu-Ulm. Lighting design: Conplaning GmbH, Ulm/Neu-Ulm/Günzburg.
Private home in Palamós. Architect and lighting designer: Jordi Garcés, Barcelona.
"Lindesnes Fyr" Visitor’s centre, Lindesnes. Architect: Basis Arkitekter AS, Kristiansand.
Private residence, Rheinland. Architect: Ingenhoven Architekten, Düsseldorf. Lighting designer: Clemens Tropp, Tropp Lighting Design, Feldafing.
Eriksdalsbadet, Stockholm. Lighting designer: Retea, Stefan Sjölund, Stockholm.
Private residence in Palamós. Architecture and lighting design: Jordi Garcés, Barcelona.
Doulton Fountain, Glasgow. Architecture and lighting design: Glasgow City Council Building Services
With our “ERCO individual” service we offer you extensive options for the individualization of series products as well as support in the development of sophisticated special luminaires. In order to match Visor even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:
Do you have further requirements with the product?
Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}}
{{strasse2}}
{{/strasse2}}
{{ort}}
{{staat}}
or
or
Lighting tool
Light distribution
Wide-beam illumination of pathways and open areas.
Asymmetrical washlighting with a wide or deep beam for the illumination of pathways or squares.
Visor floor washlights with a wide beam light distribution provide subtle light for a glare-free and uniform illumination of pathways near façades. The recommended mounting height (h) for floor washlights is 2ft above the ground.
Arrangement: h = 2ft
For uniform washlighting of the ground, the luminaire spacing (d) may be up to 3 times the mounting height (h). The luminaire spacing for visual guidance may be up to 10 times the mounting height.
Arrangement: d = 3 x h
Visor floor washlights with a deep beam illuminate open areas along façades uniformly with subtle and glare-free light. The recommended mounting height (h) for floor washlights is 2ft above the ground.
Arrangement: h = 2ft
For uniform washlighting of the ground, the luminaire spacing (d) may be up to 3 times the mounting height (h). The luminaire spacing for visual guidance may be up to 10 times the mounting height.
Arrangement: d = 3 x h
Further Façade luminaires
630 lm / 6 W - 2475 lm / 18 W
2100 lm / 20 W - 2750 lm / 20 W
