ERCO Hi-trac track with uplights. Carrying it off

Hi-trac combines the flexible options of a track with the visual comfort of indirect lighting

Show products

Special features of Hi-trac track and light structure

Wide spacing

Wide spacing

The heavy-duty Hi-trac profiles allow wide spacing between the suspension points for wire or pendant suspensions.

Investment security through flexibility

Investment security through flexibility

Thanks to durable, robust components that have been tried and tested over decades, Hi-trac track provides a high level of investment security, even for future luminaire generations. This flexible infrastructure enables the implementation of lighting concepts with spotlights, downlights and wallwashers.

One track for different types of control

One track for different types of control

ERCO uses a track profile for 2-circuit operation with two separately switchable circuits. You can also integrate wireless control types such as Casambi Bluetooth and Zigbee.

Extensive accessories

Extensive accessories

Whether straight lines, L-shapes or rectangular configurations: use our extensive range of accessories to adapt the track layout to your project.

Product description

Hi-trac track and lighting structure is a heavy-duty infrastructure for suspending spotlights, downlights, wallwashers and pendant luminaires. The Hi-trac profiles with wide spacing of up to 12ft. are particularly recommended in rooms with just a few suspension points. Two variants of the Hi-trac profile are available: Either with empty upper profile for further cable routing or with indirect distribution luminaires to illuminate the ceilings. On the lower side of the Hi-trac profile, the integrated track provides a flexible and sustainable infrastructure. Spotlights, downlights, wallwashers and even pendant luminaires can be fitted there, and can also be moved or replaced with ease. Wire suspensions and pendant tubes offer an elegant solution for suspending Hi-trac and light structures. The extensive range of accessories allows a variety of arrangements and makes the track a universal infrastructure. In addition to 2-circuit mode, the track is also suitable as a power supply for wireless controls such as Casambi Bluetooth and Zigbee. This makes Hi-trac and light structures a very versatile infrastructure for lighting in museums, shops and offices.

This is why you should implement your next project with Hi-trac from ERCO

ERCO Hi-trac track with uplights

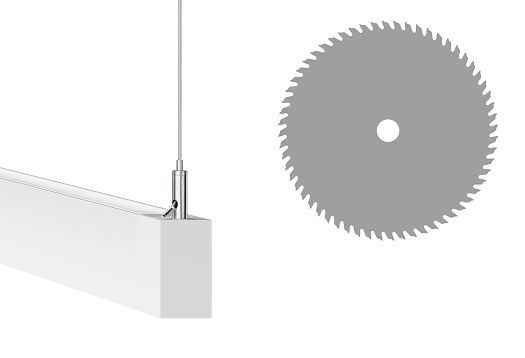

Simply cut to size and install on site
Hi-trac is easily cut to size on site using a miter saw. There is no danger of damaging the conductor paths in the process.

ERCO Hi-trac track with uplights

Extremely stable and durable
Hi-trac is made of high quality aluminum. It is available in lengths up to 12ft. The spotlight adapters are similarly robust: designed for continuous use, the adapters are also not damaged by regular insertion and removal.

ERCO Hi-trac track with uplights

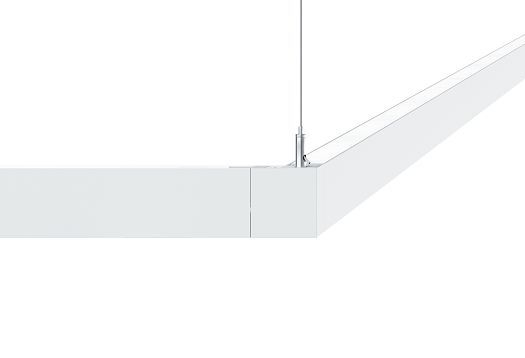

High quality powder coating
Suspended track in particular is distinctly noticeable in architecture. That is why we pay great attention to excellently finished surfaces. Hi-trac is powder coated to a high standard – including the inside of the track. In addition to standard black or white, ERCO track is also available with anodized surfaces and in 10,000 further colors.

ERCO Hi-trac track with uplights in the application

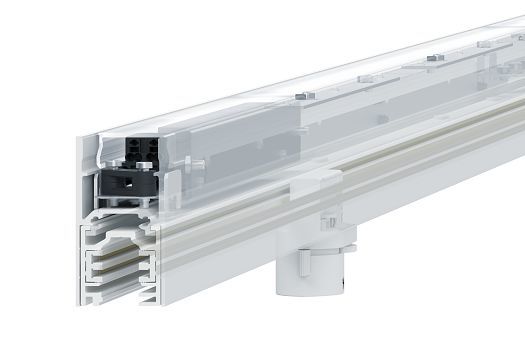

Product features in detail

1

2

3

4

1

Panel profile

  • White (RAL9002) or silver
  • Aluminum, powder-coated
  • Track and panel profile to be assembled on site

2

Contact (lower part)

  • 4 isolated copper conductors
  • 2 separately switchable circuits of 20A each

3

Earth conductor

4

Fixture with LED module (on upper side)

  • High-power LEDs: warm white (2700K or 3000K) or neutral white (3500K or 4000K)
  • Cover: diffuser, polymer, textured
  • Covered control gear: trailing edge dimmable

or

Empty profile (upper side of track)

  • For accommodating through-wiring or cover profiles

Find the right track and light structure for your project

Pendant track

Pendant track

Hi-trac can be suspended from the ceiling with wires or pendant tubes available as accessories.

Pendant track with indirect distribution luminaire

Pendant track with indirect distribution luminaire

Hi-trac can be suspended from the ceiling with wires or pendant tubes available as accessories. The upward distribution luminaires brighten the ceiling and provide indirect general lighting thanks to wide light distribution.

Arranging track

ERCO Hi-trac track with uplights

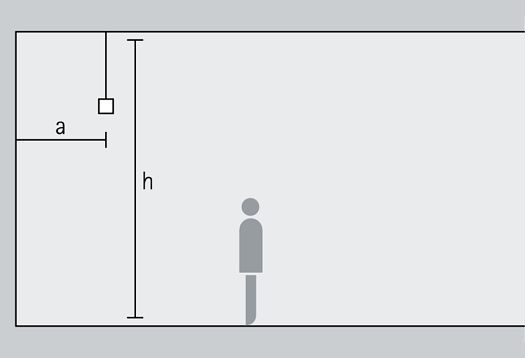

The best arrangement for track is along the walls with a distance to the wall of 1/3 of the room height. In this way you can use spotlights and wallwashers to optimally illuminate the walls of museums, galleries and shops. If furniture such as shelves or cabinets are placed in front of the wall, the distance should be modified according to the front plane of the furniture.

ERCO Hi-trac track with uplights

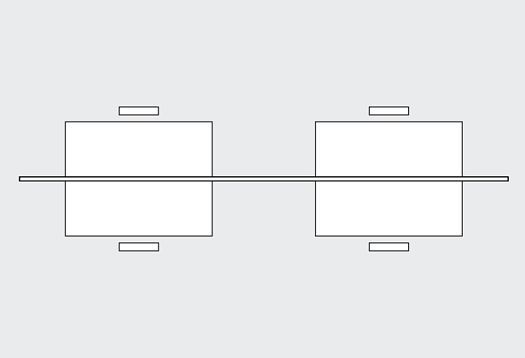

For optimum illumination of office workstations, it is recommended to position the track centered on the longitudinal axis of the desks.

ERCO Hi-trac track with uplights

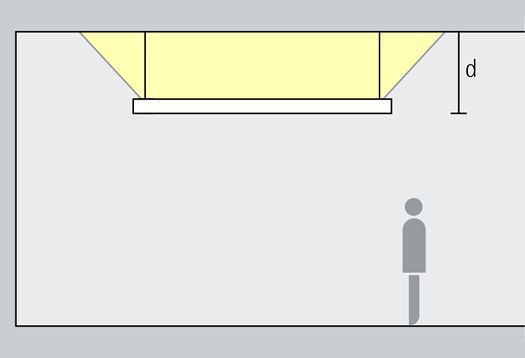

The indirect distribution luminaire can be used to illuminate ceilings to emphasize the dimensions of high rooms. The ideal distance (d) of the light structure to the ceiling is 3ft.

Arrangement: d = 3ft

Downloads

Extensive accessories for universal use

Connectors for various geometries

Connectors for various geometries

Whether straight line, L-shape, rectangle, figure of eight or vertically mounted at right angles – find accessory connectors suitable for the different geometries on the data sheet of the track.

Accessories for diverse suspensions

Accessories for diverse suspensions

Decorative hooks for objects with weights up to 22lbs/10kg transform the track into a versatile infrastructure. Alternatively, mounting components with threaded pins or screws can be used for suspension from the track.

How can we support you?

Allow us to approach your new project together.

Select a service:

Your contact data:

free of charge and without obligation

Your data will be handled confidentially. For further information see Data protection declaration.

Configure ERCO Hi-trac track with uplights

Do you have any questions?

Here you can find initial help. For further questions please contact us via the contact form below.

Where can I purchase track?

Our lighting consultants will clarify all details with you concerning the ordering process. You can find your regional contact partner at: Contact

How long is the delivery time?

Track is ready for shipping within 48 hours. Depending on the scope of the project, the quantity and the geographical location of the recipient, the delivery times with shipping are usually only up to two weeks. Delivery times may vary in individual cases, but we will endeavor to meet your desired delivery date. For further information on our delivery times, please get in touch with your regional contact at: Contact

Where can I find prices for track and accessories?

Do you need an offer for a specific planning task? We would be pleased to prepare an individual project-related offer for you. This, as well as current prices, can be obtained from your local sales representative: Contact

Can I get track in other colors and for other mounting solutions?

We would be pleased to review your individual mounting requirements. Please contact your ERCO lighting consultant. Exciting sample projects that we have implemented with special solutions can be found at: ERCO individual

Can I convert 2-circuit track to wireless control?

Yes, you can also use existing 2-circuit track for wireless control. In this case the track is only used for the power supply. Our regional ERCO lighting consultants are always available to help you with your planning: Contact

Can emergency lighting be integrated?

Solutions for emergency lighting are possible with ERCO track. We would be pleased to check your individual project requirements. Please contact your regional ERCO lighting consultant for this purpose: Contact

Are accessories such as sockets and decorative hooks available for track?

ERCO track has a wide range of accessories. These include socket adapters or decorative hooks that can be used in a variety of ways in shops and museums.

What is the maximum spacing for Hi-trac track and light structures?

The maximum spacing of Hi-trac track and light structures is 12ft. With this spacing, luminaires with a load of up to 16.53lbs / 7.5kg can be fitted on the track. With spacing of 8ft / 2m, loads up to 35.27lbs / 16kg can be mounted within 8ft / 2m.
