Light Board. An established archetype

Light Board is a strong partner for virtually any lighting task

Light Board

High lumen packages for very high illuminances

High-contrast accent lighting allows you to attract attention. The ERCO Program features a range of efficient luminaires with high lumen packages designed specifically for this purpose.

Light Board

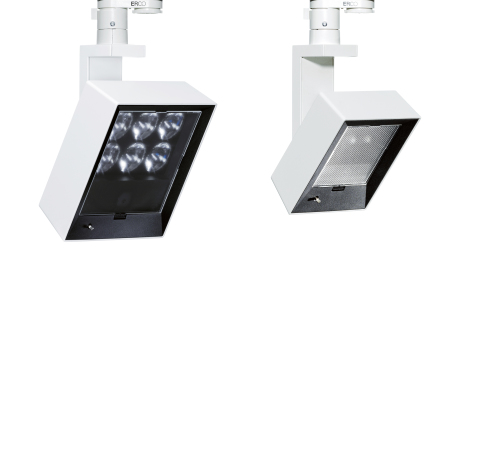

Small luminaire dimensions

Small luminaires appear unobtrusive and direct the focus onto the light. Compact luminaire dimensions are convenient particularly in small spaces.

Structure and characteristics

1

2

3

4

5

1

ERCO Spherolit lens

  • Light distributions: narrow spot, spot, flood, wide flood, extra wide flood, oval flood or wallwash
  • Oval flood adjustable through 90°

2

ERCO LED module

  • High-power LEDs on metal-core PCB
  • Light colors: warm white or neutral white
  • Collimating lens made of optical polymer

3

Housing and bracket

  • White (RAL9002) or silver
  • Cast aluminium, powder-coated
  • 0°-90° tilt
  • Bracket on turning adapter rotatable through 360°
  • Internal wiring
  • Front cover: polymer, black

4

Control gear

  • Phase dimmable
  • Dimming with external dimmers possible (trailing edge) and potentiometer for brightness control 1%–100% on the luminaire

5

ERCO turning adapter for 2-circuit track

The most characteristic feature of Light Board is its striking design. The flat housing integrates the control gear, as sophisticated thermal management ensures a long service life. Innovative photometrics and easy adjustment deliver convincing arguments for use of the Light Board even for challenging tasks in salesrooms and museums. The Light Board concept includes various lumen packages making the range ideal for accent lighting across large distances in rooms with high ceilings as well as for intensive illumination of walls. Light Board as a result is a strong partner for creative lighting concepts with efficient visual comfort.


Pictures of application


System overview 120V/60Hz, 277V/60Hz

  • Spotlights
  • Floodlights
  • Lens wallwashers

Accentuation

Emphasis of objects or architectural elements.

Spotlights

Very narrow to wide beam, rotationally symmetrical light distribution for accent lighting.

  • LED
  • 4W - 48W
  • 420lm - 6600lm
  • Narrow spot, Spot, Flood

Spotlights

Light Board spotlights accentuate artwork, products and architectural details effectively. The ideal angle of tilt (α) for this is around 30°. The object is modelled without distorting the effect as a result of excessive shadowing. It also prevents shadows cast by the observer.

Arrangement: α = 30°
