Optec. The all-round talent

Optec — the spotlight for any purpose.

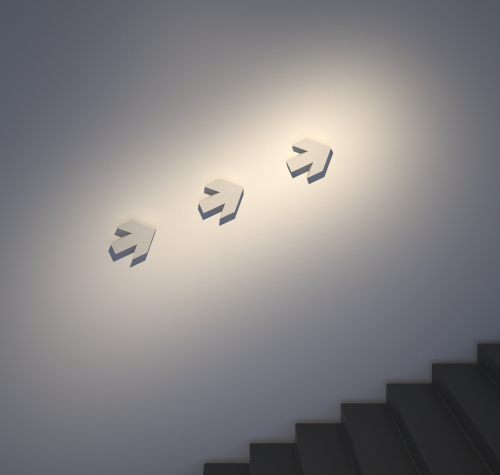

Oval flood can be freely rotated

The Spherolit lens oval flood in round luminaire heads can be rotated freely for optimum adjustment of the lighting on different objects.

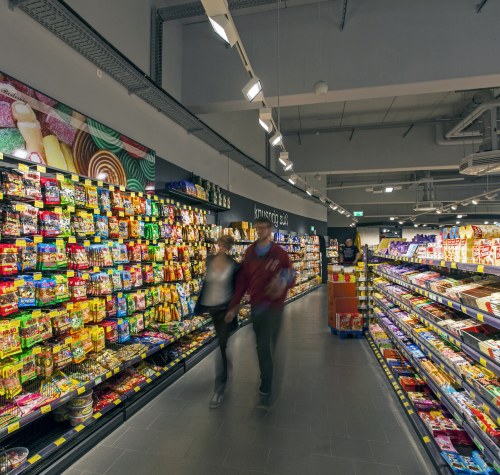

Excellent price/performance ratio

The entry-level products offer an attractive price to performance ratio particularly for design tasks focused on economy.

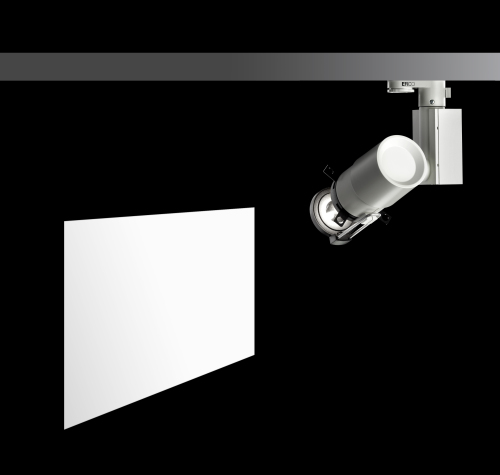

Contour spotlight

Framing attachments enable sharp-edged projections to produce fascinating effects such as a crisp focused beam illuminating images that appear to be self-illuminating.

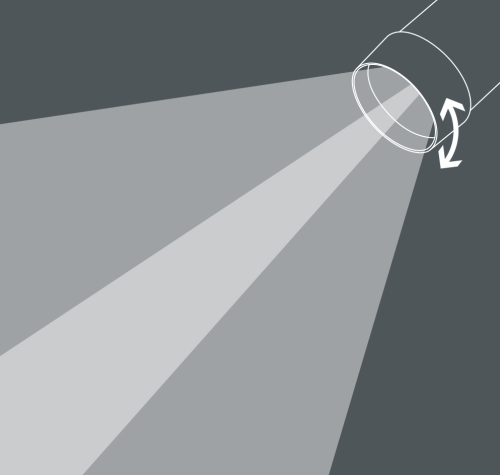

Tiltable 270°

The luminaires can be adjusted precisely for optimum beam alignment. The light, as a result, is emitted exactly where you need it.

Structure and characteristics

1

2

3

4

5

1

ERCO Spherolit lens

  • Light distributions: narrow spot, spot, flood, wide flood, oval flood or wallwash
  • Oval flood rotatable through 360°

2

ERCO LED module

  • High-power LEDs on metal-core PCB
  • Light colors: warm white or neutral white
  • Collimating lens made of optical polymer

3

Cylindrical luminaire head

  • White (RAL9002) or silver
  • Cast aluminium, powder-coated
  • 270° tilt

Contour spotlight:

  • Contour attachment with framing attachment: 360° rotation
  • Holder with projection lens, continuously focusable

4

Housing

  • White (RAL9002) or silver
  • Plastic
  • Rotatable through 360° on adapter

Control gear:

  • Switchable or phase dimmable

Phase dimmable version:

  • Dimming with external dimmers possible (trailing edge)

5

ERCO turning adapter for 2-circuit track

Anything is possible with Optec. In versions with different light distributions, Optec covers the full bandwidth of lighting requirements in shops, galleries and museums — high-contrast accent lighting, floodlighting of exhibits, uniform illumination of walls, or sharp-edged beams for striking effects. With innovative photometrics, Optec combines efficiency with visual comfort.

To ensure excellent thermal management and flawless performance, ERCO has separated the light head and control gear, whilst, at the same time, the combination of cuboid and cylinder creates the visual impression of less volume and a classic design.


System overview

  • Spotlights
  • Contour spotlights
  • Floodlights
  • Lens wallwashers

Optec Spotlights

Very narrow to wide beam, rotationally symmetrical light distribution for accent lighting.

  • 2 W - 150 W
  • 190lm - 15000lm
  • Narrow spot, Spot, Flood, Wide flood,
  • LED, Low-voltage halogen lamps, High-intensity discharge lamps

Optec Spotlights

Angle of tilt for accent lighting: 30°





Product overview

Lighting tool
Light distribution
Colour of light
Housing colour
Control
Lamp type
Power rating
Luminous flux

122 article numbers found

72003.023 Spotlights for low-voltage halogen lamps 37W 900lm 120V/60Hz
72004.023 Spotlights for low-voltage halogen lamps 37W 900lm 120V/60Hz
72007.023 Spotlights for low-voltage halogen lamps Narrow spot 75W 1450lm 120V/60Hz
72008.023 Spotlights for low-voltage halogen lamps Flood 75W 1450lm 120V/60Hz
72009.023 Spotlights for low-voltage halogen lamps Narrow spot 90W 1750lm 120V/60Hz
72012.023 Spotlights for low-voltage halogen lamps Flood 90W 1750lm 120V/60Hz
72014.023 Spotlights for metal halide lamps Narrow spot 39W 3900lm 120V/60Hz
switchable
72015.023 Spotlights for low-voltage halogen lamps Narrow spot 75W 1450lm 120V/60Hz
72016.023 Spotlights for low-voltage halogen lamps Flood 75W 1450lm 120V/60Hz
72017.023 Lens wallwashers for low-voltage halogen lamps 75W 1450lm 120V/60Hz
72018.023 Spotlights for metal halide lamps Flood 39W 3900lm 120V/60Hz
switchable
72019.023 Spotlights for metal halide lamps Narrow spot 70W 7750lm 120V/60Hz
switchable
72020.023 Spotlights for low-voltage halogen lamps Narrow spot 90W 1750lm 120V/60Hz
72021.023 Spotlights for low-voltage halogen lamps Flood 90W 1750lm 120V/60Hz
72022.023 Lens wallwashers for low-voltage halogen lamps 90W 1750lm 120V/60Hz
72023.023 Spotlights for metal halide lamps Wide flood 70W 7750lm 120V/60Hz
switchable
72027.023 Lens wallwashers for low-voltage halogen lamps 75W 1450lm 120V/60Hz
72028.023 Lens wallwashers for low-voltage halogen lamps 90W 1750lm 120V/60Hz
72029.023 Lens wallwashers for metal halide lamps 70W 7750lm 120V/60Hz
switchable
72030.023 Spotlights for metal halide lamps Narrow spot 39W 3900lm 120V/60Hz
switchable
72031.023 Spotlights for metal halide lamps Flood 39W 3900lm 120V/60Hz
switchable
72035.023 Spotlights for metal halide lamps Narrow spot 70W 7750lm 120V/60Hz
switchable
72036.023 Spotlights for metal halide lamps Wide flood 70W 7750lm 120V/60Hz
switchable
72037.023 Lens wallwashers for metal halide lamps 70W 7750lm 120V/60Hz
switchable
72038.023 Spotlights for metal halide lamps Flood 70W 7750lm 120V/60Hz
switchable
72039.023 Spotlights for metal halide lamps Flood 70W 7750lm 120V/60Hz
switchable
72042.023 Spotlights for metal halide lamps Narrow spot 20W 1800lm 120V/60Hz
switchable
72043.023 Spotlights for metal halide lamps Narrow spot 20W 1800lm 120V/60Hz
switchable
72044.023 Spotlights for metal halide lamps Flood 20W 1800lm 120V/60Hz
switchable
72045.023 Spotlights for metal halide lamps Flood 20W 1800lm 120V/60Hz
switchable
72046.023 Lens wallwashers for metal halide lamps 39W 3900lm 120V/60Hz
switchable
72047.023 Lens wallwashers for metal halide lamps 39W 3900lm 120V/60Hz
switchable
72056.023 Lens wallwashers for metal halide lamps 20W 1800lm 120V/60Hz
switchable
72057.023 Lens wallwashers for metal halide lamps 20W 1800lm 120V/60Hz
switchable
72058.023 Spotlights for low-voltage halogen lamps 50W 900lm 120V/60Hz
72059.023 Spotlights for low-voltage halogen lamps 50W 900lm 120V/60Hz
72060.023 Spotlights for metal halide lamps Narrow spot 150W 15000lm 120V/60Hz
switchable
72061.023 Spotlights for metal halide lamps Narrow spot 150W 15000lm 120V/60Hz
switchable
72062.023 Spotlights for metal halide lamps Flood 150W 15000lm 120V/60Hz
switchable
72063.023 Spotlights for metal halide lamps Flood 150W 15000lm 120V/60Hz
switchable
72064.023 Spotlights for metal halide lamps Wide flood 150W 15000lm 120V/60Hz
switchable
72065.023 Spotlights for metal halide lamps Wide flood 150W 15000lm 120V/60Hz
switchable
72066.023 Lens wallwashers for metal halide lamps 150W 15000lm 120V/60Hz
switchable
72067.023 Lens wallwashers for metal halide lamps 150W 15000lm 120V/60Hz
switchable
72198.023 Spotlights for metal halide lamps Wide flood 39W 3900lm 120V/60Hz
switchable
72199.023 Spotlights for metal halide lamps Wide flood 39W 3900lm 120V/60Hz
switchable
71001.023 Spotlights with LED Narrow spot warm white 2W 190lm 120V/60Hz
switchable
71004.023 Spotlights with LED Narrow spot neutral white 2W 250lm 120V/60Hz
switchable
71005.023 Spotlights with LED Spot warm white 6W 570lm 120V/60Hz
switchable
71006.023 Spotlights with LED Spot neutral white 6W 750lm 120V/60Hz
switchable
71007.023 Spotlights with LED Flood warm white 6W 570lm 120V/60Hz
switchable
71008.023 Spotlights with LED Flood neutral white 6W 750lm 120V/60Hz
switchable
71009.023 Spotlights with LED Wide flood warm white 6W 570lm 120V/60Hz
switchable
71012.023 Spotlights with LED Wide flood neutral white 6W 750lm 120V/60Hz
switchable
71013.023 Floodlights with LED Oval flood warm white 6W 570lm 120V/60Hz
switchable
71014.023 Floodlights with LED Oval flood neutral white 6W 750lm 120V/60Hz
switchable
71015.023 Lens wallwashers with LED Wallwash warm white 6W 570lm 120V/60Hz
switchable
71016.023 Lens wallwashers with LED Wallwash neutral white 6W 750lm 120V/60Hz
switchable
71017.023 Spotlights with LED Narrow spot warm white 8W 760lm 120V/60Hz
dimmable
71018.023 Spotlights with LED Narrow spot neutral white 8W 1000lm 120V/60Hz
dimmable
71019.023 Spotlights with LED Spot warm white 24W 2280lm 120V/60Hz
dimmable
71022.023 Spotlights with LED Spot neutral white 24W 3000lm 120V/60Hz
dimmable
71023.023 Spotlights with LED Flood warm white 24W 2280lm 120V/60Hz
dimmable
71024.023 Spotlights with LED Flood neutral white 24W 3000lm 120V/60Hz
dimmable
71025.023 Spotlights with LED Wide flood warm white 24W 2280lm 120V/60Hz
dimmable
71026.023 Spotlights with LED Wide flood neutral white 24W 3000lm 120V/60Hz
dimmable
71027.023 Floodlights with LED Oval flood warm white 24W 2280lm 120V/60Hz
dimmable
71028.023 Floodlights with LED Oval flood neutral white 24W 3000lm 120V/60Hz
dimmable
71029.023 Lens wallwashers with LED Wallwash warm white 24W 2280lm 120V/60Hz
dimmable
71033.023 Lens wallwashers with LED Wallwash neutral white 24W 3000lm 120V/60Hz
dimmable
71070.023 Spotlights with LED Narrow spot warm white 2W 190lm 120V/60Hz
switchable
71073.023 Spotlights with LED Narrow spot neutral white 2W 250lm 120V/60Hz
switchable
71074.023 Spotlights with LED Spot warm white 6W 570lm 120V/60Hz
switchable
71077.023 Spotlights with LED Spot neutral white 6W 750lm 120V/60Hz
switchable
71078.023 Spotlights with LED Flood warm white 6W 570lm 120V/60Hz
switchable
71079.023 Spotlights with LED Flood neutral white 6W 750lm 120V/60Hz
switchable
71080.023 Spotlights with LED Wide flood warm white 6W 570lm 120V/60Hz
switchable
71081.023 Spotlights with LED Wide flood neutral white 6W 750lm 120V/60Hz
switchable
71082.023 Floodlights with LED Oval flood warm white 6W 570lm 120V/60Hz
switchable
71083.023 Floodlights with LED Oval flood neutral white 6W 750lm 120V/60Hz
switchable
71084.023 Lens wallwashers with LED Wallwash warm white 6W 570lm 120V/60Hz
switchable
71085.023 Lens wallwashers with LED Wallwash neutral white 6W 750lm 120V/60Hz
switchable
71086.023 Spotlights with LED Narrow spot warm white 8W 760lm 120V/60Hz
dimmable
71087.023 Spotlights with LED Narrow spot neutral white 8W 1000lm 120V/60Hz
dimmable
71088.023 Spotlights with LED Spot warm white 24W 2280lm 120V/60Hz
dimmable
71089.023 Spotlights with LED Spot neutral white 24W 3000lm 120V/60Hz
dimmable
71090.023 Spotlights with LED Flood warm white 24W 2280lm 120V/60Hz
dimmable
71091.023 Spotlights with LED Flood neutral white 24W 3000lm 120V/60Hz
dimmable
71092.023 Spotlights with LED Wide flood warm white 24W 2280lm 120V/60Hz
dimmable
71093.023 Spotlights with LED Wide flood neutral white 24W 3000lm 120V/60Hz
dimmable
71094.023 Floodlights with LED Oval flood warm white 24W 2280lm 120V/60Hz
dimmable
71095.023 Floodlights with LED Oval flood neutral white 24W 3000lm 120V/60Hz
dimmable
71096.023 Lens wallwashers with LED Wallwash warm white 24W 2280lm 120V/60Hz
dimmable
71097.023 Lens wallwashers with LED Wallwash neutral white 24W 3000lm 120V/60Hz
dimmable
71142.023 Spotlights with LED Narrow spot warm white 4W 380lm 120V/60Hz
switchable
71143.023 Spotlights with LED Narrow spot neutral white 4W 500lm 120V/60Hz
switchable
71144.023 Spotlights with LED Spot warm white 12W 1140lm 120V/60Hz
dimmable
71145.023 Spotlights with LED Spot neutral white 12W 1500lm 120V/60Hz
dimmable
71151.023 Spotlights with LED Flood warm white 12W 1140lm 120V/60Hz
dimmable
71153.023 Spotlights with LED Flood neutral white 12W 1500lm 120V/60Hz
dimmable
71154.023 Spotlights with LED Wide flood warm white 12W 1140lm 120V/60Hz
dimmable
71157.023 Spotlights with LED Wide flood neutral white 12W 1500lm 120V/60Hz
dimmable
71158.023 Floodlights with LED Oval flood warm white 12W 1140lm 120V/60Hz
dimmable
71159.023 Floodlights with LED Oval flood neutral white 12W 1500lm 120V/60Hz
dimmable
71160.023 Lens wallwashers with LED Wallwash warm white 12W 1140lm 120V/60Hz
dimmable
71161.023 Lens wallwashers with LED Wallwash neutral white 12W 1500lm 120V/60Hz
dimmable
71183.023 Spotlights with LED Narrow spot warm white 4W 380lm 120V/60Hz
switchable
71184.023 Spotlights with LED Narrow spot neutral white 4W 500lm 120V/60Hz
switchable
71185.023 Spotlights with LED Spot warm white 12W 1140lm 120V/60Hz
dimmable
71186.023 Spotlights with LED Spot neutral white 12W 1500lm 120V/60Hz
dimmable
71187.023 Spotlights with LED Flood warm white 12W 1140lm 120V/60Hz
dimmable
71188.023 Spotlights with LED Flood neutral white 12W 1500lm 120V/60Hz
dimmable
71189.023 Spotlights with LED Wide flood warm white 12W 1140lm 120V/60Hz
dimmable
71190.023 Spotlights with LED Wide flood neutral white 12W 1500lm 120V/60Hz
dimmable
71191.023 Floodlights with LED Oval flood warm white 12W 1140lm 120V/60Hz
dimmable
71192.023 Floodlights with LED Oval flood neutral white 12W 1500lm 120V/60Hz
dimmable
71193.023 Lens wallwashers with LED Wallwash warm white 12W 1140lm 120V/60Hz
dimmable
71194.023 Lens wallwashers with LED Wallwash neutral white 12W 1500lm 120V/60Hz
dimmable
71213.023 Contour spotlights with LED warm white 6W 570lm 120V/60Hz
switchable
71214.023 Contour spotlights with LED neutral white 6W 750lm 120V/60Hz
switchable
71217.023 Contour spotlights with LED warm white 6W 570lm 120V/60Hz
switchable
71218.023 Contour spotlights with LED neutral white 6W 750lm 120V/60Hz
switchable
Art. No. Lighting tool Light distribution Colour of light Power rating Luminous flux

Design data
