Hi-trac track and light structure. Carrying it off

Hi-trac combines the flexible options of a track with the visual comfort of indirect lighting

Hi-trac track and light structure

Excellent uniformity

ERCO has upgraded the Hi-trac to fulfil the highest expectations for indirect lighting.

Hi-trac track and light structure

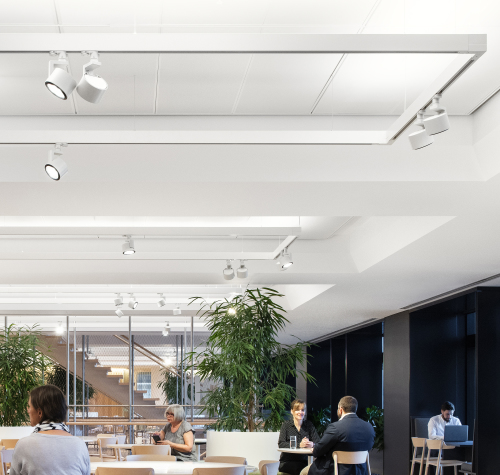

Focus on mounting and accessories

ERCO’s differentiated product range has stood the test even in special situations – from planning complex light structures to meeting high load requirements. The earth conductor in ERCO track systems is set in the lower profile edge. When selecting live end, L- and T-connectors, it must be ensured that the continuous line is not interrupted. The position of the earth conductor is established by the orientation of the track system.

Hi-trac track and light structure

Flexible infrastructure

With very wide spacing between the suspensions, Hi-trac provides infrastructure with high structural efficiency for illumination via track.

Structure and characteristics

1

2

3

4

1

Panel profile

  • Aluminum, powder-coated
  • White (RAL9002) or silver
  • Track and panel profile to be assembled on site

2

Contacts (lower part)

  • 4 isolated copper conductors
  • 2 separately switchable circuits of 20A each

3

Earth conductor

4

ERCO LED module (upper luminaire part)

  • High-power LEDs on metal-core PCB
  • Light colors: warm white or neutral white
  • Diffuser, polymer, textured
  • Covered control gear: phase dimmable

or:

Empty profile (upper track part)

  • For fixing of through-wiring or cover profile

The Hi-trac light structure is a heavy-duty system and allows very wide spacing between the suspensions. Hi-trac is an aluminum extrusion and available with integrated ERCO track in two versions: either with an empty upper compartment for cables or as an indirect luminaire. Hi-trac enables the combination of indirect lighting with accent light from the track.



System overview 120V/60Hz, 277V/60Hz

  • 2-circuit track
  • Luminaires, indirect

Structural elements

System used for connecting luminaires for track.

2-circuit track

For power supply to luminaires for track.

2-circuit track
