Focalflood. Grazing light to perfection

Emphasizing façade surfaces with white light

Focalflood

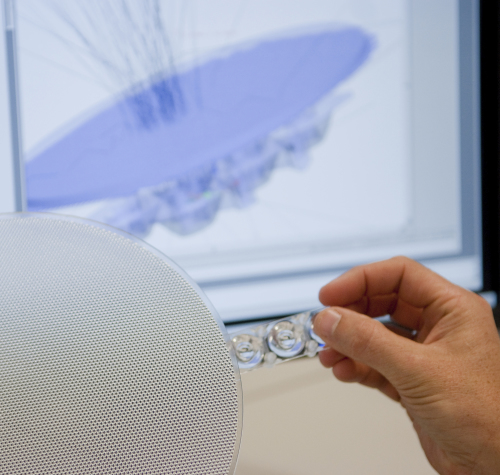

Highly efficient photometrics

ERCO’s innovative Spherolit technology achieves a higher light output ratio than conventional lighting technology. By using high-quality optical polymers and modern photometric simulations, transmission losses are reduced to an absolute minimum.

Focalflood

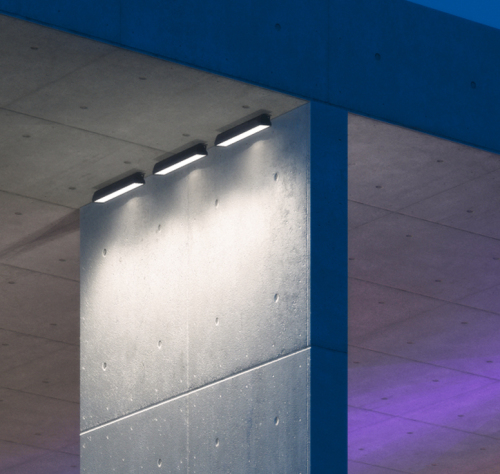

Grazing light wallwasher

Grazing light wallwashers produce amazing lighting effects which highlight the texture of surfaces. To achieve these effects, the luminaires need to be positioned close to the wall. For exact alignment, each luminaire can be tilted by up to 10° in the housing and fixed by using the fixing screws.

Structure and characteristics

1

2

3

4

5

1

ERCO LED module

  • High-power LEDs on metal-core PCB
  • Light colours: warm white or neutral white

2

ERCO reflector

  • Asymmetrical reflector lens system: Aluminium, silver anodized
  • Optimized LED screening ensures no direct light emission

3

Front section

  • Graphit m
  • Corrosion-resistant aluminium, No-Rinse surface treatment
  • Double powder-coated
  • Softec lens

4

Housing

  • Graphit m
  • Corrosion-resistant aluminium profile, No-Rinse surface treatment
  • Double powder-coated
  • Optimized surface for reduced accumulation of dirt
  • Screw-fastened end plates: corrosion-resistant cast aluminium
  • Two mounting brackets for positioning as required: corrosion-resistant aluminium
  • 135° tilt
  • Cable, 3xAWG18 / 3x1mm², L 59“ / 1.5m

5

Control gear

  • Switchable

Grazing light delivers incredibly effective illumination of building surfaces and emphasizes details through high-contrast shadows - such superb results are achieved with Focalflood façade luminaires. Optimized for grazing light, their lens system enables wide luminaire spacing, still producing excellent uniformity on the façade. The luminaire is easily oriented and smoothly adjusted to further optimize its grazing light. The Focalflood façade luminaire offers a highly precise, narrow light distribution over the whole wall to minimize spill light. Focalflood façade luminaires thus provide a creative basis for transforming façades into an eye-catching feature, washlit with magic grazing light.


Pictures of application


System overview 120V/60Hz, 277V/60Hz

  • Façade luminaires

Accentuation

Emphasis of the façade produced by a narrow light beam.

Façade luminaires

Asymmetrical light distribution for accentuated façade lighting.

  • LED
  • 20W
  • 2100lm - 2750lm

Façade luminaires

Focalflood façade luminaires allow surface textures to come to the foreground of attention. The luminaire should be mounted at a height that restricts the view into the luminaire from above.
Application area: Surfaces with a three-dimensional texture, e.g. natural stone walls.

For good longitudinal uniformity, the spacing (d) of two Focalflood façade luminaires may be up to 1m.

Arrangement: d = 1m
