Kona. Maximum visual comfort for big tasks

High luminous flux and maximum visual comfort for lighting tasks in the outdoor area

Kona

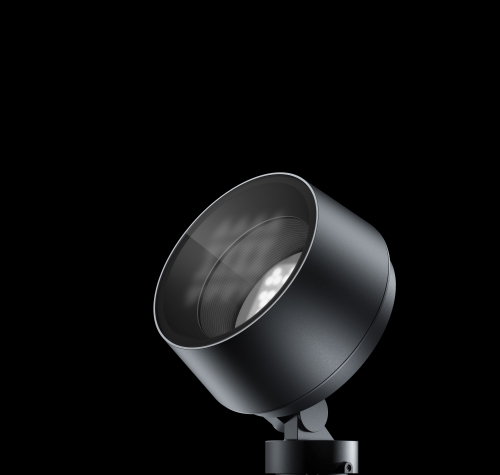

Enhanced visual comfort

ERCO has developed luminaires with special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.

Kona

Oval flood can be freely rotated

The Spherolit lens oval flood in round luminaire heads can be rotated freely for optimum adjustment of the lighting on different objects.

Kona

Lockable

The luminaire can be locked in position for secure fixing of the beam direction.

Kona

High lumen packages for very high illuminances

High-contrast accent lighting allows you to attract attention. ERCO provides an extensive range of efficient luminaires with high lumen packages designed specifically for this purpose.

Kona

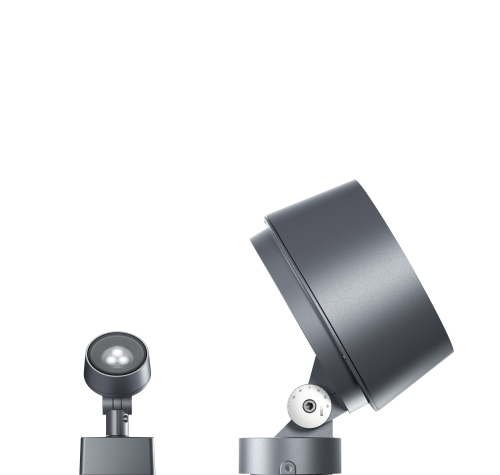

Different sizes

The luminaires in the ERCO product range cover a wide variety of lumen categories and therefore offer an appropriate solution for a large number of lighting tasks.

Structure and characteristics

1

2

3

4

5

1

ERCO Spherolit lens

  • Light distributions: narrow spot, spot, flood, wide flood, oval flood or wallwash
  • Oval flood: rotatable through 360°

2

ERCO LED module

  • High-power LEDs on metal-core PCB
  • Light colours: warm white or neutral white
  • Collimating lens made of optical polymer

3

Housing

  • Graphit m
  • Corrosion-resistant cast aluminium, No-Rinse surface treatment
  • Double powder-coated
  • Optimized surface for reduced accumulation of dirt
  • Anti-glare cone: polymer, black lacquered
  • Safety glass

4

Control gear

  • 0-10V dimmable
  • Dimming with external dimmers possible (0-10V)

5

Mounting plate and hinge

  • Corrosion-resistant cast aluminum, No-Rinse surface treatment
  • Graphit m, double powder-coated
  • Luminaire rotatable through 300°
  • Hinge: 90° tilt
  • Internal wiring
  • Graduated disc: corrosion-resistant aluminum

Kona is great for the illumination of large buildings or objects. Its round tapered housing ensures maximum visual comfort with excellent glare control. The luminaire is available in three sizes with a wide range of light distributions - from accented lighting at a great distance using narrow spot Spherolit lenses to wide flood and oval flood distribution operations all the way through to homogeneous washlighting with wallwash lens. High luminous flux packages define Kona as the perfect lighting tool for great projection distances and allow the luminaires to be spaced far apart. With its round shape, Kona can be used flexibly in different spatial situations and architectural formats. Maintenance-free optoelectronics are designed for a long life and help reduce the operating costs while enabling operation in mounting locations with challenging access. Kona offers a weather-resistant housing and a rotatable and tiltable mounting plate that can be aligned precisely. An extensive range of mounting hardware means that the luminaire can be installed effortlessly in different outdoor applications.


Pictures of application


System overview 120V/60Hz, 277V/60Hz

  • Projectors
  • Floodlights
  • Lens wallwashers

Accentuation

Emphasis of objects or architectural elements.

Projectors

Very narrow to wide beam, rotationally symmetrical light distribution for accent lighting.

  • LED
  • 18W - 96W
  • 1890lm - 13200lm
  • Narrow spot, Spot, Flood

Projectors

The ideal angle of tilt (α) for accent lighting with Kona projectors is around 30°. This emphasises the three-dimensionality of architectural details, sculptures or trees, without distorting the spatial impression with excessive shadowing.

Arrangement: α = 30°
