Lightscan. Powerful light for large spaces

Effective and efficient general lighting for passages and traffic routes

Lightscan

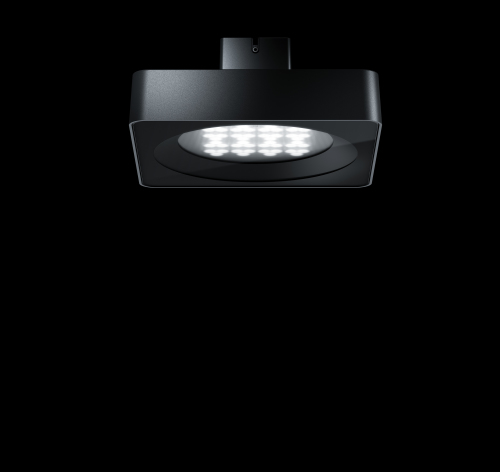

Enhanced visual comfort

ERCO has developed luminaires with special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.

Lightscan

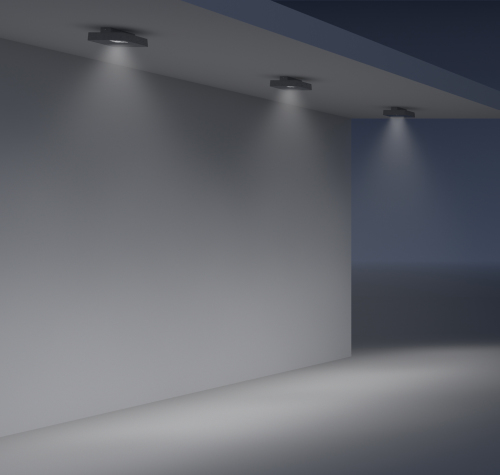

Oval flood can be freely rotated

The round Spherolit oval flood lenses can be rotated freely allowing easy adjustment to site conditions and lighting demands.

Lightscan

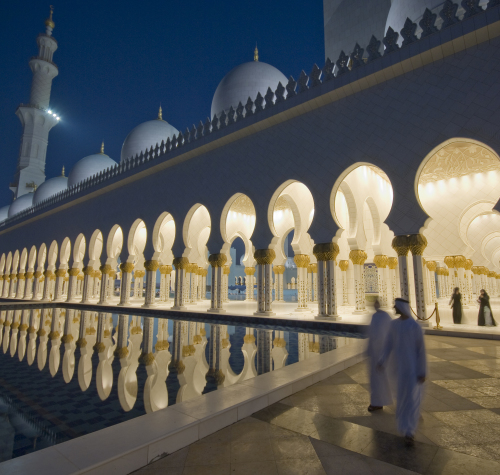

High lumen packages for very high illuminances

ERCO offers luminaires with high lumen packages to produce very high illuminances.

Structure and characteristics

1

2

3

4

5

1

ERCO Spherolit lens

  • Light distributions: wide flood or oval flood
  • Oval flood rotatable through 360°

2

ERCO LED module

  • High-power LEDs on metal-core PCB
  • Light colours: warm white or neutral white
  • Collimating lens made of optical polymer

3

Cover frame

  • Cast aluminium, black, powder-coated
  • Safety glass

4

Housing and ceiling fixture

  • Graphit m
  • Corrosion-resistant cast aluminum, No-rinse surface treatment
  • Double powder-coated

5

Control gear

  • 0-10V dimmable
  • Dimming with external dimmers possible (0-10V)

Lightscan surface-mounted luminaires provide powerful and efficient general lighting for large spaces that call for a higher protection mode in indoor and outdoor applications and for easy maintenance. With high levels of luminous flux, the luminaires enable illumination from a large distance with excellent illuminance levels on the ground. The two light distributions wide flood and oval flood are ideal for use in train stations, passages and arcades and for pathways along the building. Maintenance-free optoelectronics guarantee maximum efficiency to help save our resources and result in lower operating costs.


Pictures of application


System overview 120V/60Hz, 277V/60Hz

  • Surface-mounted downlights
  • Surface-mounted downlights oval flood

General lighting

Ambient lighting produced by wide beam light distribution.

Surface-mounted downlights

Wide beam, rotationally symmetrical light distribution for general lighting.

  • LED
  • 48W - 96W
  • 5040lm - 13200lm
  • Wide flood

Surface-mounted downlights

For uniform ambient lighting, the spacing (d) between two Lightscan surface-mounted downlights may be up to approximately half the height (h) of the luminaire above the working plane.

Arrangement: d = h / 2

Application: halls and high spaces with canopies, e.g. airports or train stations.

The wall offset should be half the luminaire spacing.

Arrangement: a = d / 2
