7 tips for your perfect wallwashing

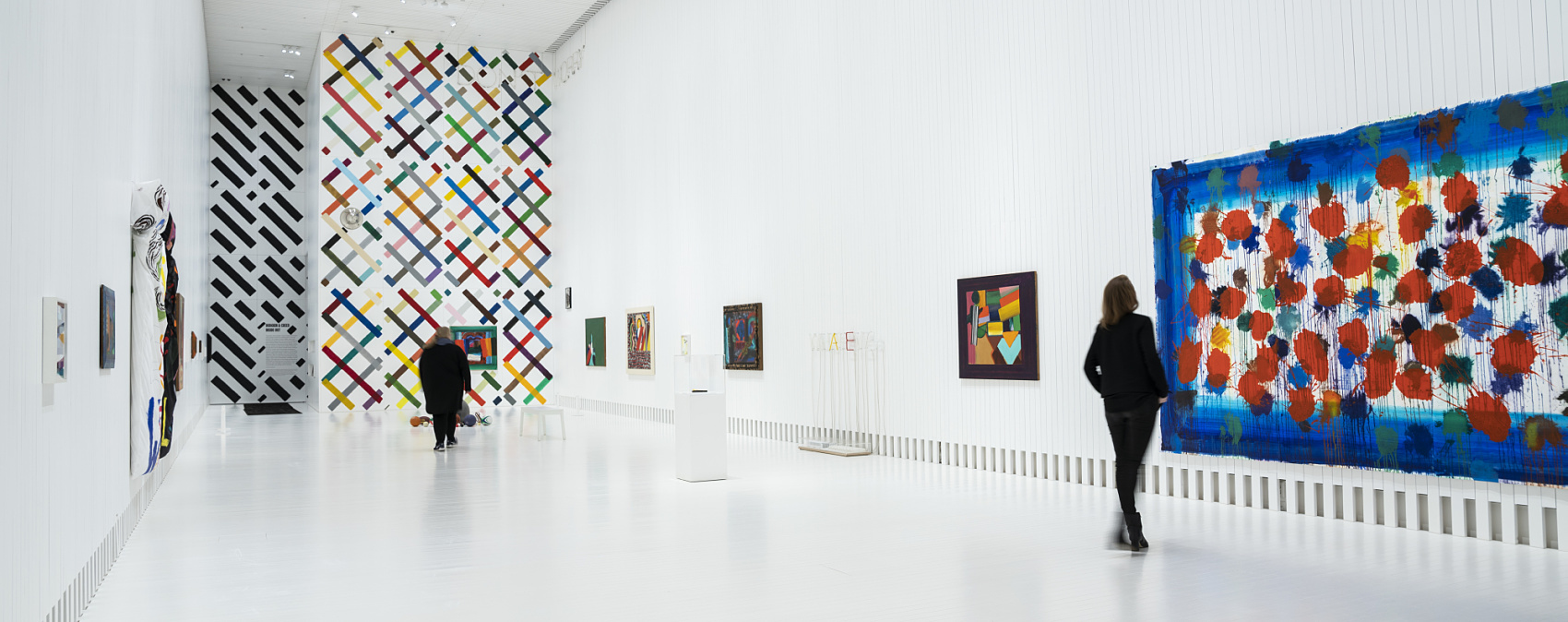

Illuminated walls significantly contribute to the impact that light has in architectural spaces. In museums and shops, vertical light displays and showcases art and products. Wallwashing helps people find their bearings, enlarges rooms and enhances surfaces, for example with use of grazing light. Because different situations have their own specific requirements, ERCO has developed a set of nuanced LED lighting tools to provide the best possible solution for each and every task.

Vertical lighting is one of the fundamental elements in lighting design. Wallwashing defines the room and emphasizes its use because it not only contributes to the perception of brightness but also increases visual comfort in offices for example, as well as providing orientation. Different mounting situations and special requirements with regard to the flexibility of light have led to a very wide range of lighting tools now being available for vertical lighting.

7 tips for your perfect wallwashing

The versatile use of wallwashing in architecture

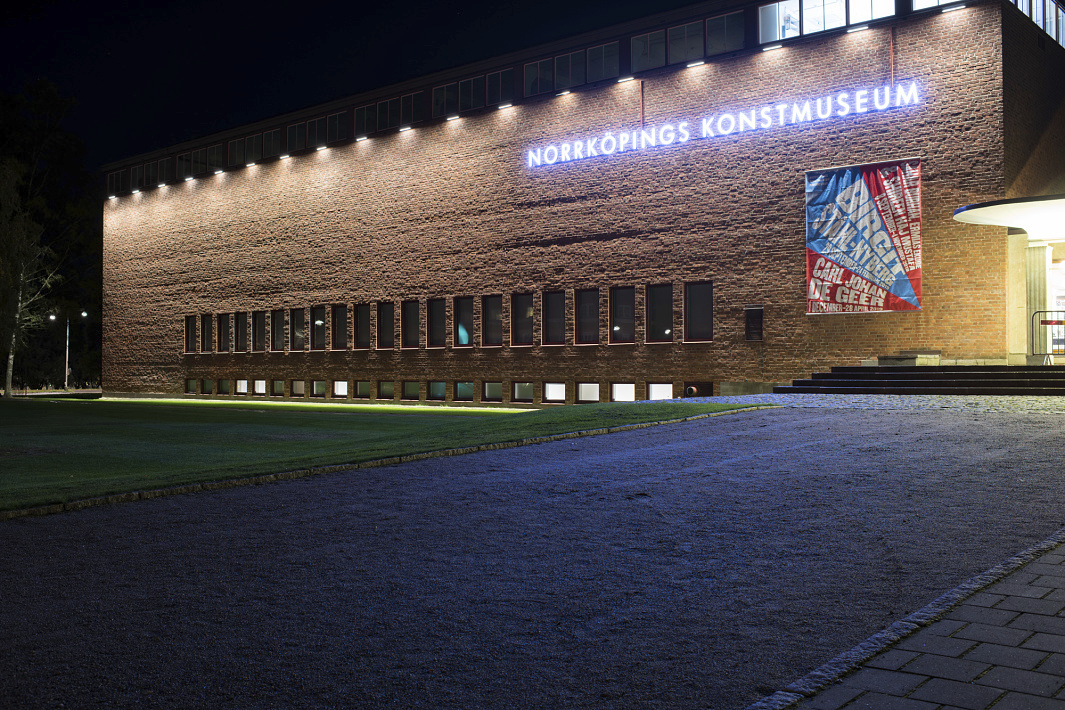

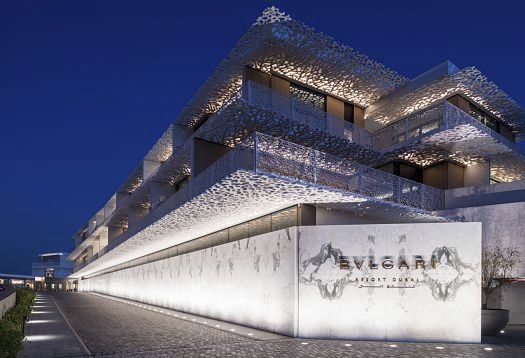

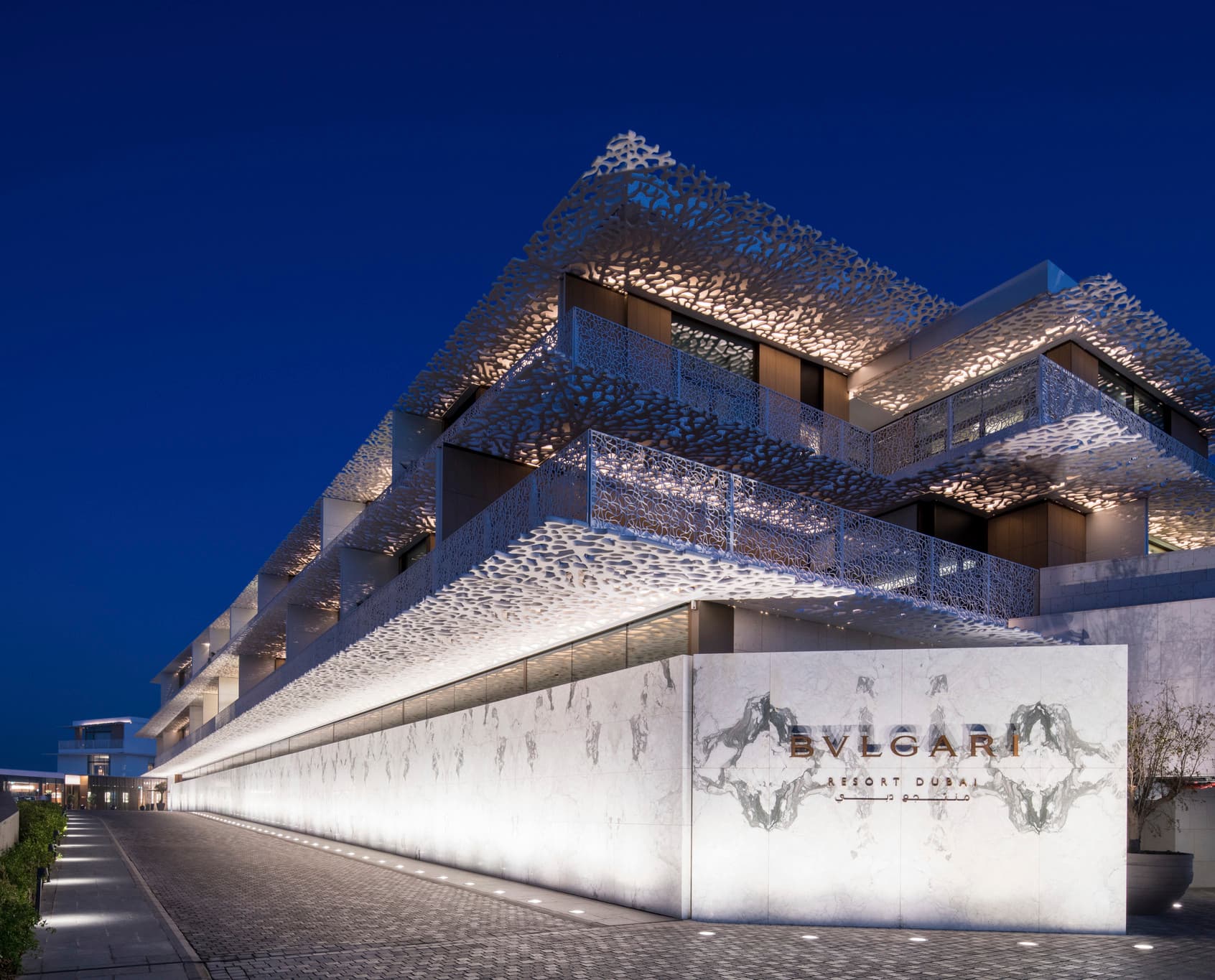

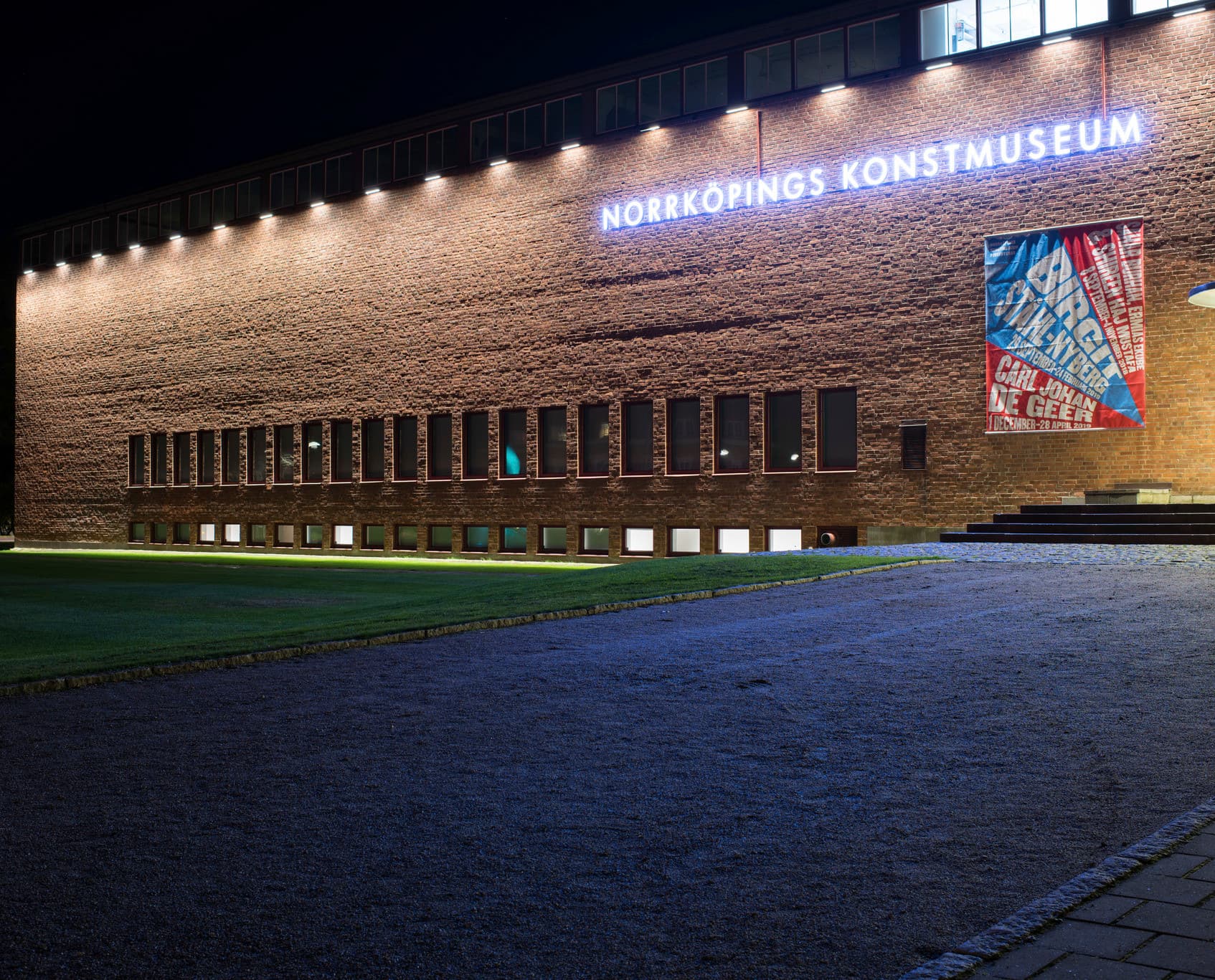

Wallwashing is a central component of qualitative lighting design because brightly lit walls can perform a variety of tasks. Examples are providing orientation, creating width and enhancing surfaces with the application of grazing light. The lighting effect on walls can be used both indoors and outdoors. In indoor environments the light emphasizes relevant areas of the room or artworks and outside, facade lighting gives structure to plazas whilst grazing light accentuates the tactile details.

Providing orientation

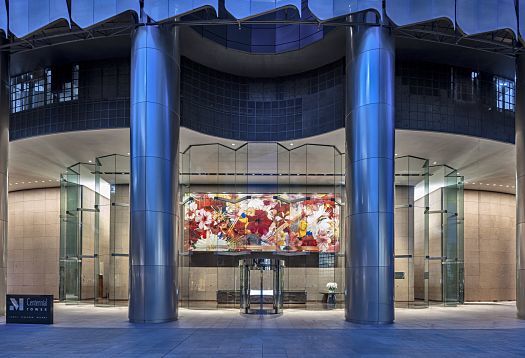

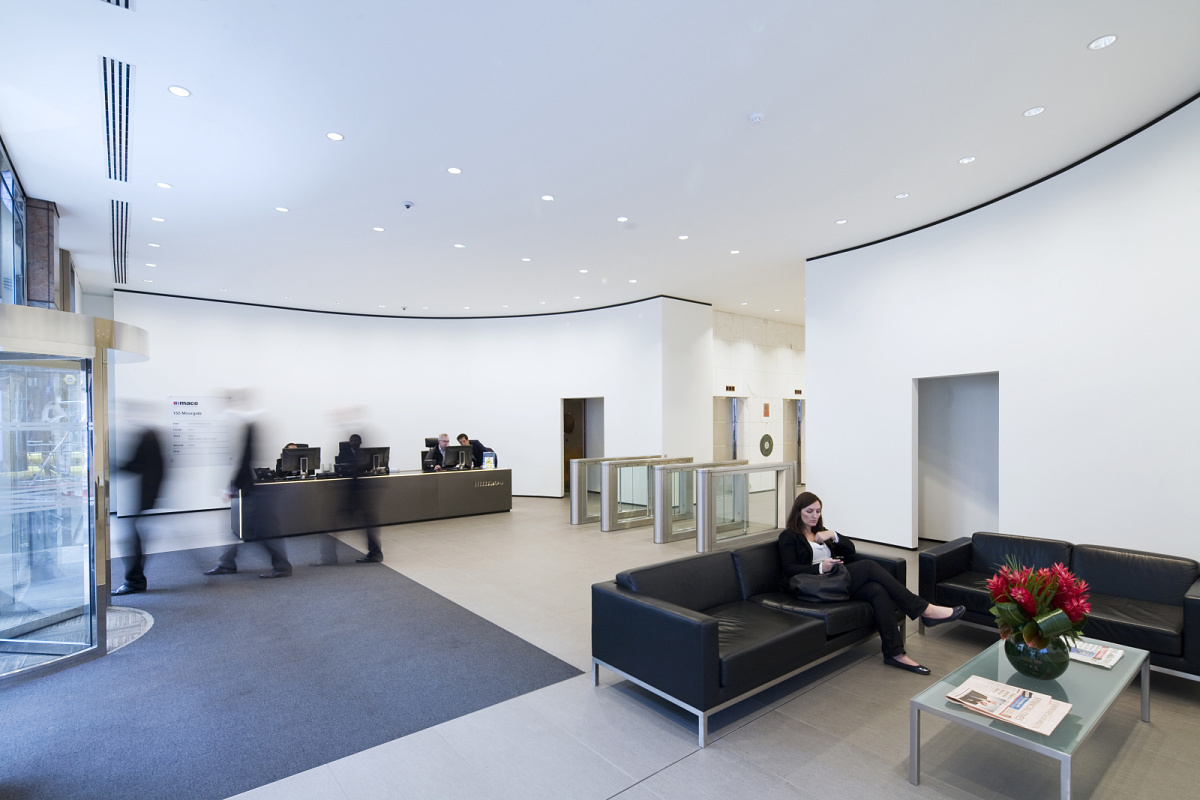

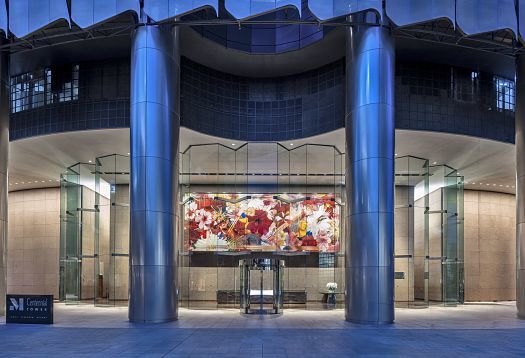

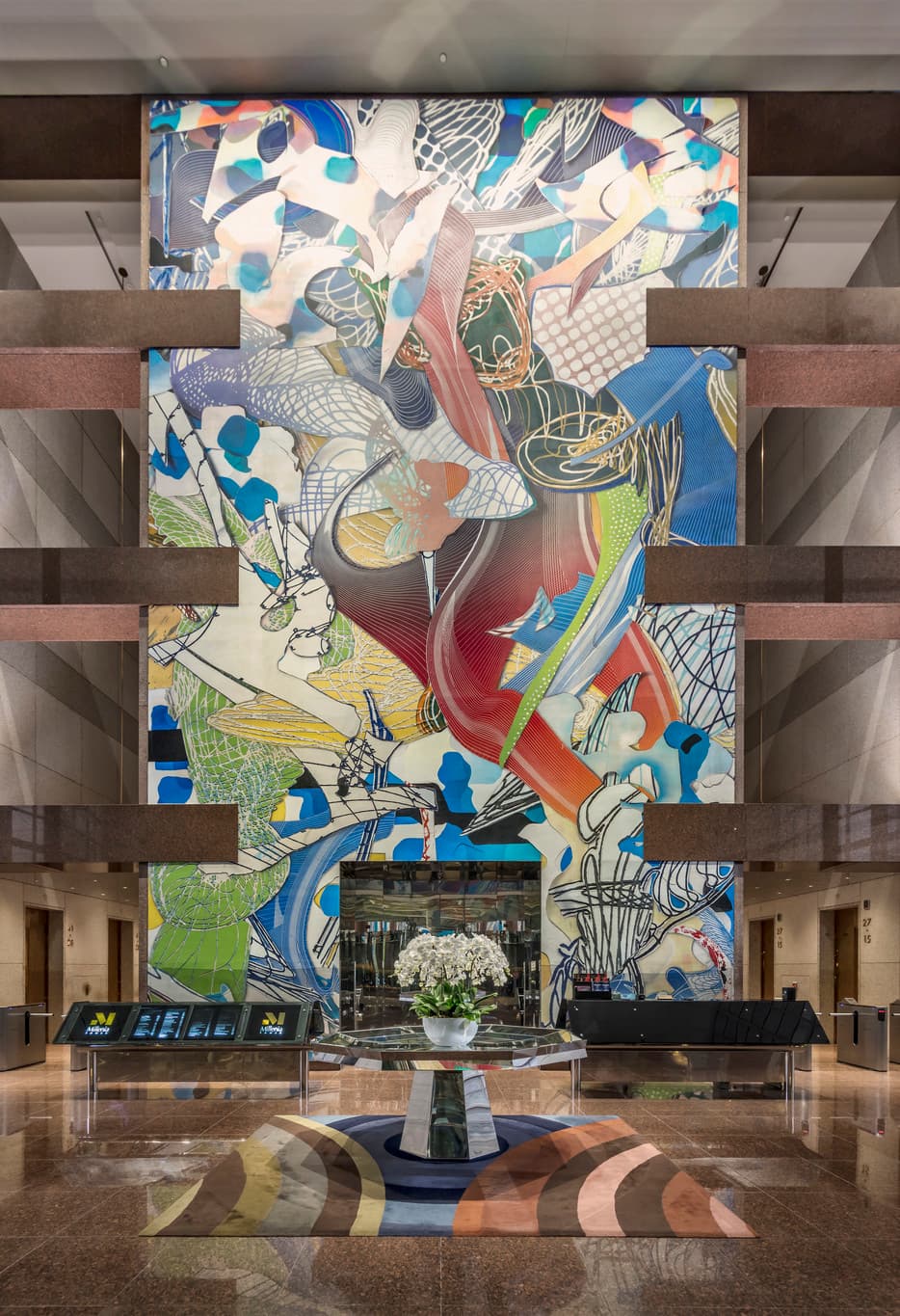

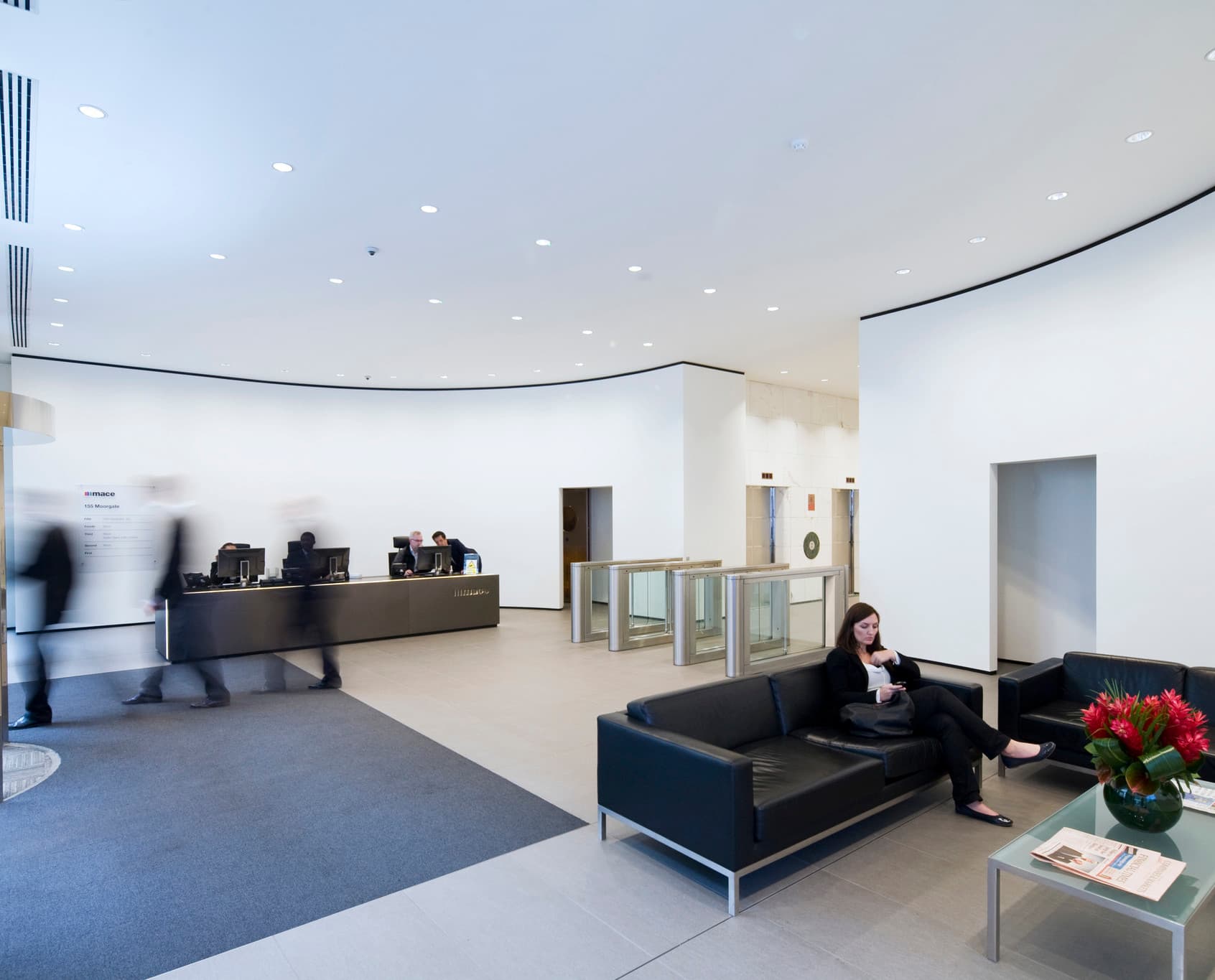

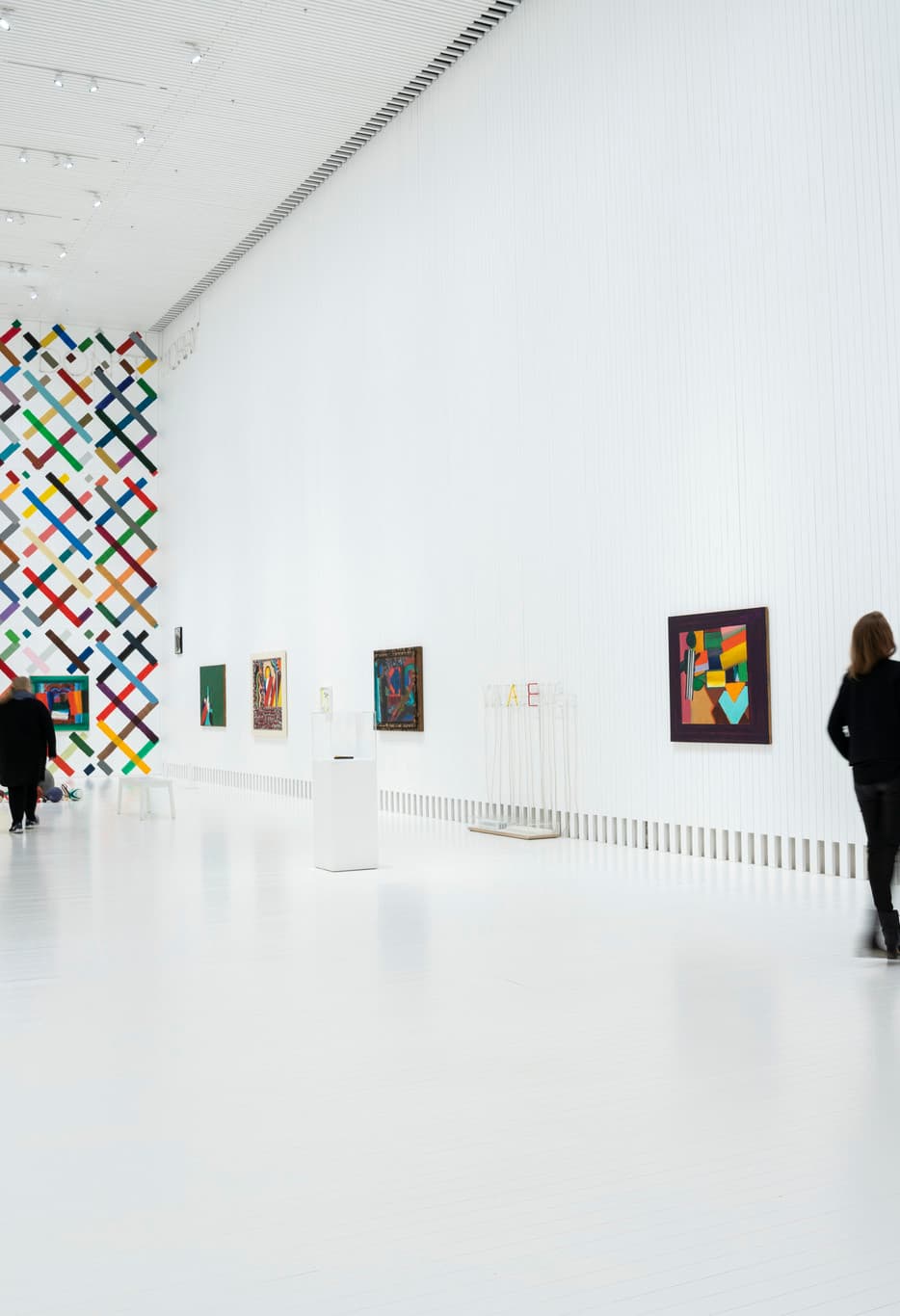

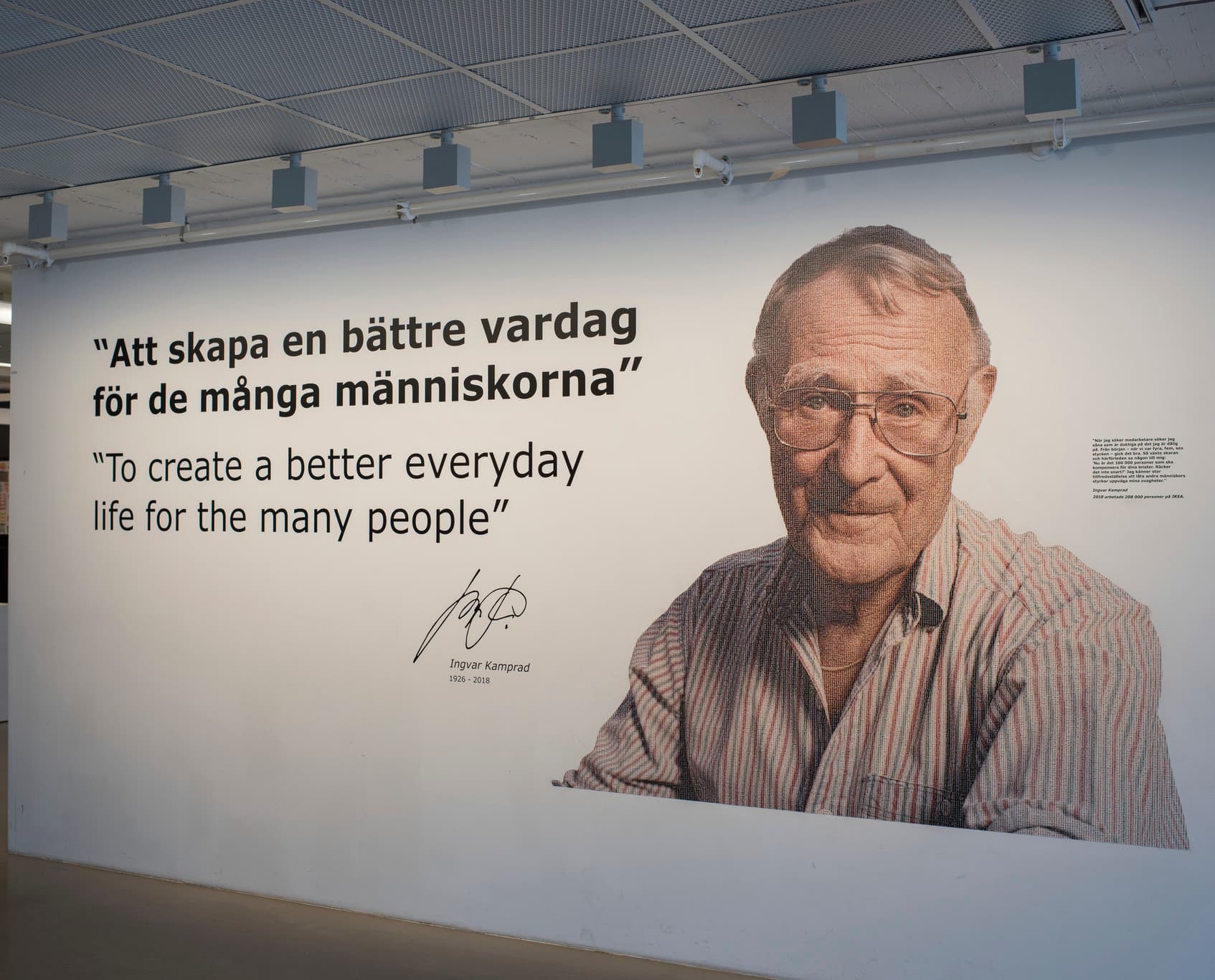

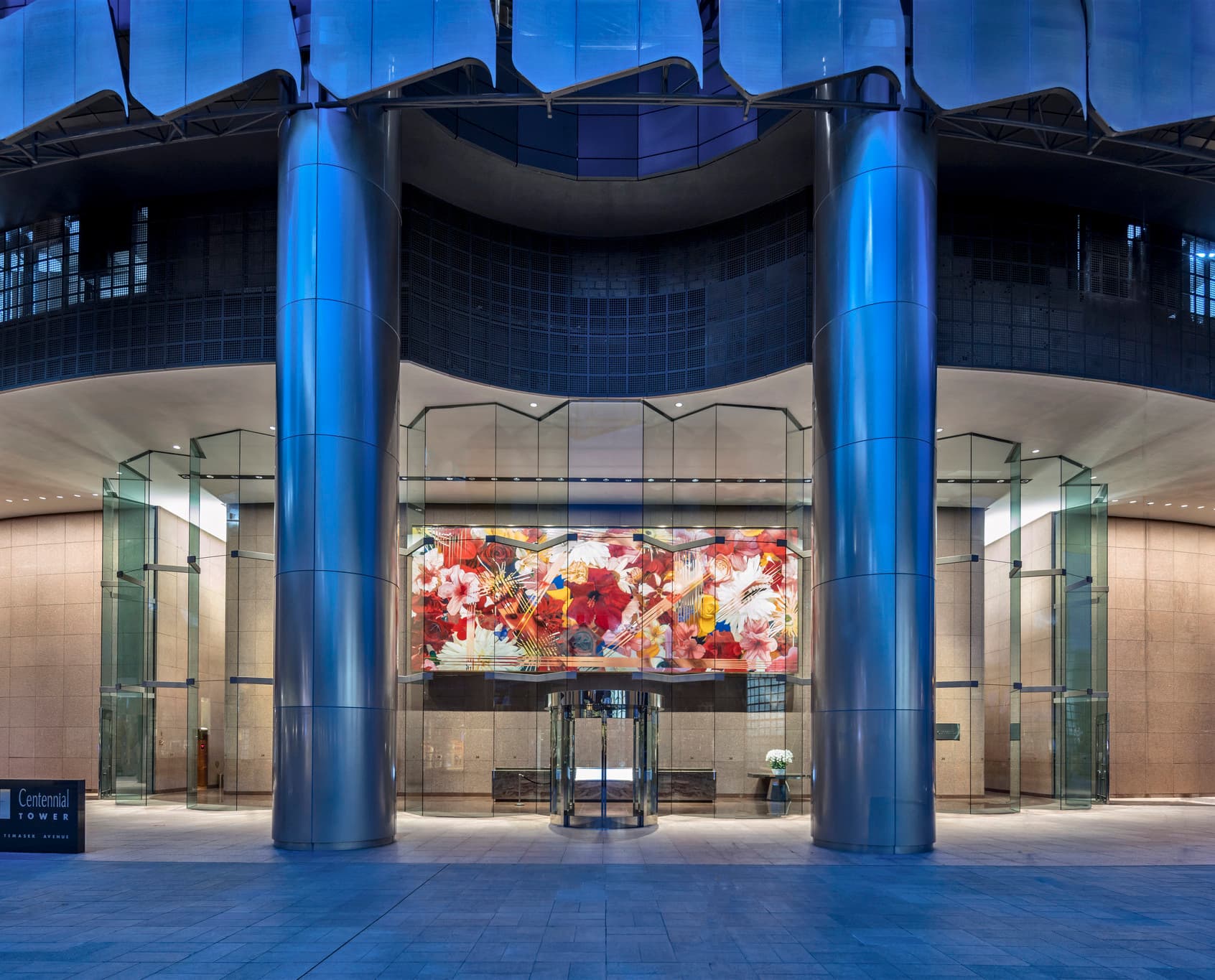

When we enter a room we see the brightest surface first. We unconsciously assign the highest importance to it. Wallwashing points out the axes of the architecture and helps us to comprehend different functional levels and spatial transitions. Lighting thus creates clearly recognizable entrance zones, for example in illuminated foyers. If they are well planned, illuminated walls guide visitors in large buildings to their destinations.

7 tips for your perfect wallwashing
7 tips for your perfect wallwashing

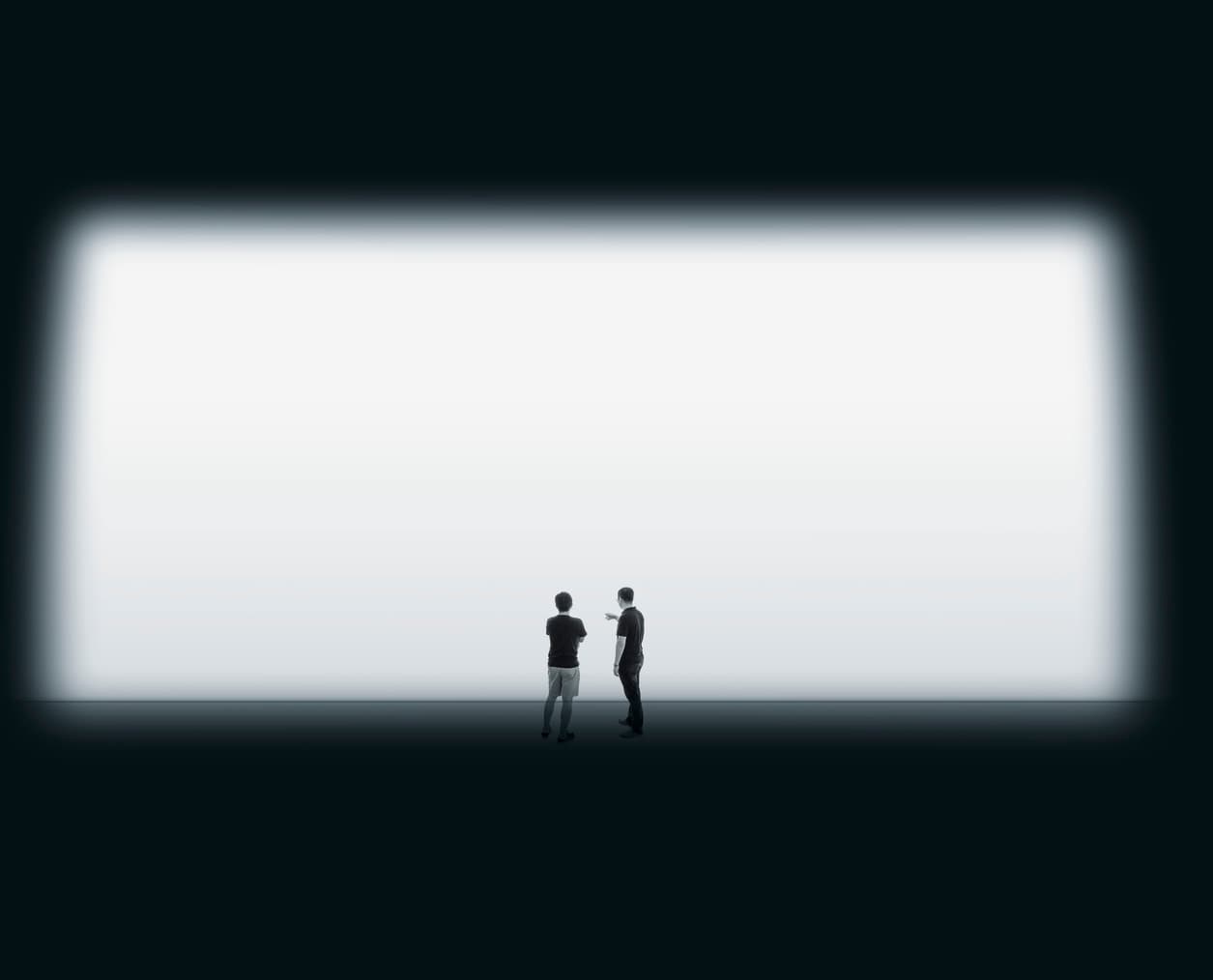

Creating brightness

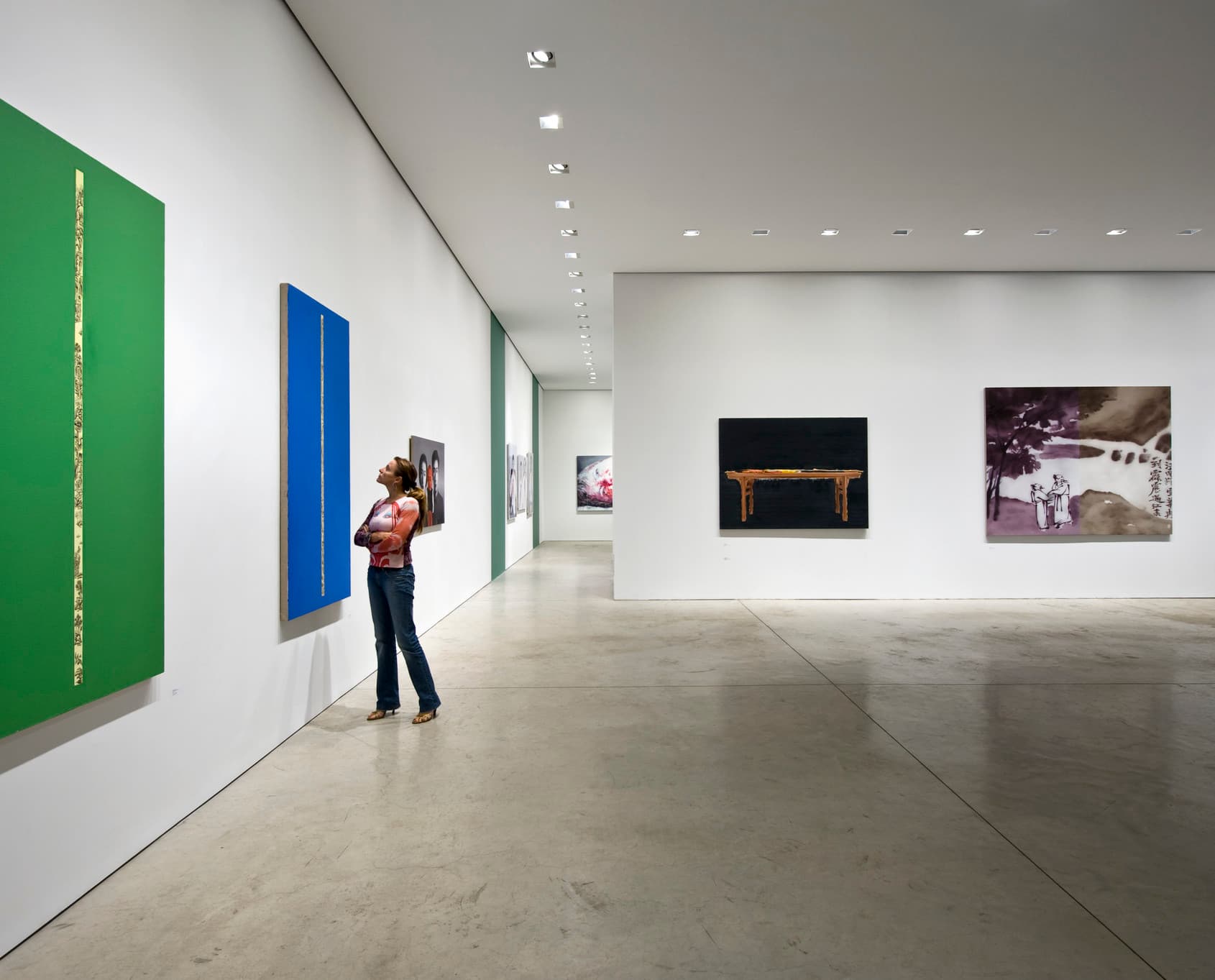

Even with an identical level of illuminance, a vertical surface produces a much higher impression of brightness than an illuminated horizontal surface. Hence wallwashing makes a decisive contribution to the impression of brightness in rooms. The reason is that walls lie in our natural field of vision. High reflectivity on the wall can significantly increase our impression of brightness. Compared with a white wall surface, exposed concrete requires around twice as much illuminance to generate the same impression of brightness while brick and dark wood need roughly six times as much illuminance.

Increasing visual comfort

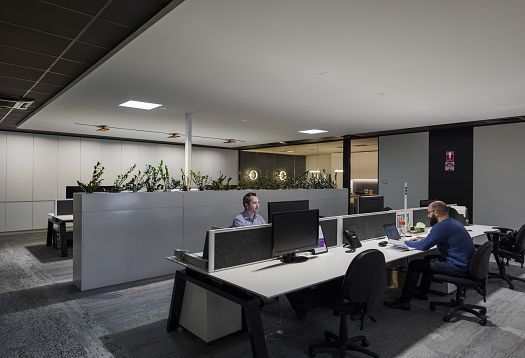

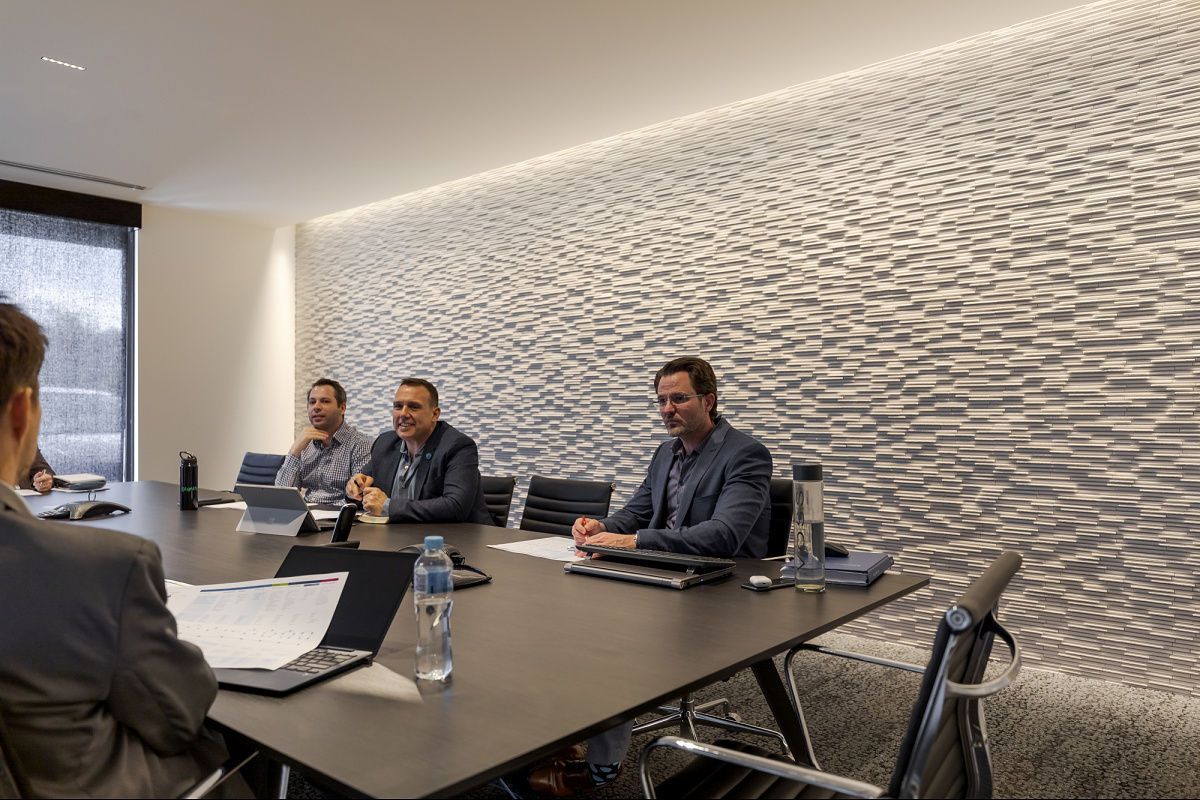

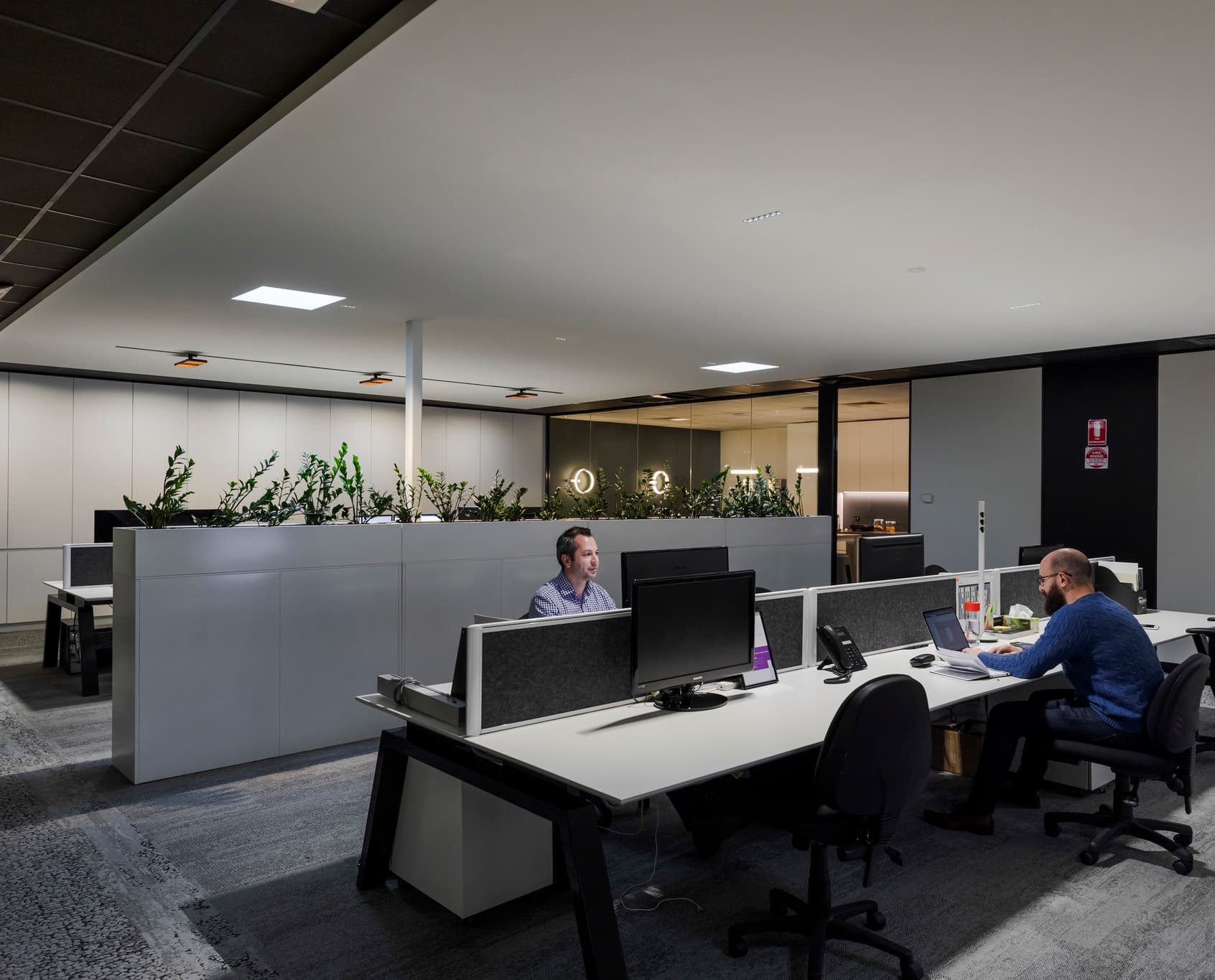

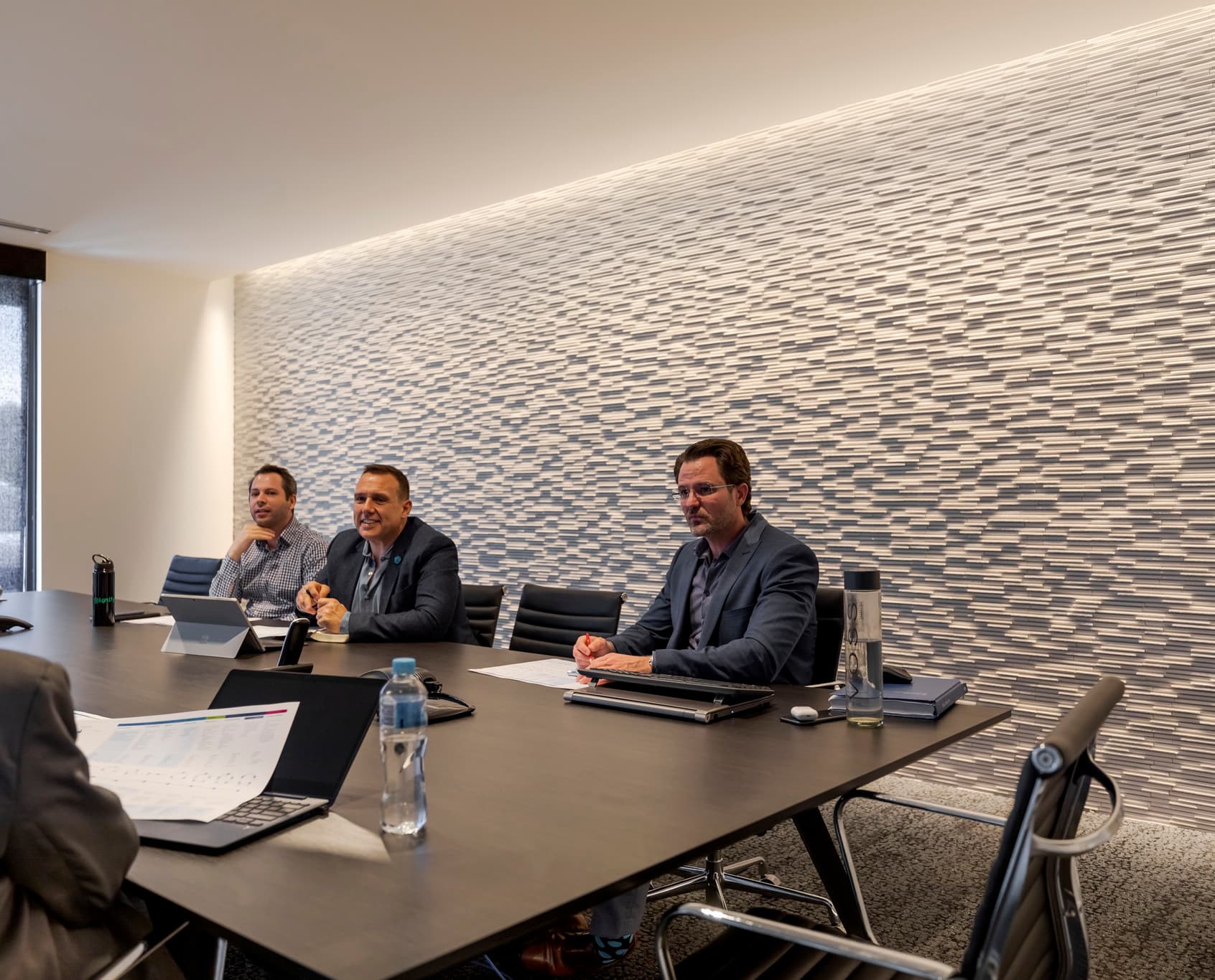

In offices, wallwashing contributes to greater visual comfort. Light on walls helps a great deal in reducing the contrast between luminous screens and the visual surroundings. The bright background creates a light effect that is pleasant for the eyes and prevents fatigue. Vertical lighting creates diffuse light thanks to reflection off the walls, which in turn pleasantly models faces and creates a more prestigious setting for constructive discussions in conference rooms, for example.

7 tips for your perfect wallwashing
7 tips for your perfect wallwashing

Creating distance

Light creates a sense of distance. Uniformly illuminated walls visually expand the dimensions of a room, and narrow rooms in particular gain in quality of stay with use of the right luminaires. Large areas on the other hand can be zoned and structured by bright walls. The lighting is particularly important in expansive rooms such as atria. If daylight only enters from one side and the distance to the opposite wall for the daylight is too far, wallwashing compensates for the missing light. The brighter and more evenly the light is distributed throughout the room, the more efficiently is the room comprehended as a single unit.

Refining surfaces

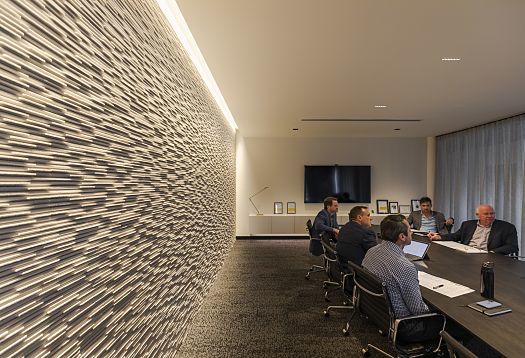

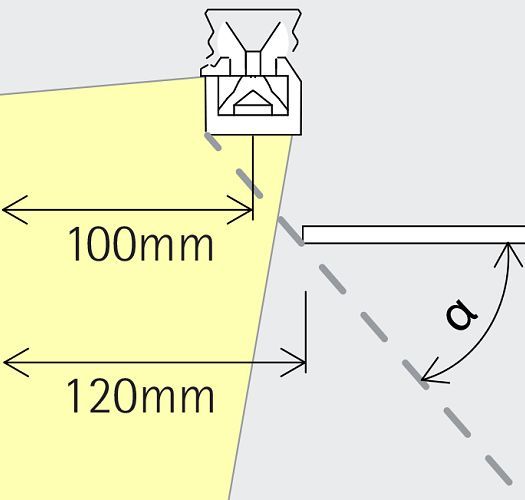

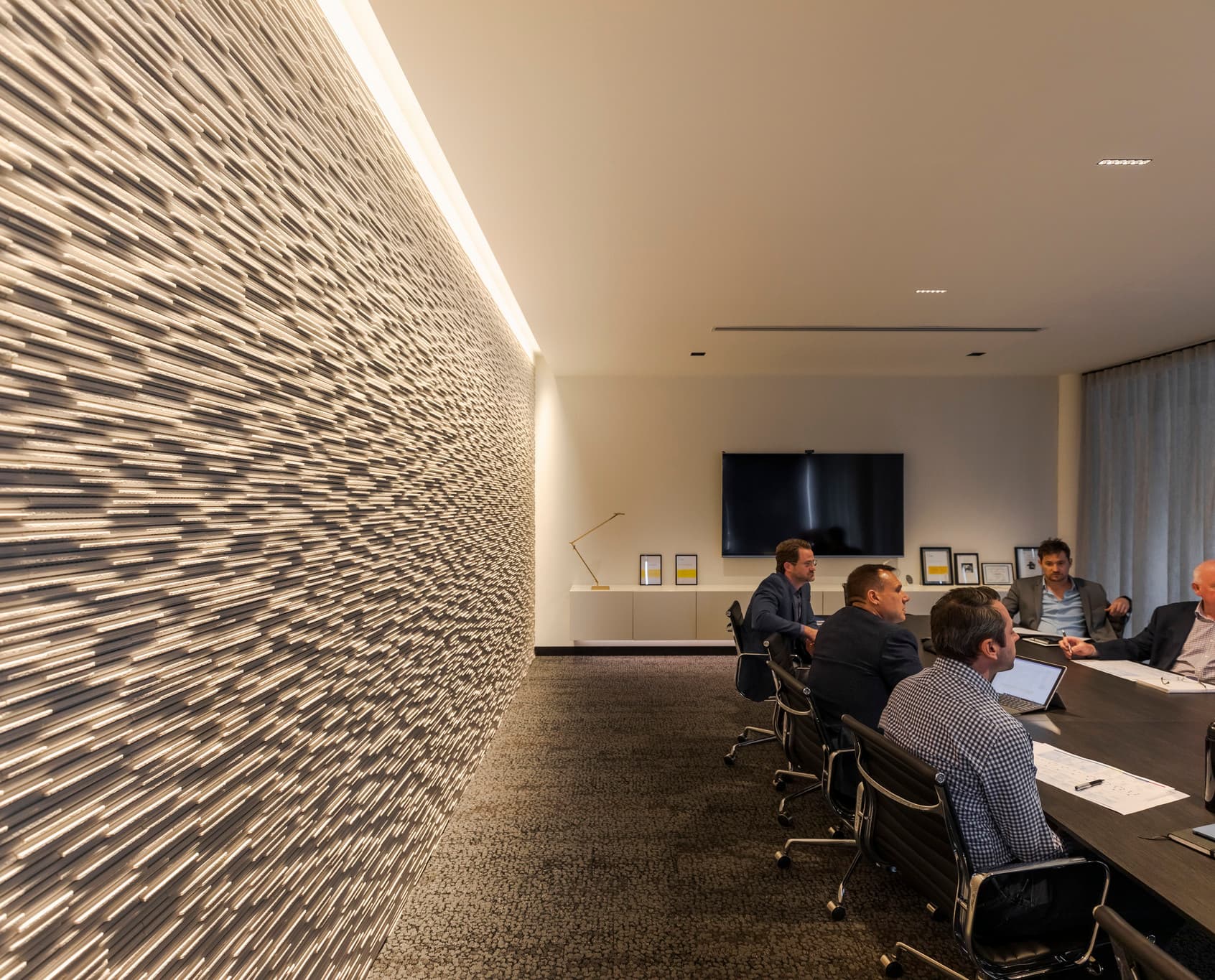

If the texture of materials such as stone are to be emphasized, luminaires should be positioned close to the wall. Special wallwashers are suitable for this purpose, installed either in the floor or in the ceiling and emitting grazing light. This latter form of light significantly highlights surface structures through the rich-contrast interplay of light and shadow. Positioning the luminaires closely in front of the wall is decisive in achieving a striking shadow effect and the effect of grazing light. Even small elevations on surfaces create striking shadows thanks to grazing light.

7 tips for your perfect wallwashing

Finding the right wallwasher

Different situations place their own specific technical demands on the light, and specifically on wallwashers. This is why nuanced lighting tools are available that optimally solve each task. These include wallwashers as recessed downlights, meaning that the luminaire is almost completely concealed from view in the form of a technical detail. Luminaires for track with quick installation are also an option for example if little time is available for assembly and disassembly at trade fairs.

1. An integrated solution

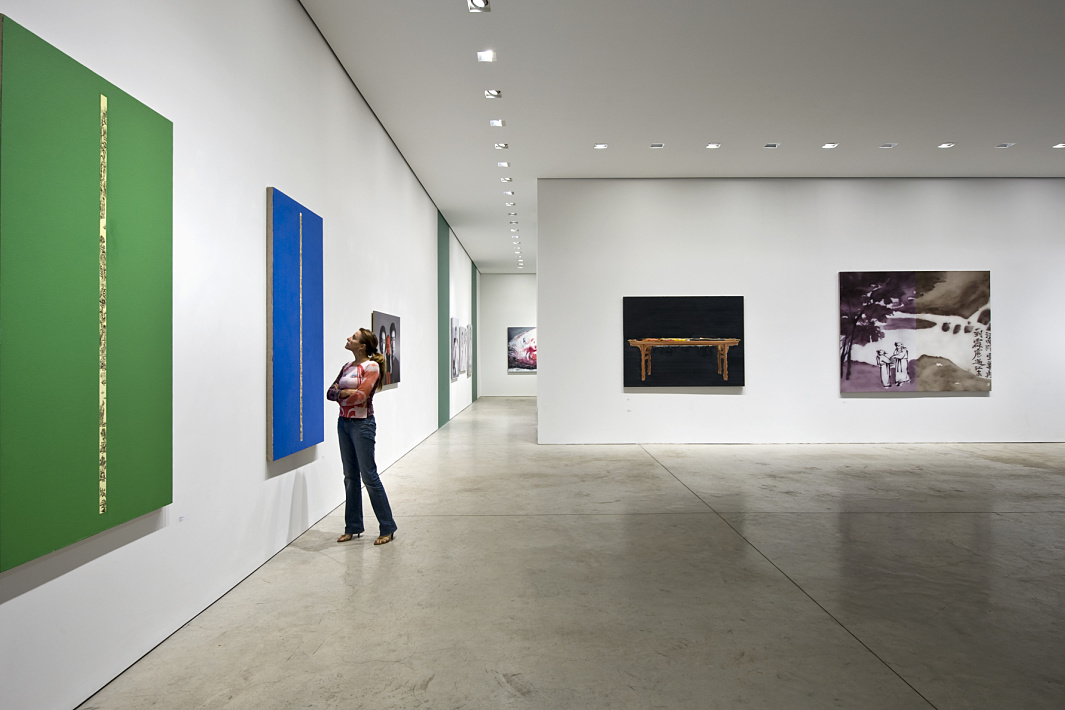

The most elegant details are achieved with recessed wallwashers—integrated in the ceiling in indoor applications and in the ground outdoors. The luminaires blend into the background whilst the room is placed to the fore with a generous lighting effect. Careful lighting design is particularly important for this type of installation because subsequent changes, as is the norm with track mounting, are usually not possible. Where fixtures such as retail shelving units are installed, the arrangement of luminaires should be oriented to the front edge of the shelf. The optimum distance to the wall is a third of the room height.

7 tips for your perfect wallwashing

Luminaires used

2. Short wall distance for high rooms

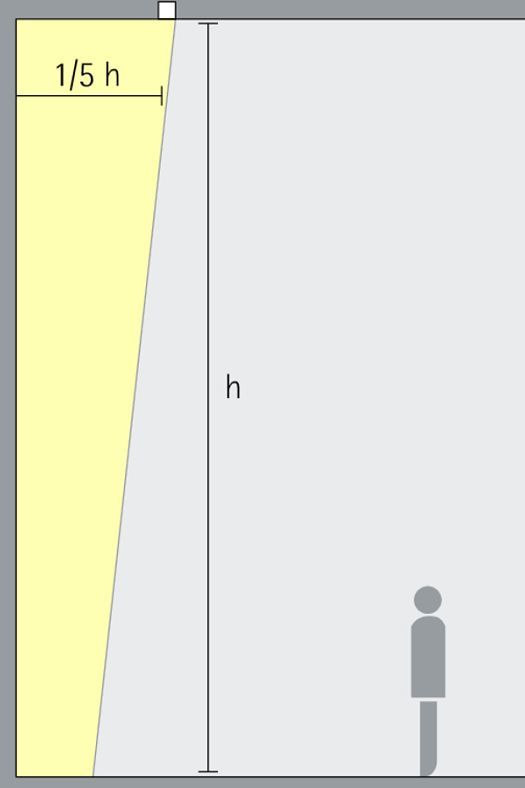

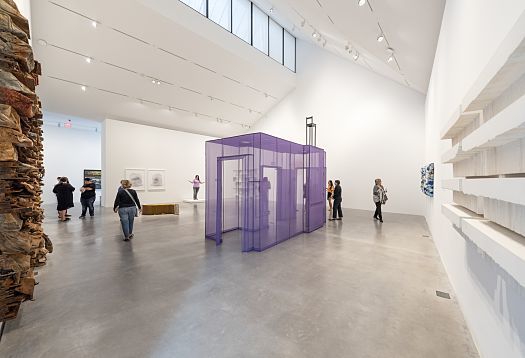

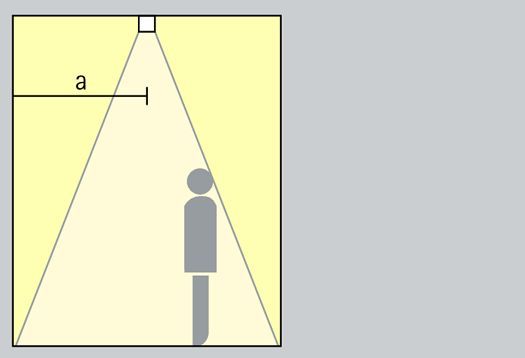

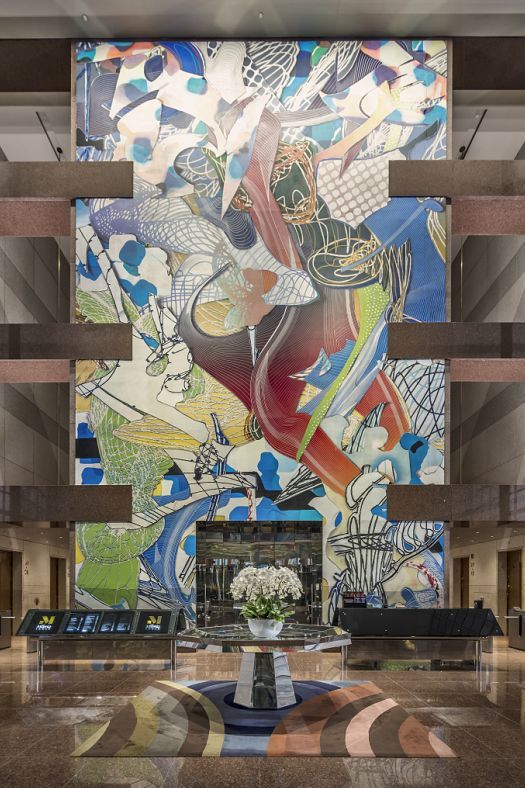

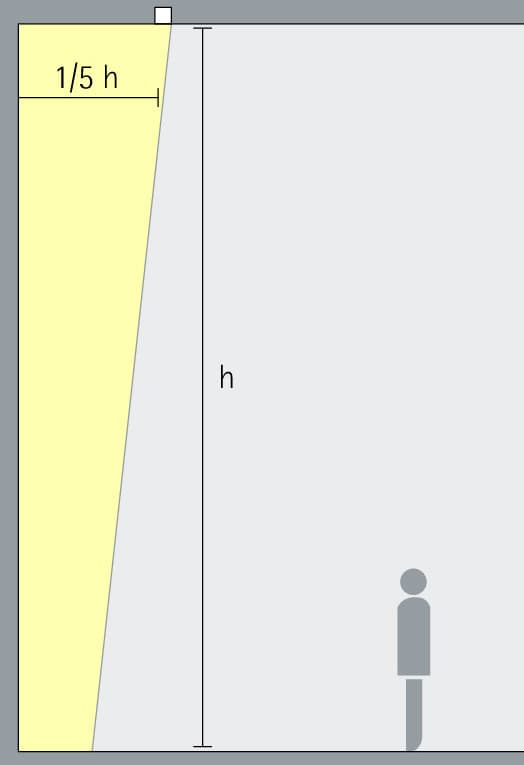

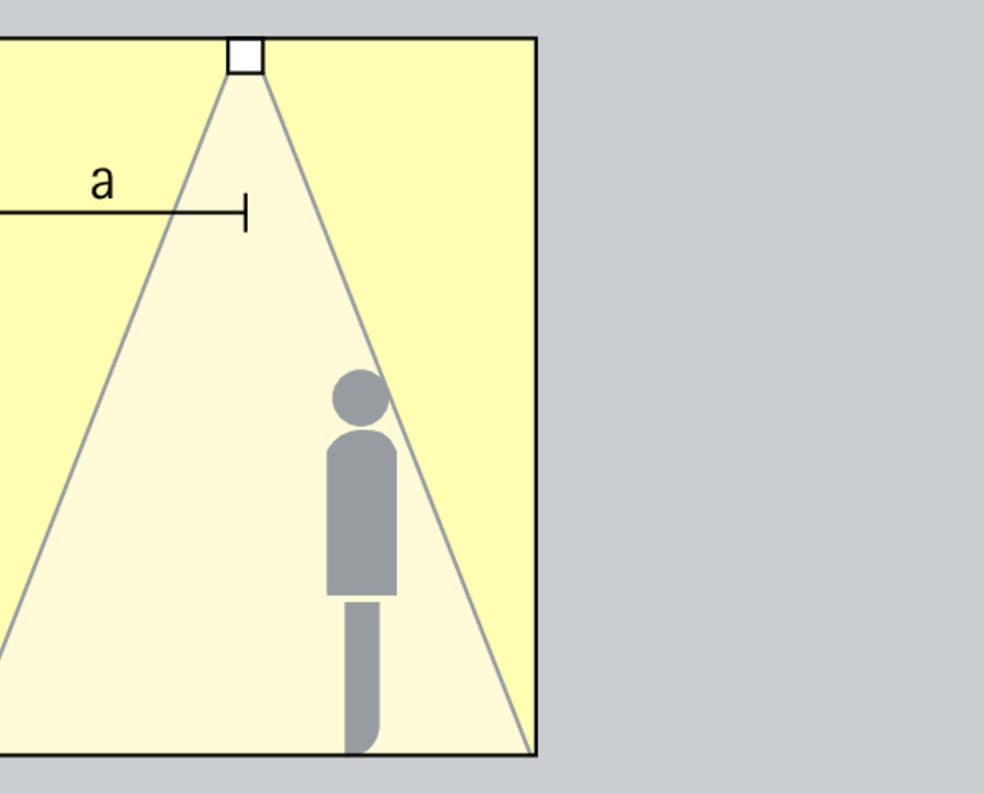

When using wallwashers in high rooms, the rule of thumb of "wall distance is one third of the room height" frequently becomes a challenge. ERCO Atrium double focus wallwashers are specifically available for such cases. Their light is optimized for reduced wall distances of only one fifth of the room height. Special solutions for even more extreme situations can be developed individually by ERCO on a contract basis.

7 tips for your perfect wallwashing
7 tips for your perfect wallwashing

Luminaires used

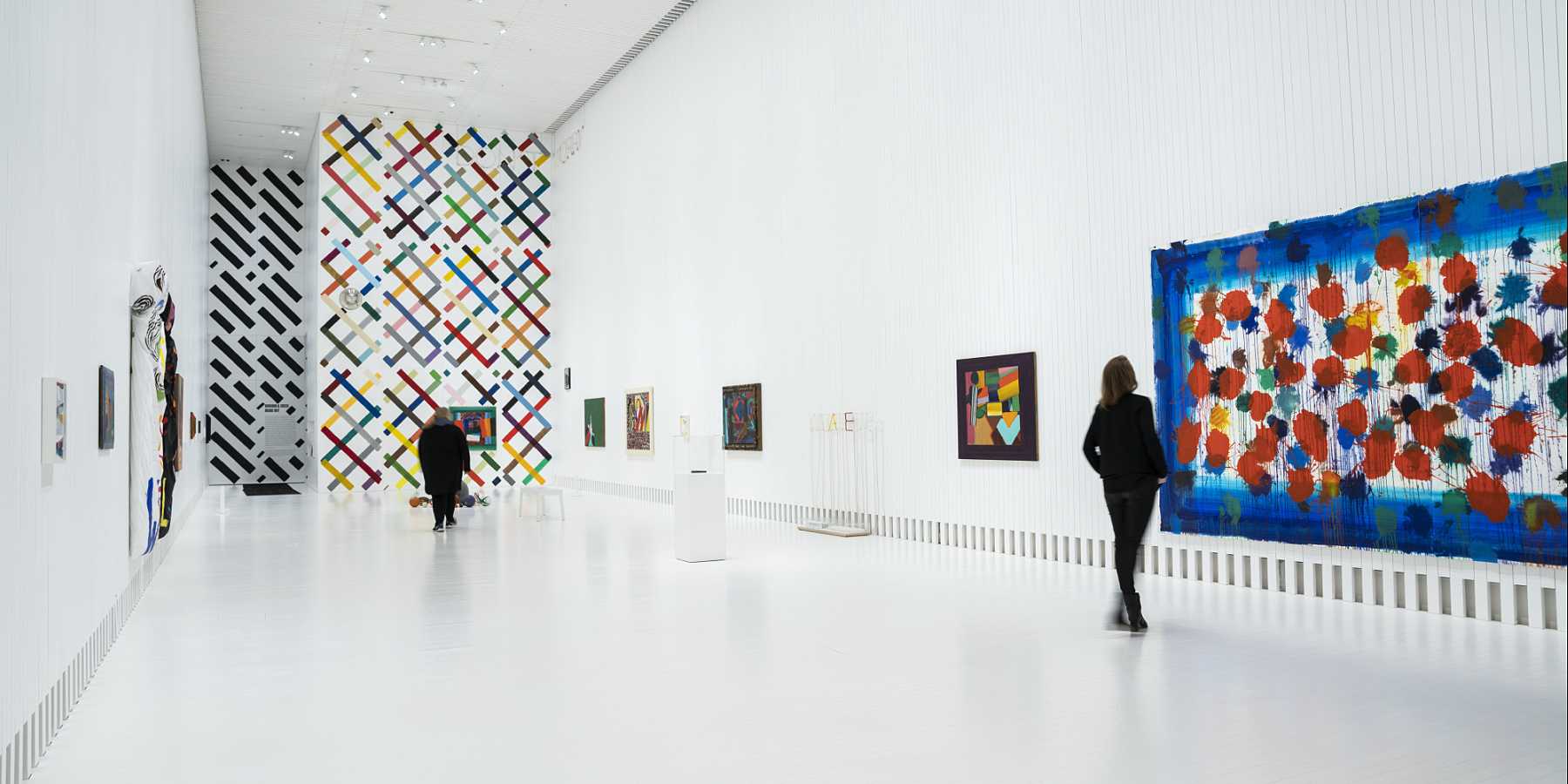

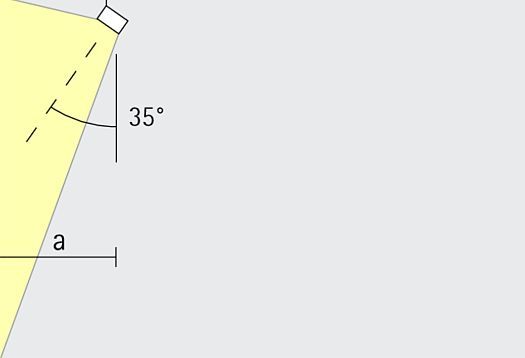

3. Flexible wallwashing

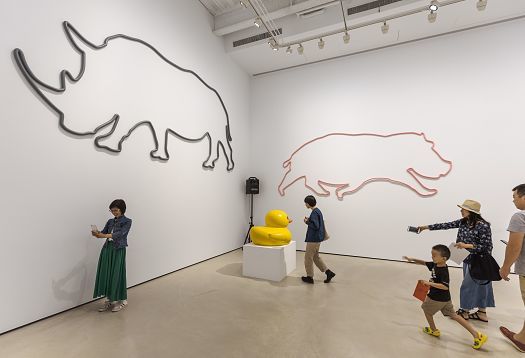

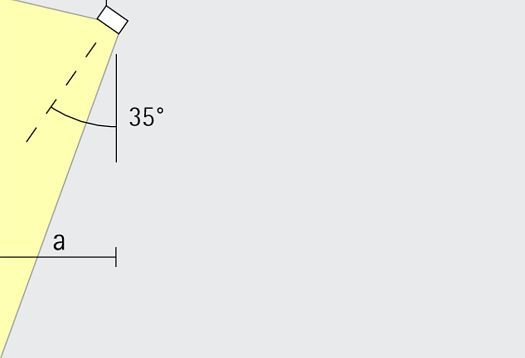

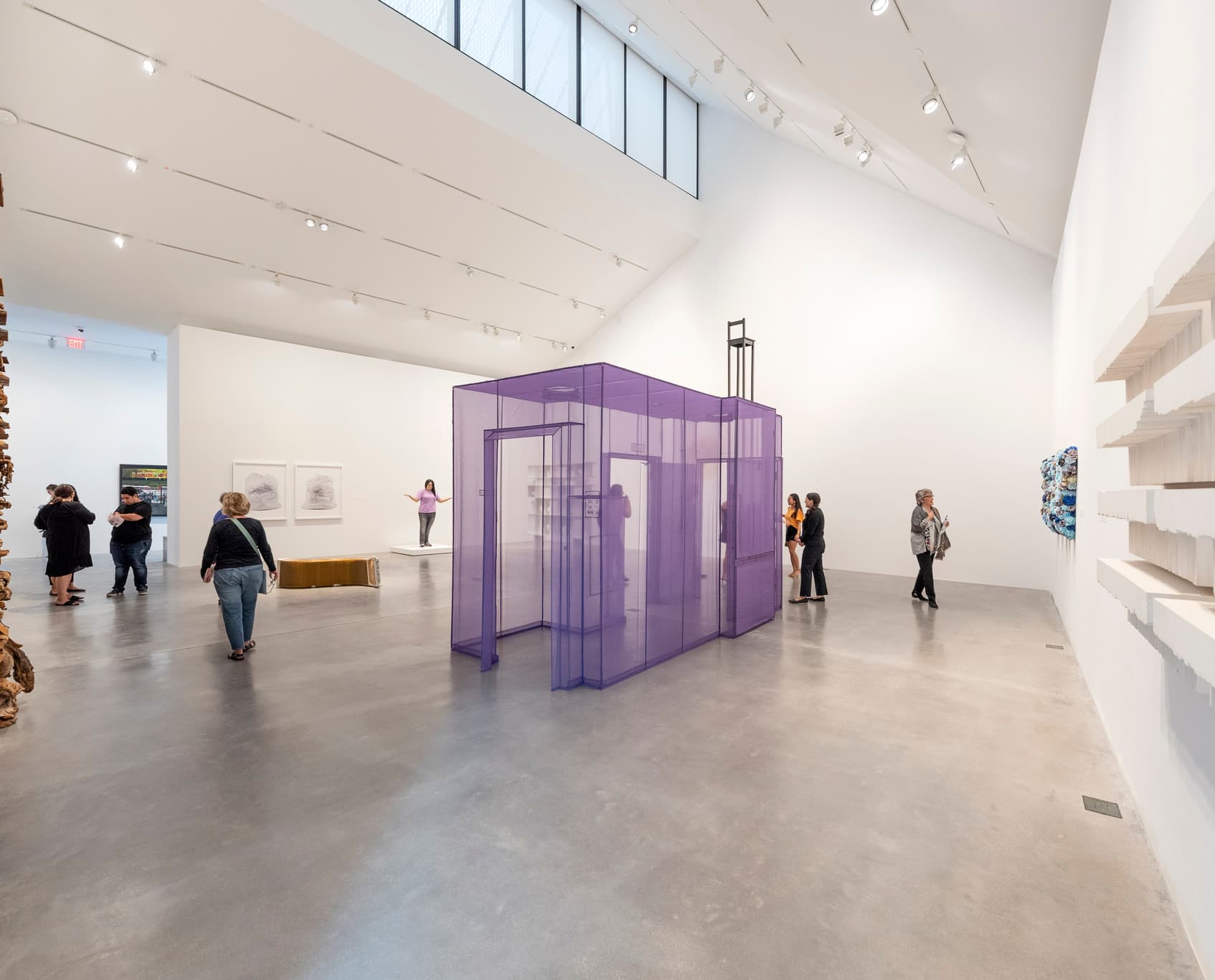

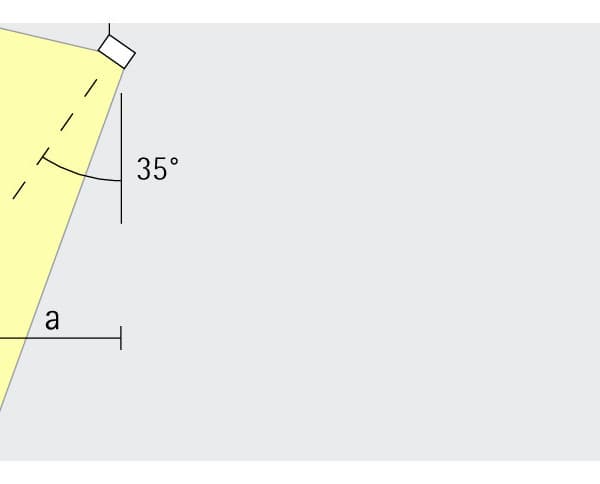

Temporary exhibitions require flexible lighting solutions: using the adapter, wallwashers from ERCO spotlight ranges can be positioned anywhere on the track in just a few simple steps. This enables the lighting tools to adapt to the spatial conditions. For optimum uniformity on the wall, the luminaires are set at an inclination of 35°. The distance to the wall should be approximately one third of the room height.

7 tips for your perfect wallwashing
7 tips for your perfect wallwashing

Luminaires used

4. Rational, simple mounting

If quick and reliable results are needed, Pantrac wallwashers from ERCO are particularly suitable. Using the adapter, the luminaires can be simply fixed to the track and aligned parallel to the wall. Additional adjustment of the inclination angle isn't needed—the hinge is thus rigid in the vertical axis. Pantrac features extremely wide light distribution and therefore enables large luminaire spacing: less luminaires are required overall, making this solution even more rational and cost-efficient.

7 tips for your perfect wallwashing

Luminaires used

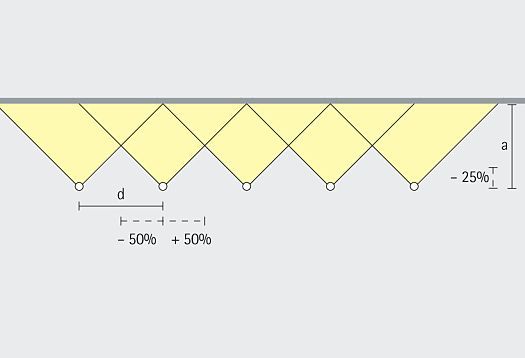

5. Flexible wallwashing with variable distances

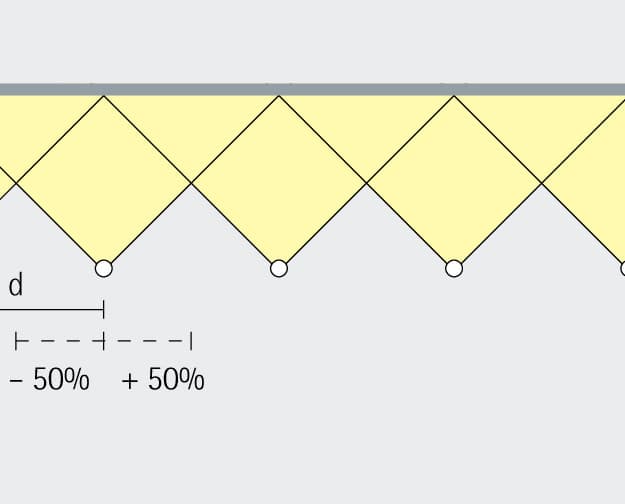

The new generation of ERCO Eclipse wallwashers can be arranged even more flexibly than other wallwashers. The lighting effect of the luminaires remains uniform, even if luminaire spacing or distances to the wall vary—ideal for complex projects, e.g. with irregular room geometries or structures.

7 tips for your perfect wallwashing
7 tips for your perfect wallwashing

Luminaires used

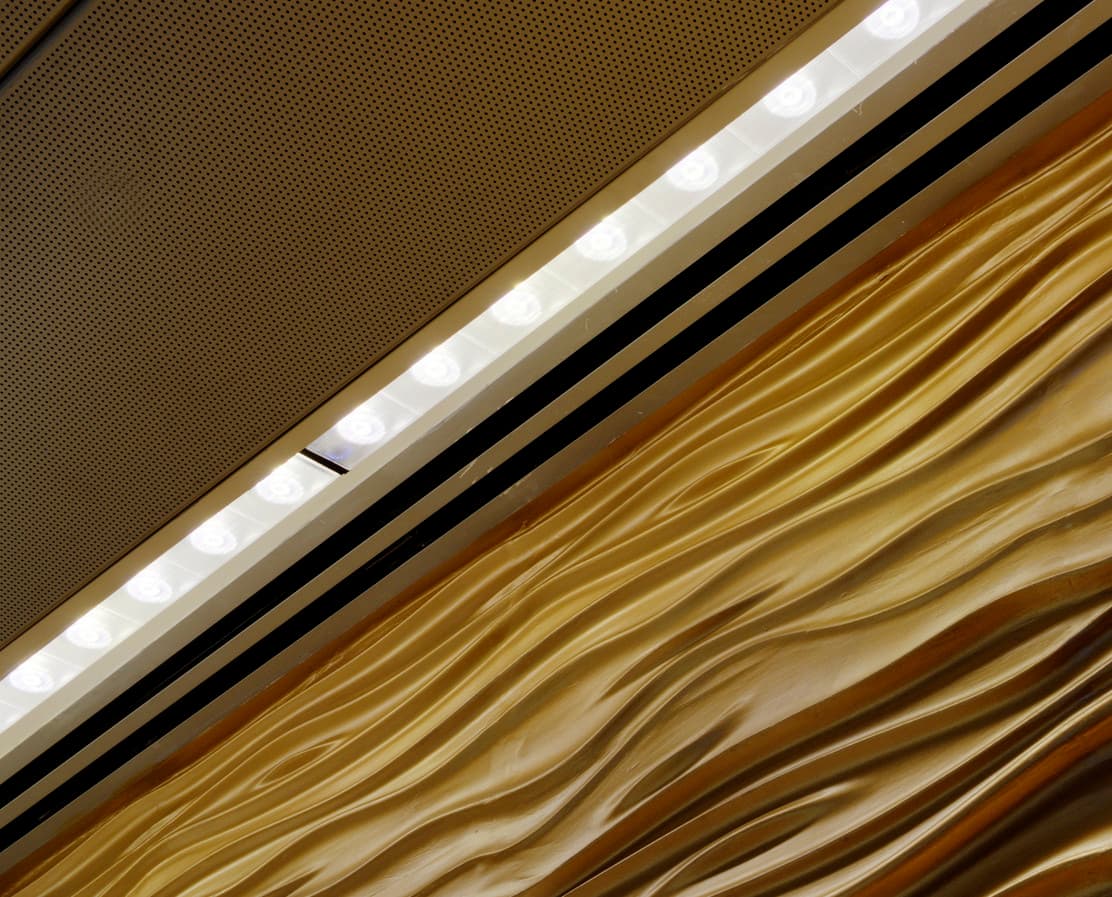

6. Using grazing light

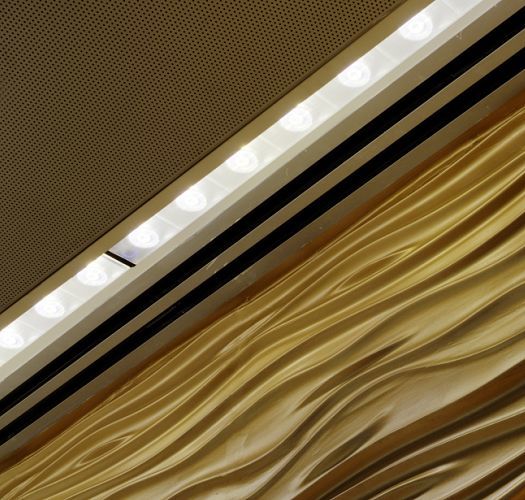

The uniform illumination of walls is often less important in prestigious rooms. More important is to emphasize materials and textures through the play of light and shadow. For this type of lighting, grazing light wallwashers such as Lightgap for ceilings or Site luminaires for floor installation are the right tools.

7 tips for your perfect wallwashing
7 tips for your perfect wallwashing
7 tips for your perfect wallwashing

Luminaires used

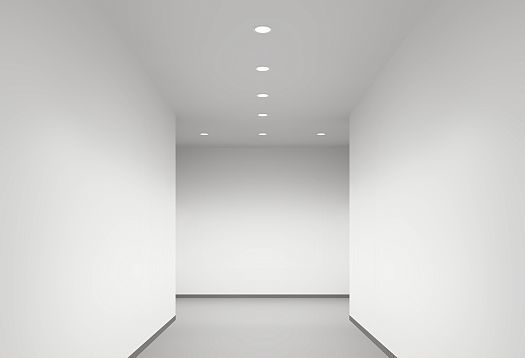

7. Wallwashing for corridors

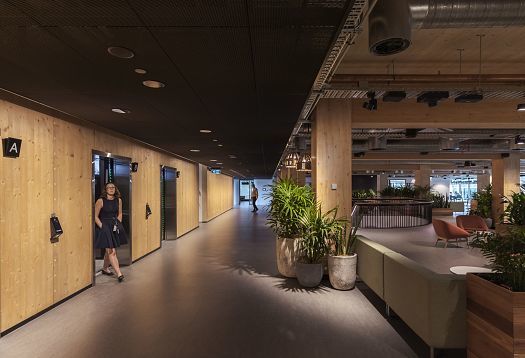

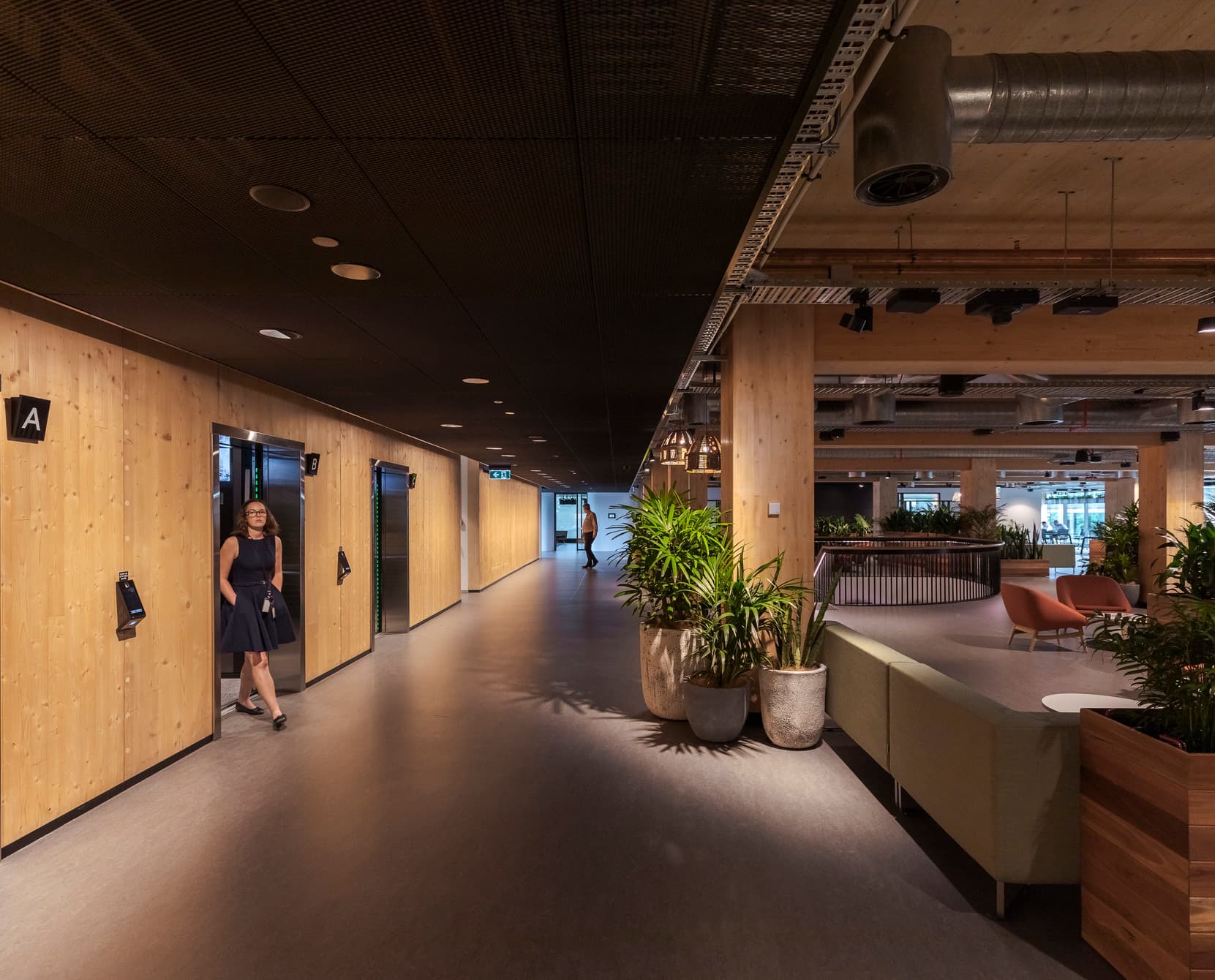

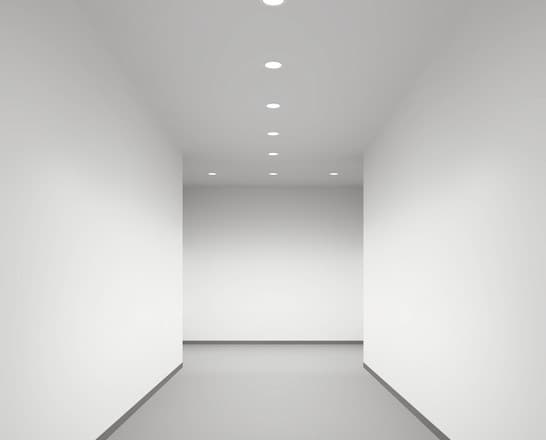

Wallwashing is a good solution for creating a bright spatial impression in narrow applications such as corridors and hallways. Wallwashing creates a homogeneous brightness extending from the ceiling to the floor. A contrast to this is downlights in which the light beamson the walls subdivide the corridor into a darker zone at the top and a brighter area down below. A row of double wallwashers on the other hand can be used to uniformly and efficiently illuminate opposite walls in a corridor.

7 tips for your perfect wallwashing
7 tips for your perfect wallwashing

Luminaires used

Distinguishing the quality of wallwashers

7 tips for your perfect wallwashing

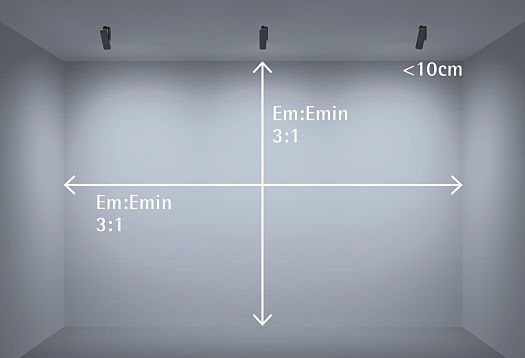

Uniformity

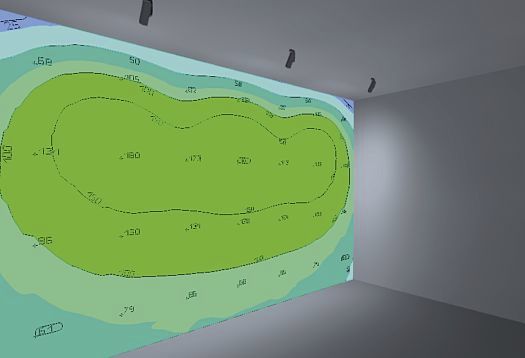

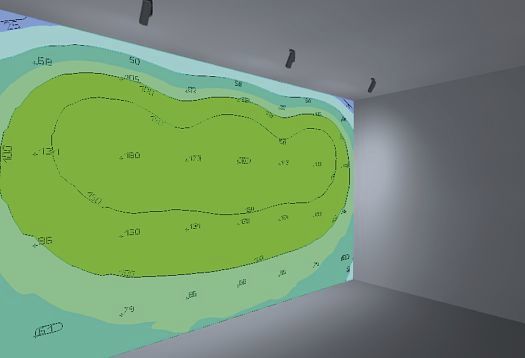

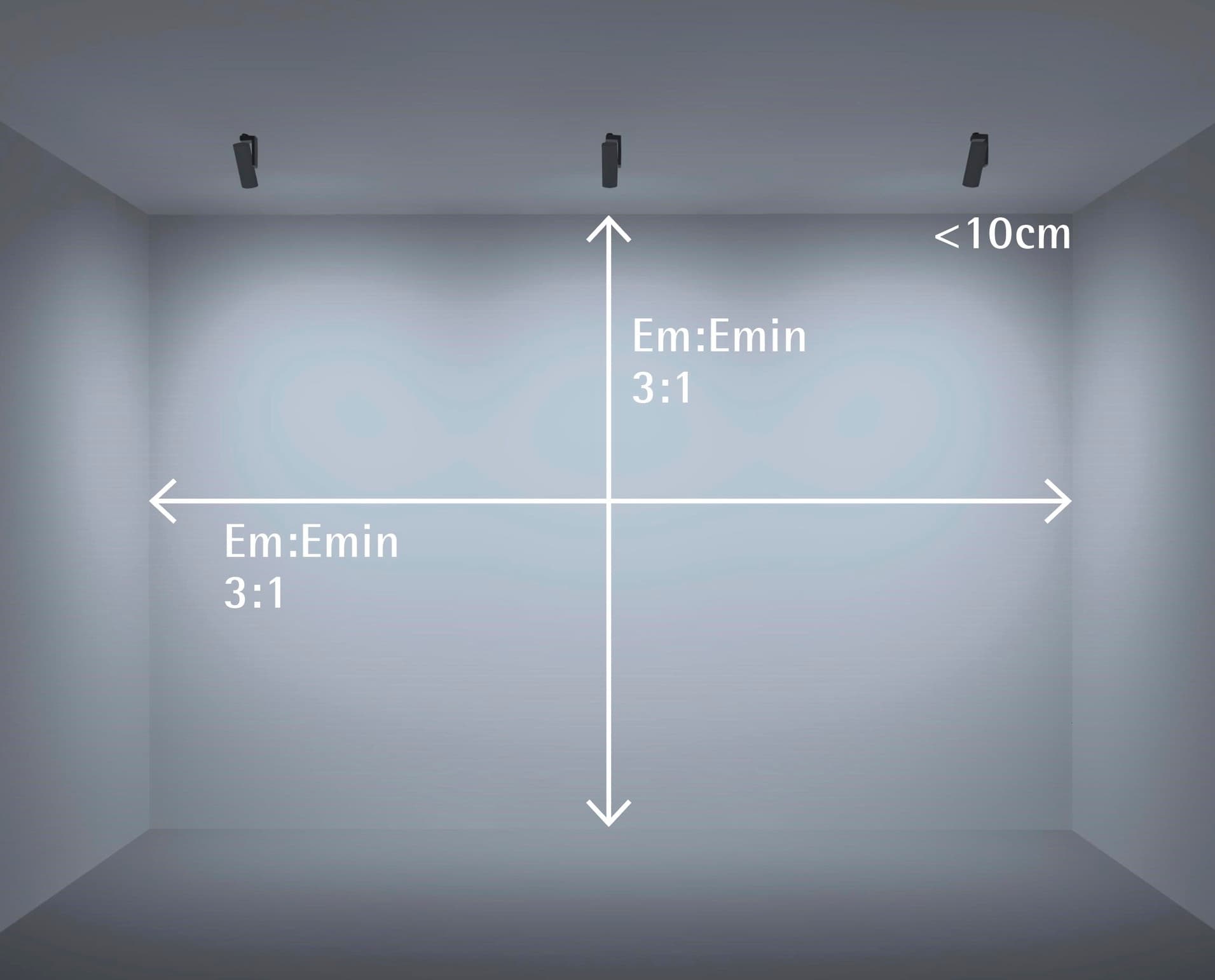

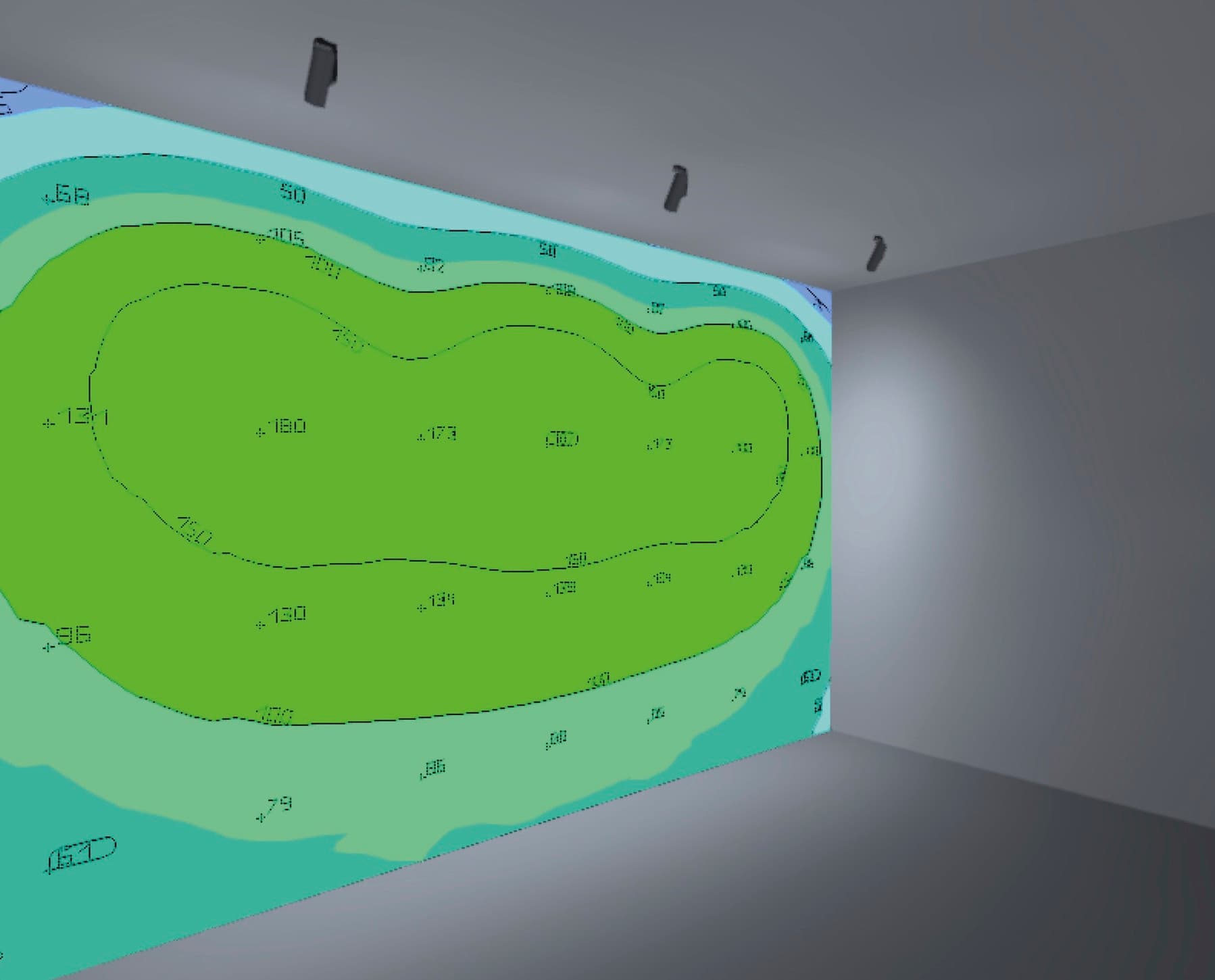

A particularly important task of wallwashers is the uniform illumination of surfaces. To assess the uniformity of the wallwashers, illuminances on the wall are evaluated from top to bottom and in the horizontal plane. The ratio of mean illuminance to minimum illuminance in the vertical axis should be 3:1. For horizontal uniformity, the ratio of mean to minimum illuminance should also be 3:1. Greater contrasts would be perceived by the eye as being uneven. It is also desirable for the light to start directly below the ceiling: for example with less than 10cm clearance in a room with height of 3m.

Visual comfort

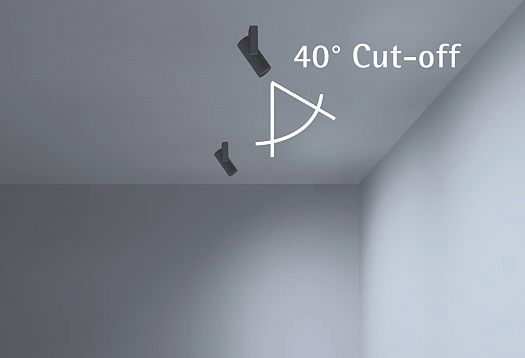

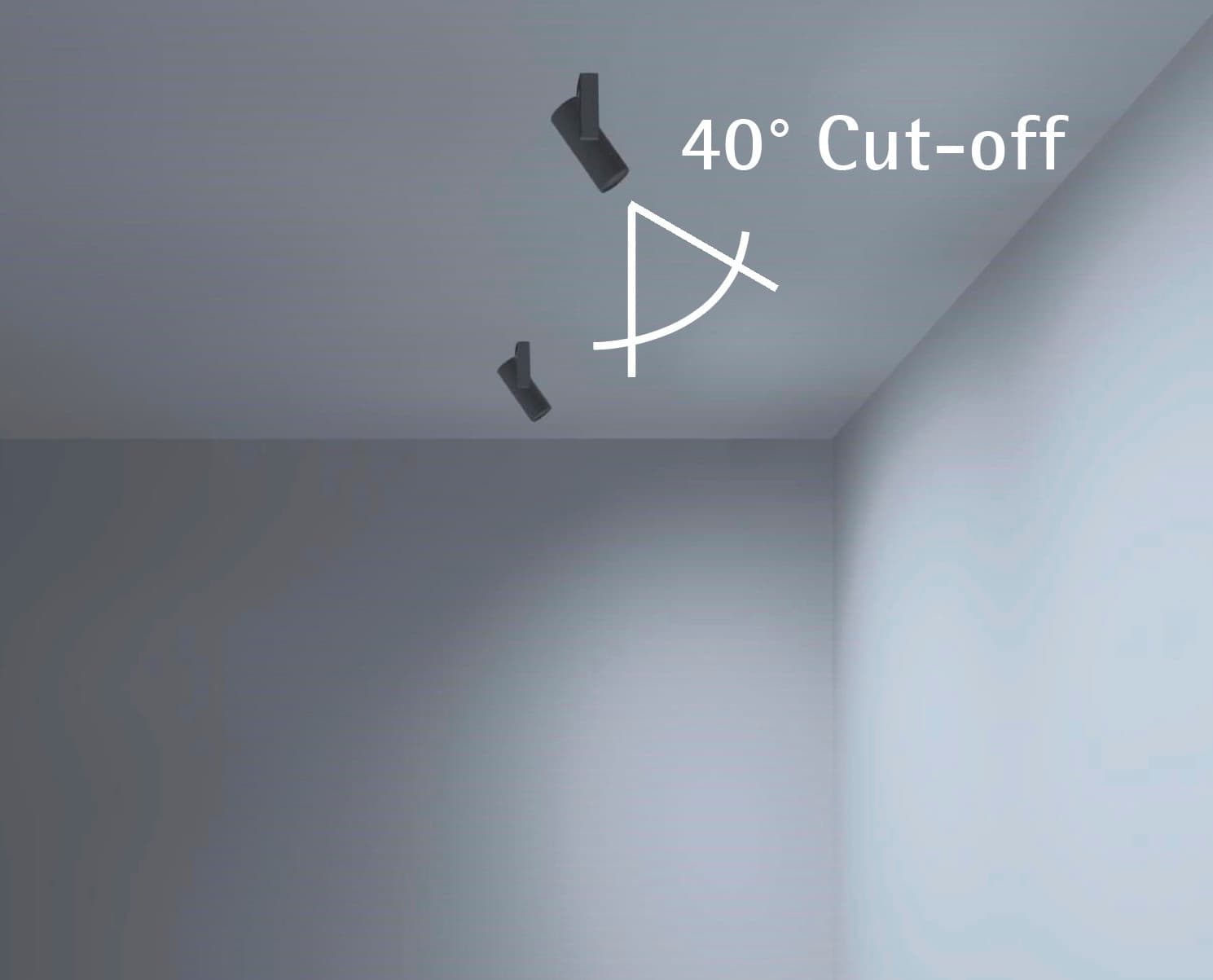

A high luminaire cut-off angle of 40° to the room avoids glare for the observer looking into the luminaire. Outstanding visual comfort means that the focus in the room is not on the luminaire, but on the uniformly illuminated wall surface.

7 tips for your perfect wallwashing
7 tips for your perfect wallwashing

Energy-efficient

The mean illuminance on the wall surface in relation to energy consumed serves as an indicator of the efficiency of a wallwasher. High performance luminaires direct the light of the LEDs exclusively onto the wall surface, resulting in a low W/m² value for exemplary energy efficiency. High quality wallwashers require only about 3W/m² for a mean illuminance of 200lx on the wall.

Economic efficiency

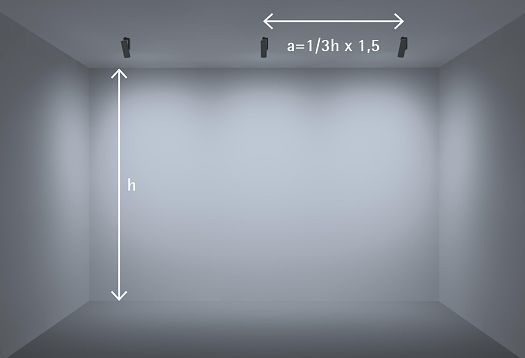

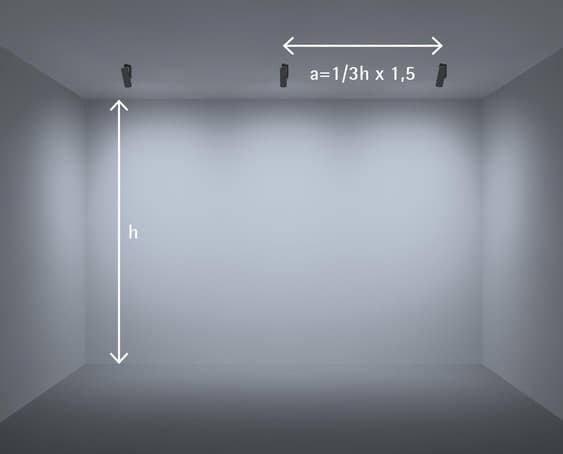

The greater the spacing between the wallwashers the fewer luminaires are needed, equating to lower investment costs. Lighting technology optimized for large luminaire spacing in this way contributes to the overall cost efficiency of architectural projects. Thus the efficiency of the LED lighting technology is crucial. Using modern luminaire optics in a room height of 3m, distances of up to 1.5m are possible along with very good horizontal uniformity.

7 tips for your perfect wallwashing
7 tips for your perfect wallwashing

Dr. Thomas Schielke, ERCO.

Dr. Thomas Schielke studied architecture at the Darmstadt Technical University, Germany. He has worked for more than 15 years as editor for didactic communication at the luminaire manufacturer ERCO and is the co-author of the textbook "Light Perspectives: Between Culture and Technology".
