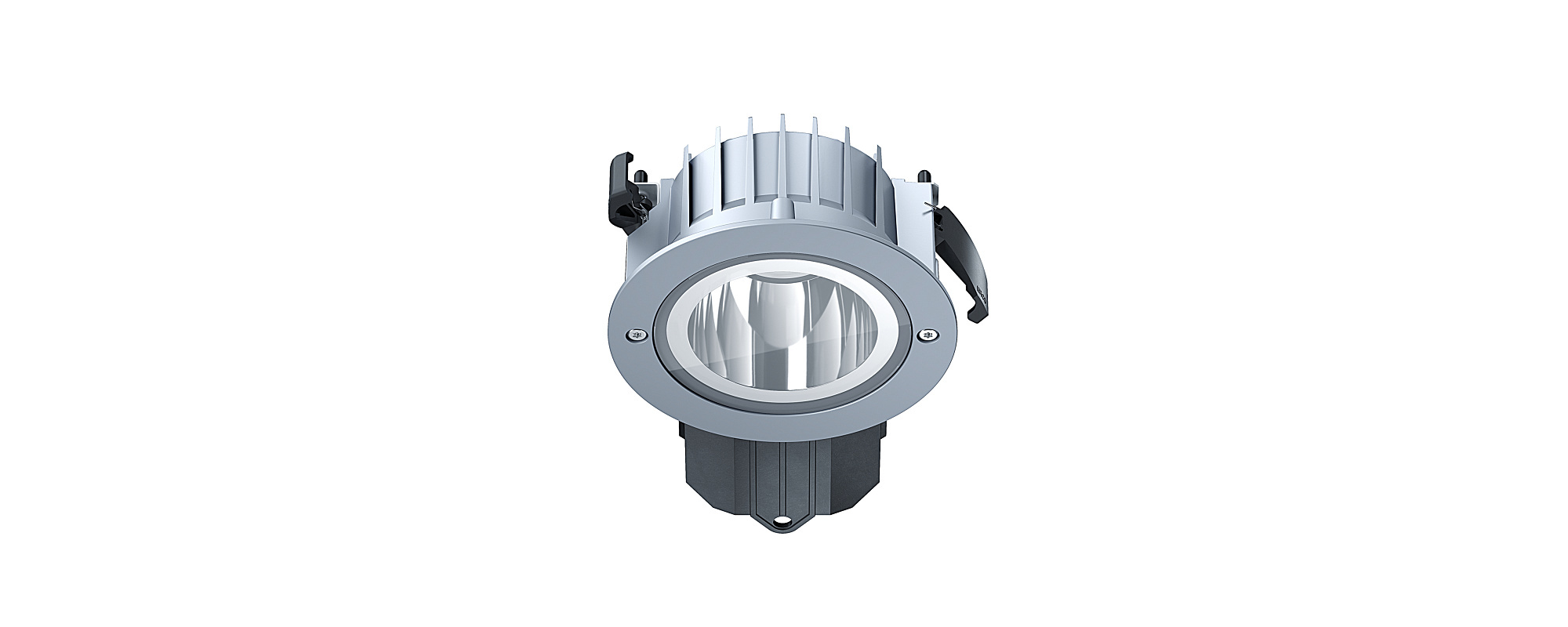

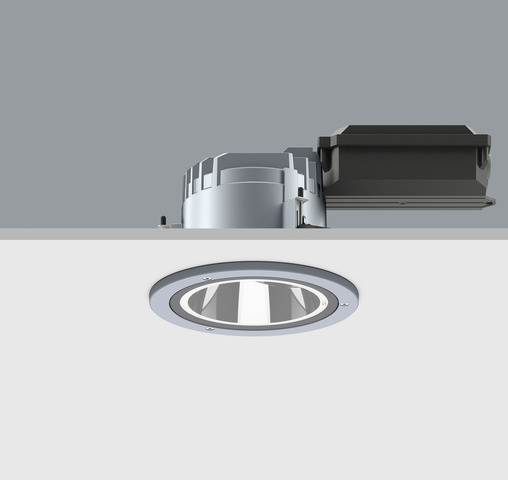

Quintessence. The system solution for excellent visual comfort

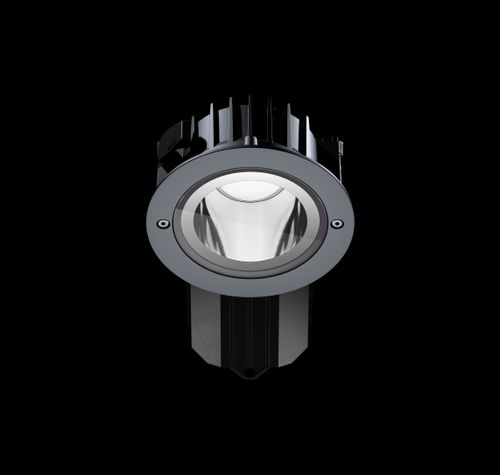

High visual comfort and optimum light quality - in indoor and outdoor areas

Show products

Quintessence in the application

Individualize Quintessence for your use case

With our “ERCO individual” service we offer you extensive options for the individualization of series products as well as support in the development of sophisticated special luminaires. In order to match Quintessence even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:

  • High-power LEDs: 3000K CRI 97 or 2700K, 3500K, 4000K with CRI 92
  • Reflector: coated matt gold, matt silver or matt champagne

Do you have further requirements with the product?

Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}} {{strasse2}}
{{/strasse2}} {{ort}}
{{staat}}

Product features in detail

1

2

3

4

5

6

1

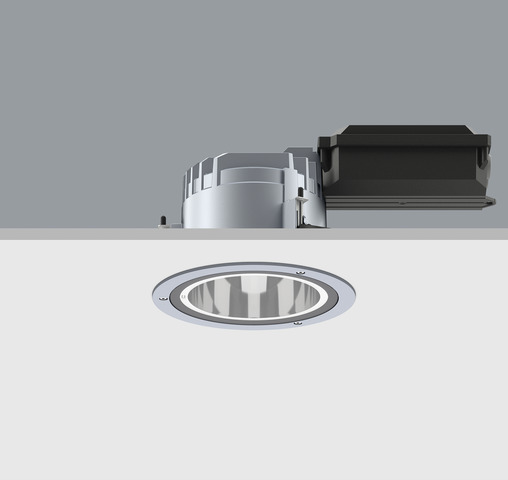

ERCO low brightness reflector

  • Downlight: cut-off angle 40° from horizontal
  • Polymer, aluminum vaporized, specular

or

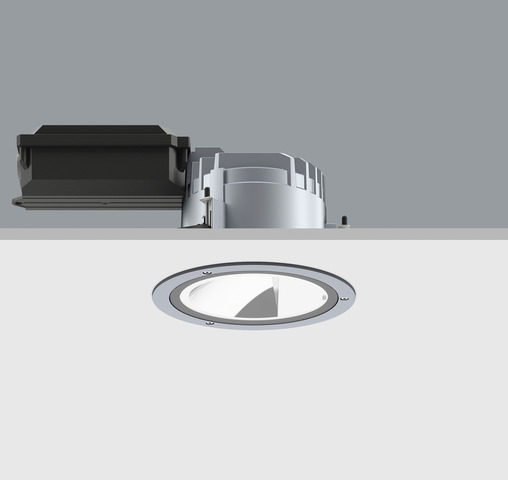

Wallwasher reflector

  • Cut-off angle 80° from horizontal
  • Polymer, aluminum vaporized, specular

2

ERCO LED-module

  • High-power LEDs: warm white (3000K) or neutral white (4000K)
  • Directional luminaire with collimating lens made of optical polymer: 0°-20° tilt, 360° rotation

3

Diffuser or lens

  • Made of optical polymer
  • Diffuser lens, extra wide flood or lens system, wallwash
  • Directional luminaire with Spherolit lens narrow spot, spot or flood

4

Cover ring

  • Corrosion-resistant cast aluminum, No-Rinse surface treatment
  • Silver, double powder-coated
  • Safety glass

5

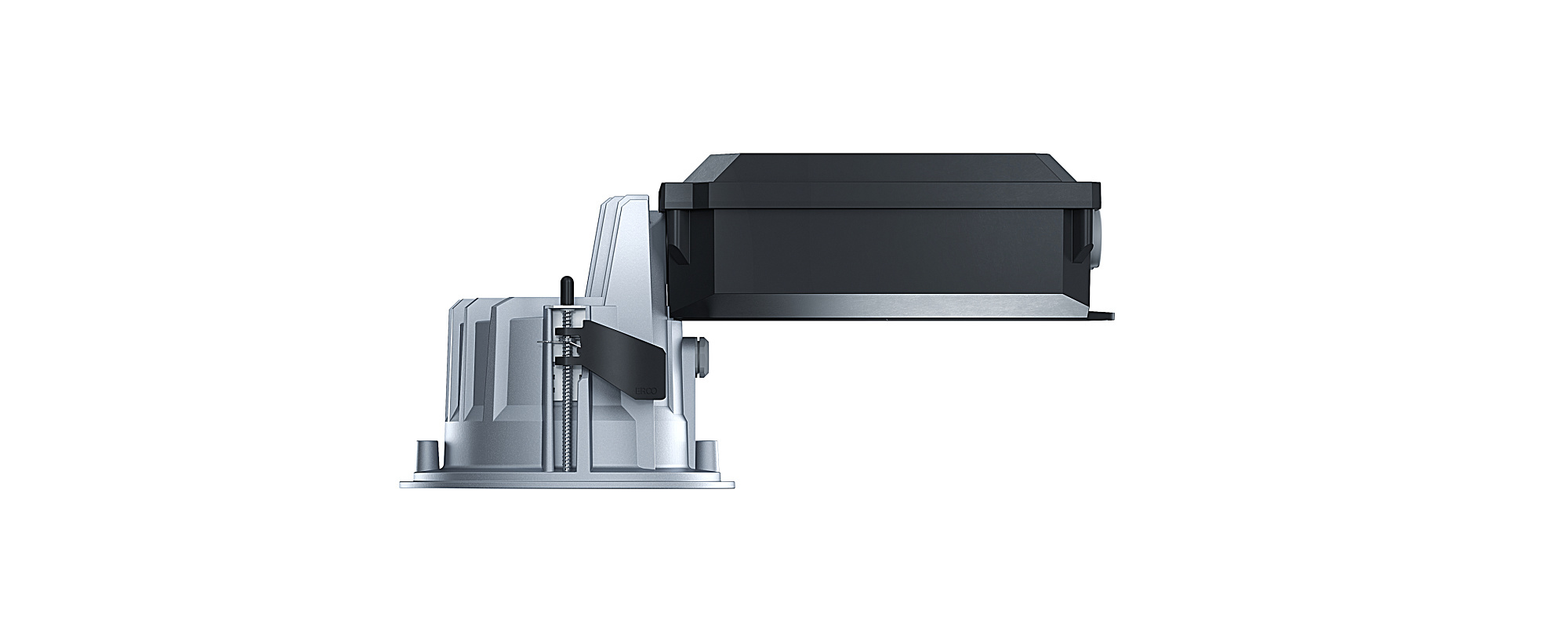

Housing

  • Cast aluminum, powder-coated silver
  • Mounting with 2- or 3-point contact and screw fastening. Max. ceiling thickness 1 3/16"
  • Side-attached installation unit: polymer, black

6

Control gear

  • Trailing edge dimmable
  • Operation at 120V: Dimming with external dimmers possible
  • Operation at 277V: switchable

Quintessence: Light effect and planning aid

Lighting tool

Light distribution

Ambient lighting produced by wide beam light distribution.
