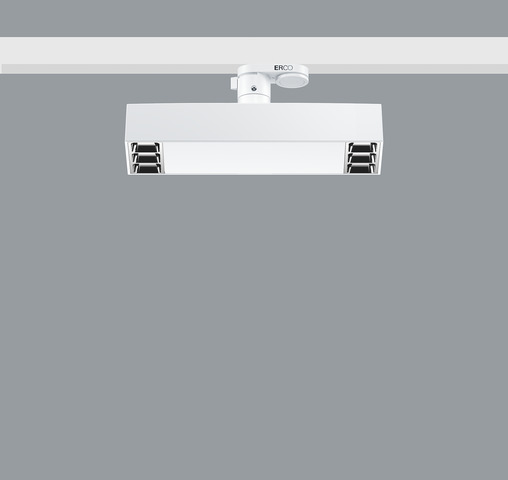

Compar. The flexible path to perfect light

An adaptable, compact tool for ergonomic light in offices

Show products

Compar in the application

Individualize Compar for your use case

With our “ERCO individual” service we offer you extensive options for the individualization of series products as well as support in the development of sophisticated special luminaires. In order to match Compar even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:

  • Anti-glare louvre: coated matt gold, matt silver or matt champagne
  • Housing: 10,000 further colors

Do you have further requirements with the product?

Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}} {{strasse2}}
{{/strasse2}} {{ort}}
{{staat}}

Product features in detail

1

2

3

4

5

6

1

ERCO lens system

  • Made of optical polymer
  • Light distributions: wide flood, extra wide flood, oval wide flood or oval flood

2

ERCO LED-module

  • High-power LEDs: warm white (2700K or 3000K) or neutral white (3500K or 4000K)

3

Louvre

  • Polymer, black lacquered or aluminum vaporized, silver, specular
  • Cut-off angle 30° from horizontal

4

Housing

  • White (RAL9002), black or silver
  • Cast aluminum, powder-coated
  • Rotatable through 360° on adapter

5

Control gear

  • Trailing edge dimmable+On-board Dim
  • Dimming with external dimmers (trailing edge) possible and rotary control for brightness control on the luminaire

6

ERCO turning adapter for 2-circuit track

Compar: Light effect and planning aid

Lighting tool

Light distribution

Ambient lighting produced by wide beam light distribution.
