Axis

Show products

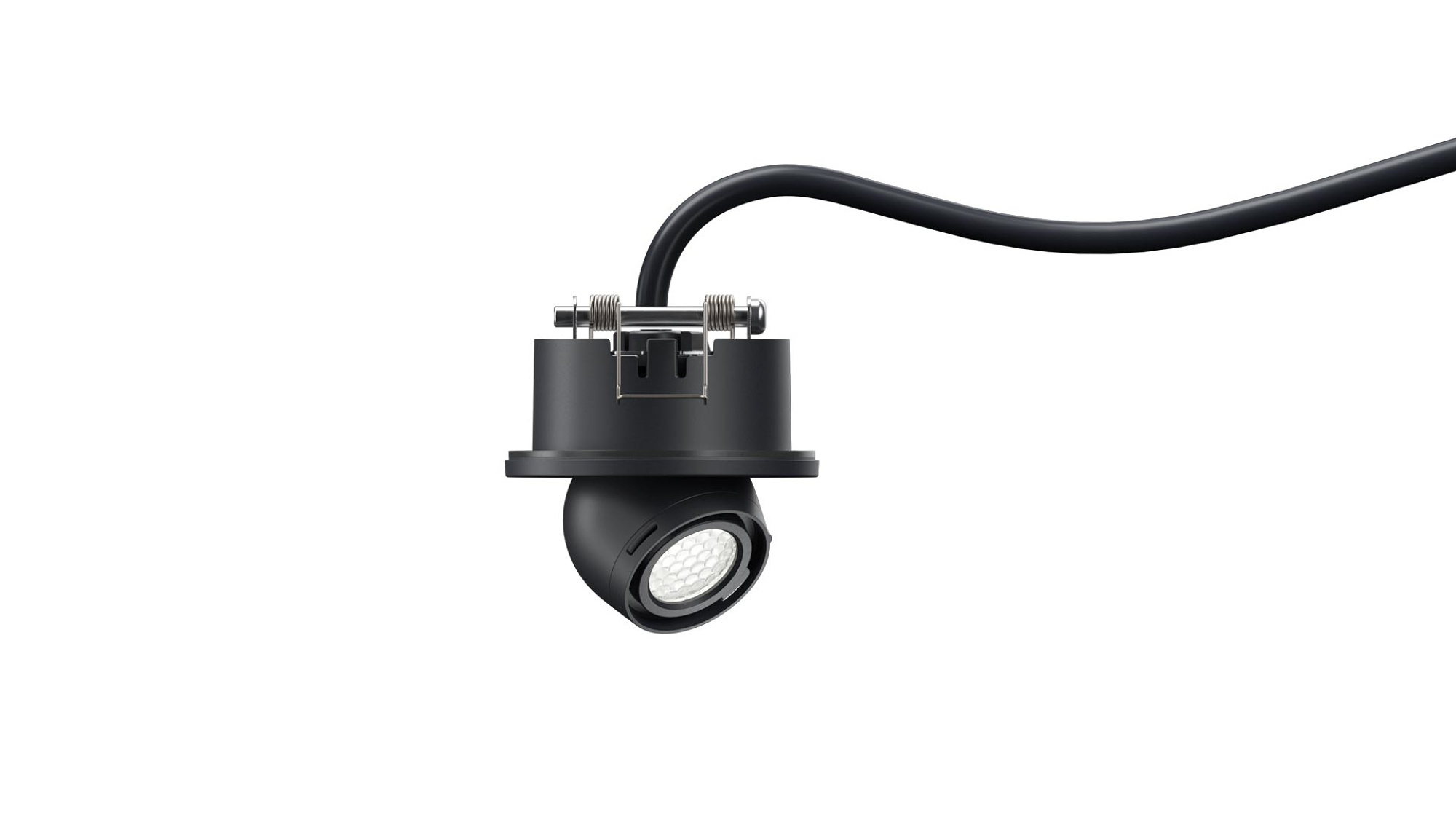

Axis - Recessed spotlights
Axis - Recessed spotlights
Axis - Recessed spotlights
Axis - Recessed spotlights

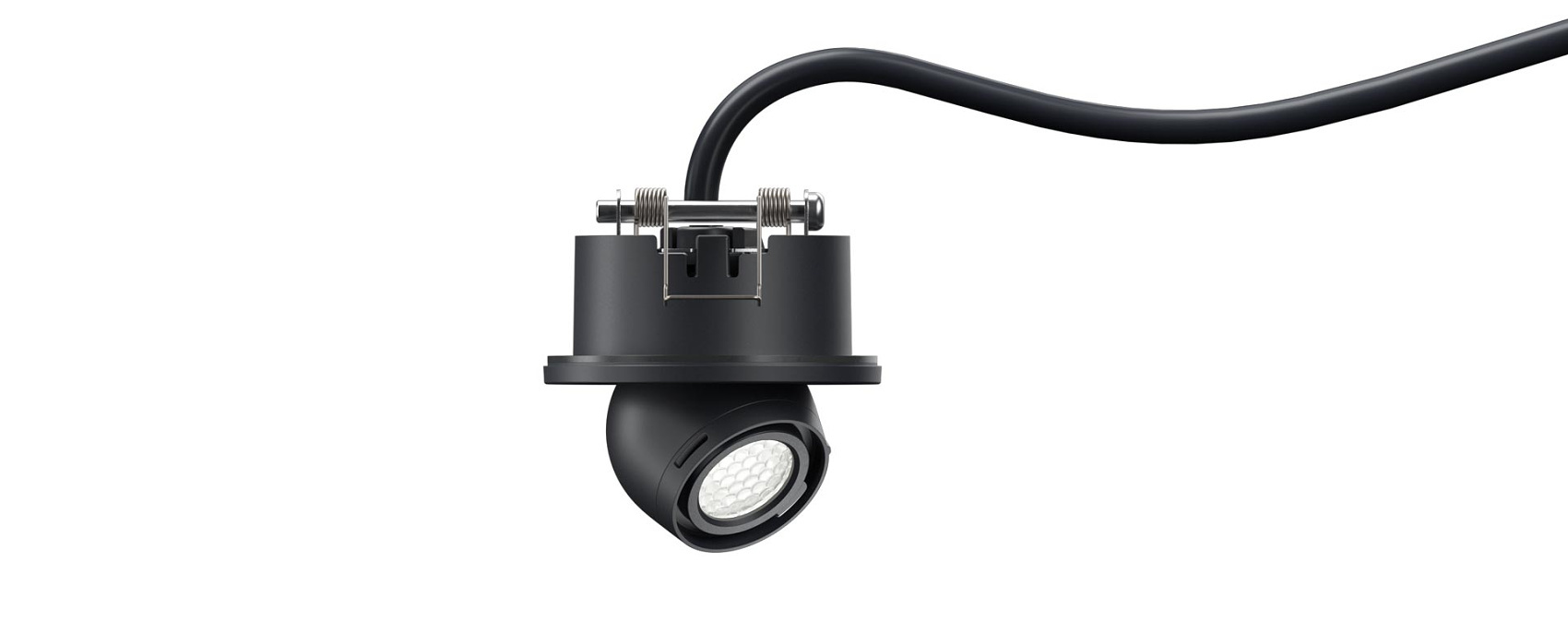

Axis Magical lighting effect as if from nowhere

Dramatic, scenographic lighting works best against a subdued background: In prestigious business premises as well as in darkened galleries or in a bar at night. To set accents with focused light, high illuminance levels are not needed – but light sources should be as unobtrusive as possible. Just like Axis recessed spotlights: The miniaturized light heads with a diameter of just 11/16” (17mm) and low glare LED optics offer the optimum balance of performance and discreet appearance for such applications. Interchangeable lenses with three different beam angles, clip-on filters, and accessories as well as mounting frames for one, two, or four lighting heads make Axis an unusually flexible lighting tool. Separate control gear allows control via 0-10V.

Special features

  • >120lm/W

Sizes

  • XXS

    0.5"
    81 - 126 lm

Downloads

Highlights of Axis

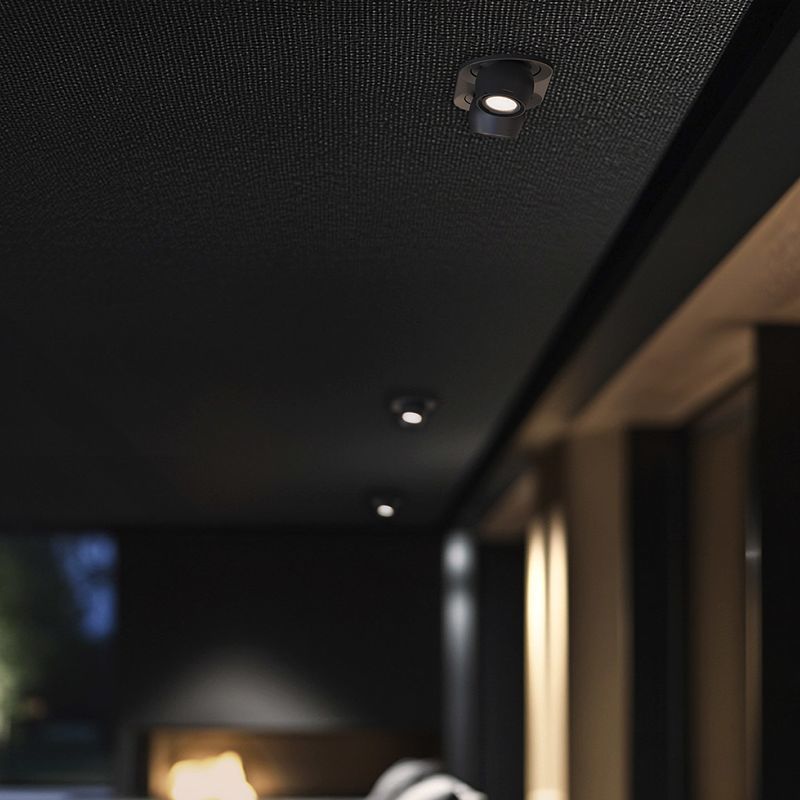

ERCO Axis recessed spotlights providing accent lighting in bars and galleries.

Light, not luminaires

With a diameter of just 11/16″, the Axis recessed spotlights blend almost invisibly into the ceiling. Their rotating and swiveling light heads provide precise adjustment options for stunning accent lighting. Whether in trendy restaurants, stylish lobbies, popular bars or exclusive boutique offices, Axis recessed spotlights create magical points of light and foster an unparalleled atmosphere.

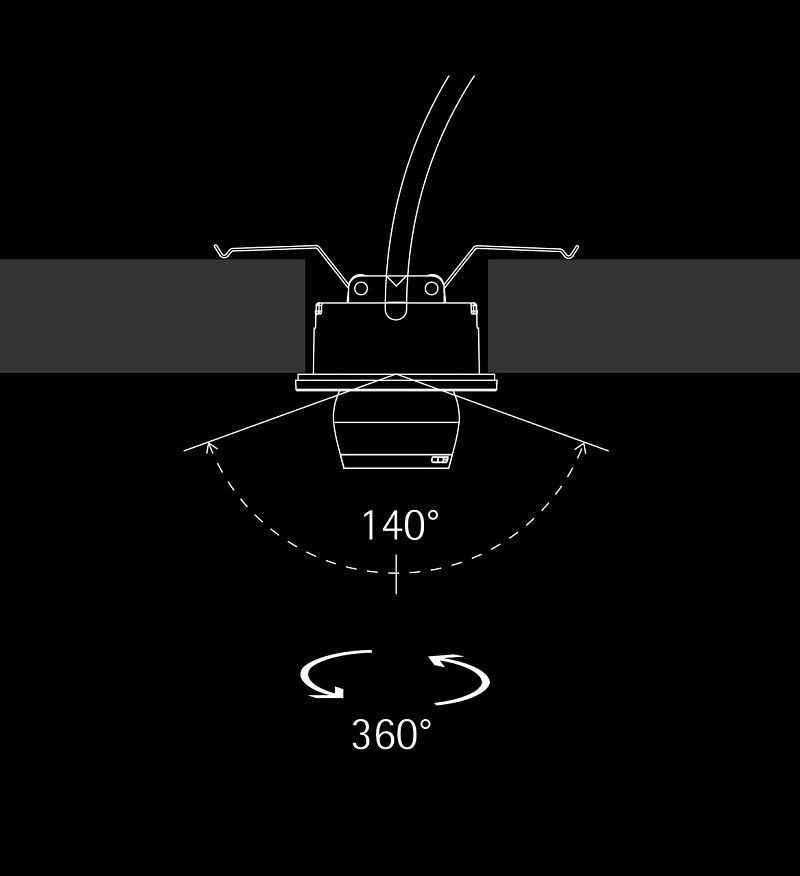

Axis recessed spotlight showing rotation and tilt angles for accent lighting, 140° tilt and 360° rotation.

Rotating and tilting

Rotate the luminaire by up to 360° and tilt the light head by up to 140°.

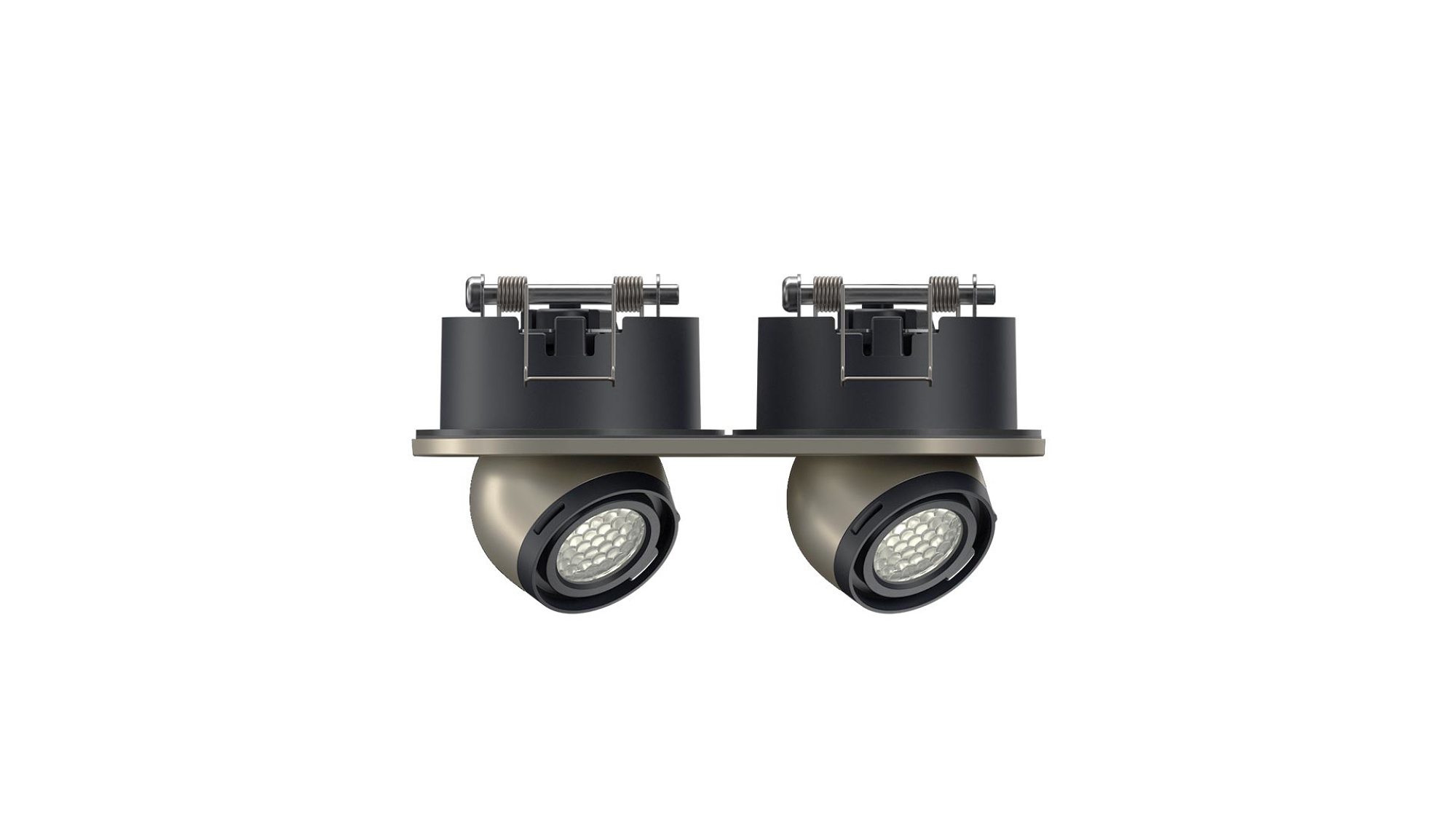

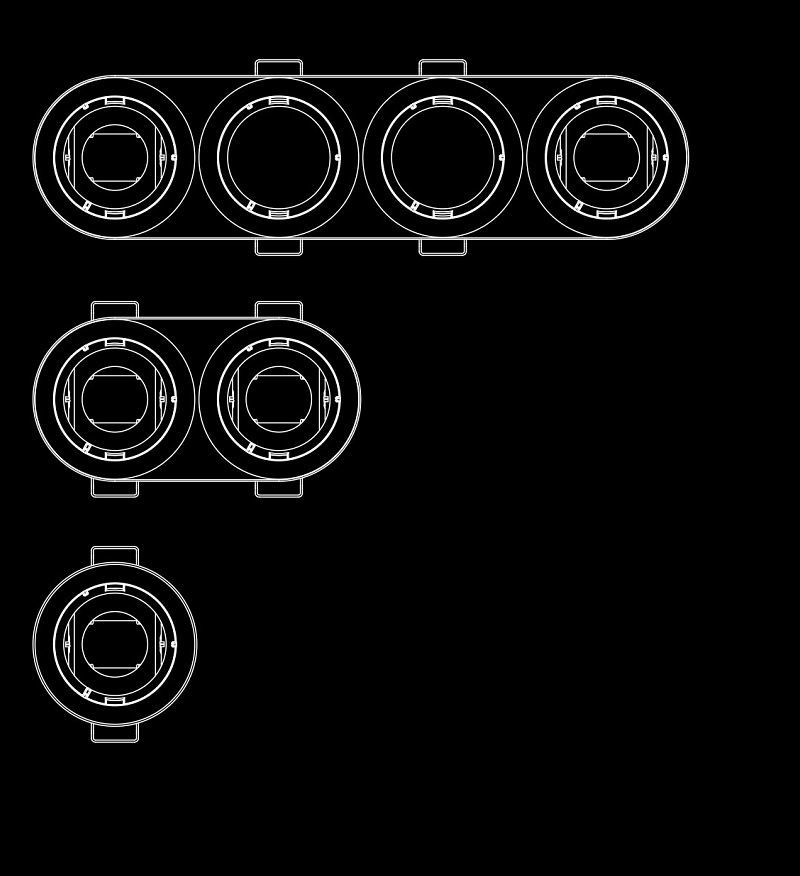

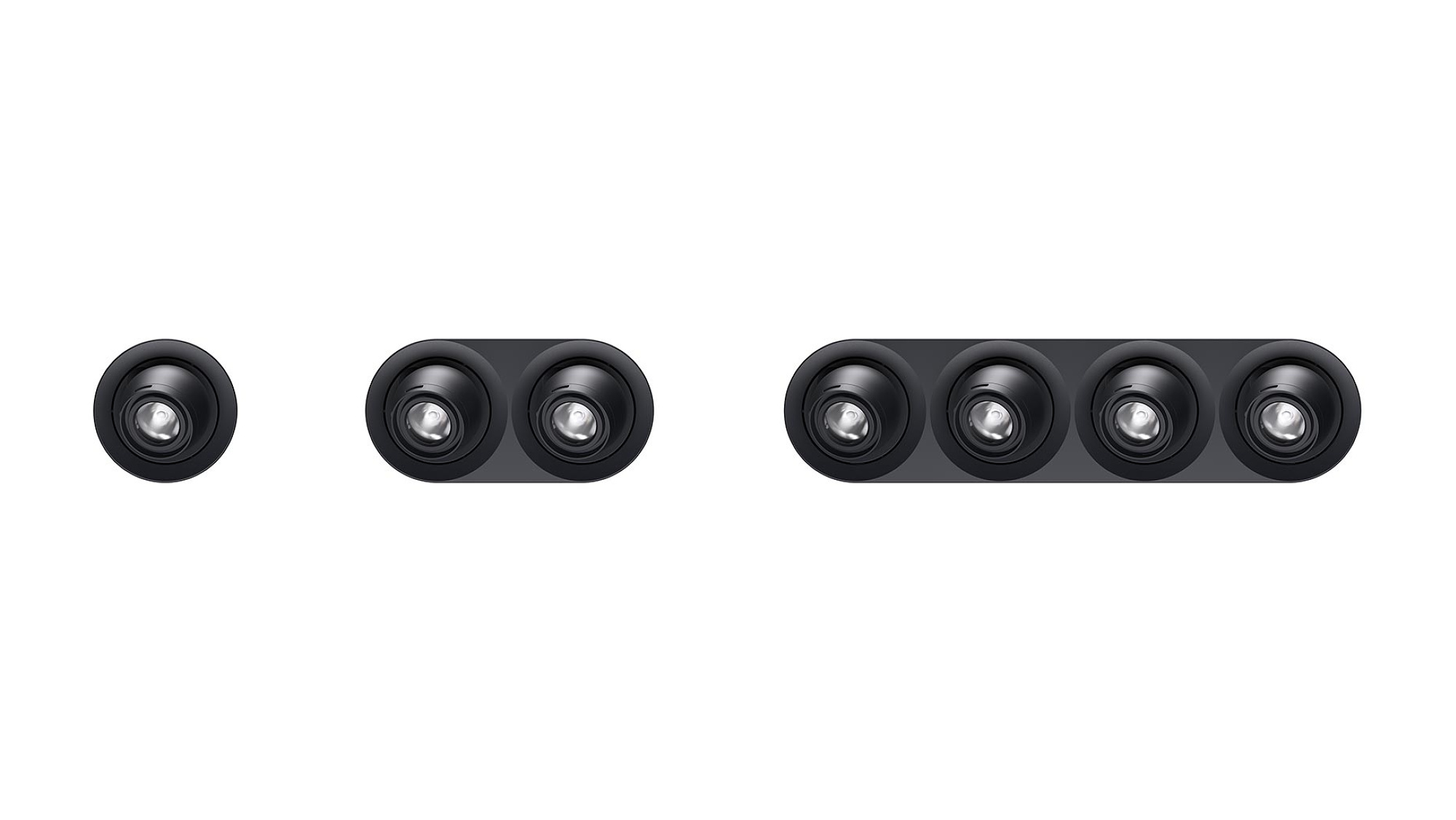

Axis recessed spotlight configurations: single, double, and quad arrangements for accent lighting.

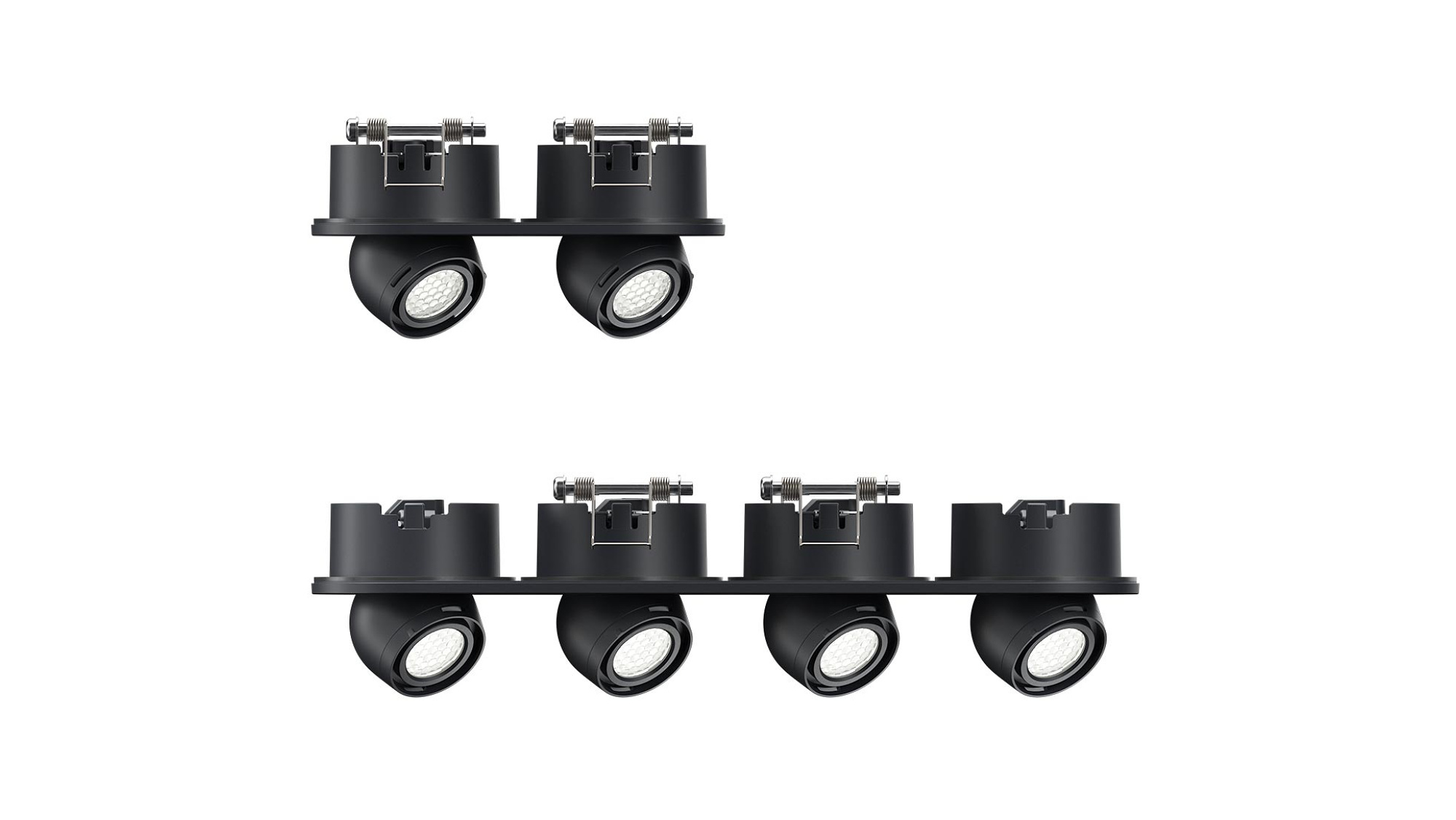

Various mounting frames

Use Axis in mounting frames for 1, 2 or 4 luminaires (accessories). It is also available in the color of your choice.

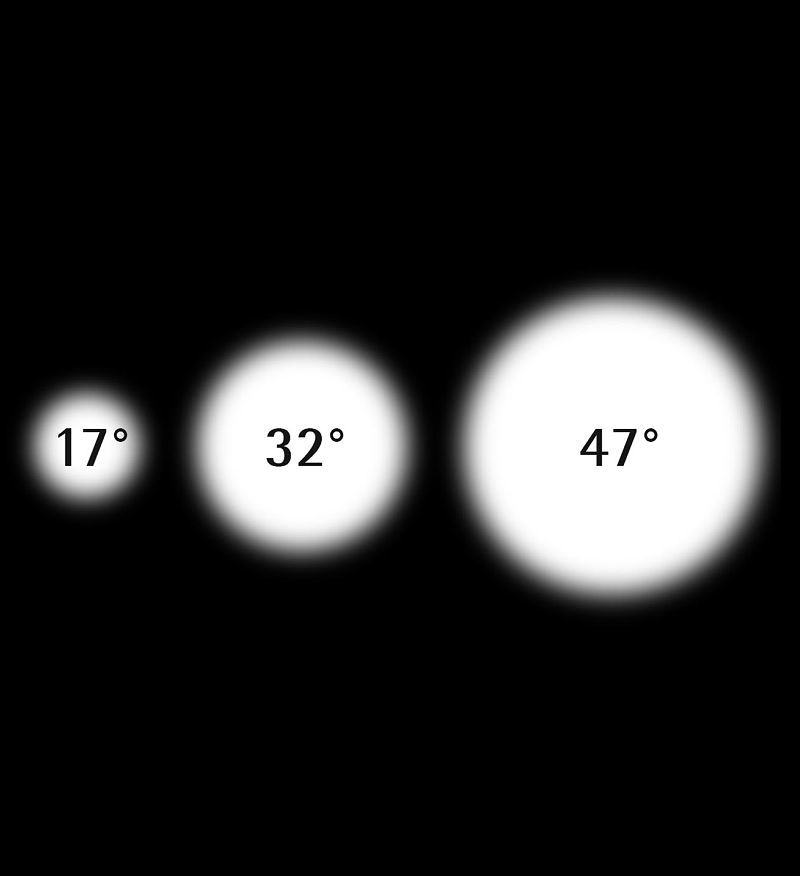

Axis recessed spotlight beam angles: spot (17°), flood (32°), wide flood (47°).

3 interchangeable light distributions

Set up light with precision on site: 3 interchangeable lenses allow light distributions to be changed without tools. Options range from spot (17°) for focused lighting to wide flood (45°) for broader light cones.

Axis in use

Villa Lakeside, Gothenburg. Plumber: Myrås Elektriska AB. Photography: Johan Elm.

Villa Lakeside, Gothenburg. Plumber: Myrås Elektriska AB. Photography: Johan Elm.

Light instead of luminaires for magical effects. Visualisation: Electric Gobo

Light instead of luminaires for magical effects. Visualisation: Electric Gobo

Villa Lakeside, Gothenburg. Plumber: Myrås Elektriska AB. Photography: Johan Elm.

Villa Lakeside, Gothenburg. Plumber: Myrås Elektriska AB. Photography: Johan Elm.

Dramatic, scenographic lighting works best against a subdued background: In prestigious business premises as well as in darkened galleries or in a bar at night. Visualisation: Electric Gobo

Dramatic, scenographic lighting works best against a subdued background: In prestigious business premises as well as in darkened galleries or in a bar at night. Visualisation: Electric Gobo

Light instead of luminaires for magical effects. Visualisation: Electric Gobo

Light instead of luminaires for magical effects. Visualisation: Electric Gobo

Light instead of luminaires for magical effects. Visualisation: Electric Gobo

Light instead of luminaires for magical effects. Visualisation: Electric Gobo

Light instead of luminaires for magical effects. Visualisation: Electric Gobo

Light instead of luminaires for magical effects. Visualisation: Electric Gobo

Allow us to tackle your next project together

Select a service:

Request a sample now

Without obligation and free of charge on site!

Would you like a callback?

Our lighting advisors are available to help you at any time!

Lighting effect of Axis

Recessed spotlights

Do you need help selecting the light distribution?

Recessed spotlights

Recessed spotlights

Recessed spotlights

Recessed spotlights

Lighting technology

Light source
1 W - 1 W
107 lm - 155 lm

Light distributions

Flood

Flood

Wide flood

Wide flood

Spot

Spot

Luminaire arrangement

Axis recessed spotlights are particularly discreet and can be installed in the ceiling. Mounting frames for one, two, or four light heads are optionally available.

The light heads can be tilted by (a) 140° and rotated by up to 360°.

Configuration of Axis

Get an overview of the product features of Axis here

Construction size

Connected load

Luminous flux of the luminaire

Light distributions

Construction size XXS / 0.5"

Connected load 1 W - 1 W

Luminous flux of the luminaire 81 lm - 126 lm

Light distributions 3

Show products

Inquire now: Axis for your next project

We will gladly prepare an offer, provide you with samples and answer your specific planning questions.

Your contact data:

The fields highlighted in red must be filled out correctly!

free of charge and without obligation

Your data will be handled confidentially. For further information see Data protection declaration.

Inquire now: Axis for your next project

We will gladly prepare an offer, provide you with samples and answer your specific planning questions.

Your contact data:

The fields highlighted in red must be filled out correctly!

free of charge and without obligation

Your data will be handled confidentially. For further information see Data protection declaration.

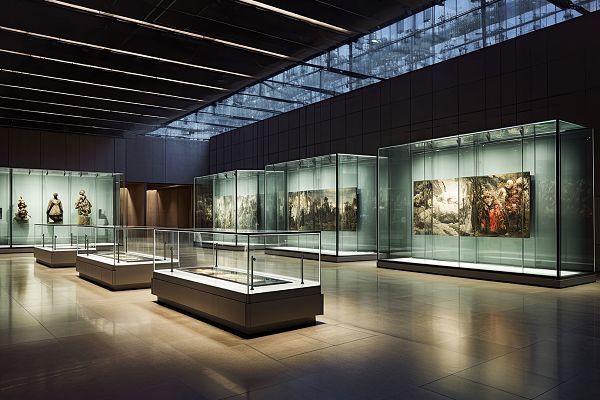

The best light in museum quality


What makes Axis exceptional? We meticulously select our LEDs. With exceptional longevity and color fidelity, Axis LEDs outperform standard market options. Even after 50,000 operating hours, 90% of the LEDs maintain their initial brightness (L90/B10). Also pay attention to the color accuracy of LEDs. Our eyes recognize the smallest differences in color. ERCO LEDs achieve a very low 1.5 SDCM value to ensure consistent colors throughout their lifespan. A high color rendering index of up to CRI 97 ensures that illuminated objects are reproduced with exceptional accuracy.

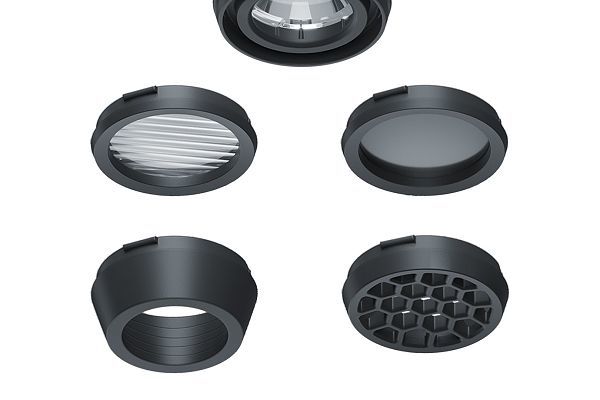

Clip-on filters and accessories


Attach various elements to the light head. Filters as accessories allow for the precise adjustment of light to any application. Shape light distribution with the softening lens for gentle fading or the sculpture lens for oval light cones. Enhance visual comfort with matching snoots and honeycomb louvres.

Adapted to your lighting needs


Choose the appropriate control gear for your application. For especially tight ceiling installations, compact control gear options with sizes of just 142mm x 50mm x 35mm (L/W/H) are available. This control gear is available for 1-2 or 3-7 light heads.
