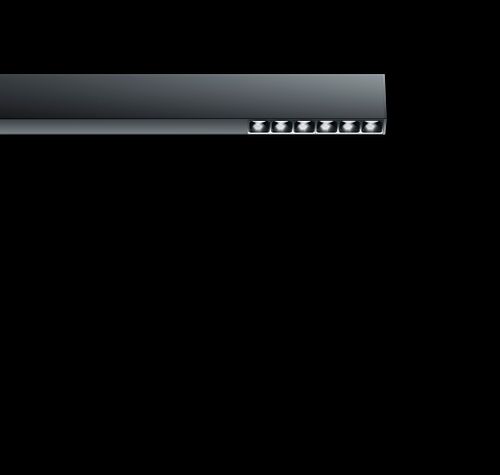

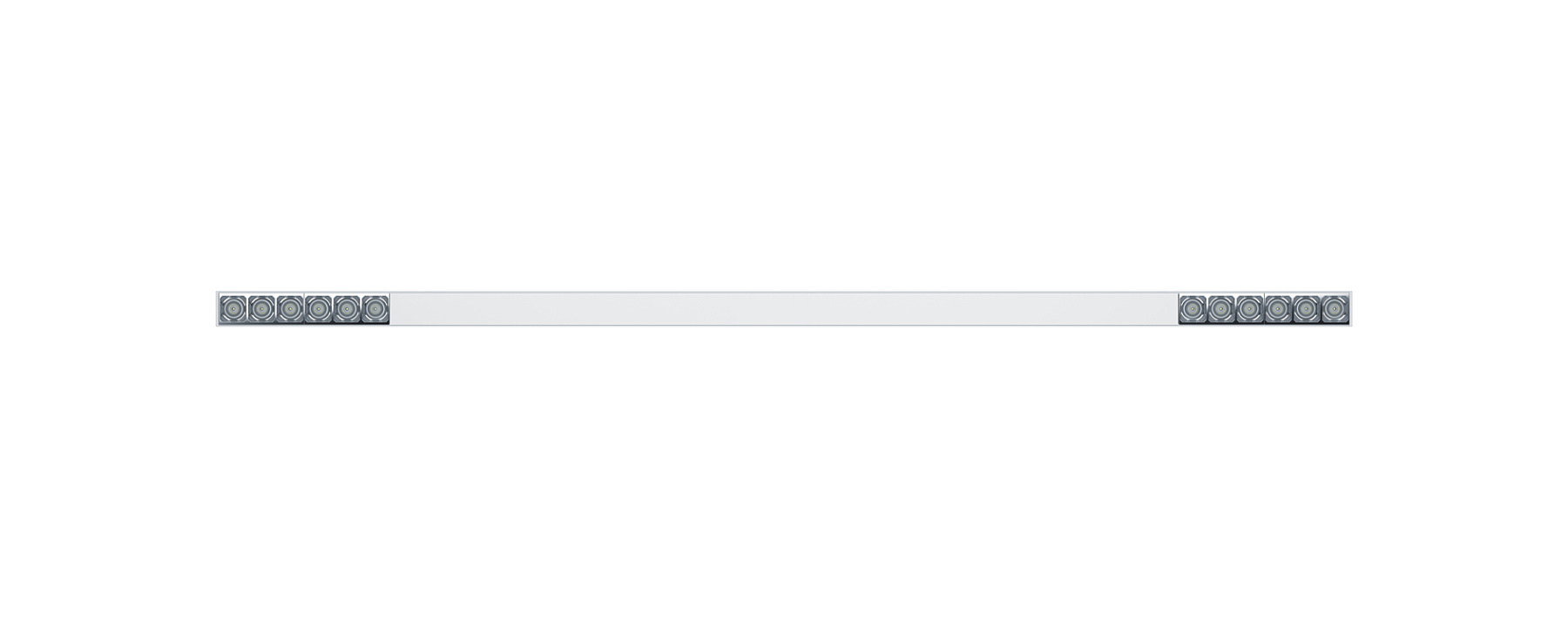

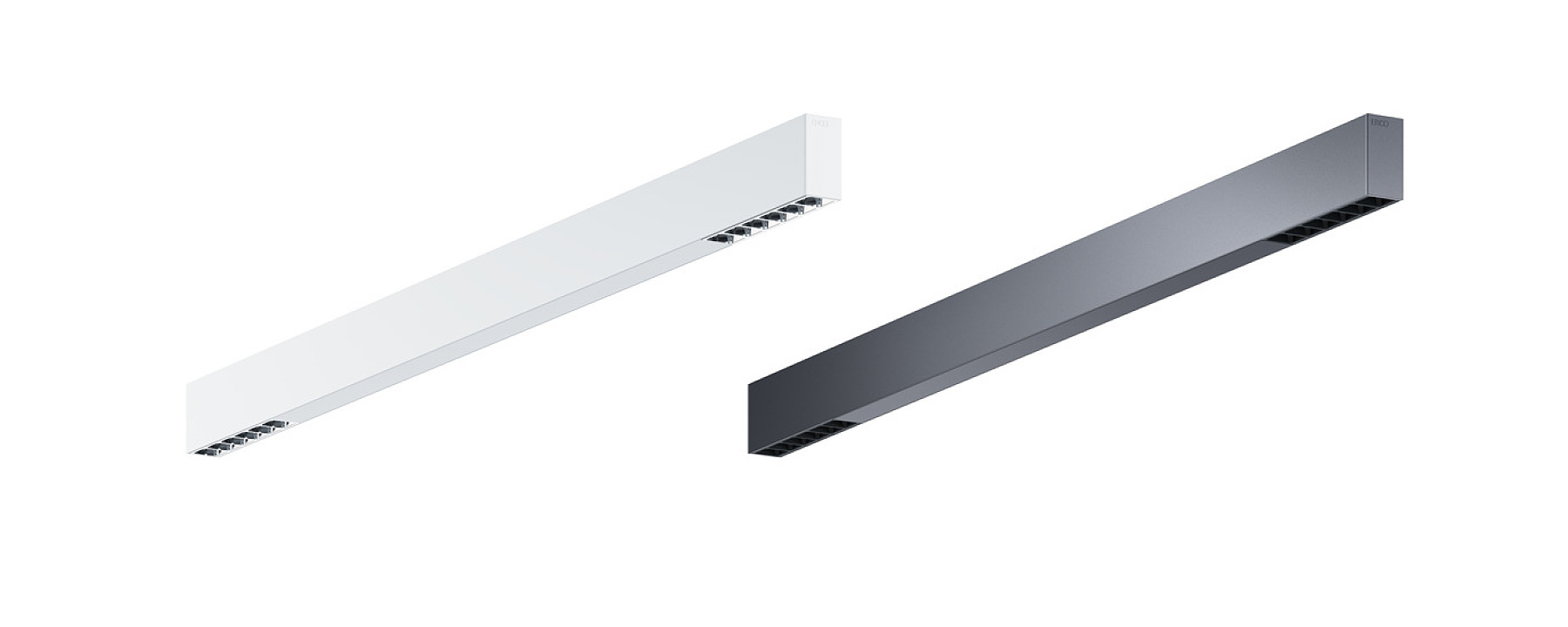

A louvre is designed to restrict the view into the luminaire, achieving efficient visual comfort with an emission angle of 90°. An anti-glare louvre available in black or silver enables the luminaire to blend with the material and color of the ceiling.

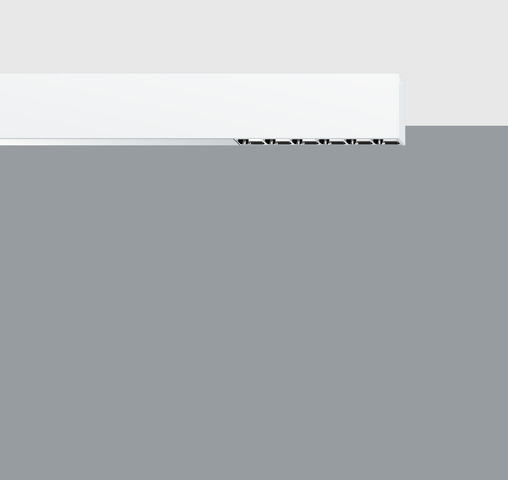

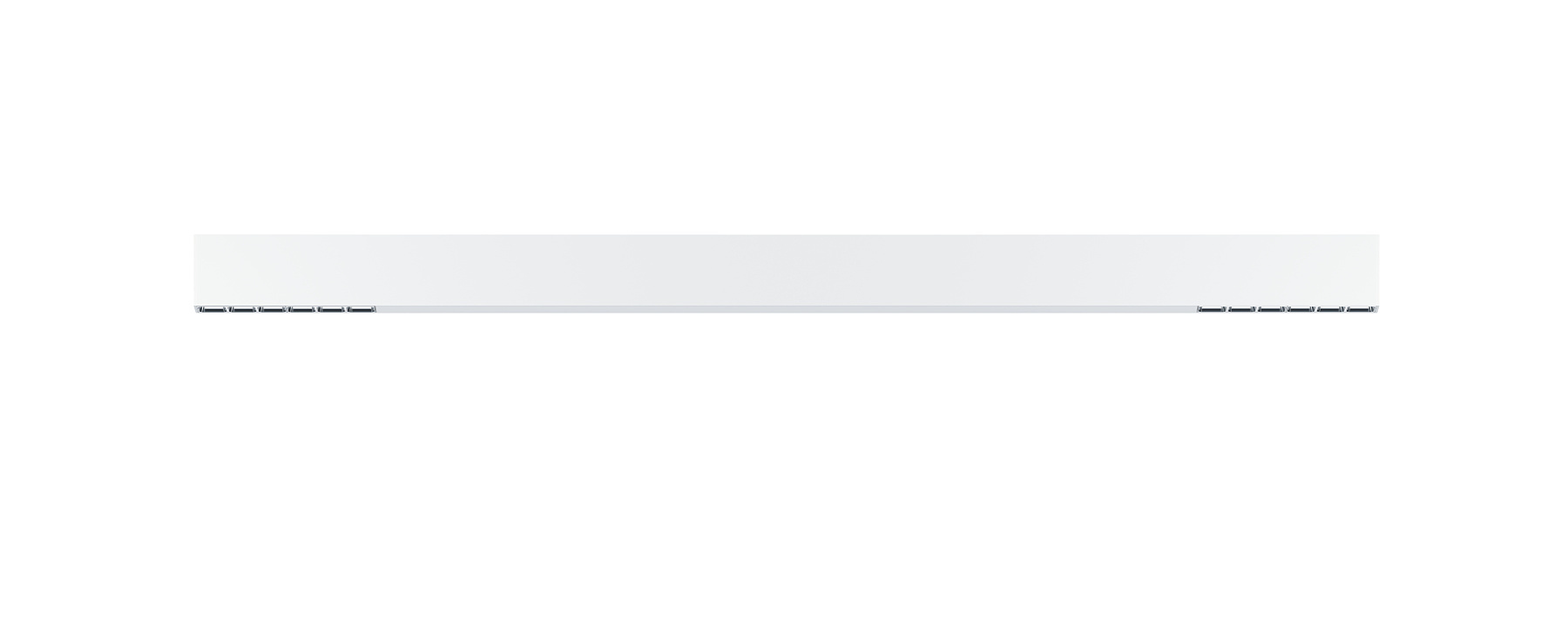

Two linear Compar modules, united in an elegant, slender profile: Compar linear surface-mounted luminaires feature uncomplicated installation, and are simultaneously high quality tools for illuminating offices and public buildings. The innovative linear lighting technology offers various wattages and light distributions – for general lighting as well as for the standard-compliant, glare-free lighting of office workplaces. The catches for fixing to the ceiling fitting are discreetly concealed in a slender shadow gap. These luminaires therefore expand the Compar family into a range that can be used to solve a wide variety of lighting tasks in a uniform way.
With our “ERCO individual” service we offer you extensive options for the individualization of series products as well as support in the development of sophisticated special luminaires. In order to match Compar linear even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:
Do you have further requirements with the product?
Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}}
{{strasse2}}
{{/strasse2}}
{{ort}}
{{staat}}
Lighting tool
Light distribution
Ambient lighting produced by wide beam light distribution.
Wide beam, rotationally symmetrical light distribution for general lighting.
For optimum general lighting, the luminaire spacing (d) between two Compar downlights may, as a rough guide, be up to 1.5 times the height (h) of the luminaire above the working plane.
Arrangement: d ≤ 1.5 x h
The recommended offset from the wall is half the luminaire spacing.
Arrangement: a = d / 2
