Beamer. Maximum visual comfort for the highest demands

Adaptive projectors without spill light that master light and darkness in outdoor spaces

Show products

Beamer - Our first projector with darklight lenses

Special features of Beamer
View product description

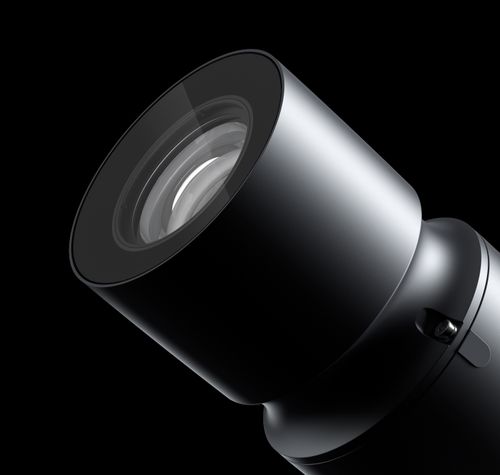

Darklight technology

The Darklight lens not only creates a magical impression with just one light point. It also offers precise, uniform light distributions and maximum visual comfort.

Zoom projectors

Adjustable zoom light distributions make it possible to continuously adjust beam angles. Round or oval light distribution with zoom optic can be selected between.

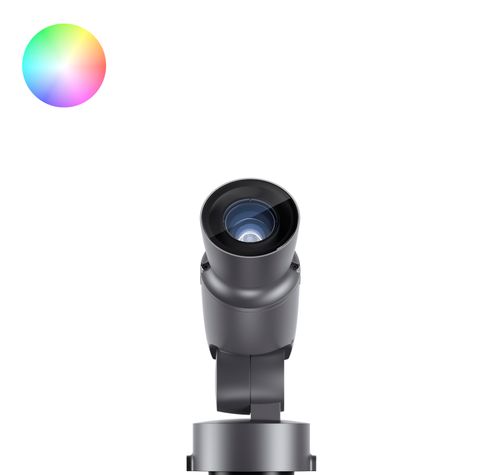

RGBW luminaires

Using colored light, the environment can be designed and transformed with either subtle or dramatic contrasts. LEDs enable you to generate colored light very efficiently and flexibly.

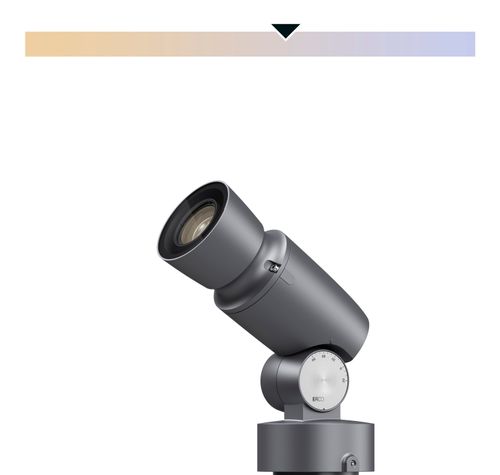

Tunable white technology

Tunable white enables you to dynamically adjust the light color. Always illuminate art or the surfaces of materials perfectly and highlight colors ideally.

Diverse accessories

Accessories enable you to match lighting tools to special applications. For example, use conversion filters to shift the light color or swap the light distribution.

Beamer projectors are precision tools for the most demanding outdoor lighting tasks – technically on a par with the best museum spotlights. With compact and corrosion-free housings, they feature exceptional quality of light, adaptivity and digital connectivity. The light emission of their innovative darklight optics is highly uniform and without spill light. This gives the projectors maximum visual comfort and a magical appearance. The circumstances change? Interchangeable optics including zoom and wallwash adapt to new requirements, and filter and lens accessories serve for fine tuning. Options such as 0-10V, wireless dimming via Casambi Bluetooth, Tunable White and RGBW colors transform smart lighting scenarios into reality.

Beamer in the application

Individualize Beamer for your use case

With our “ERCO individual” service we offer you extensive options for the individualization of series products as well as support in the development of sophisticated special luminaires. In order to match Beamer even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:

High-power LEDs: 3000K CRI 97 or 2700K, 3500K, 4000K with CRI 92
Housing: 10,000 further colors

Do you have further requirements with the product?

Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}} {{strasse2}}
{{/strasse2}} {{ort}}
{{staat}}

Call an ERCO consultant: {{fon}}

Your contact partners worldwide

Product features in detail

1 ERCO lenses

Made of optical polymer
Darklight lenses: narrow spot, spot, flood, wide flood or extra wide flood
Spherolit lenses: oval flood, oval wide flood or wallwash
Zoom lenses: zoom spot or zoom oval; continuously focusable

2 ERCO LED-module

High-power LEDs: warm white (2700K or 3000K), neutral white (3500K or 4000K), tunable white (2700-7500K) or RGBW
Collimating lens made of optical polymer

3 Light head

Graphit m
Corrosion-resistant cast aluminum, No-Rinse surface treatment
Double powder-coated
Non-reflective safety glass

4 Housing and hinge

Graphit m
Coated polymer
Optimized surface for reduced accumulation of dirt
90° tilt
Internal wiring
Scale disc: corrosion-resistant aluminum

5 Control gear

Switchable, 0-10V dimmable or Casambi Bluetooth

6 Mounting plate

Graphit m, coated polymer
Rotatable through 300°

connection thread G1/2

Stainless steel
Rotatable through 360°

1 ERCO lenses

Made of optical polymer
Darklight lenses: narrow spot, spot, flood, wide flood or extra wide flood
Spherolit lenses: oval flood, oval wide flood or wallwash
Zoom lenses: zoom spot or zoom oval; continuously focusable

2 ERCO LED-module

High-power LEDs: warm white (2700K or 3000K), neutral white (3500K or 4000K), tunable white (2700-7500K) or RGBW
Collimating lens made of optical polymer

3 Light head

Graphit m
Corrosion-resistant cast aluminum, No-Rinse surface treatment
Double powder-coated
Non-reflective safety glass

4 Housing and hinge

Graphit m
Coated polymer
Optimized surface for reduced accumulation of dirt
90° tilt
Internal wiring
Scale disc: corrosion-resistant aluminum

5 Control gear

Switchable, 0-10V dimmable or Casambi Bluetooth

6 Mounting plate

Graphit m, coated polymer
Rotatable through 300°

connection thread G1/2

Stainless steel
Rotatable through 360°

Beamer: Light effect and planning aid

Lighting tool

Light distribution

Emphasis of objects or architectural elements.

Lighting technology
Luminaire arrangement

Projectors

Very narrow to wide beam, rotationally symmetrical light distribution for accent lighting.

Light source
2W - 21.6W
215lm - 2673lm
Projectors

Projectors

An angle of inclination (α) of approx. 30° is suitable for accent lighting with Beamer projectors. This emphasizes the three-dimensionality of architectural details, sculptures and trees without distorting the spatial impression with excessive shadowing.

Arrangement: α = 30°

Emphasis of objects or architectural elements.

Lighting technology
Luminaire arrangement

Zoom projectors

Manually adjustable round or oval light distribution for accenting to floodlighting.

Light source
8.1W - 21.6W
862lm - 2673lm
Zoom projectors

Zoom projectors

Zoom projectors feature a continuously adjustable beam angle. With the spot to wide flood zoom range, smaller objects can be accentuated effectively at an inclination angle (α) of approximately 30°. Oval zoom is suitable for elongated objects. The object is modeled without distorting the effect as a result of excessive shadowing. It also prevents shadows cast by the observer.

Arrangement: α = 30°

Wide-beam illumination of larger objects or spatial zones.

Lighting technology
Luminaire arrangement

Floodlights

Very wide rotationally symmetrical or axially symmetrical light distribution for floodlighting.

Light source
8.1W - 21.6W
862lm - 2673lm
Floodlights

Floodlights

Beamer projectors ensure uniform floodlighting of wall surfaces or trees. The ideal angle of tilt (α) for this is approximately 30°.

Arrangement: α = 30°

Vertical illuminance for brightening the surroundings and segmenting the exterior landscape.

Lighting technology
Luminaire arrangement

Lens wallwashers

Asymmetrical light distribution for highly uniform wallwashing.

Light source
8.1W - 21.6W
862lm - 2673lm
Lens wallwashers

Lens wallwashers

Outdoors, uniform vertical lighting defines spatial borders. The distance to the wall (a) of Beamer wallwashers should be around one third of the wall height (h) for this purpose. This results in an angle of tilt (γ) of around 55°.

Arrangement: a = 1/3 x h or γ = 55°

For good longitudinal uniformity, the luminaire spacing (d) of Beamer wallwashers may be up to 1.2 times the distance to the wall (a).

Arrangement: d ≤ 1.2 x a

Optimal wall distances and luminaire spacing values for individual products are specified in the wallwasher tables at www.erco.com.
