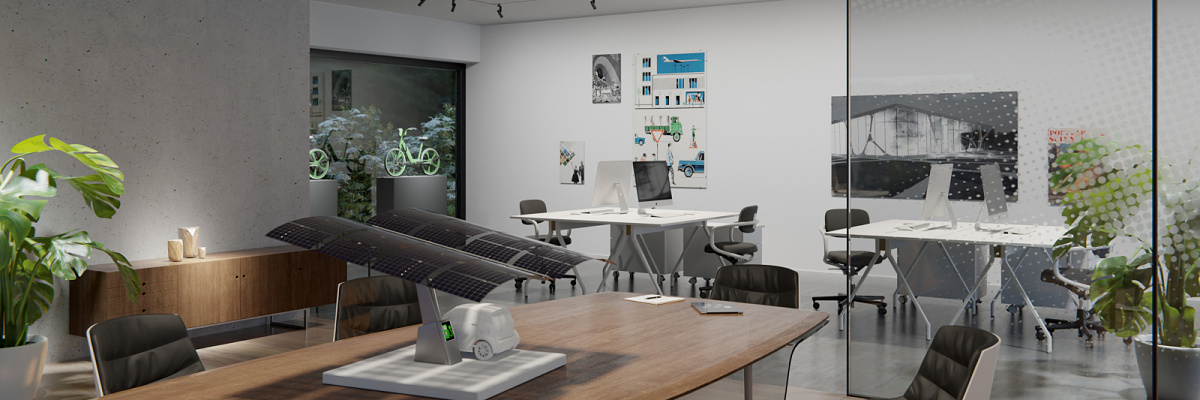

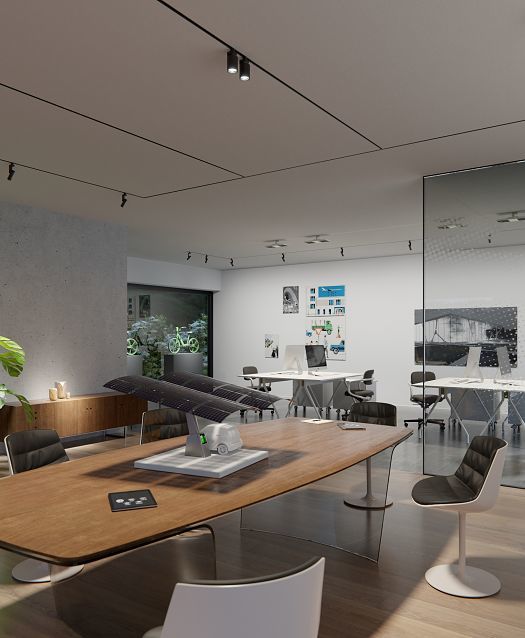

Sample Parscan for modern boutique offices

Do you want to illuminate a boutique office with very small luminaires? The new Parscan 48V is the perfect solution. Simply contact us and we will provide you with samples.

Your contact data:

The fields highlighted in red must be filled out correctly!

Your data will be handled confidentially. For further information see Data protection declaration.

free of charge and without obligation

header image

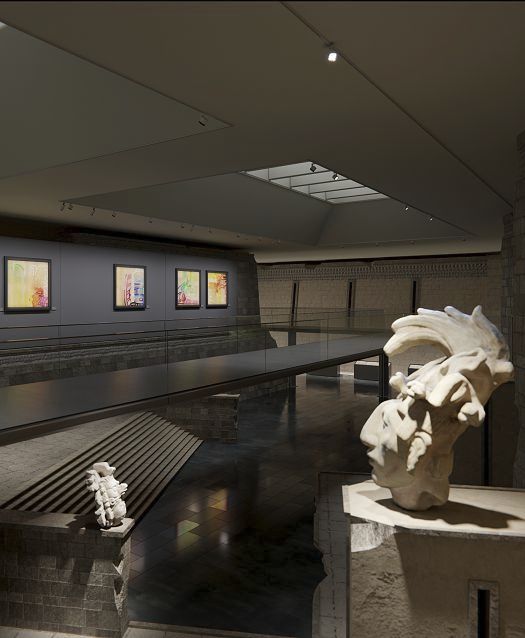

Sample Parscan for museums and galleries

Do you want to display art with high contrast and simply adjust the color temperature via Bluetooth? The new Parscan is the perfect solution. Simply contact us and we will provide you with samples.

Your contact data:

The fields highlighted in red must be filled out correctly!

Your data will be handled confidentially. For further information see Data protection declaration.

free of charge and without obligation

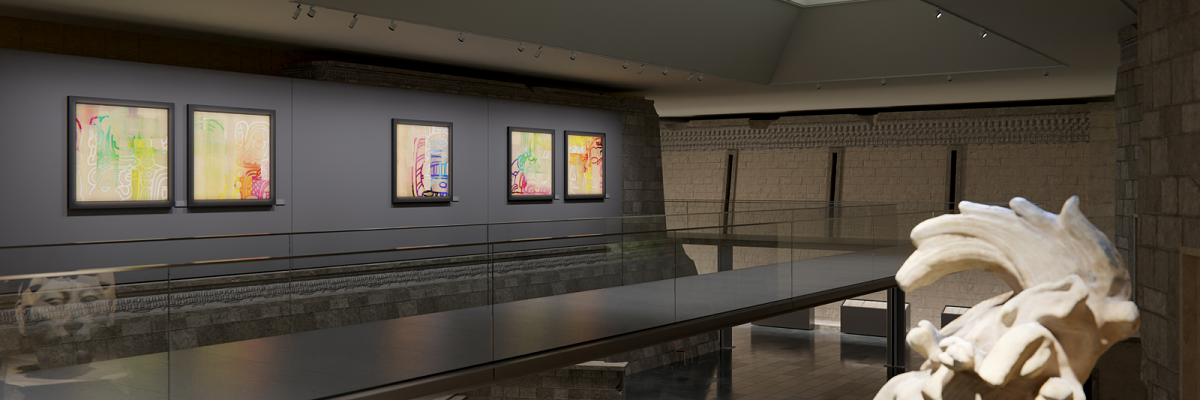

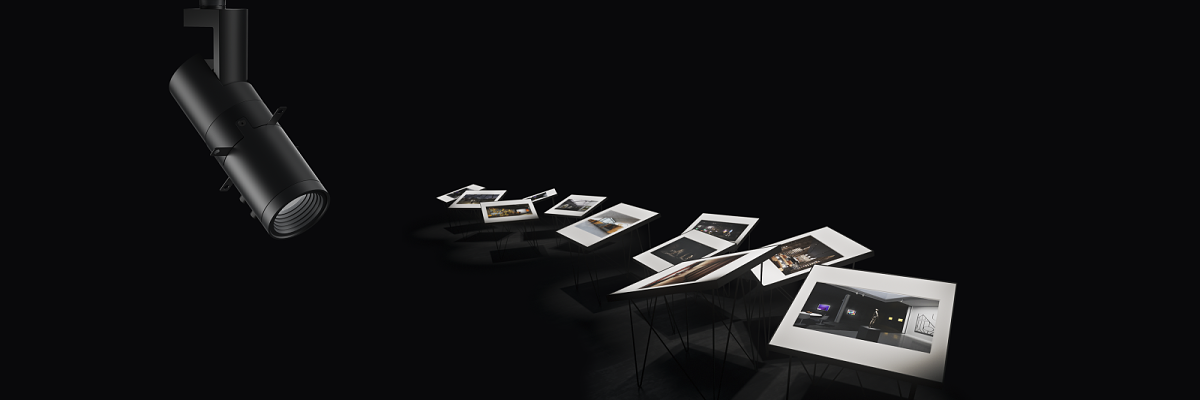

For perfect displays of art: The new Parscan contour spotlights

Framing is the ideal way to precisely illuminate exhibits in galleries and museums. We offer you the right professional tool for the purpose: Parscan New—the best contour spotlight for generating precisely defined light beams and featuring maximum flexibility in use thanks to interchangeable optics. In no time at all a framer is transformed into a spotlight with round distribution—and vice versa. Discover completely new possibilities for the ideal presentation of art.

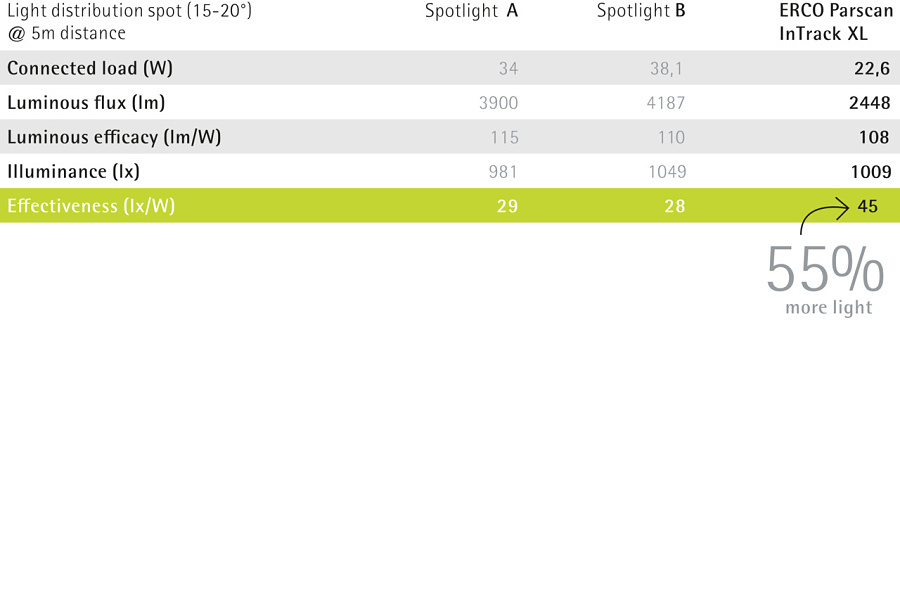

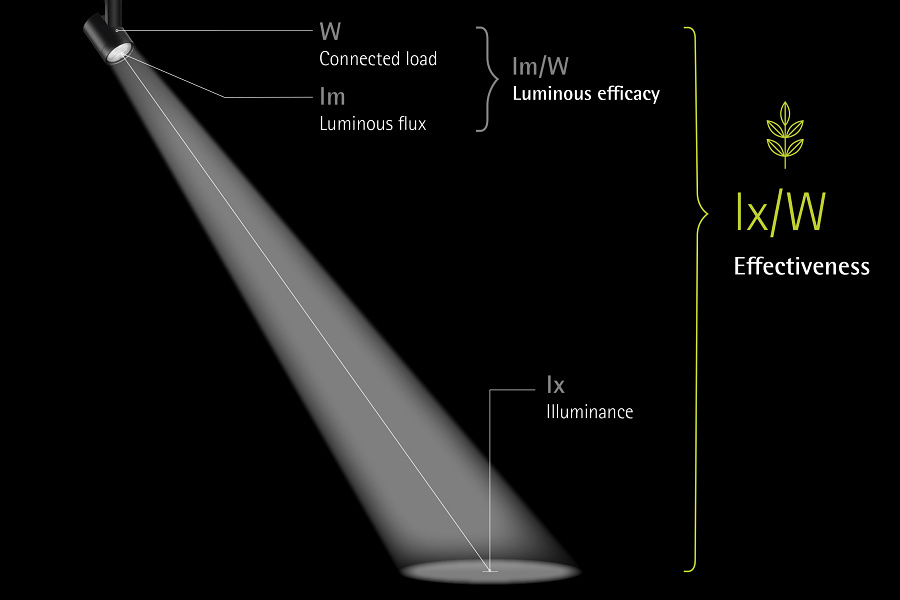

50% more light on the target surface

Sustainable lighting is more than just looking at the efficiency of a luminaire in lm/W. Whether for accent lighting, uniform wallwashing or the illumination of office workstations—the decisive factor is how effectively the expended electrical energy is utilized, i.e. how much light reaches the target surface (in Fc/W).

ERCO represents the most effective lighting tools and methods of lighting on the market. A comparison with the competition shows: with a similar connected load, Parscan for example achieves a significantly higher illuminance. This means Parscan brings visibly and measurably more light to the target surface and is therefore more effective than other spotlights.

The right light spectrum for every application

Select the ideal combination of light color and color rendering: 3000K CRI 97 is the right choice for the perfect rendering of colors. Maximum energy efficiency is achieved with 4000K CRI 82. 24 more spectra become available with conversion filters—ideal for temporary exhibitions that require an adapted lighting concept.

Parscan New with tunable white is the right choice if you want to adjust the color temperature dynamically—according to the course of daylight for example. This enables you to perfectly illuminate art or merchandise.

Two Parscans in one: RGBW luminaires not only allow a choice of over 16 million colors and pastel shades, but also white light colors. The special optic creates uniform, color shadow-free intermixing which is ideal for both colored and white presentations of art or merchandise.

Overview of sizes

XS S M L XL XXL

Pasrscan 48V

for Minirail
48V track

Parscan 120V

for 120V
track

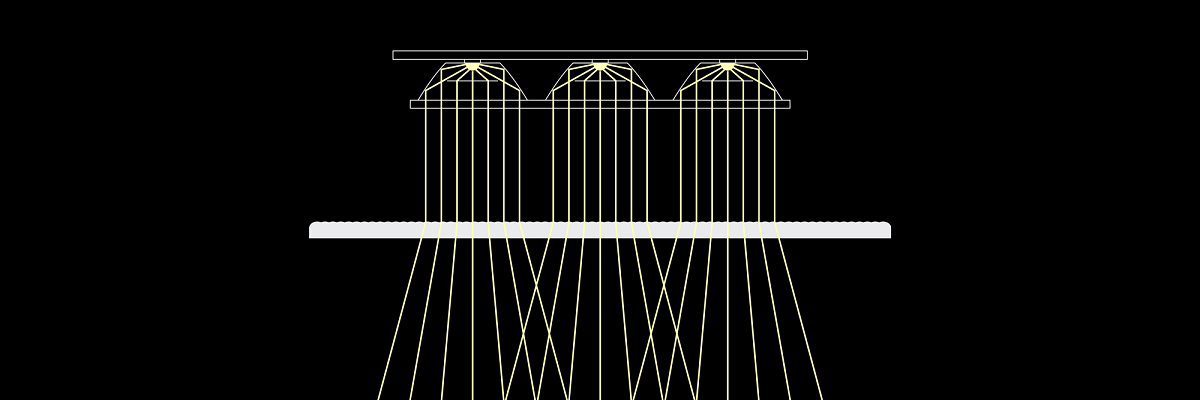

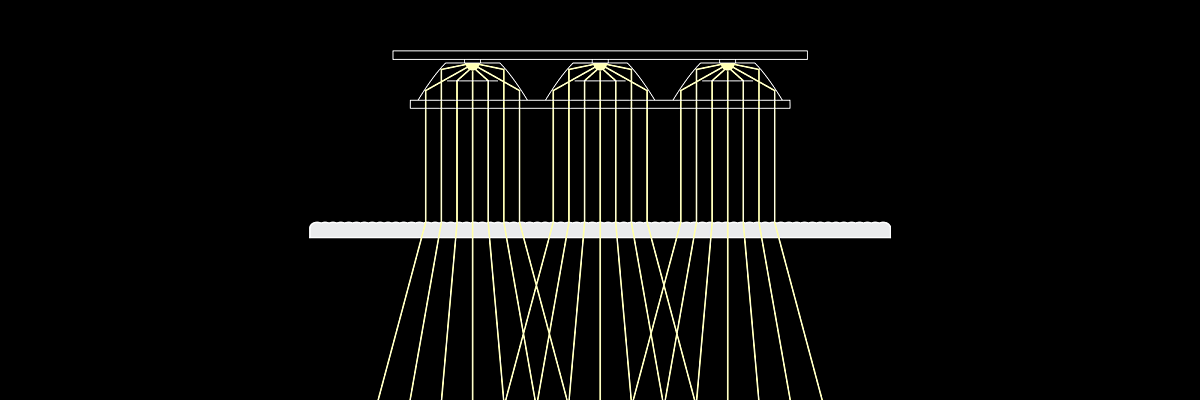

New generation Spherolit lenses

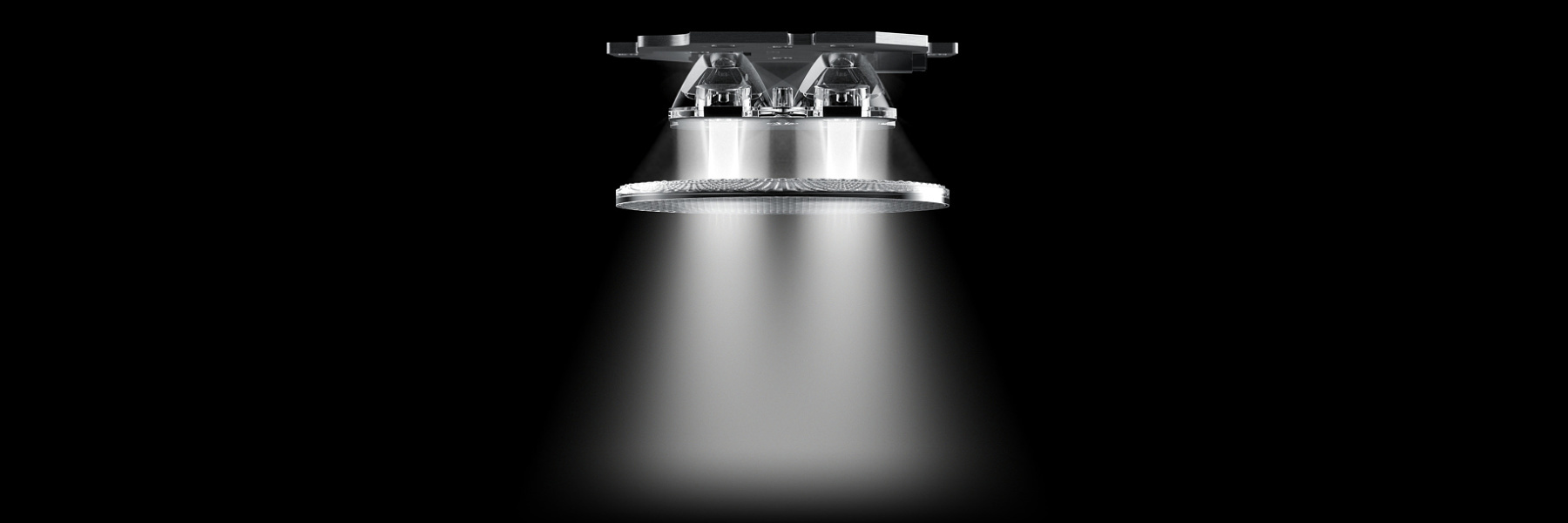

The new Parscan offers best quality of light thanks to next generation Spherolit lenses. The lens system, developed in-house and manufactured by ERCO, generates light beams with optimized symmetry and unsurpassed uniformity, especially for wallwashing. The clear Spherolit lenses enable consistent light colors for high quality illumination.

A collimator focuses the light of each LED onto the interchangeable Spherolit lens. We call the three-dimensional microstructure of the lens spherolites—these project the light precisely onto the target surface. The discreet LEDs of the PCB stand out on the light-emitting surface and create a technical impression that is characteristic of Spherolit technology.

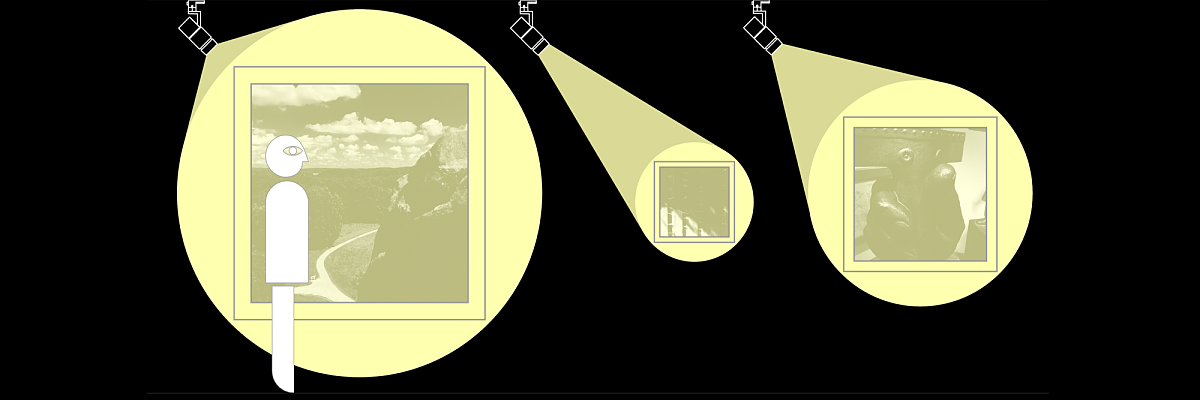

The new Parscan zoom spotlight always presents art in the right light

Now implement your lighting tasks even more flexibly with the new Parscan zoom spotlights. The adjustable zoom optics allow you to infinitely adjust the light beams: Rotationally symmetric light distribution is available with zoom from spot to wide flood. An axially symmetric variant allows adjustment of the oval distribution. Simply transform the new Parscan into a flexible zoom spotlight with the interchangeable zoom optics.

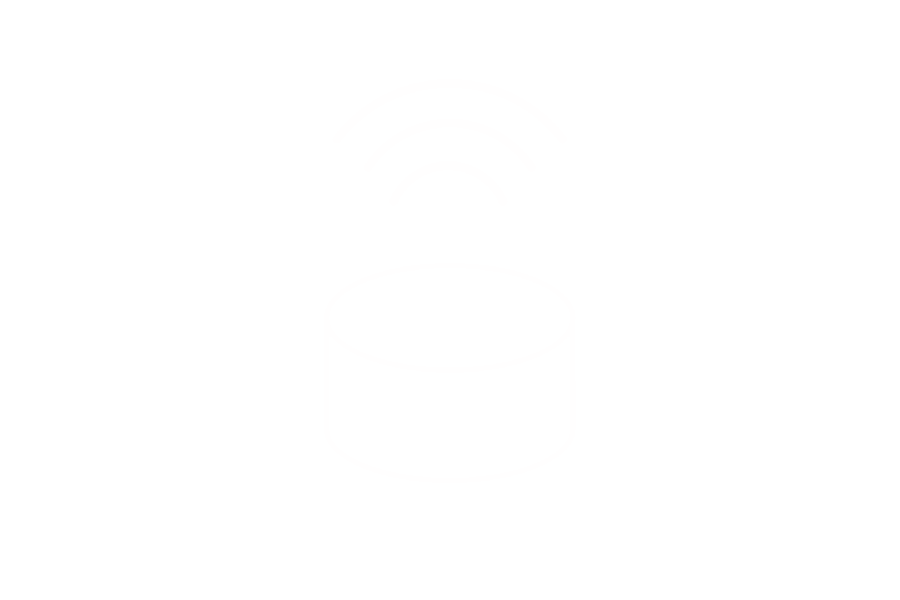

Available as an Add-on Control Unit:

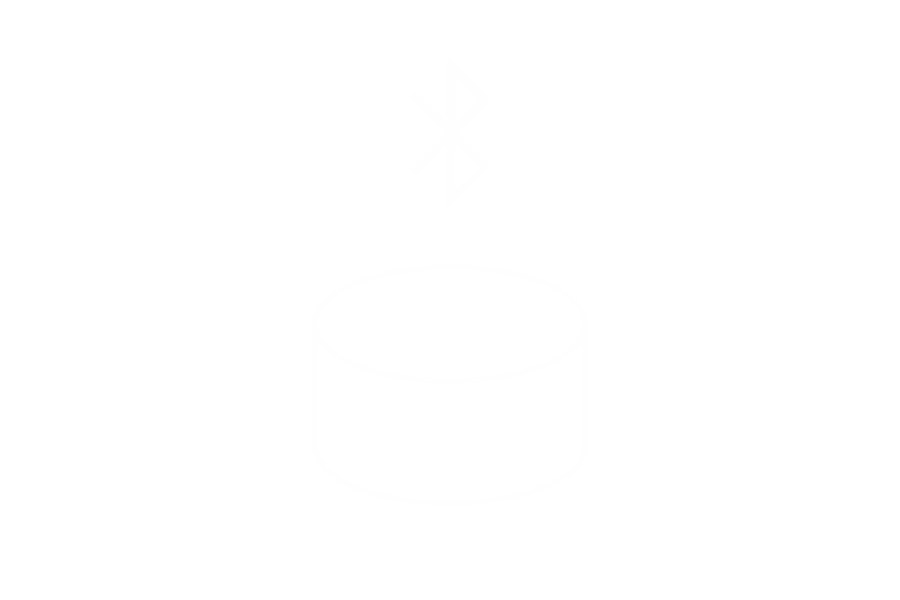

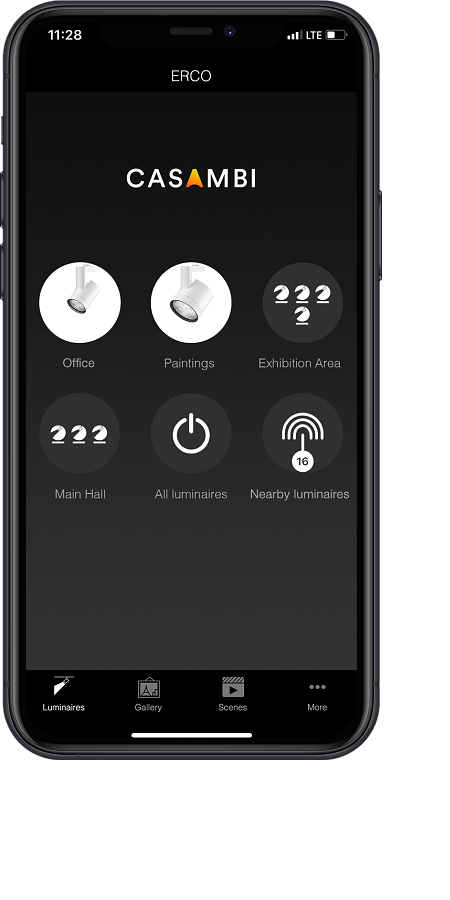

Casambi Bluetooth + 0-10V via bridge

Wireless switching, dimming and programming via Casambi Bluetooth – also for RGBW and tunable white. Connect your Casambi Bluetooth luminaires wirelessly using the new 0-10V bridge (accessory) to control Parscan in your 0-10V system.

Zigbee 3.0

Wirelessly integrate your luminaires into the building automation via the Zigbee Add-on Control Unit and a gateway.

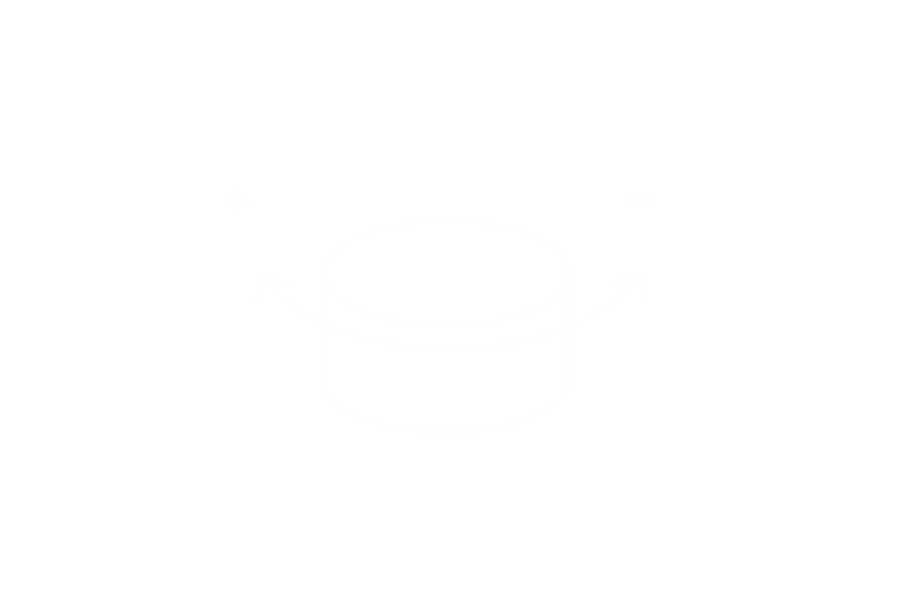

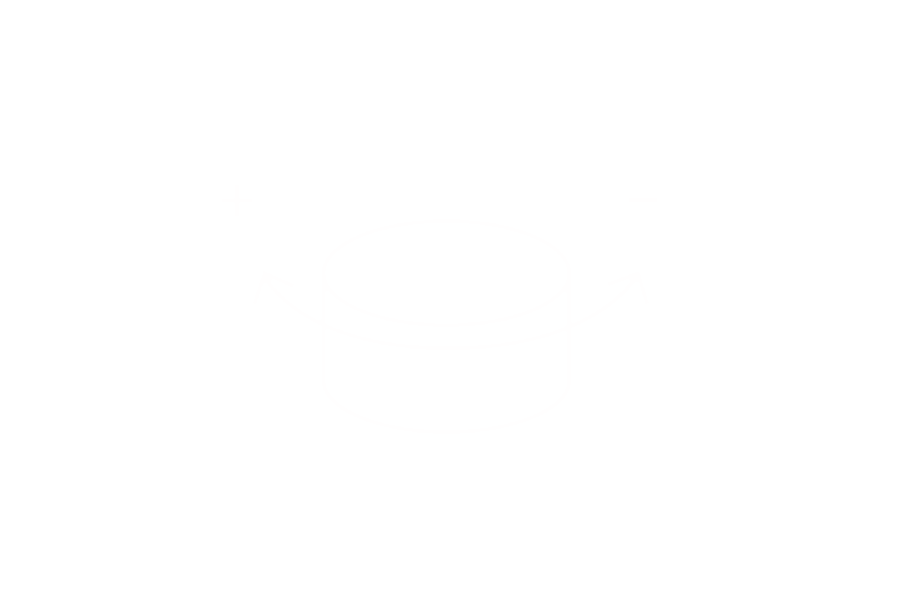

On-board Dim

Dimming via rotary control on the luminaire

Overview of all control modes

0-10V
via bridge		 On-board
Dim		 Casambi
Bluetooth		 Zigbee 3.0

Parscan 48V

for Minirail
48V track

Parscan 120V New

for 120V
track
header image

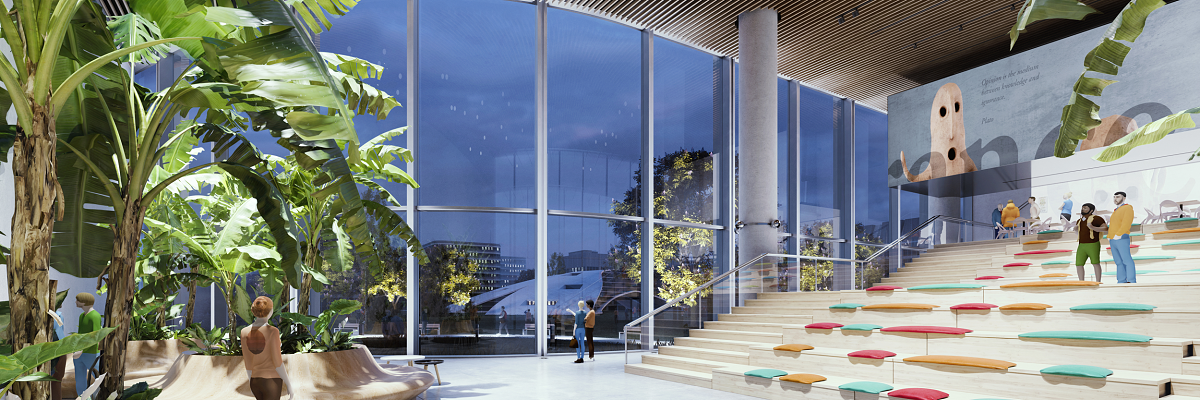

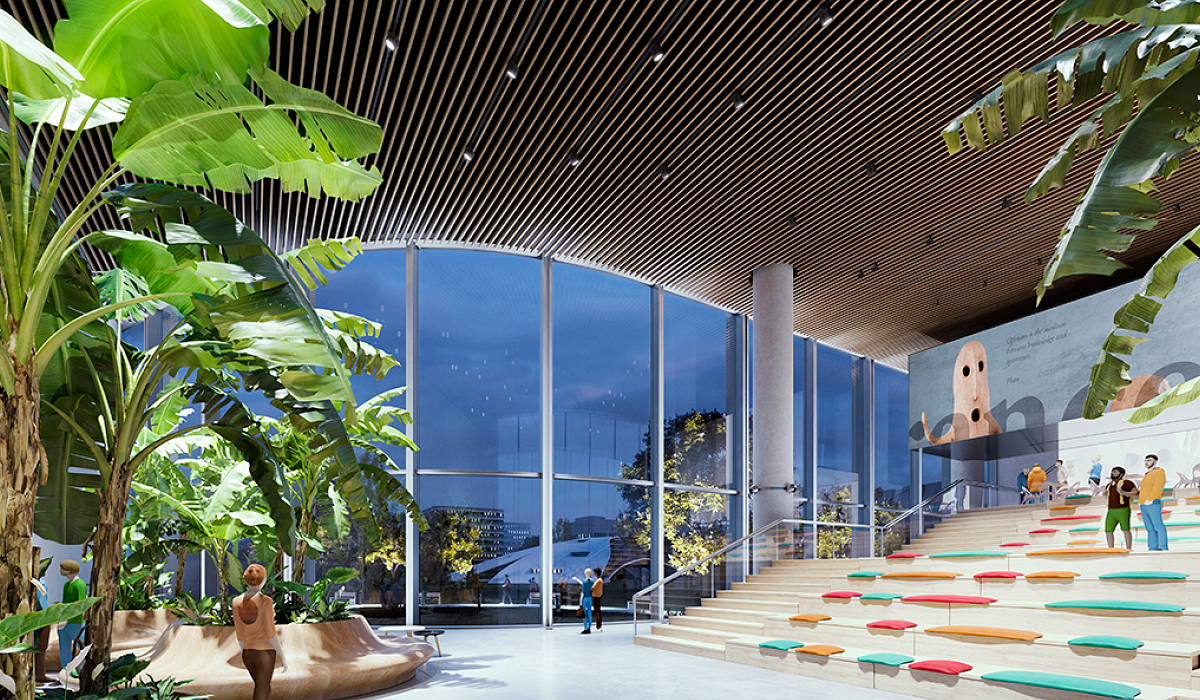

Sample Parscan for foyers and atriums

Do you want to impressively illuminate high rooms with ceiling heights of 30ft and more? The new Parscan is the perfect solution. Simply contact us and we will provide you with samples.

Your contact data:

The fields highlighted in red must be filled out correctly!

Your data will be handled confidentially. For further information see Data protection declaration.

free of charge and without obligation

Parscan Configure now

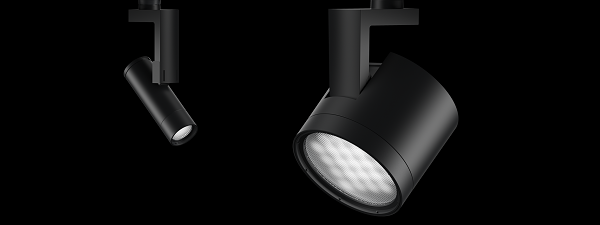

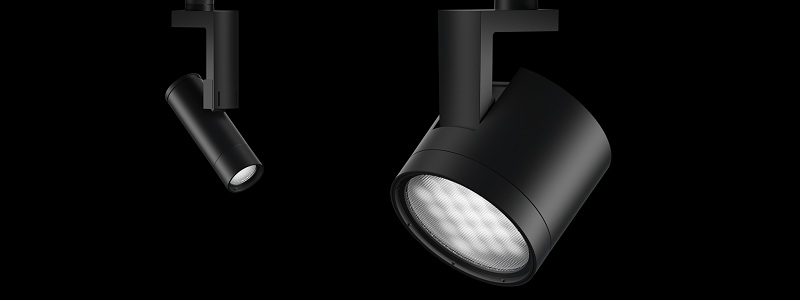

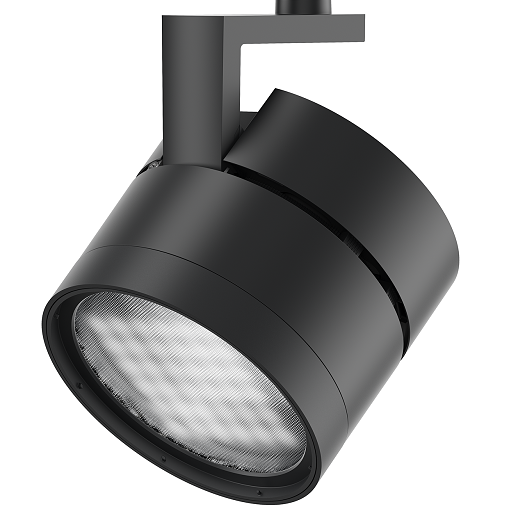

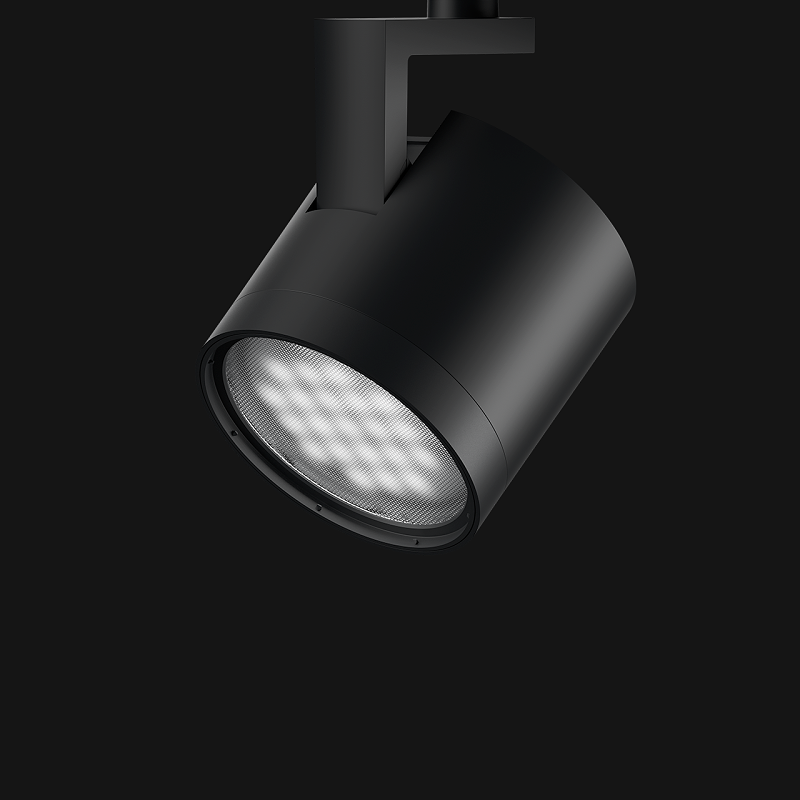

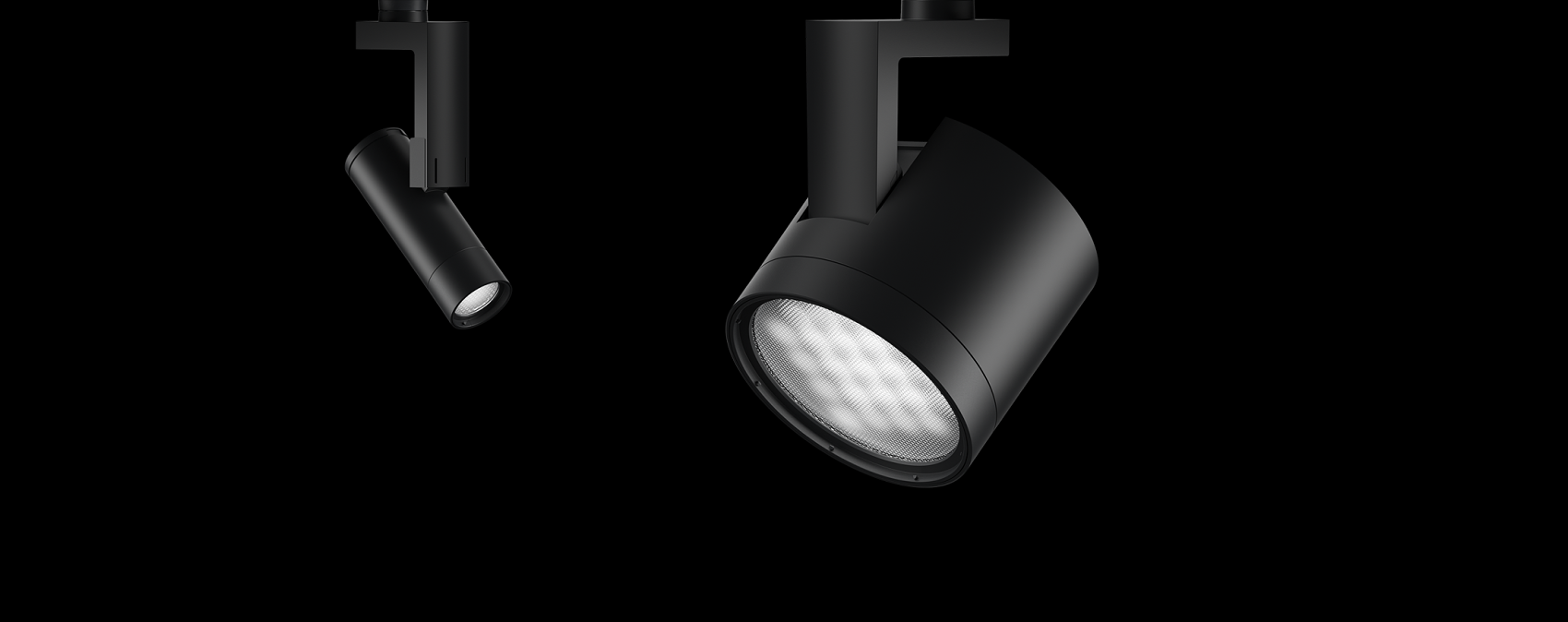

The next generation spotlight:

The new Parscan!

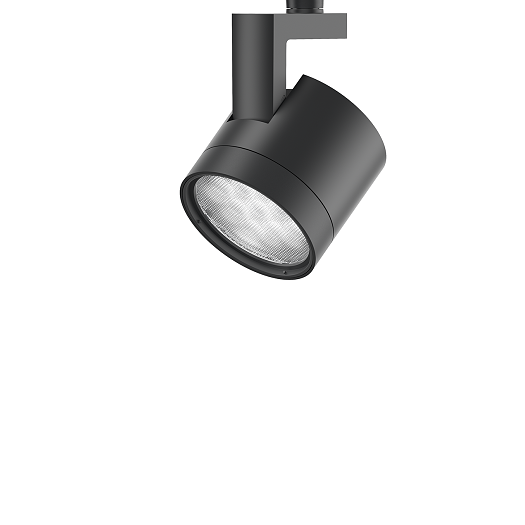

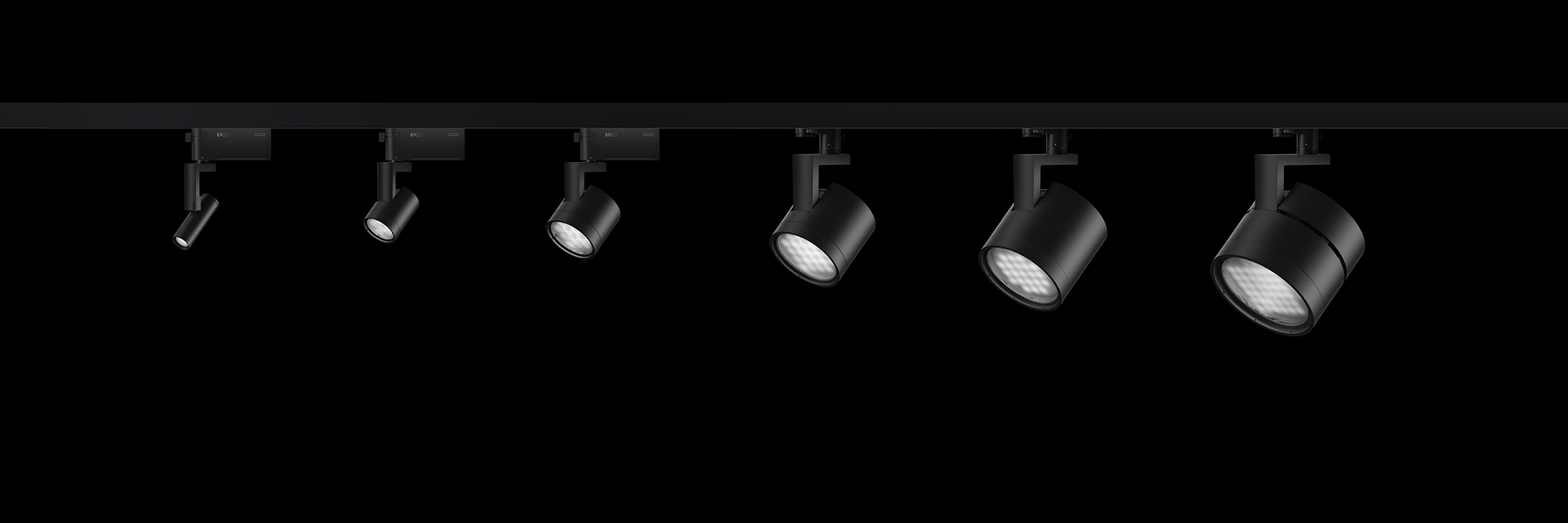

The new Parscan: Now in six sizes for every application

The name of Parscan has stood for outstanding quality of light and sheer elegance for almost 20 years. With Parscan New 48V and the new Parscan New 120V, the new generation comprises two product ranges. With 6 sizes, 12 interchangeable distributions, filter, tunable white and RGBW as well as digital connectivity, the new generation now offers even more Parscan. This enables you to illuminate museums, boutique offices, foyers and atriums more efficiently and with more diversity than ever before.

More effectiveness

The new Parscan brings more light to the target surface

More flexibility

Maximum system diversity with more distributions, spectra and accessories

More digitality

Modern connectivity and interchangeable plug-on controls

What project are you currently working on?

Select an application example:

Our recommendation:

Parscan New 120V

Size:
XXL (7927lm/56.4W)
Control:
0-10V
Distribution:
Spot (15°)
Light color:
4000K CRI 82

Parscan New InTrack

Size:
M (1335lm/12.6W)
Control:
Casambi Bluetooth
Light distribution:
Spot (15°)
Light color:
Tunable white

Parscan New 48V

Size:
S (589lm/5.7W)
Control:
Casambi Bluetooth
Light distribution:
Oval wide flood (60° x 80°)
Design:
Miniaturized in small track
Light color:
3000K CRI 97
Modify configuration

New standards in quality of light and effectiveness

The new Parscan features impressive quality of light. The lens system directs the light precisely and free of spill light. Parscan New thus succeeds in creating accent lighting that sets it apart from conventional spotlights. With 108lm/W, Parscan New features one of the most efficient optics. The decisive difference to the competition: Parscan New brings up to 55% more light onto the target surface, setting new standards for energy-efficient lighting.

  • Outstanding effectiveness with more foot candle per watt
  • Spherolit 2.0: More efficiency and greater visual comfort
  • Precise light beams without spill light ensure ideal visual comfort

Implement your project with the new Parscan

Allow us to approach your new project together.

Select a service:

Your contact data:

free of charge and without obligation

Your data will be handled confidentially. For further information see Data protection declaration.

Two product ranges, all applications

Would you like a miniaturized luminaire on a very compact 48V track? Would you like to use Parscan New directly in your existing system? To be able to respond optimally to your needs, we developed Parscan New in two different variants. Parscan New 48V and the new Parscan 120V allow you to find the right concept for every application.

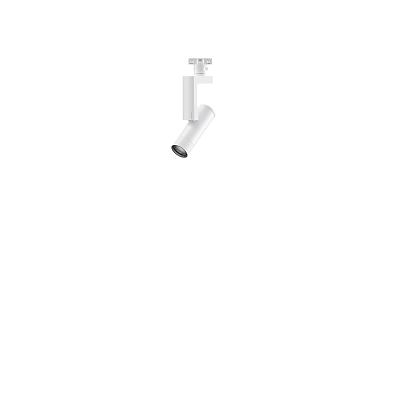

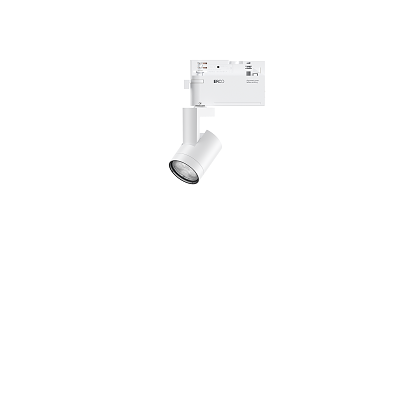

Parscan New 48V – elegant with a compact track

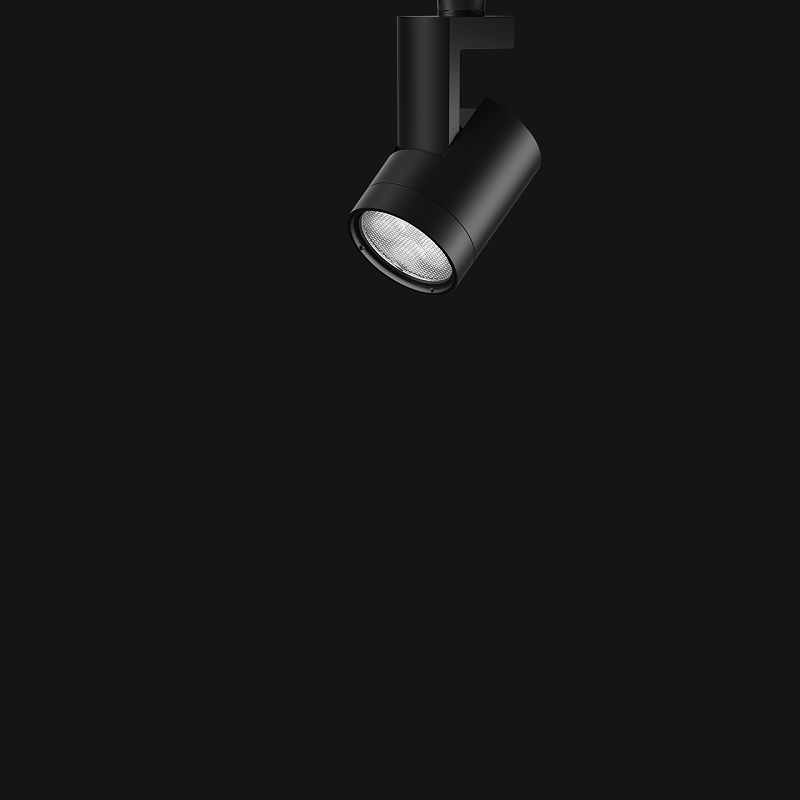

Parscan New 120V – for track with mains voltage

The new Parscan for any room height

Optimized for different applications, the new Parscan always offers the right wattage. Parscan New with sizes XS to M is perfect for use in display cases, museums and offices. For illuminating high spaces such as foyers and atriums, use Parscan New sizes L to XXL. Parscan New thus sets new standards for diversity in a spotlight system.

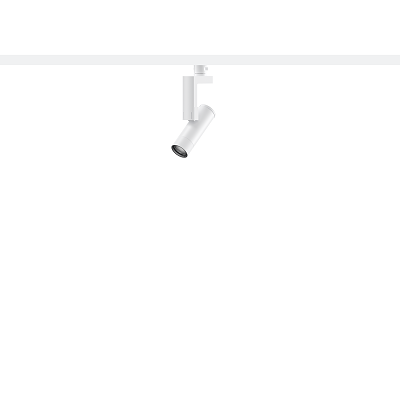

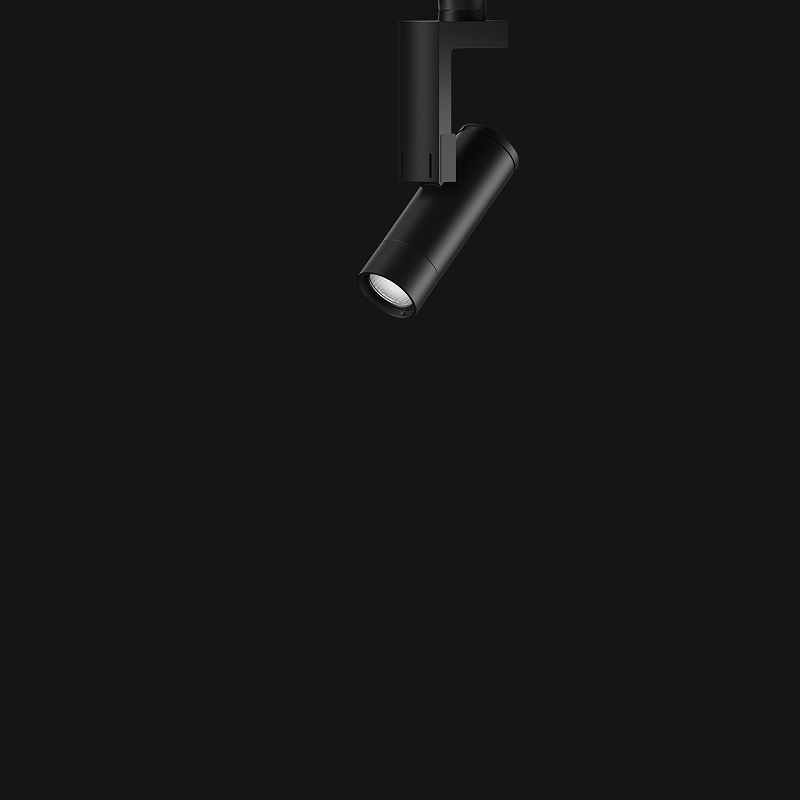

Size XS

Ideal for small exhibits and shop windows and for use in boutique offices

  • 1 1/4” (32mm)
  • 198lm / 2.0W – 371lm / 3.1W

Size S

Perfect for valuable art and room heights to 10ft.

  • 2 3/8“ (60mm)
  • 279lm / 3.1W – 1056lm / 8.1W

Size M

Ideal for universal use in museums and shops with room heights up to 16ft.

  • 3 5/8” (92mm)
  • 351lm / 4.2W – 2375lm / 18.2W

Size L

Perfect for impressively displaying exhibitions with room heights up to 25ft.

  • 5 1/8" (129mm)
  • 1054lm / 12.7W – 3523lm / 25.1W

Size XL

Ideal for high rooms such as foyers with heights of 25ft and more.

  • 6" (153mm)
  • 1405lm / 16.9W – 4624lm / 32.9W

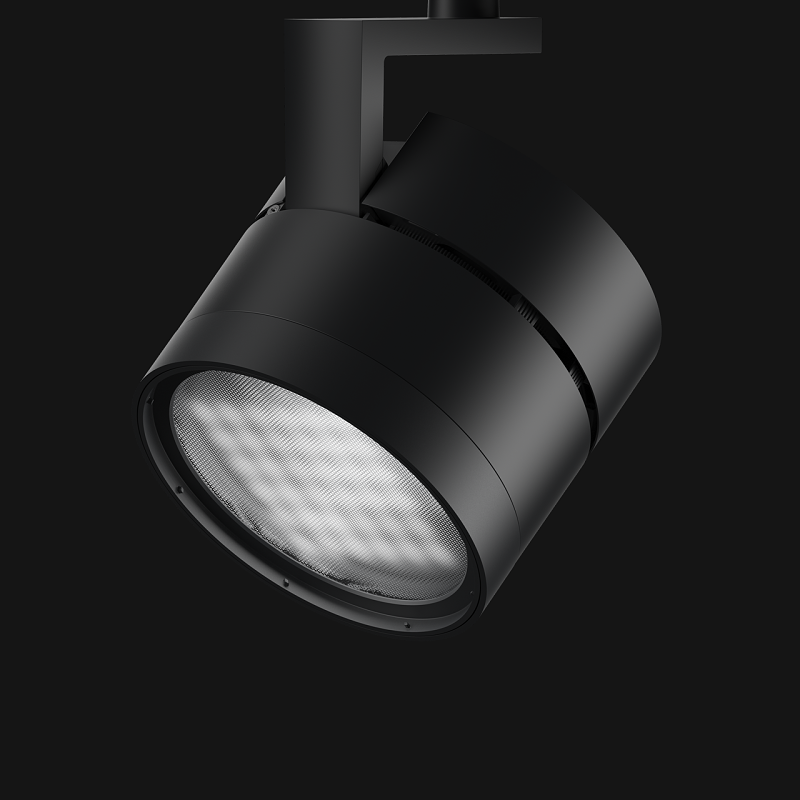

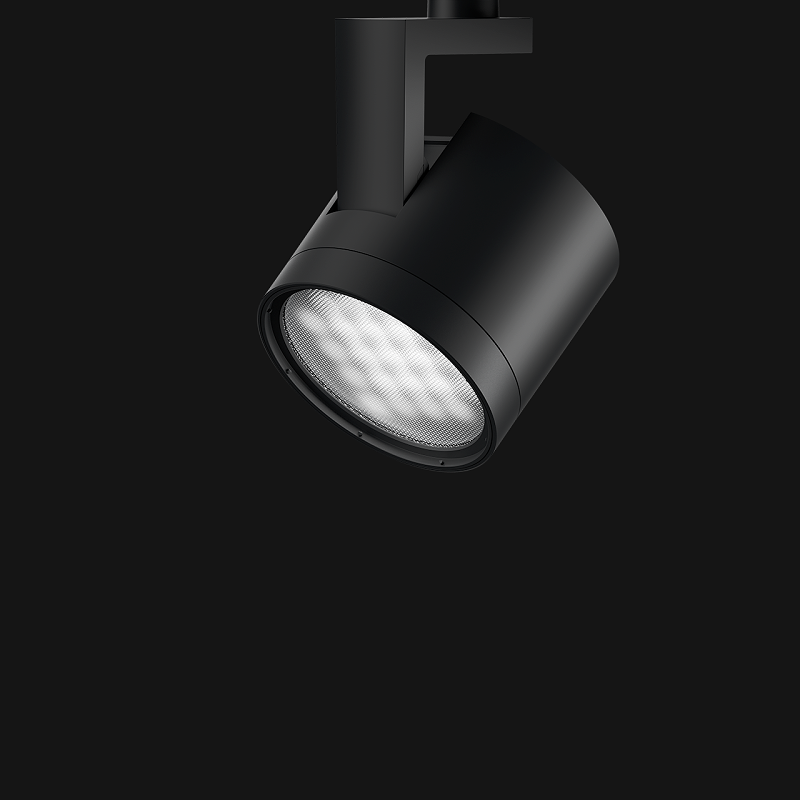

Size XXL

Ideal for very high rooms such as atriums and airports of 30ft and more.

  • 7-1/2” (191mm)
  • 1951lm / 21.7W – 7927lm / 56.4W
  1. XS
  2. S
  3. M
  4. L
  5. XL
  6. XXL

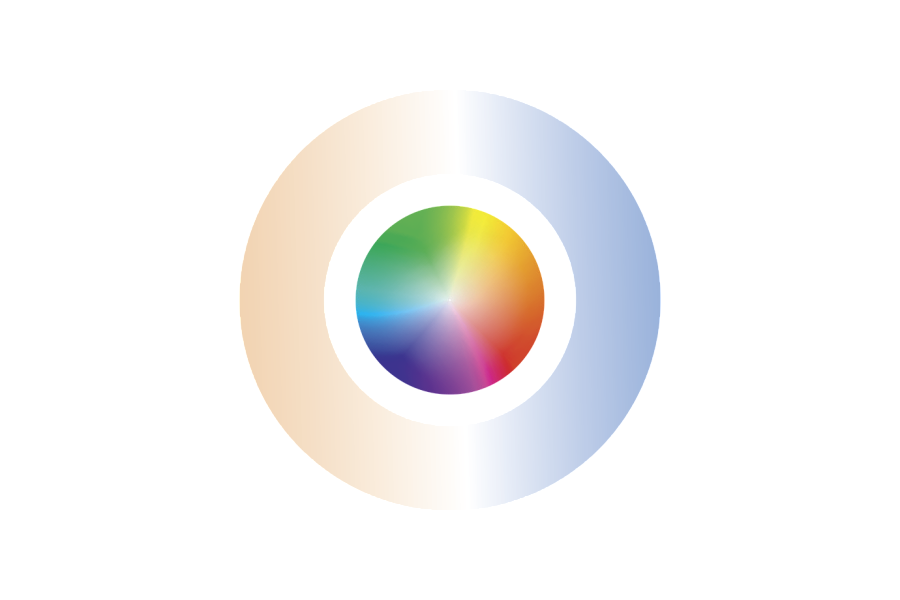

The right light spectrum for every application

Whatever you wish to illuminate, Parscan New, with six spectra, offers the right combination of color temperature and color rendering. With conversion filters, you can even create 24 additional spectra from these six LED types. Luminaires with tunable white offer you even more flexibility: simply adjust the color temperature dynamically. Parscan New with RGBW is available for color displays.

24 light spectra and more with conversion filters

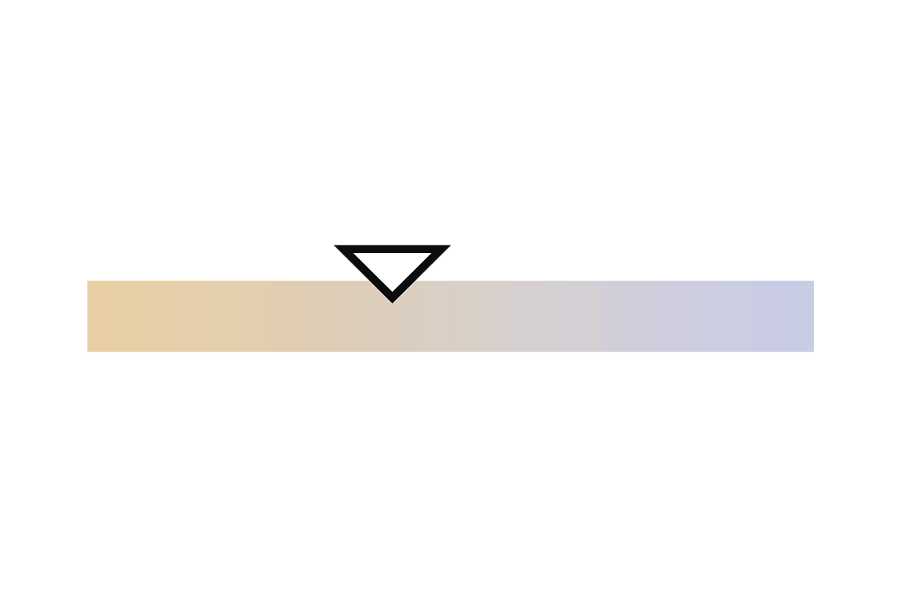

Tunable white: Dynamically adjust light color

RGBW luminaires for colored lighting design

12 distributions for perfect displays

Precise contours, high-contrast accents or uniform wallwashing: select from 12 different distributions and change lenses easily on site. Parscan New makes all this possible with just one luminaire range. The light distributions are characterized by highest precision for exactly defined light beams and maximum illuminance on the target surface.

  • Distributions from narrow spot to wallwash
  • Adjustable contour spotlights and zoom spotlights available
  • Plug and play: change lens units without tools and with just one hand
  • Accessories: modulate distributions with lenses such as the soft focus lens or sculpture lens

Narrow Spot 5°

0’9’’ at illumination distance of 9ft

Spot 18°

2’6’’ at illumination distance of 9ft

Flood 32°

4’8’’ at illumination distance of 9ft

Zoom Spot 17°-67°

2’6’’-12’2’’ at illumination distance of 9ft

Zoom oval 25° x 65° – 62° x 68°

4’0’’ x 11’0’’ - 11’6’’ x 12’2’’ at illumination distance of 9ft

Narrow framing

3’11’’ at illumination distance of 9ft

Wide framing

5’7’’ at illumination distance of 9ft

Wide flood 51°

7’8’’ at illumination distance of 9ft

Extra wide flood 79°

15’8’’ at illumination distance of 9ft

Oval flood 19° x 63°

0.98 x 3.68m at illumination distance of 9ft

Oval wide flood 55° x 83°

9’2’’ x 14’10’’ at illumination distance of 9ft

Wallwash

Perfect wallwashing made easy

Do you have a project with challenging conditions? The new Parscan wallwashers offer even more lighting design flexibility because both luminaire spacing and wall spacing can be varied. With outstanding quality of light and excellent uniformity, Parscan New always creates perfect wallwashing.

  • Light starts very high up on the ceiling
  • Very high illuminance uniformity in the horizontal
  • Vertical uniformity makes the wall appear bright over the entire height
  • Large luminaire spacing reduces investment cost
  • Perfect visual comfort due to very good glare control
The next generation spotlight: The new Parscan!

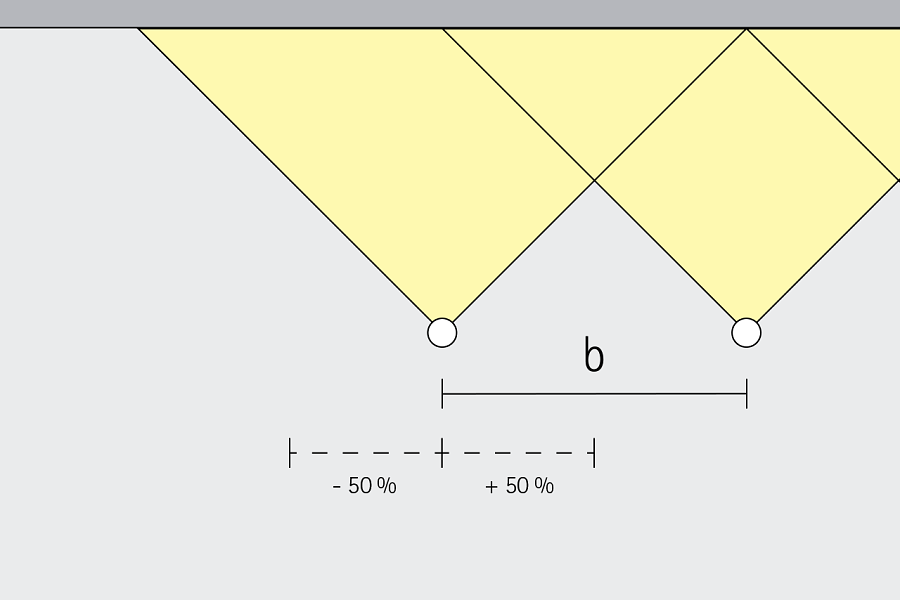

Wallwashing for all situations

We know that planning and reality often diverge. Especially during installation, beams and air-conditioning equipment can prevent wallwashers from being optimally positioned on the ceiling. The new generation of wallwashers has been designed to give you maximum freedom of design. Compared to previous wallwashers, the distance between two luminaires can deviate by +/- 50%, with comparable quality of light. This means with a room height of 20ft, the luminaire spacing can vary from 3ft to 10ft.

The next generation spotlight: The new Parscan!

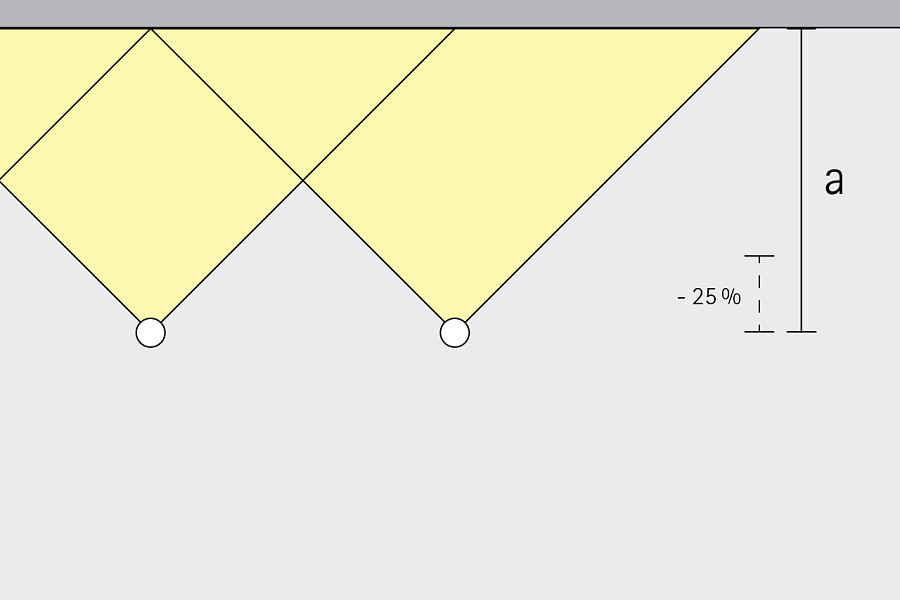

Ideal for short distances to the wall

Install Parscan New wallwashers even at short distances to the wall. Compared to conventional wallwashers, the new Parscan wallwashers can reduce the distance to the wall by up to 25% with the same quality of light. With a room height of 20ft, the wallwashers can therefore come as close as 5ft to the wall.

Use accessories to individualize light

  • Wide range of options for additional distributions, adapted spectra and greater visual comfort
  • Tool-free mounting of accessories
  • Accessories can be combined: supplement your distribution with up to 3 components

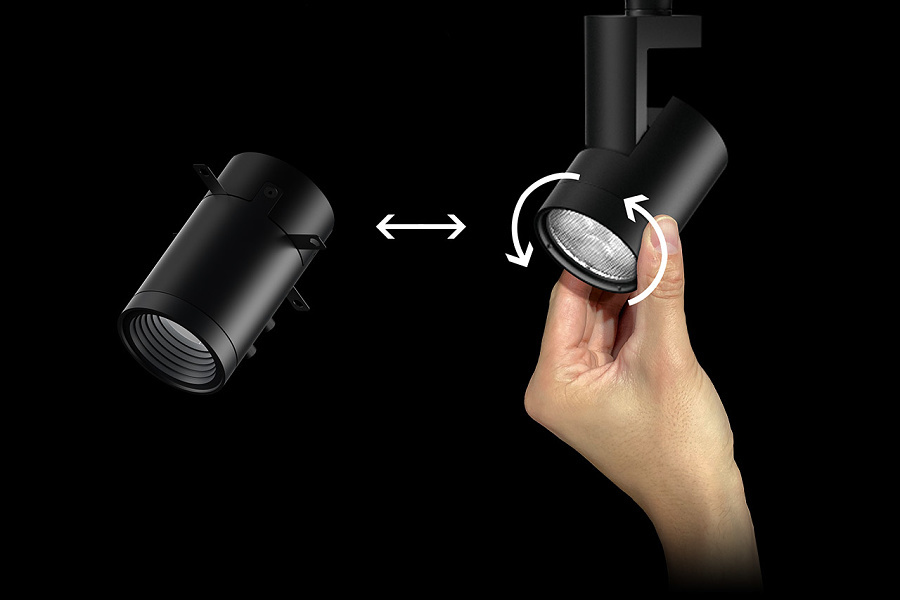

Replace the distribution of your spotlight for another one without tools

Narrow spot, Spot, Flood, Wide flood or Extra wide flood

Oval flood, Oval wide flood or Wallwash

Zoom spot or zoom oval

Framing

Cannot be combined with anti-glare elements

Modulate the light distribution with lenses

Softening lens

Sculpture lens

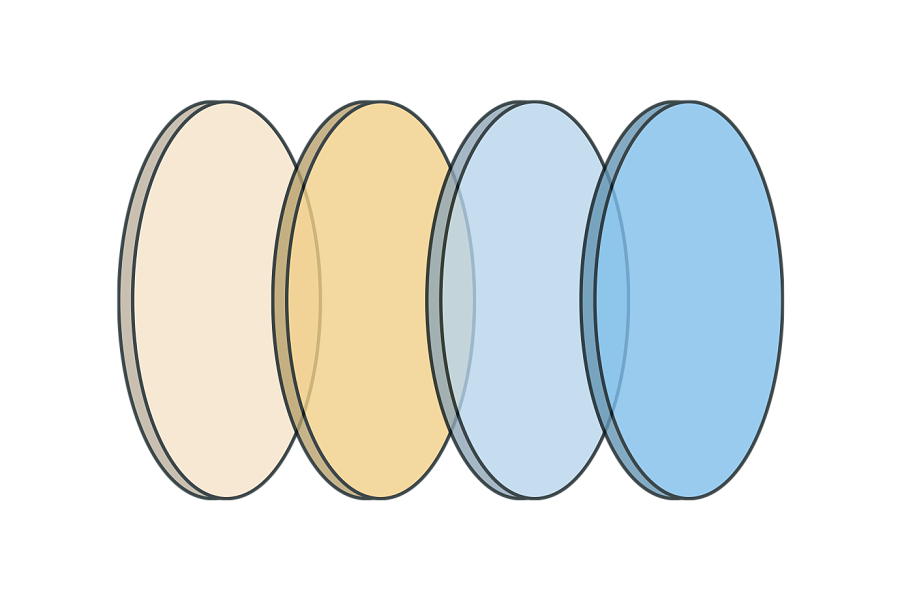

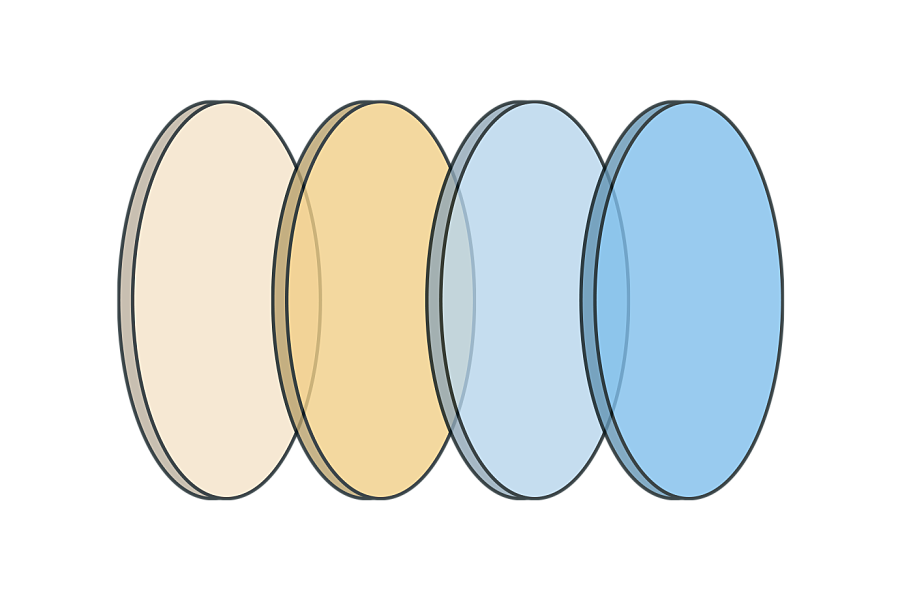

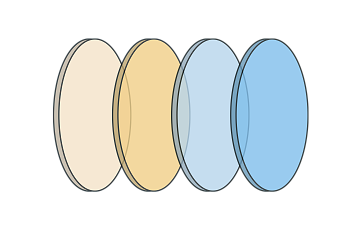

Modify the light spectrum with filters

Cold Filter, Cold Filter Plus or Warm Filter, Warm Filter Plus

Skintone Filter or Food Filter

Blue Light Filter

Achieve even more visual comfort with anti-glare elements

Snoot

Snoot

Honeycomb louvre

Barn doors 4/8-fold

How can we help you further?

You can contact your regional contact partner via:

{{fon}}
{{email}}

You can gladly send us an e-mail or ask your question here

Your data will be handled confidentially. For further information see Data protection declaration.

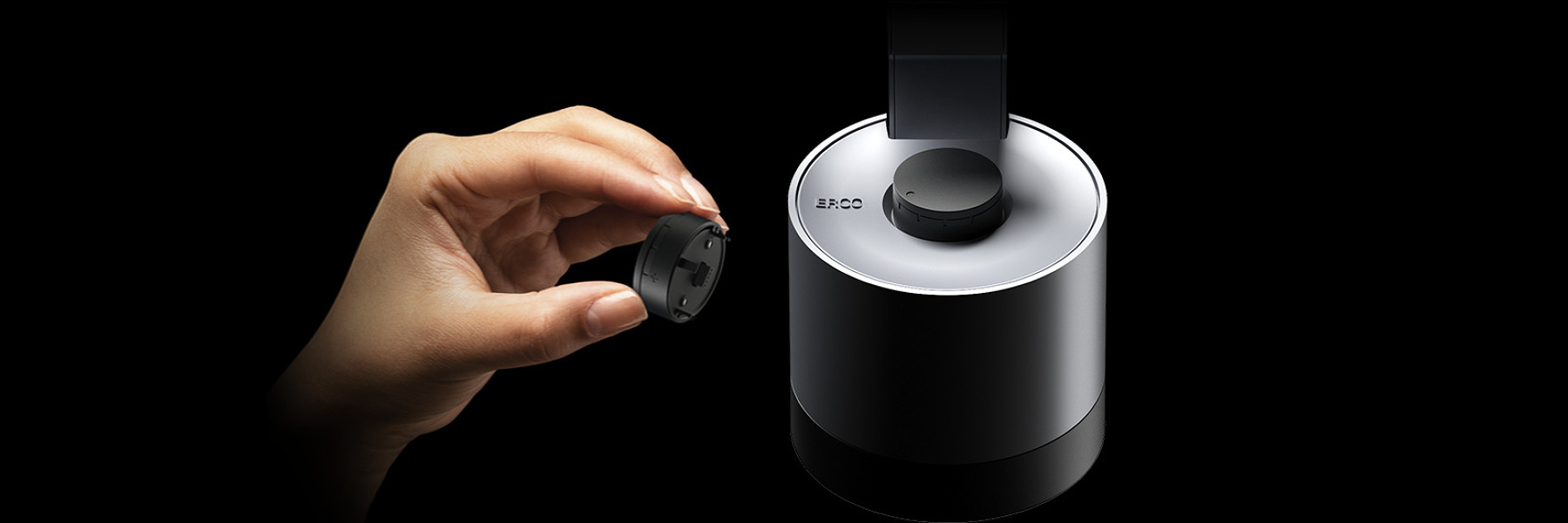

Interchangeable plug-on control

Change from On-Board Dim to smart operation via tablet. The add-on control unit allows you to update your new Parscan to your application. Switch between control types On-board Dim, Casambi Bluetooth, 0-10V via bridge and Zigbee 3.0.

Digital and flexible: connectivity with Parscan New

With Parscan New, you can choose from five types of control:
Wired with phase dimming or wireless with Casambi Bluetooth and Zigbee 3.0. With the 0-10V bridge (available on request) you can also control your 48V Bluetooth luminaires via 0-10V.

Three add-on control units offer you additional flexibility. By exchanging the add-on control unit on the rear of the luminaire you can change the control mode of your Parscan New spotlight at any time, for example from On-Board Dim to wireless Casambi Bluetooth.
