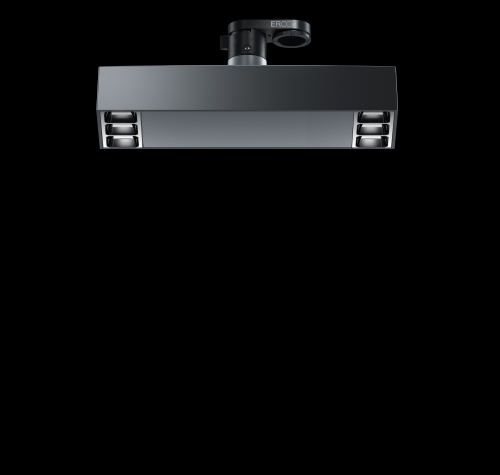

A louvre is designed to restrict the view into the luminaire, achieving efficient visual comfort with an emission angle of 90°. An anti-glare louvre available in black or silver enables the luminaire to blend with the material and color of the ceiling.

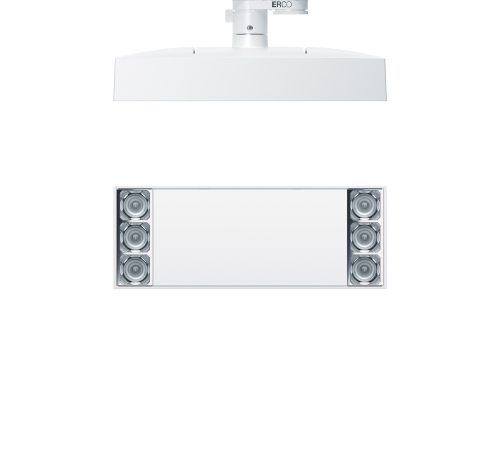

Small luminaires are discreet and place the focus on the light itself. Compact luminaire dimensions are particularly advantageous with small rooms.
Illuminating office architecture and workplaces in a nuanced and extremely flexible way – made possible by the combination of Compar luminaires and track as the infrastructure. As downlights for track, they utilize the lighting technology of the Compar range. With their flat housing they are also suitable for rooms with low ceiling heights. With its anti-glare louver Compar offers a high level of visual comfort, and workplaces are illuminated according to standards with the appropriate light distributions. Compar can always be optimally aligned even with changing office layouts due to installation via track adapters. The wattage and light distribution of Compar enable wide luminaire spacing for economical lighting concepts.
With our “ERCO individual” service we offer you extensive options for the individualization of series products as well as support in the development of sophisticated special luminaires. In order to match Compar even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:
Do you have further requirements with the product?
Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}}
{{strasse2}}
{{/strasse2}}
{{ort}}
{{staat}}
Lighting tool
Light distribution
Ambient lighting produced by wide beam light distribution.
Wide beam, rotationally symmetrical light distribution for general lighting.
As an approximate luminaire distance (d) between two luminaires, the height (h) of the luminaire above the working plane can be used. The intersecting beams produce excellent uniformity. The recommended offset from the wall is half the luminaire spacing.
Rough guide: d ≤ 1.5 x h
Application area: as ambient lighting in the room and as flexible illumination of office workplaces.
