Light Board. An established archetype

Light Board is a strong partner for virtually any lighting task

Light Board

Coloured light

Coloured light can be used to design and change the surroundings by adding subtle or dramatic contrasts. LEDs provide you with a highly efficient and flexible tool to create coloured light.

Light Board

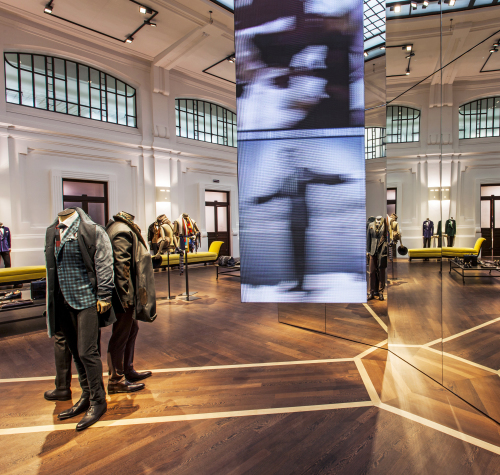

High lumen packages for very high illuminances

High-contrast accent lighting allows you to attract attention. The ERCO Program features a range of efficient luminaires with high lumen packages designed specifically for this purpose.

Light Board

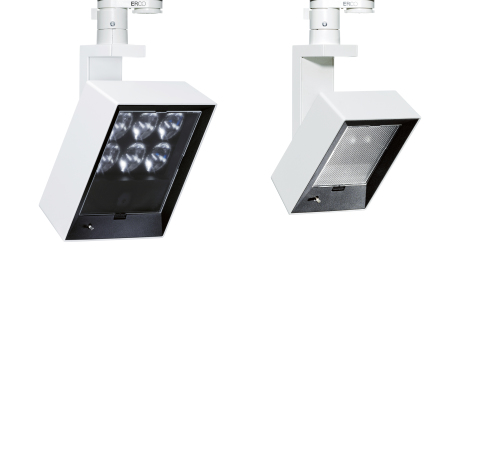

Small luminaire dimensions

Small luminaires appear unobtrusive and direct the focus onto the light. Compact luminaire dimensions are convenient particularly in small spaces.

Structure and characteristics

1

2

3

4

5

1

ERCO Spherolit lens

  • Light distributions: narrow spot, spot, flood, wide flood, oval flood or wallwash
  • Oval flood adjustable through 90°

2

ERCO LED module

  • High-power LEDs on metal-core PCB
  • Light colours: warm white, neutral white or varychrome RGBW
  • Collimating lens made of optical polymer
  • Varychrome with highly reflective colour mixer

3

Housing and bracket

  • White (RAL9002) or silver
  • Cast aluminium, powder-coated
  • 0°-90° tilt
  • Bracket on transadapter rotatable through 360°
  • Internal wiring
  • Front cover: polymer, black

4

Control gear

  • Phase dimmable or DALI dimmable
  • Phase dimmable version: Dimming with external dimmers possible (trailing edge) and potentiometer for brightness control 1%–100% on the luminaire

5

ERCO 3-circuit adapter or ERCO DALI adapter

The most characteristic feature of Light Board is its striking design. The flat housing integrates the control gear, as sophisticated thermal management ensures a long service life. Innovative photometrics and easy adjustment deliver convincing arguments for use of the Light Board even for challenging tasks in salesrooms and museums. The Light Board concept includes various lumen packages making the range ideal for accent lighting across large distances in rooms with high ceilings as well as for intensive illumination of walls. Special colour effects are achieved with the varychrome RGBW luminaire, or else you can use white light to optimise the colour temperature of the light for the illuminated object. For special room situations, Light Board can easily be combined with its recessed counterpart. Light Board as a result is a strong partner for creative lighting concepts with efficient visual comfort.


Pictures of application


System overview 220V-240V/50Hz

  • Spotlights
  • Floodlights
  • Lens wallwashers

Accentuation

Emphasis of objects or architectural elements.

Spotlights

Very narrow to wide beam, rotationally symmetrical light distribution for accent lighting.

  • LED
  • 4W - 48W
  • 420lm - 6600lm
  • Narrow spot, Spot, Flood

Spotlights

Light Board spotlights accentuate artwork, products and architectural details effectively. The ideal angle of tilt (α) for this is around 30°. The object is modelled without distorting the effect as a result of excessive shadowing. It also prevents shadows cast by the observer.

Arrangement: α = 30°


Planning data for download 220V-240V/50Hz


Product overview 220V-240V/50Hz
