Flexible lighting in museums:
achieving individuality via exchangeable lenses and convenient control
Art lives on the diversity of structures, colours and sizes and just as diverse are the professional lighting tools that impressively display exhibits. Exchangeable lenses for implementing a variety of light distributions are predestined for adapting existing lighting systems with minimum effort. Spotlights precisely dimmed for scenographic and conservation needs create a flexible infrastructure for the impressive presentation of art and culture with light.
It is not only artists that select individual strategies for fascinating observers, allowing them to contemplate or even provoking them. Curators also handle atmospheres in their exhibition spaces sensitively and in a differentiated way when displaying and interpreting exhibits with light. If an exhibition changes, in most cases the form of presentation then also changes, which in turn requires a different lighting concept. If for example a cool white cube with wallwashing dominates in an exhibition, the next show may require a dark ambience with dramatic accenting using very narrow light beams.
To keep a control on costs with such retrofitting, lighting needs to take this variability into account, and this requires simply exchangeable light distributions on the one hand and convenient control on the other. Because LEDs emit light in a different way to conventional light sources, a new luminaire concept has become possible where the optic is designed for a tool-free lens change thus enabling light distributions to be quickly and simply modified according to the needs of the various artworks. A system consisting of three elements has established itself as being flexible, efficient and safe to handle: a silicone lens on the LED chip, a collimator for concentrating the light and an exchangeable Spherolit lens.
A consistent luminaire system concept featuring exchangeable Spherolit lenses enables all light distributions to be used even with different spotlight designs.
The system consisting of primary, secondary and tertiary optics is a modular kit for a wide diversity of accenting, floodlighting and wallwashing. The control gear and luminaire housing with thermal management are ideally matched to the digital lighting technology.
A primary optic on the LED chip
The lens on the semiconductor not only reliably seals the LED chip but as the primary optic achieves uniform light distribution in the hemisphere above the PCB. For most museum lighting applications though, this very wide light distribution is not suitable, because accent lighting for sculptures may require narrow beam distribution, or wallwashing with asymmetrical light distribution may be required for displaying paintings on walls. To ensure this high level of flexibility for exhibition presentations, ERCO has developed a system whereby a further optic concentrates the light and an exchangeable tertiary lens then allows quick adaptation of the light distribution.
Due to the shape and material of the narrow spot collimator, this optical element functions practically without loss according to the principle of total reflection, thus providing optimum light control efficiency.
A collimator as secondary optic
The collimators emit the LED light in a parallel beam to enable the desired light distribution to then be created by the tertiary optic. In practice this approach offers the advantage that if the application changes, the distribution of light can be modified to the particular lighting task via an exchangeable lens.
Depending on the collimator, the parallel light beams are achieved via total reflection from the sides or in combination with a central lens. Total reflection achieves light control with practically no spill light, thereby offering optimum efficiency.
Spot: the spot Spherolit lens has flat spherolites for low spill light and a narrow beam angle.
Wide flood: the wide flood Spherolit lens has the greatest curvature. The wide spread creates a light beam with a wide beam angle.
Spherolit lenses as tertiary optic

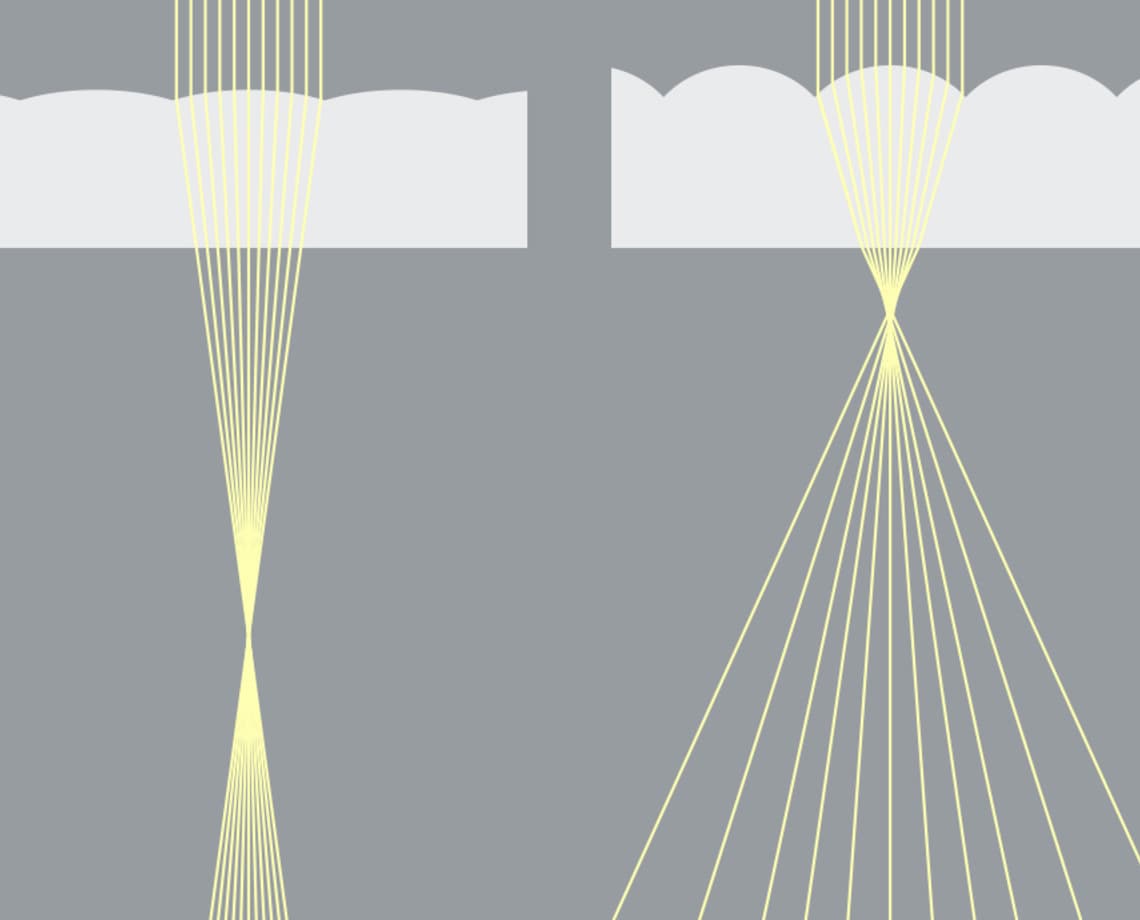

The actual light distribution, for example narrow for accent lighting or wide for floodlighting, is defined via the Spherolit lens as the tertiary optic. Spherolit technology is based on dividing a large lens surface into individual, three-dimensional convex zones that guide the light via refraction. The characteristic of a lens is controlled by the individual shape of the spherolites. Depending on the curvature of the individual surfaces the parallel light rays are distributed wider or narrower. The result is lenses having the same basic geometry but differing via their various beam angles, ranging from narrow spot to wide flood. Asymmetric spherolites also enable an oval light distribution or wallwashing. All have the common characteristic of maximum quality of light, because the light beams are particularly uniform without bands and with a clean and slightly soft-focus edge.
Flexibility for everyday museum operation
Exhibits vary widely in terms of size and format and lighting must respond to art in a simultaneously diverse way. For this reason various light distributions are indispensable for museums and galleries. This requirement not only comes from the various display methods but also due to economic considerations. A narrow light distribution for example not only reduces energy requirements to a minimum for illuminating artworks, but also saves energy costs from unnecessarily lighting the surroundings.

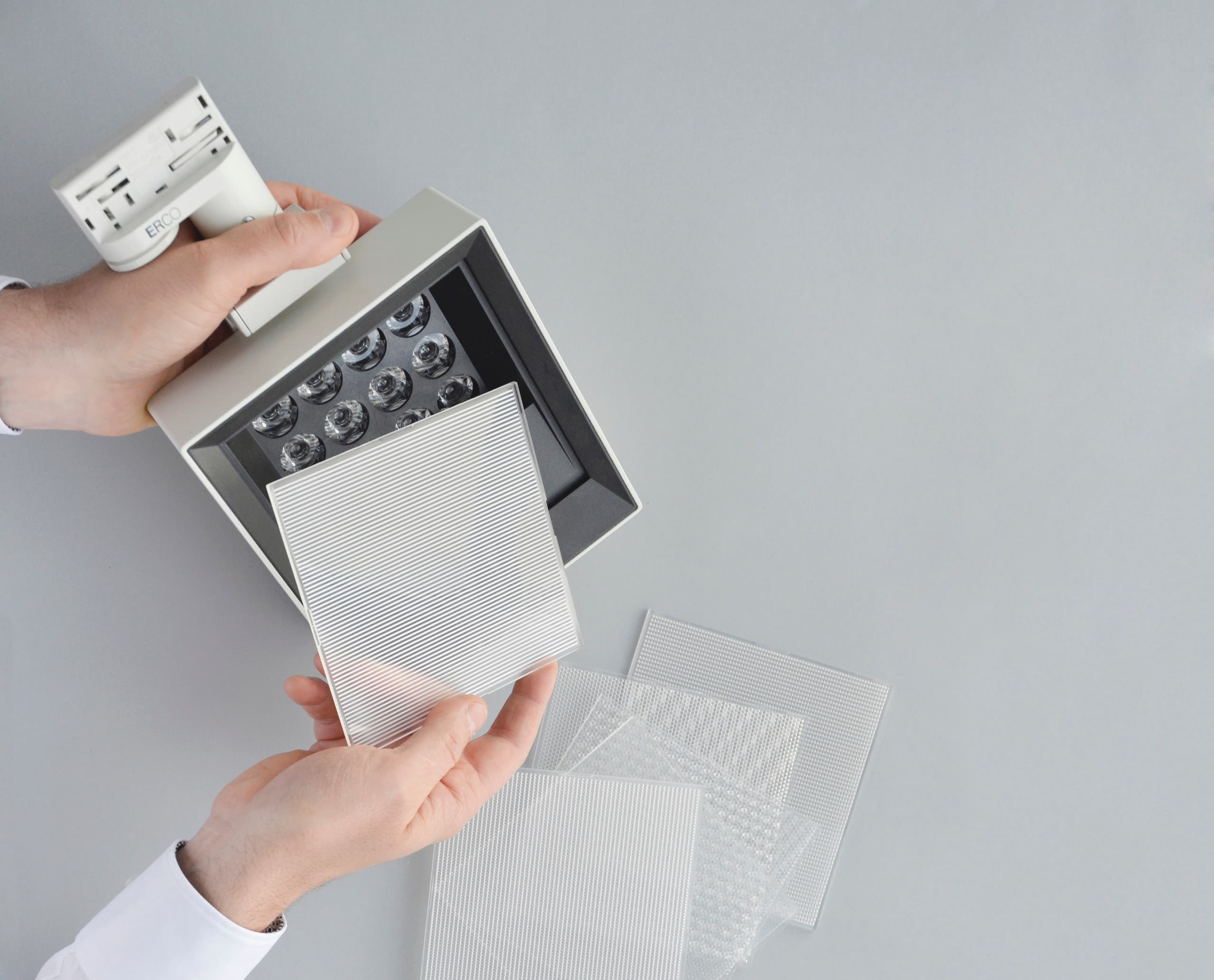

With exchangeable lenses as accessories museums also no longer need to stock a range of different luminaires with different light distributions, but instead merely need a drawer for storing alternative lenses. Simple, tool-free lens replacement enables the light distribution to be quickly modified to suit minor changes in exhibitions, for example from accent lighting to wallwashing. A uniform system of beam angles across all spotlight families also helps in the selection of suitable lenses for accent lighting, floodlighting and wallwashing.
The exchangeable light distributions including accenting, floodlight and wallwashing enable optimum coordination to the specific lighting task. Spherolit lenses are also individually available as accessories for retrofitting.
Rotationally symmetrical narrow spot, spot and flood light distributions are ideal for accenting small and mid-size exhibits.
Applying differentiated accents: narrow spot to flood
Narrow spot light distribution with a beam angle of less than 10° is suitable for accenting small objects with high light intensity or with long distances between the luminaire and the object. With this narrow concentration of light a high level of illuminance is generated even at low wattages. For example, 4W LED spotlights with narrow spot characteristic, is sufficient to generate illuminance of 1000lx at a distance of 4m. A particular benefit of narrow light distributions is high visual comfort because there is little direct glare. For larger exhibits, spot light distribution with a beam angle of 10° - 20° or flood with a 25° - 35° beam angle are suitable.
Wide light distributions such as wide or extra wide flood are suitable for floodlighting surfaces and zones.
Creating major gestures: wide flood to oval flood
Wide light distributions are designed for displaying large artworks or exhibits in the context of their specific space. These distribution patterns include wide flood with a beam angle of > 45° and extra wide flood with > 80°. The wide beam enables greater luminaire spacing to be implemented which in turn reduces investment costs. However, direct glare that is stronger than with narrow light distribution is a disadvantage.
Possibilities for floodlighting large art objects include rotationally symmetrical floodlights and axially symmetrical floodlights with oval beams. These are able to efficiently illuminate vertical or horizontal exhibits with linear shapes. Instead of two or three spotlights with narrow light distribution, a single floodlight with oval flood characteristic is sufficient. Furthermore, with slender objects such as columns, the illuminance is concentrated on the object via the oval beam, which avoids any distracting light on the area around the object as would be caused by wide or extra wide flood distribution. For freely rotating the alignment of the oval flood light distribution, a round luminaire head with round Spherolit lens is recommended rather than a rectangular luminaire with a square lens that can only be adjusted in a 90° angle.
Wallwash light distribution is ideal for the large-area illumination of walls. This generates highly uniform distribution in both the vertical and horizontal planes.
Highlighting art on walls: wallwash
The uniform floodlighting of walls is ideal for displaying pictures on walls that should not be emphasised individually but as a single unit with the architecture. With the Spherolit wallwash lens exhibitions benefit from highly harmonious and uniform distribution of brightness both in the vertical and horizontal planes. For the more demanding asymmetrical light distribution, the microstructure of this lens has a complex form optimised with computer simulation by the lighting engineers.
Spherolit lenses feature a very clean and slightly soft-focus progression of the light beam gradient, as used for example for illuminating historical paintings at the Minnesota Marine Art Museum, Winona. Photographer: Julia Cawley, New York.
Lens technology for greater efficiency
Standard point light sources commonly used in the past emitted their light at an angle of almost 360°. In contrast, LEDs are pre-aligned and emit light at a spatial angle of less than 180°. This enabled redesigning the optic of LED luminaires to achieve more efficiency. For spotlights, ERCO decided to implement Spherolit lenses because these not only allow a more convenient and reliable modification of light distribution if the exhibition situation changes, but they also achieve higher efficiency.
Also, with projected optics losses caused by spill light or light emitted backwards are avoided, and the higher transmission efficiency with lenses compared to reflection with reflectors achieves a higher light output ratio that results in higher luminous flux.
LED wallwashers with Spherolit lenses therefore have around twice the luminaire light output ratio (LOR) of previous lens wallwashers equipped with conventional lamps and reflectors. Finally, for museum operation it is important how much light reaches the object with minimum energy expenditure to ensure economical operation. In addition to the lighting technology, controllability also provides valuable potential for optimising operating overheads.
Optics based on reflectors for conventional point light sources generate losses due to spill light or because of light emitted backwards.
In contrast to spotlights with reflectors, spotlights equipped with Spherolit lenses achieve an improved light output ratio due to transmission, resulting in higher luminous flux.
Flexible control for exhibitions
When designing exhibitions, curators and managers often express the desire to dim either individual spotlights or the complete lighting system. This request is frequently based on the following three aspects:
- For dramatic exhibition purposes both the individual spotlights for illuminating the single artworks and the complete system should be dimmable.
- For conservation reasons, the illuminance should be set for individual artworks.
- Energy considerations dictate that the brightness level should be adjustable via daylight or presence sensors.
A potentiometer on the spotlight has proved to be very useful for individually and precisely setting the lighting level and as a result finely adjusted lighting levels are possible without complex controls. Dimming the complete lighting system is implemented via external dimmers.
The common standard of dimming either only via the potentiometer or by phase dimming has frequently led to limitations in exhibition practice, and for this reason ERCO has developed new control gear that enables a combination of dimming both via the potentiometer and with trailing-edge dimmers. This enables individual illuminance levels to be set for each artwork and following that the complete exhibition can be dimmed further for scenic or energy reasons. This technology also features a high level of safety with regard to conservation aspects; for individual artworks, conservators are able to set the maximum illuminance on each spotlight via the potentiometer. If other museum employees even only temporarily set the dimming to a maximum level, the illuminance does not increase beyond the predefined values of the potentiometer.

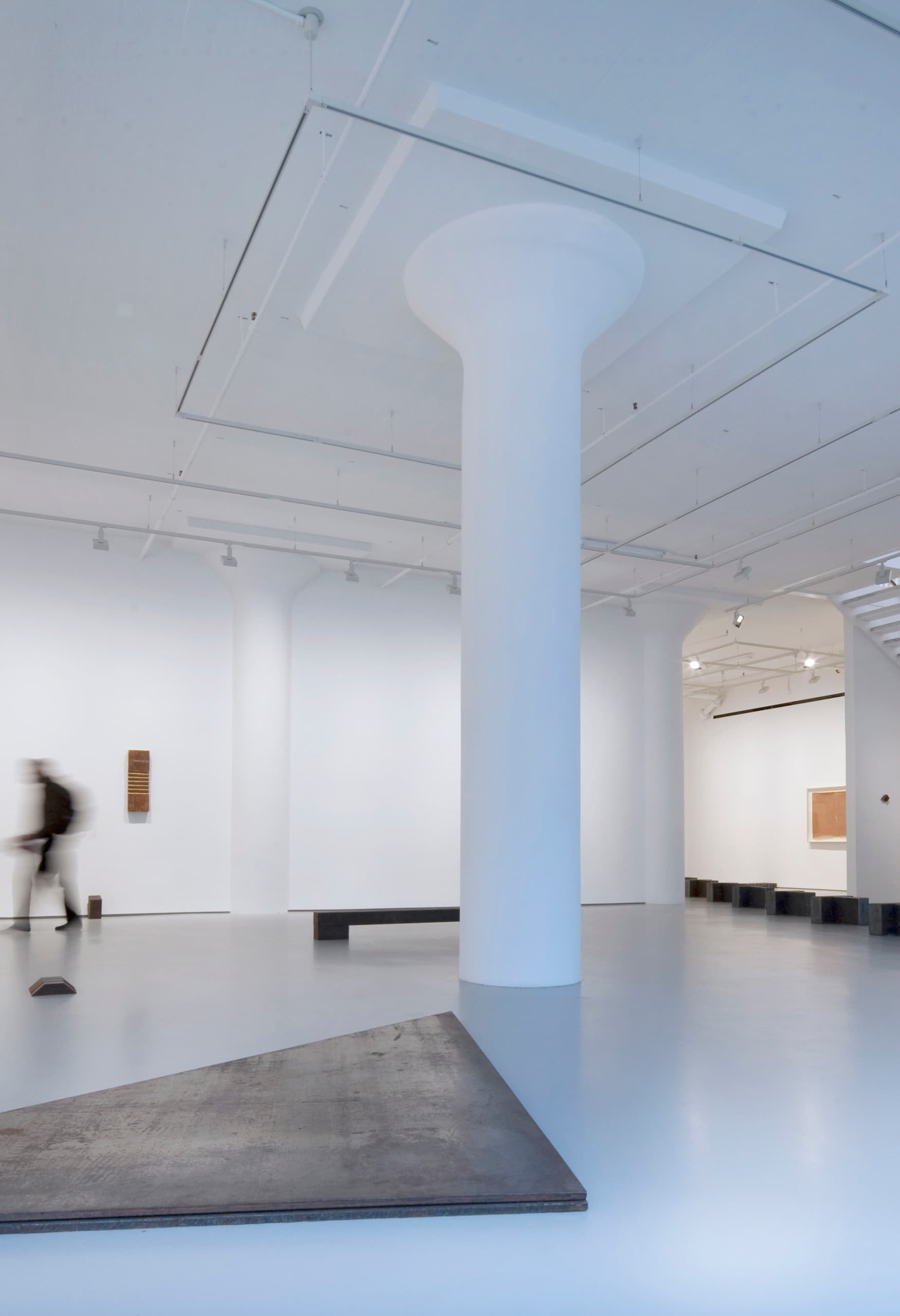

Wallwashing with Spherolit lenses emphasises the surroundings and simultaneously brings the artworks in the Fergus McGaeffrey Gallery, New York into a single unit. Photographer: Edgar Zippel.
Summary
- Differing light distributions enable light to be matched to the size of exhibition spaces and the shape and dimensions of the exhibits.
- Narrow light distributions concentrate the luminous flux for high illuminance levels and minimise direct glare in museums.
- Lenses exchanged without tools simplify work processes when commissioning exhibitions.
- With spotlights, projection instead of reflection achieves a high luminaire light output ratio, thereby reducing electricity costs.
- Combined dimming via potentiometers and external dimmers provides flexibility for scene-setting while taking into account conservation aspects and energy needs.
Dr. Thomas Schielke, ERCO.
Dr. Thomas Schielke studied architecture at the Darmstadt Technical University, Germany. He has worked for more than 15 years as editor for didactic communication at the luminaire manufacturer ERCO and is the co-author of the textbook "Light Perspectives: Between Culture and Technology".
