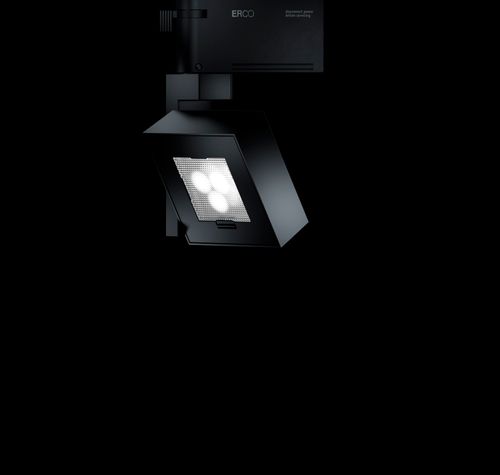

Light Board. An established archetype

Light Board is a strong partner for virtually any lighting task

Show products

Light Board in the application

Individualize Light Board for your use case

With our “ERCO individual” service we offer you extensive options for the individualization of series products as well as support in the development of sophisticated special luminaires. In order to match Light Board even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:

  • Housing: 10,000 further colors

Do you have further requirements with the product?

Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}} {{strasse2}}
{{/strasse2}} {{ort}}
{{staat}}

Product features in detail

1

2

3

4

5

1

ERCO Spherolit lens

  • Light distributions: narrow spot, spot, flood, wide flood, extra wide flood, oval flood or wallwash
  • Oval flood adjustable through 90°

2

ERCO LED-module

  • High-power LEDs: warm white (2700K or 3000K) or neutral white (3500K or 4000K)
  • Collimating lens made of optical polymer

3

Housing and bracket

  • White (RAL9002), black or silver
  • Cast aluminum, powder-coated
  • 0°-90° tilt
  • Bracket on adapter rotatable through 360°
  • Internal wiring
  • Front cover: polymer, black

4

Control gear

  • Trailing edge dimmable+On-board Dim
  • Dimming with external dimmers (trailing edge) possible and rotary control for brightness control on the luminaire

5

ERCO turning adapter for 2-circuit track

Light Board: Light effect and planning aid

Lighting tool

Light distribution

Emphasis of objects or architectural elements.
