Eclipse 48V. The art of illuminating

One spotlight system and thousands of possibilities: with interchangeable low brightness lenses and Minirail adapters

Eclipse 48V in the application

Individualize Eclipse 48V for your use case

With our “ERCO individual” service we offer you extensive options for the individualization of series products as well as support in the development of sophisticated special luminaires. In order to match Eclipse 48V even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:

  • Housing: 10,000 further colors

Do you have further requirements with the product?

Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}} {{strasse2}}
{{/strasse2}} {{ort}}
{{staat}}

Product features in detail

1

2

3

4

5

6

1

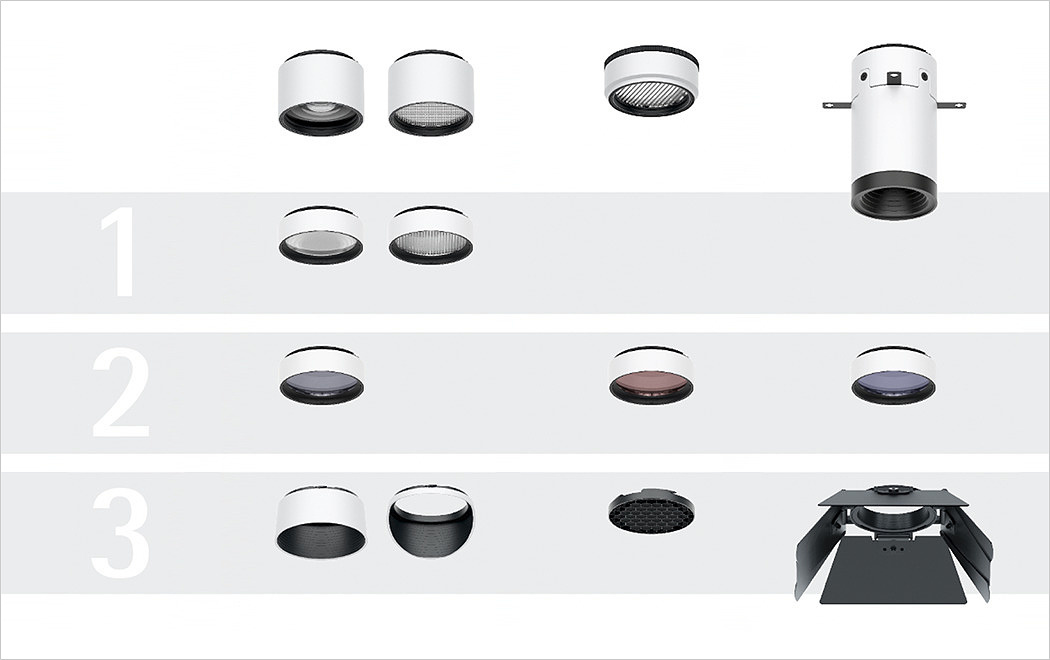

ERCO lenses

  • Made of optical polymer
  • Darklight lenses: narrow spot, spot, flood, wide flood or extra wide flood
  • Spherolit lenses: oval flood, oval wide flood or wallwash
  • Zoom lenses: zoom spot and zoom oval; continuously focusable
  • Projection lenses: framing; continuously focusable

2

Lens unit

  • Rotatable through 360°
  • Polymer, white or black
  • Contour spotlights with framing attachment

3

ERCO LED-module

  • High-power LEDs: warm white (2700K or 3000K), neutral white (3500K or 4000K), tunable white (2700-8000K) or RGBW
  • Collimating lens made of optical polymer

4

Housing and bracket

  • White (RAL9002), black or silver
  • Die cast zinc or cast aluminum, powder-coated
  • Pivotable 0°–270°
  • Bracket: cast aluminum/polymer; rotatable through 360° on adapter

5

Control gear

  • Switchable, On-board Dim, Casambi Bluetooth or Zigbee
  • On-board Dim version: rotary control for control of brightness on the luminaire

6

ERCO Minirail adapter

Eclipse 48V: Light effect and planning aid

Lighting tool

Light distribution

Emphasis of objects or architectural elements.
