Framing attachments enable a sharply defined light beam. In this way fascinating effects can be created with contour spotlights, where crisply illuminated pictures appear to illuminate from within.
The light beam diameter can be infinitely adjusted from spot (15°) to wide flood (65°) by simply turning the lens. Zoom spotlights are particularly suitable for illuminating areas with changing exhibits and merchandise.
Using colored light, the environment can be designed and transformed with either subtle or dramatic contrasts. LEDs enable you to generate colored light very efficiently and flexibly.
Tunable white technology
Corresponding to the continuously changing color temperature outdoors during the course of the day, the color temperature of indirect lighting indoors can also be adapted, for example to support lighting concepts for Human Centric Lighting applications.

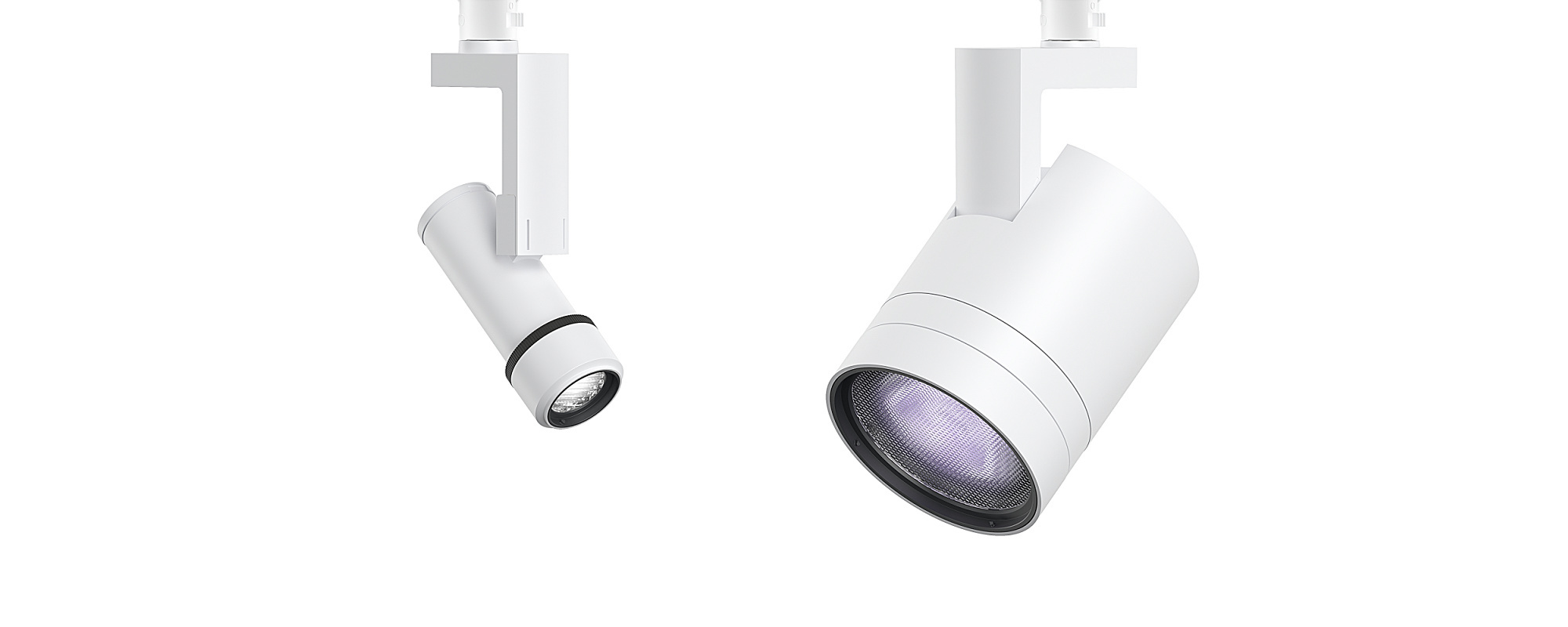

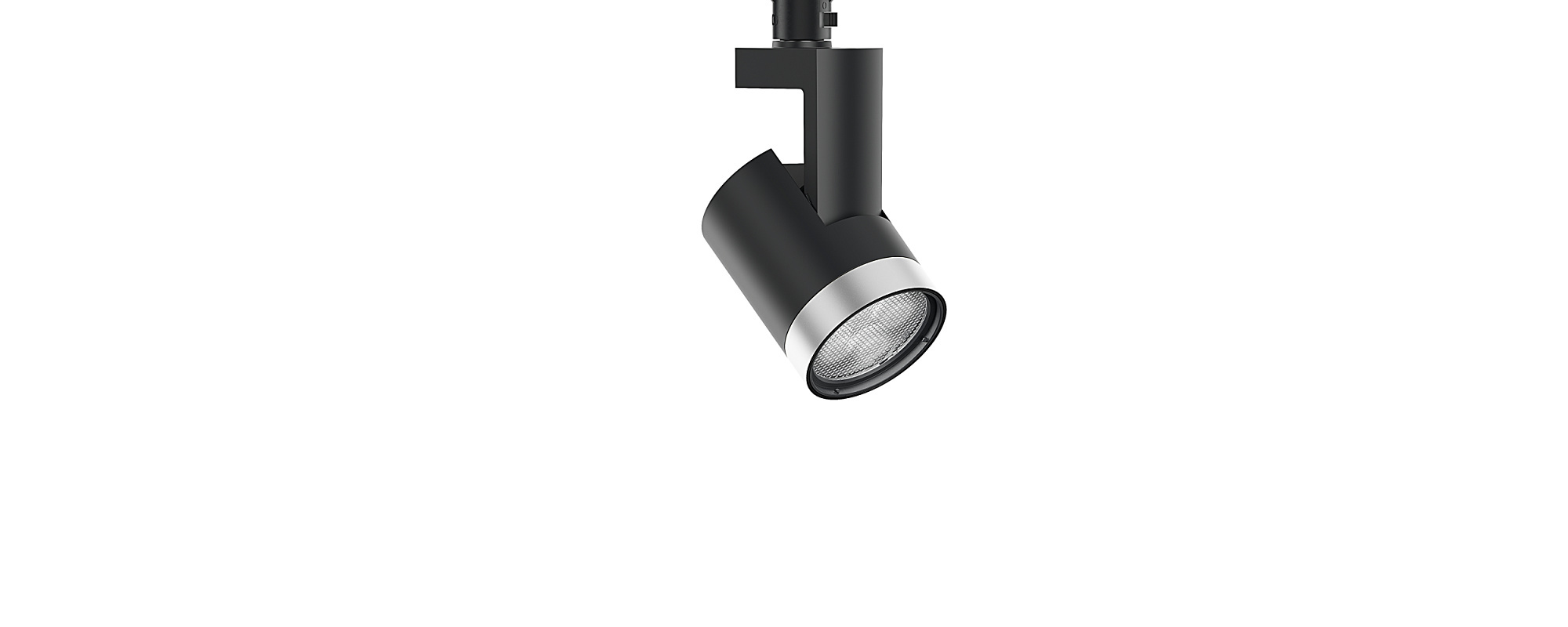

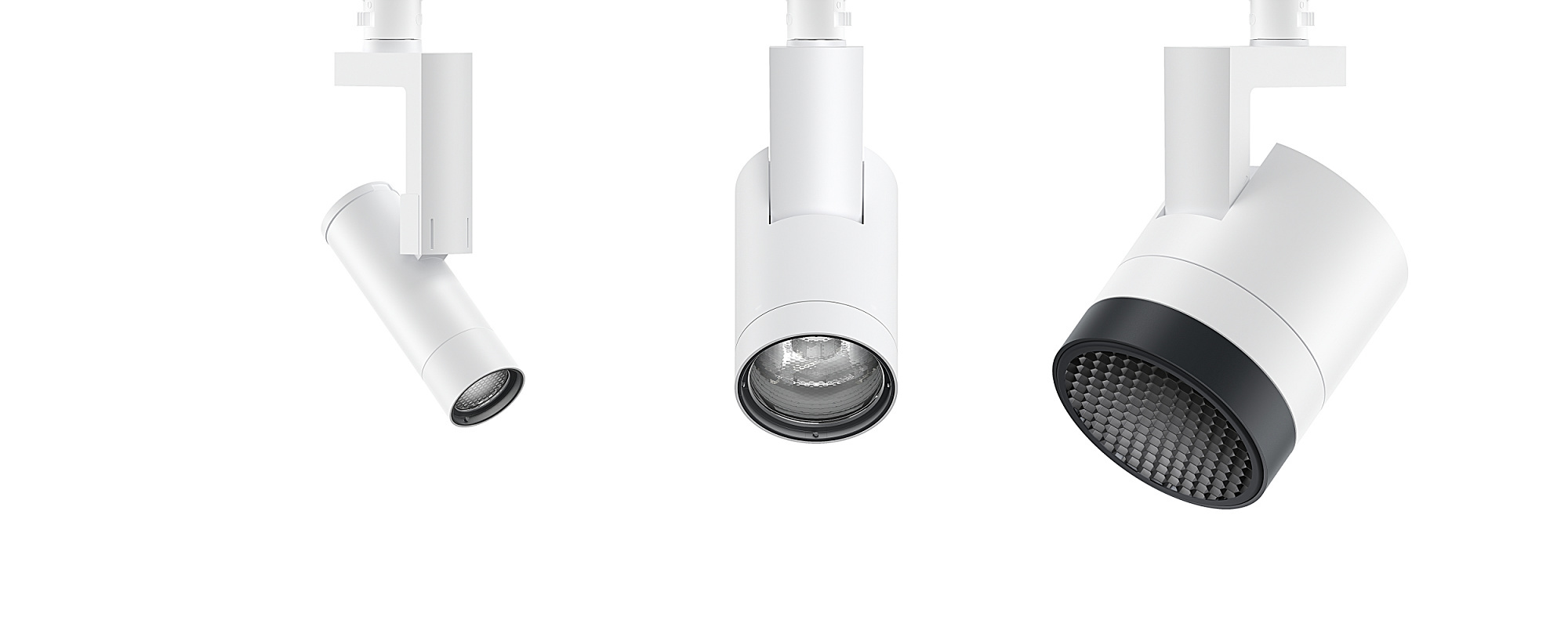

The evolution of Parscan brings a broad technical platform for even more quality of light, design flexibility and digital connectivity. A new generation of Spherolit lenses projects the light onto the target plane – precisely, uniformly and with superior efficiency. Miniaturized 48V technology reduces the dimensions of luminaires, track and adapters and enables maximum optical performance, even from size XS. The support arm sits flush into the overall cylindrical shape: a timeless, minimalist design for projects such as galleries, boutique offices and the illumination of display cases. Parscan spotlights can be customized to suit a specific installation thanks to lens units that are interchangeable without tools, a wide range of accessories and add-on control units.
Parscan 48V in the application
Individualize Parscan 48V for your use case
With our “ERCO individual” service we offer you extensive options for the individualization of series products as well as support in the development of sophisticated special luminaires. In order to match Parscan 48V even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:
Housing: 10,000 further colors
Do you have further requirements with the product?
Please contact the consultant team in the following ERCO office:
Very narrow to wide beam, rotationally symmetrical light distribution for accent lighting.
2W - 18.2W
198lm - 2375lm
Works of art, merchandise and architectural details are effectively accentuated with Parscan. The ideal angle of tilt (α) for this is around 30°. The object is modeled without distorting the effect as a result of excessive shadowing. It also prevents shadows cast by the observer.
Manually adjustable round or oval light distribution for accenting to floodlighting.
2W - 18.2W
198lm - 2375lm
Zoom spotlights feature a continuously adjustable beam angle. With the spot to wide flood zoom range, smaller works of art can be accentuated effectively at an inclination angle (α) of approximately 30°. The oval zoom is suitable for linear works of art. The object is modeled without distorting the effect as a result of excessive shadowing. It also prevents shadows cast by the observer.
Optical system with lens for the projection of hard-edged contours using a framing attachment.
5.7W - 18.2W
589lm - 2375lm
Contour spotlights generate freely adjustable, crisp-edged light beams. As a result fascinating effects can be created where pictures appear to illuminate from within. Select narrow framing to accurately illuminate small exhibits from a long distance and wide framing to accurately illuminate large exhibits from a short distance.
Wide-beam illumination of larger objects or spatial zones.
