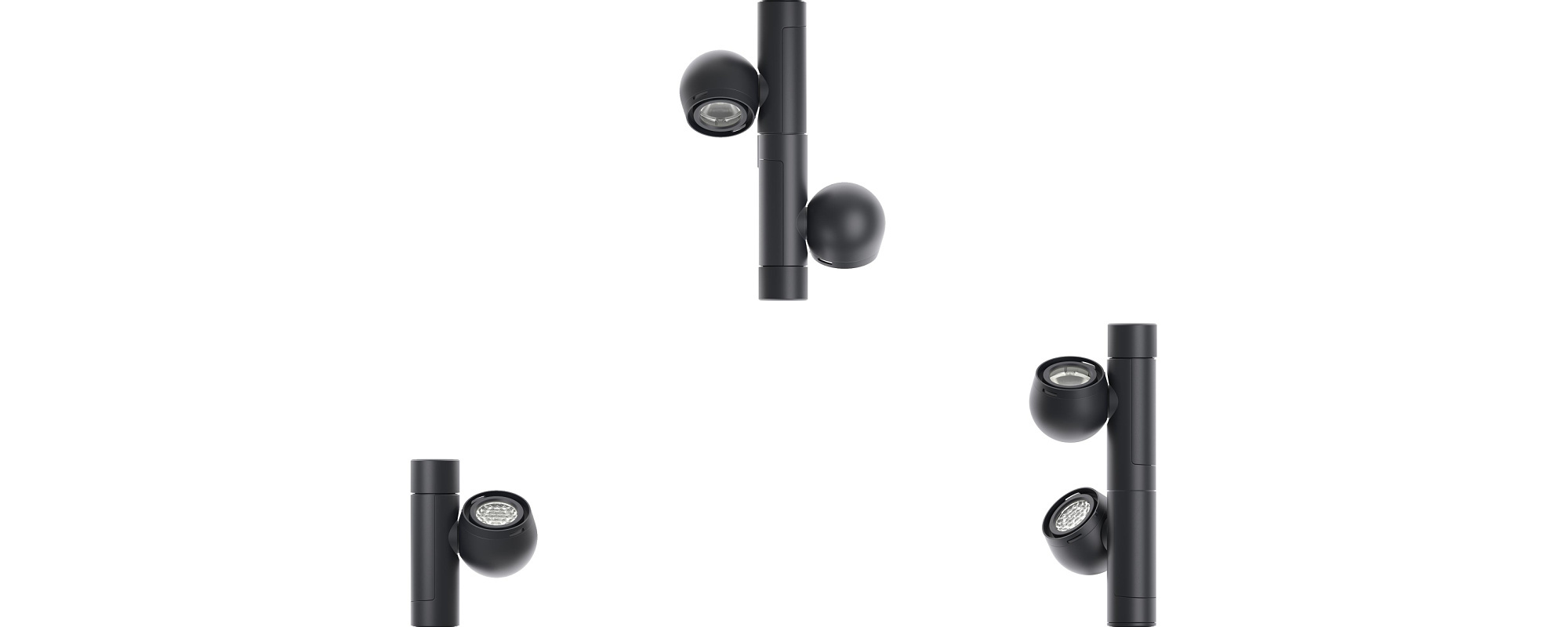

Axis. For big magic on a small stage

A flexible system that perfects holistic lighting concepts for museums

Show products

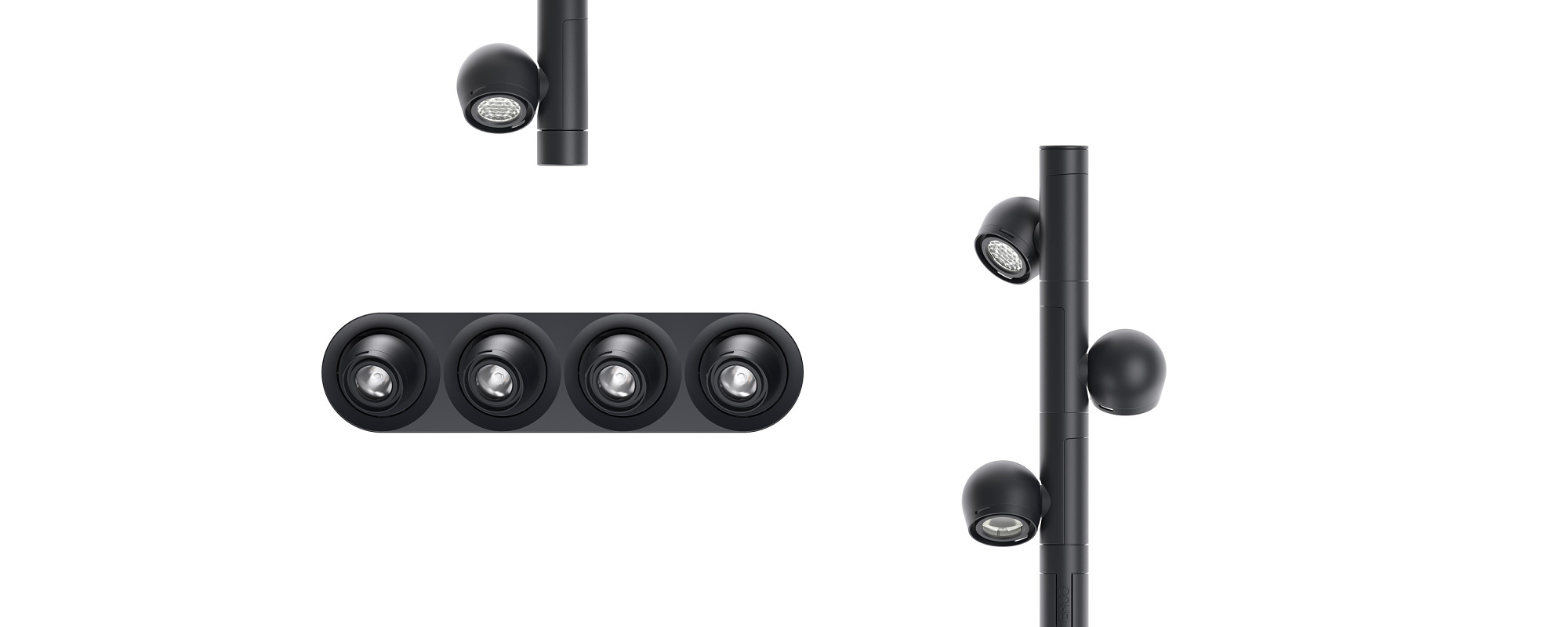

Axis in the application

Individualize Axis for your use case

With our “ERCO individual” service we offer you extensive options for the individualization of series products as well as support in the development of sophisticated special luminaires. In order to match Axis even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:

  • Special solutions for various showcases

Do you have further requirements with the product?

Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}} {{strasse2}}
{{/strasse2}} {{ort}}
{{staat}}

Product features in detail

1

2

3

4

5

6

1

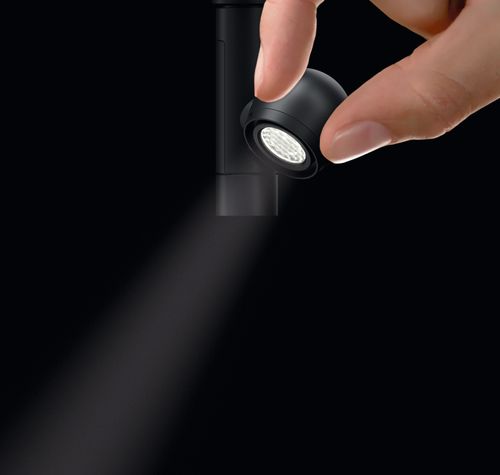

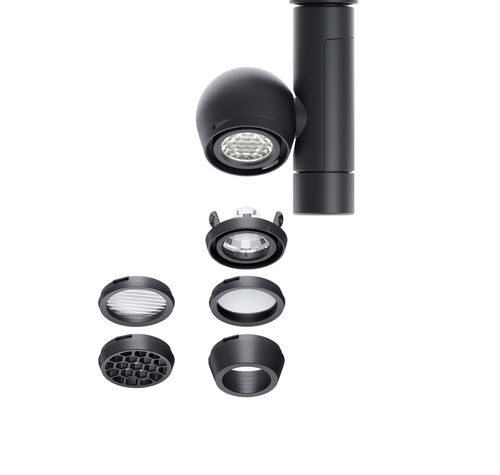

Lens Unit

  • Rotatable through 360°
  • Polymer, black
  • Collimating lens made of optical polymer
  • ERCO Spherolit lenses: spot, flood or wide flood

2

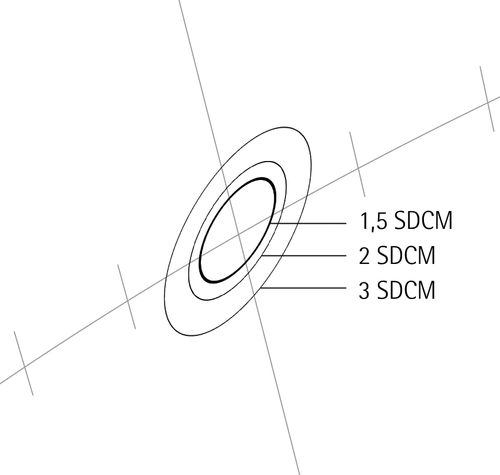

ERCO LED-module

  • High-power LEDs: warm white (2700K or 3000K) or neutral white (3500K or 4000K)

3

Light head

  • Black (RAL9005)
  • Polymer/metal, black coated
  • Rotatable through 360°
  • 0-70° pivotable (semi-recessed luminaire) or 0-135° pivotable (stem luminaire/surface-mounted luminaire)

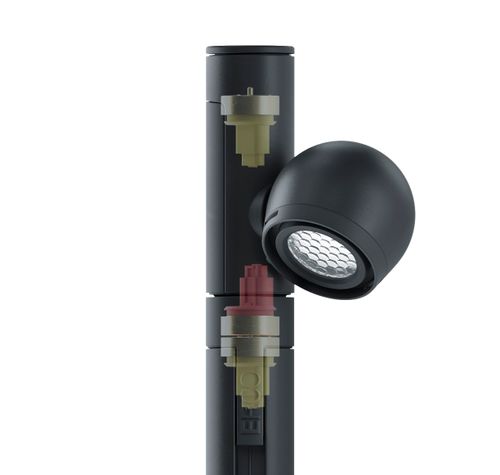

  • Magnetic attachment to the stem or mounting plate

4

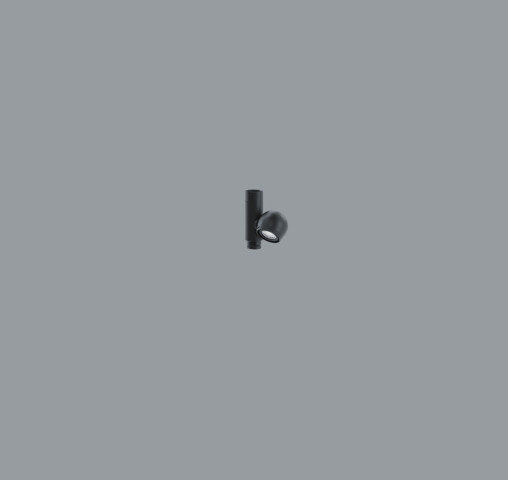

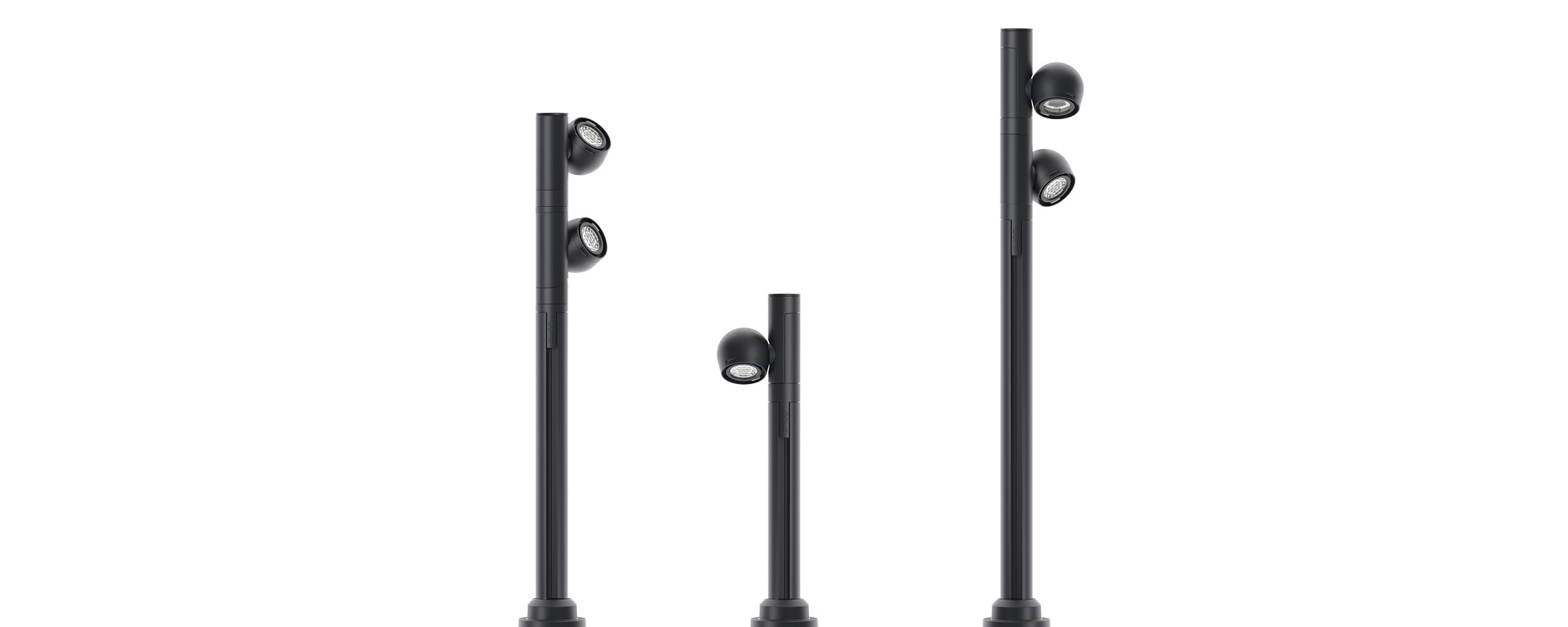

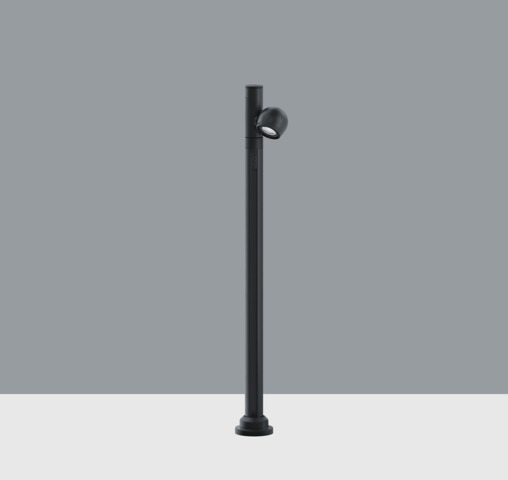

Stem (stem luminaire)

  • Black (RAL9005)
  • Aluminum profile, matt coated
  • Fastening nut, polymer
  • Height adjustable 64-306mm

or

Mounting plate (surface-mounted luminaire)

  • Black (RAL9005)
  • Aluminum profile, matt coated
  • Fastening nut, polymer

or

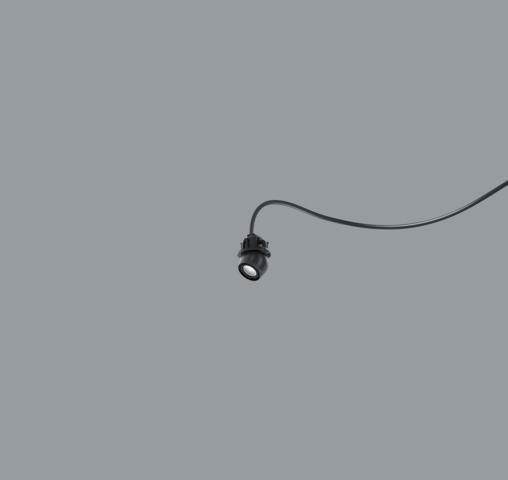

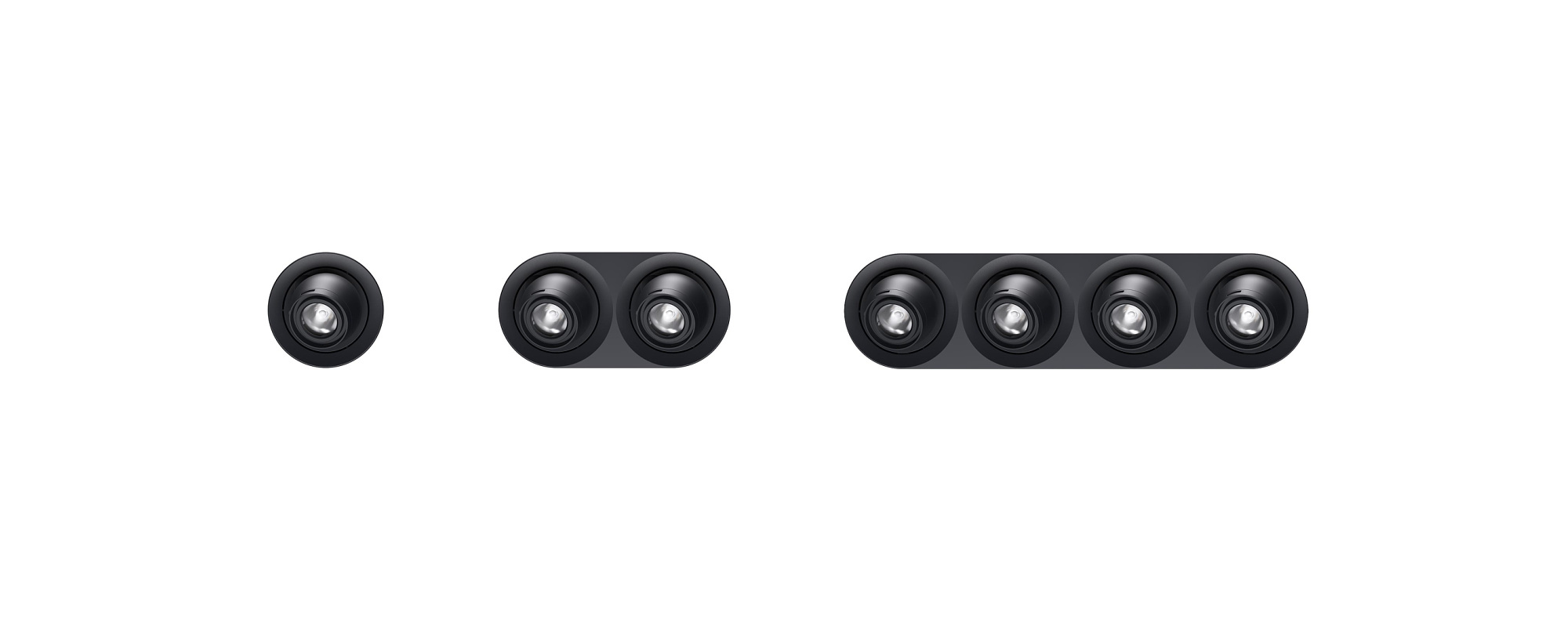

Mounting frame (semi-recessed luminaire)

  • Order 1, 2 or 4-fold mounting frame separately
  • Polymer, black (RAL9005)

5

Connection cable

  • Black
  • 2x 0.35mm², L 1.0m

6

Control gear (order separately)

  • On-board Dim or Casambi Bluetooth
  • On-board Dim version: rotary control for control of brightness on the control gear

Axis: Light effect and planning aid

Lighting tool

Light distribution

Downloads

Request now: Axis for your next project

We will be happy to provide you with an offer, support you with sampling and be available to answer specific planning questions.
