Track and singlets

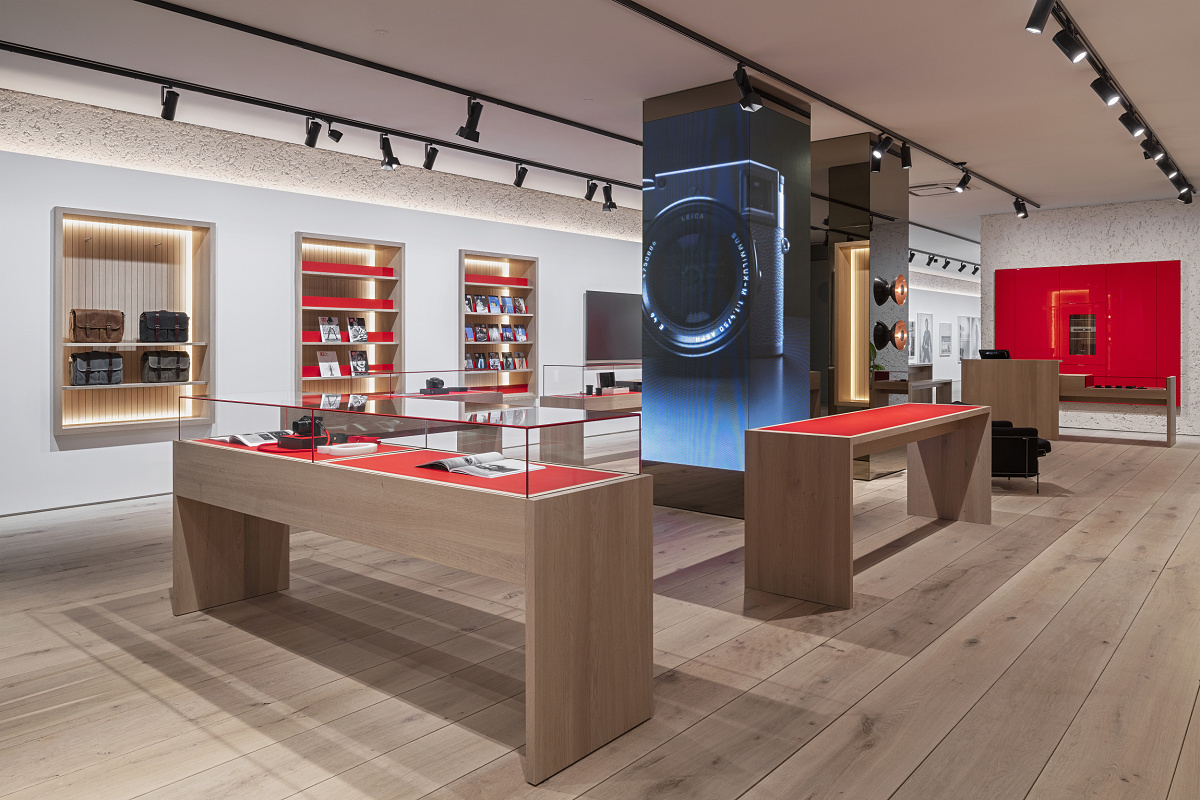

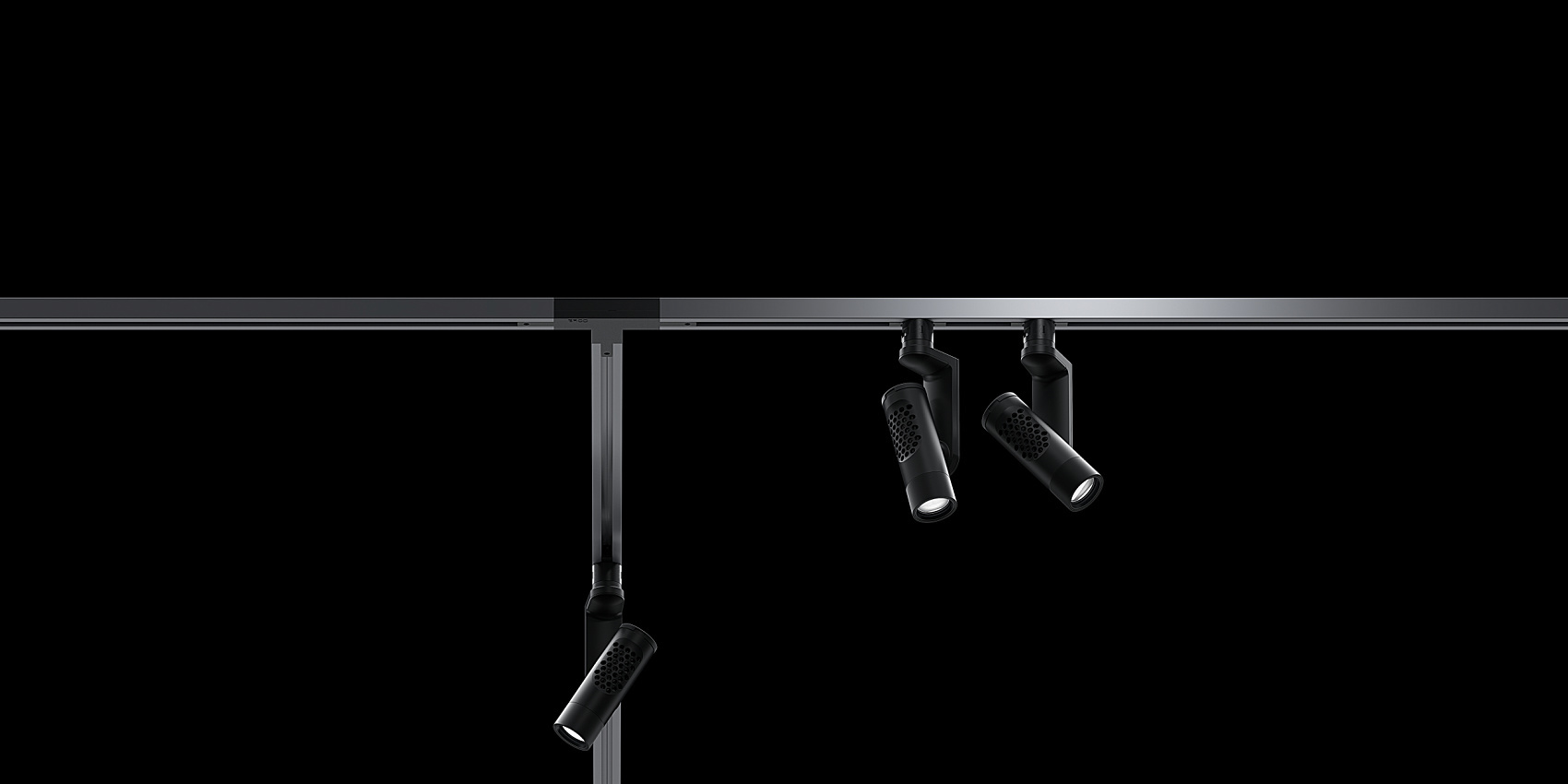

Track in indoor spaces forms the basis for variable, flexible lighting that adapts to the changing designs and uses of the room. ERCO offers three track systems: Minirail 48V track for low voltage, ERCO track for mains voltage and the Hi-trac system with indirect illumination. Singlets are available for individual luminaires. These are available as a 48V version and for mains voltage as well as for flush and surface mounting.

Utilise ERCO track as flexible infrastructure for your project:

  • Track and adapters with high-precision mechanical quality
  • Extensive accessories for all mounting methods
  • Perfect for DALI systems and new standards such as Casambi Bluetooth and Zigbee
  • Highest electrical safety
  • Can be cut to size on site
  • High quality powder coating, anodised surfaces and special colours
  • Open system for luminaires from different manufacturers

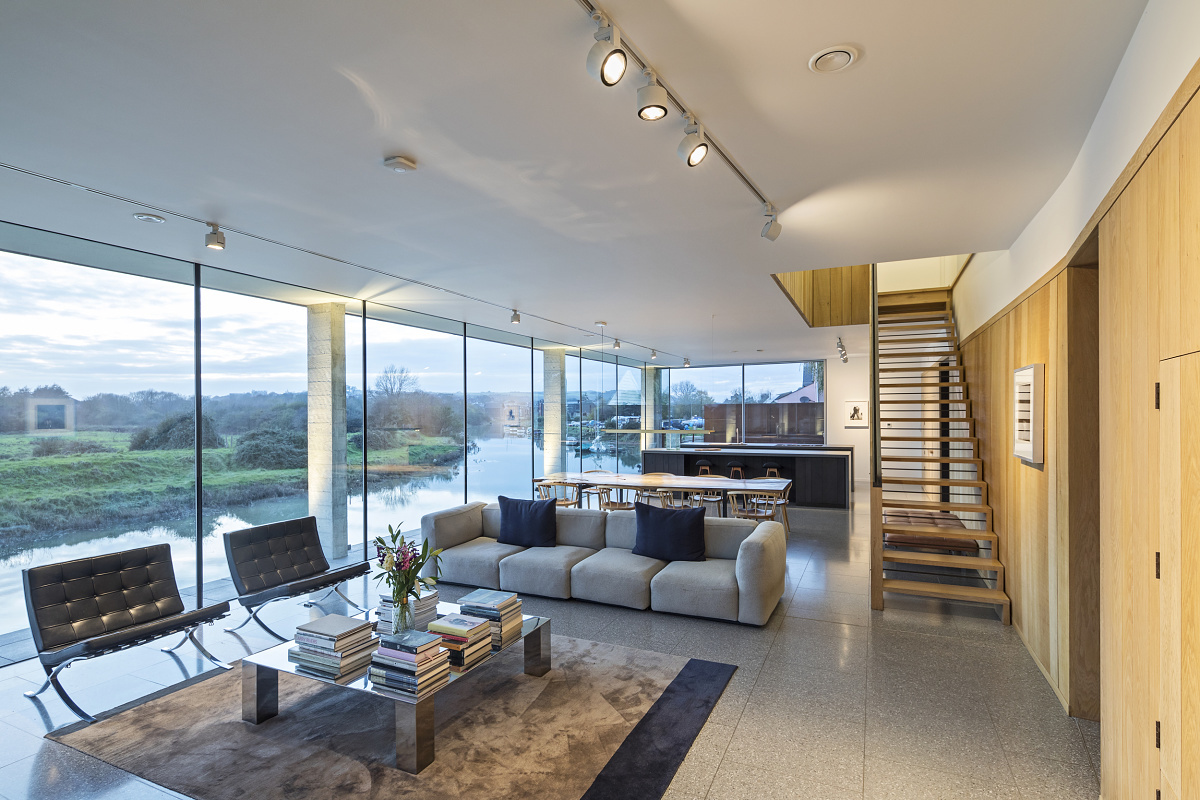

You're aiming for lighting design that focuses on variability? You'd like to position luminaires independently of the fixed ceiling outlets? Our track allows you to mount spotlights, downlights and wallwashers in the track without tools and move them flexibly. Free up the alignment of your lighting from rigid mounting points and design flexibly. ERCO track can be mounted almost anywhere: on ceilings, vertically on walls and even in furniture – flush-mounted, surface-mounted or suspended. Don't be limited. Control your luminaires in the ERCO track wirelessly, e.g. with Casambi Bluetooth, or wired, for example via phase dimming.

Track and singlets

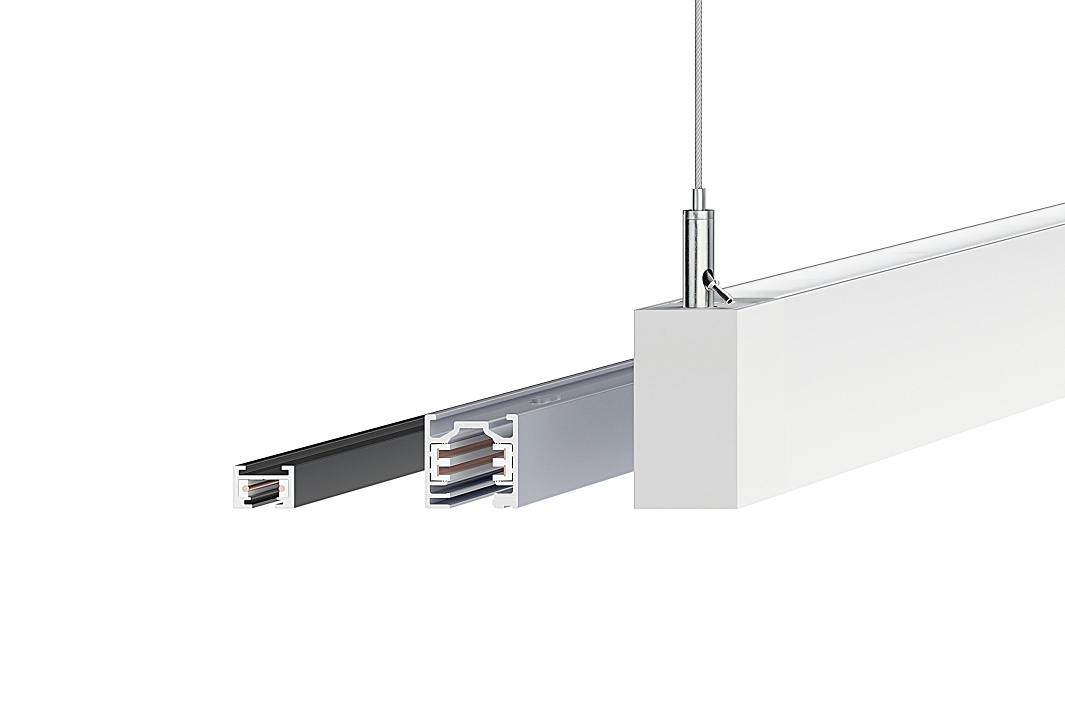

Find the right track for your project

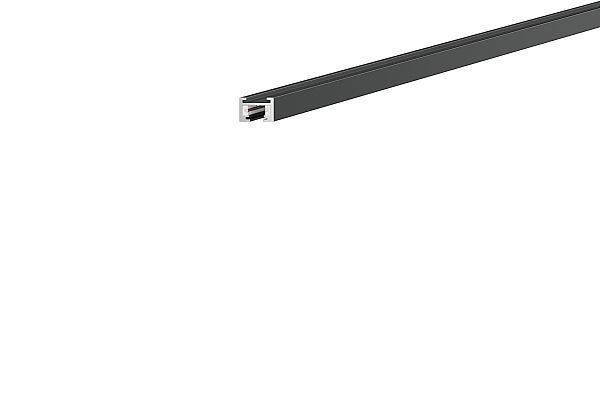

ERCO Minirail 48V track: for a miniaturised infrastructure

With a width of only 7/8” , Minirail 48V track forms the infrastructure for miniaturized low voltage spotlights.

Installation: recessed, surface-mounted, suspended
Profile dimensions (WxH): 7/8" x 5/8" (22 x 16mm)
Control: wireless, wired, interfaces for all control types

To the product

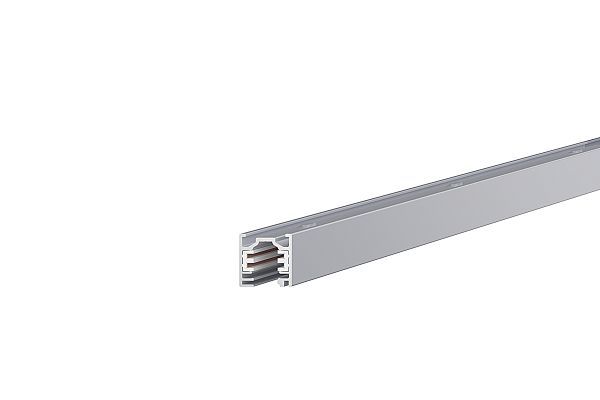

ERCO track: for classic applications

ERCO track for 120V mains voltage is the infrastructure for spotlights, downlights and wallwashers that has been tried and tested for years.

Installation: recessed, surface-mounted, suspended
Profile dimensions (WxH): 1 5/16" x 1 3/8" (33.5 x 34mm)
Control: wireless, wired, interfaces for all control types

To the product

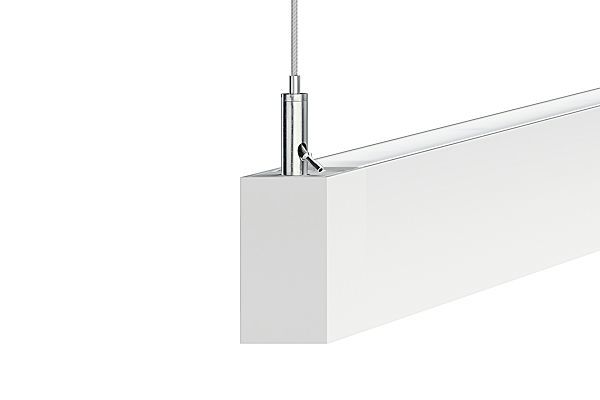

Hi-trac track: for higher loads

Hi-trac is a 2 7/8" (72mm) high profile, optionally with indirect lighting, for suspended mounting. The system enables more weight in the track and wide pendant distances. The ERCO track is located within the Hi-trac profile.

Installation: suspended
Profile dimensions (WxH): 1 1/2" x 2 7/8" (38 x 72mm)
Control: wireless, wired, interfaces for all control types

To the product


How our track system is designed



Track can be easily mounted to ceilings and walls as a surface-mounted variant. The low installed height of only 5/8" (16mm) with Minirail 48V and 1 3/8" (34mm) with classic track ensures a calm and tidy ceiling appearance



Track for 48V as well as for mains voltage can be elegantly recessed into the ceiling. A plaster trim profile is available as an accessory for flush installation. Flanged track, i.e. special track with lateral support surfaces, are ideal for installation in suspended ceiling panels.

Suspensions or pendant

Suspensions or pendant

Track can be suspended from the ceiling with use of accessories. The fine wire suspension is also ideal for suspending track from sloping ceilings. Mounting on a pendant tube allows the track to be loaded with up to 44lbs of weight, and the pendant tube prevents the track from tilting if loaded on one side.



If your lighting design includes one or more fixed mounting points, then we recommend using the appropriate singlet for low voltage and mains voltage as a recessed or surface-mounted variant. The ERCO singlet allows you to mount spotlights with a turning adapter in a particularly elegant way.

How can we support you?

Allow us to approach your new project together.

Select a service:

Your contact data:

free of charge and without obligation

Your data will be handled confidentially. For further information see Data protection declaration.

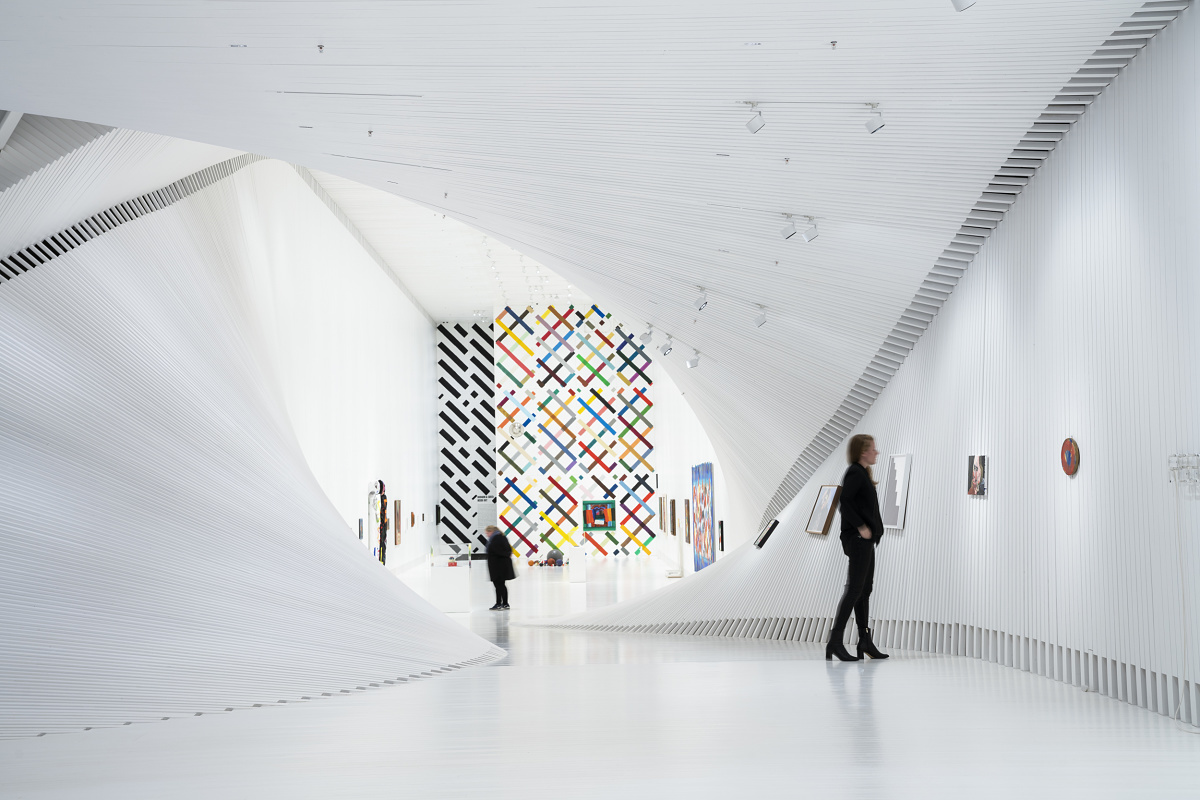

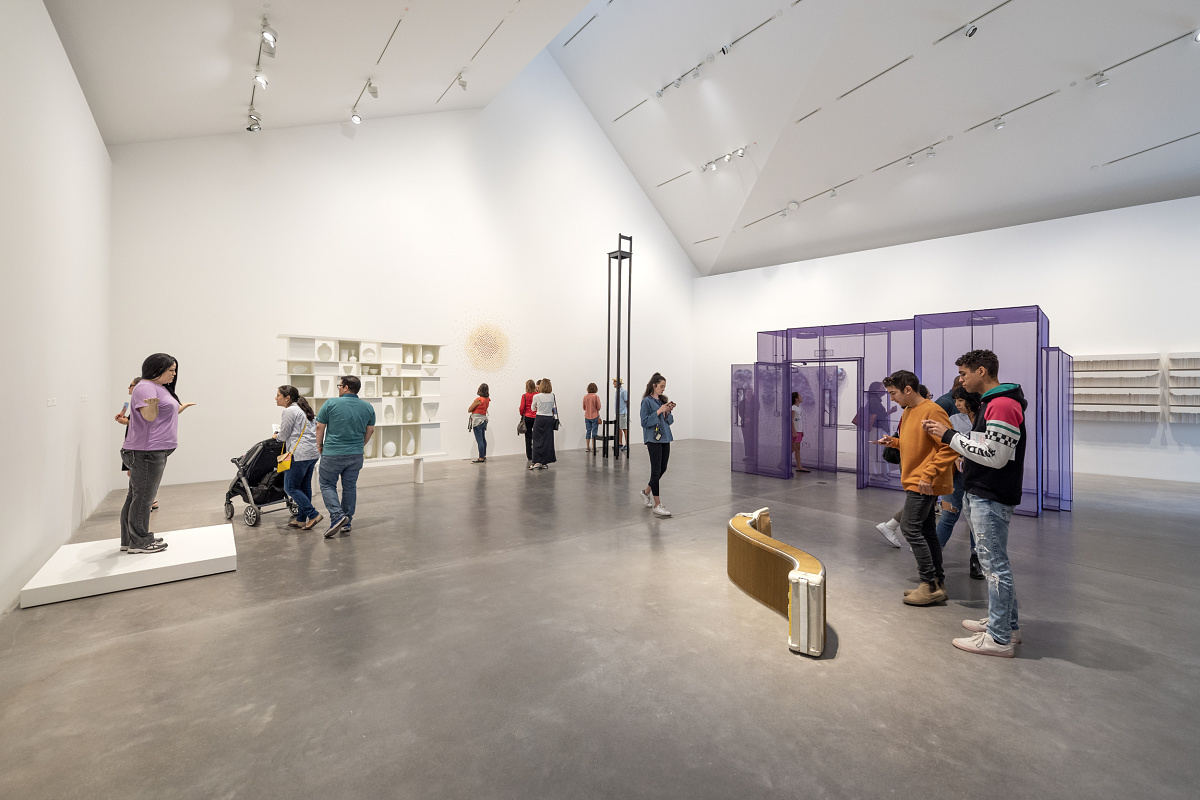

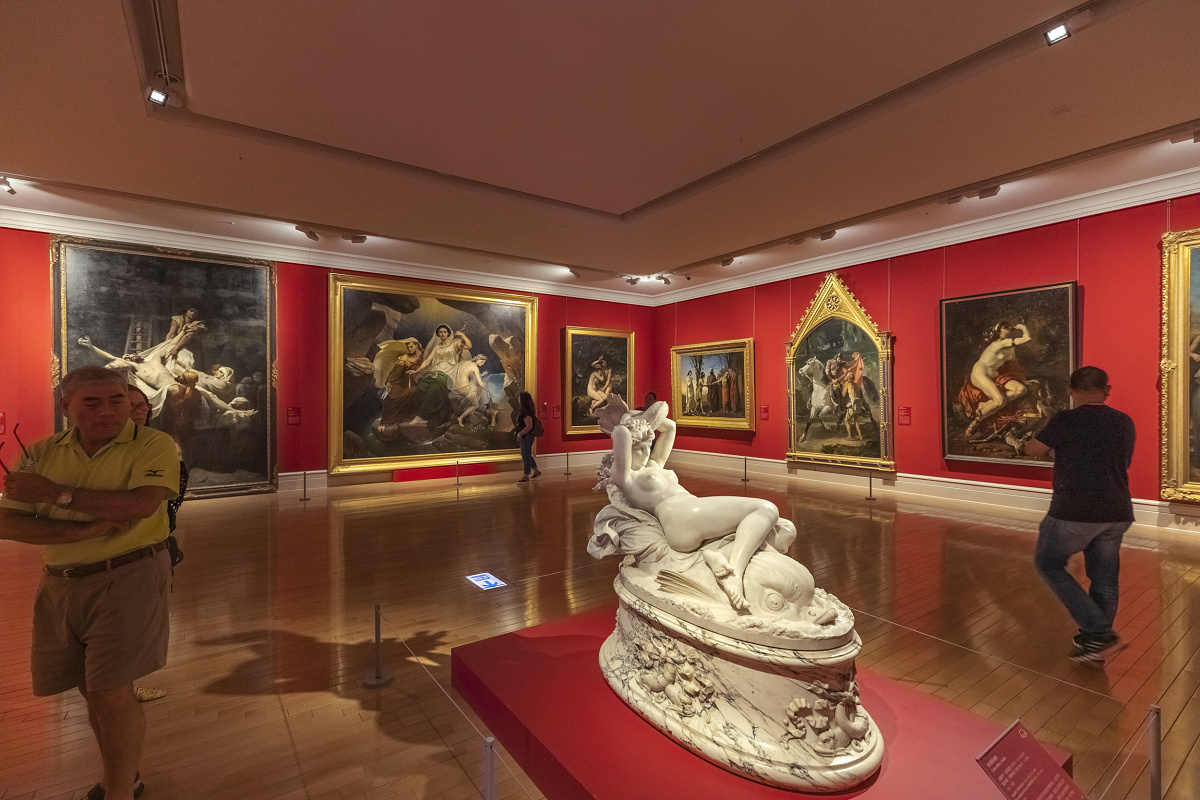

Lighting design tips for track in museums and galleries

  • Pay attention to the correct distance to the wall

    As a rule of thumb for a suitable distance to the wall in museums, you can assume around 1/3 of the room height. This is the ideal method of illuminating paintings on walls without casting strong shadows.

  • Select a track that fits your lighting task

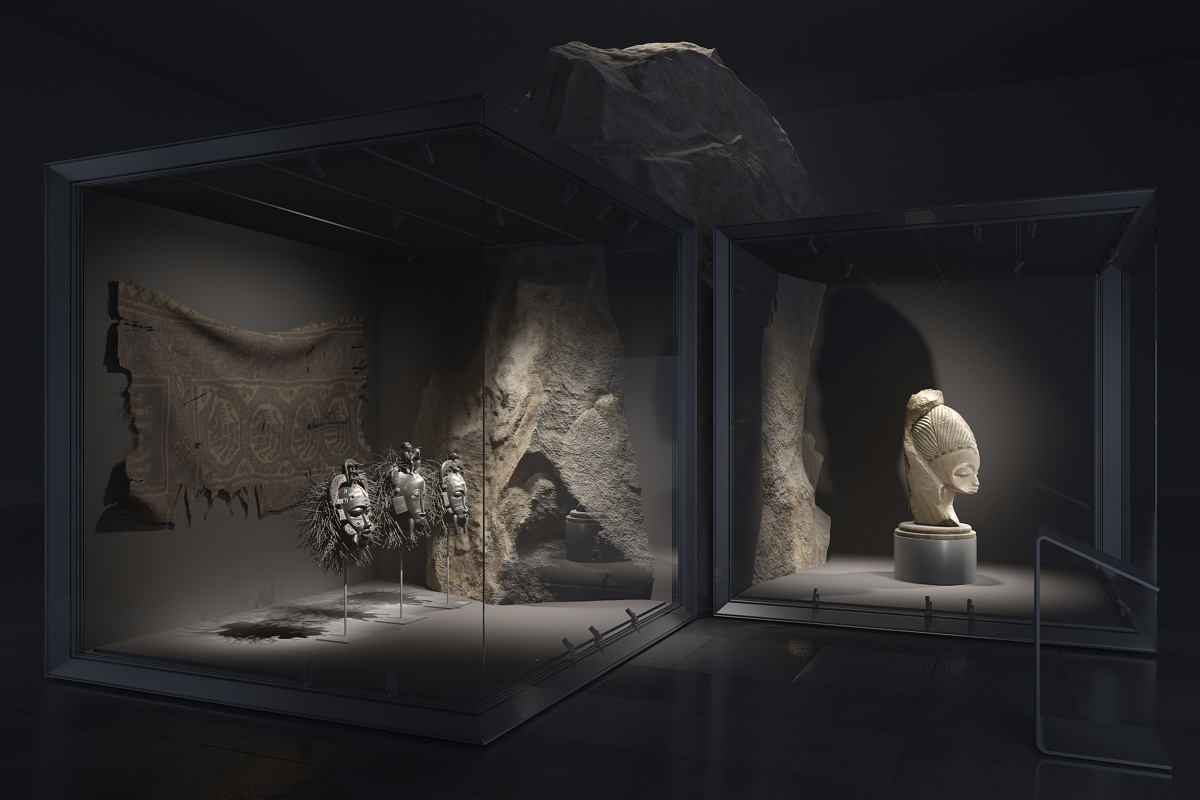

    The miniaturized Minirail 48V track is suitable for small exhibits or display cases. ERCO track with mains voltages are ideal for almost all lighting tasks.

  • Use accessories to make even more out of your track

    Use track for more than just the power supply of luminaires. You can suspend signage and objects using separately available hooks.

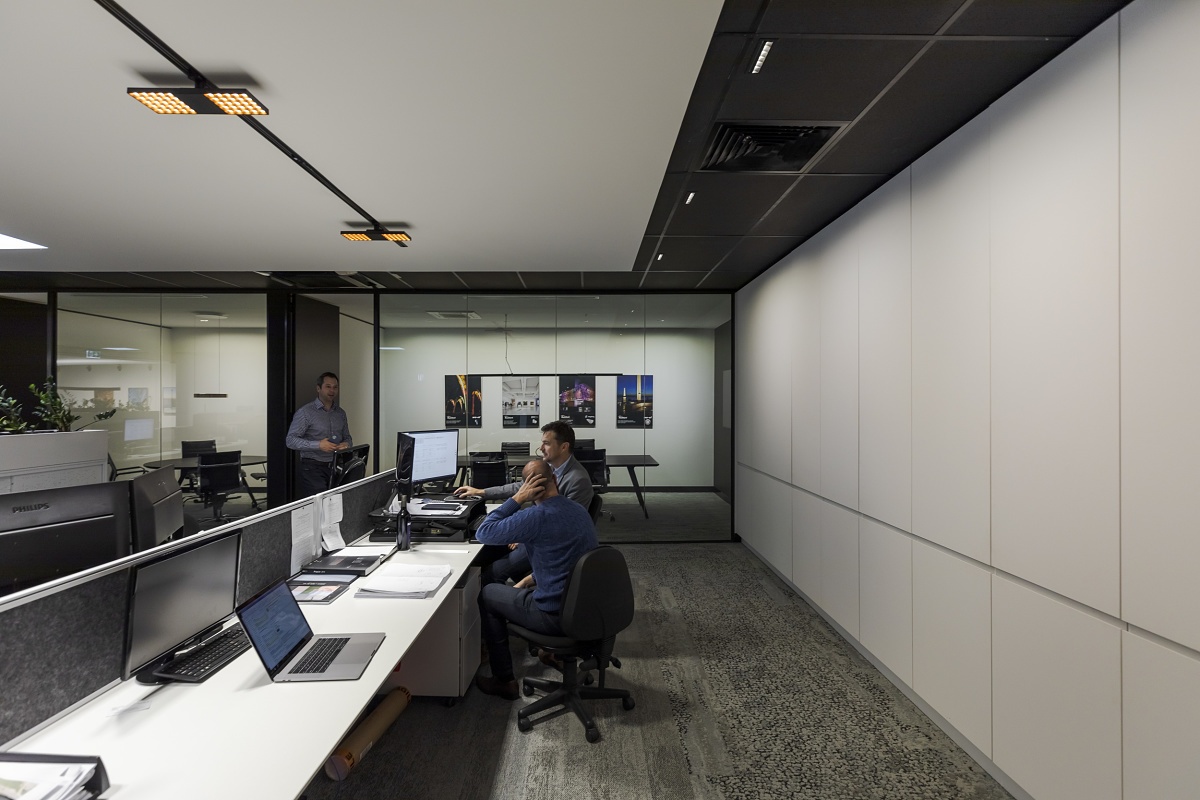

Lighting design tips for track in offices

  • Rely on flexible downlights for track in offices

    Track downlights illuminate office workplaces in compliance with standards and can be positioned freely in the track. If your office layout changes, simply reposition the luminaires in the track

  • Coordinate office workstations and track with each other

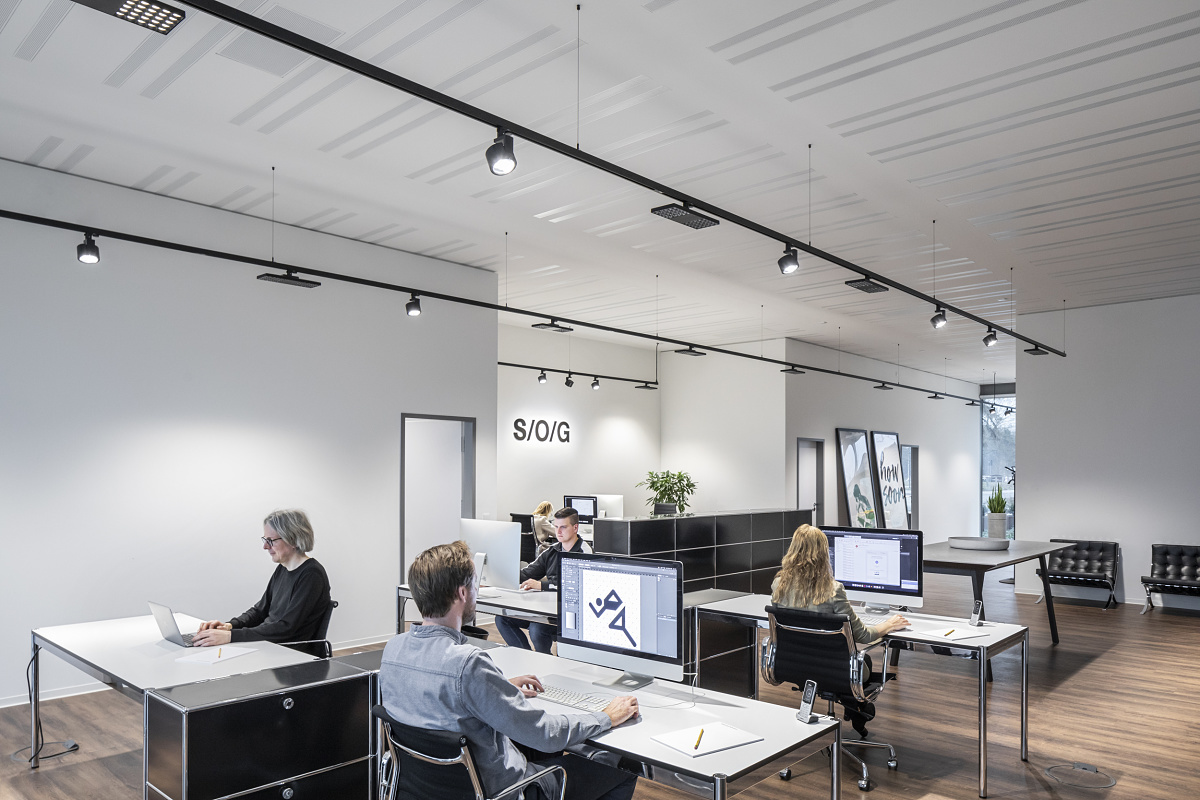

    Position the track approximately centered on the longitudinal axis of the desks. This gives you a good start for positioning downlights flexibly in the track above the office workstations.

  • Create a high spatial impression

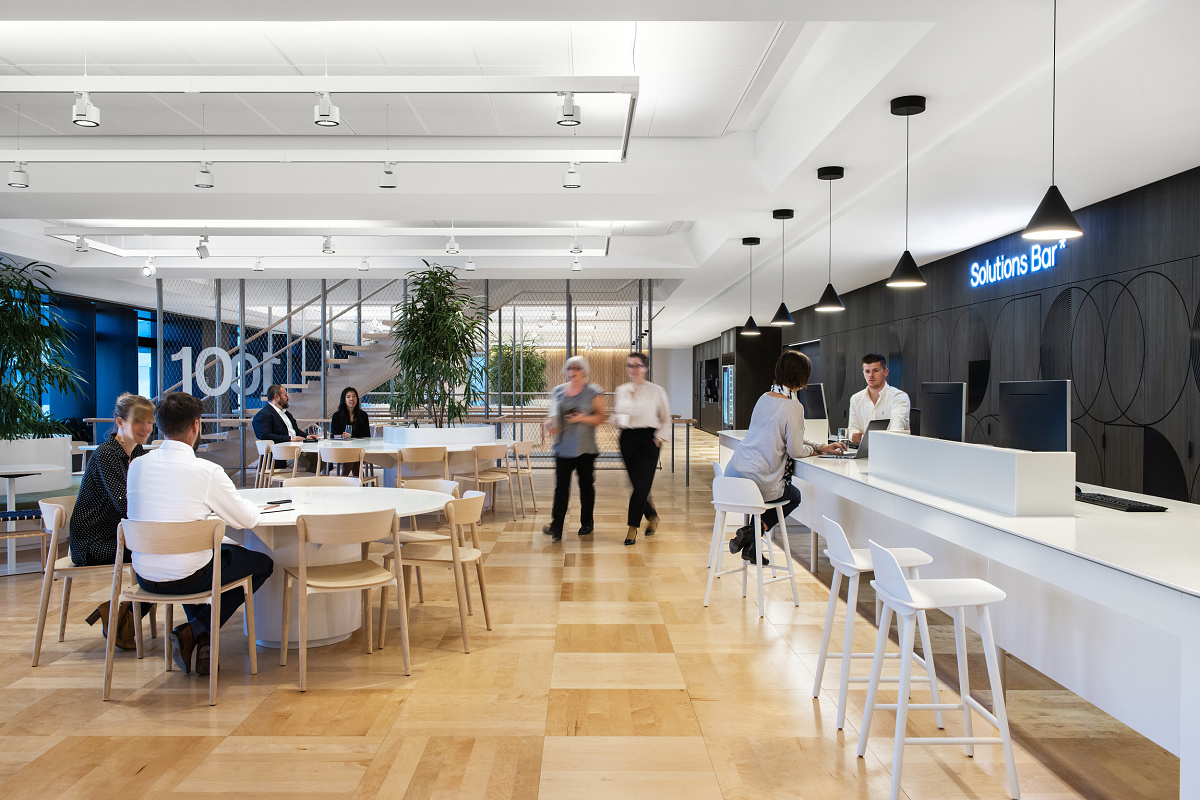

    Suspended Hi-trac track allows you to additionally illuminate the ceiling and thus brighten up the room with indirect lighting. This creates a high impression of the room.

Proven, future-proof and suitable for different luminaire manufacturers

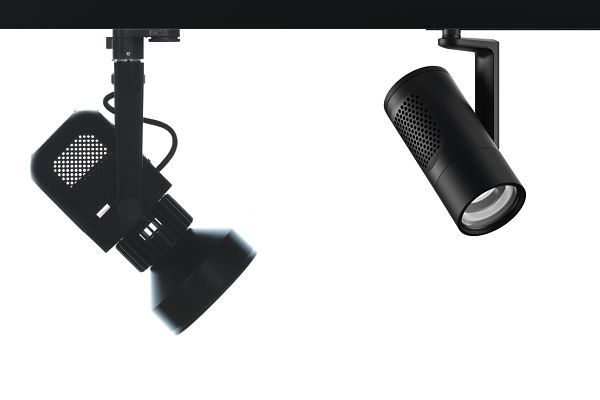

Track from ERCO has been used around the globe for decades. An important plus: new spotlights mechanically fit into pre-existing systems, and luminaires put in operation years ago can be used in new systems. ERCO also offers adapters as OEM components for luminaires from different manufacturers.

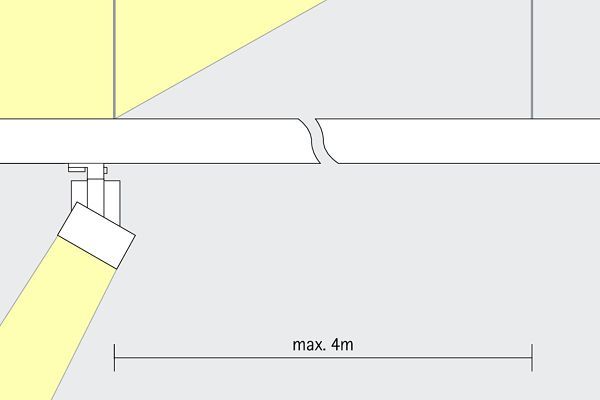

Spacing of up to 13ft (4m)

With widely spaced suspension points, Hi-trac represents a statically high load-bearing infrastructure – also perfect for indirectly illuminating ceilings and accommodating cables in the upper section of the profile.


Track-mounted emergency lighting

In projects with ERCO track and Hi-trac, you can integrate emergency lighting into the track infrastructure. Contact your local ERCO consultant – they’d be glad to help with the specification of the system.

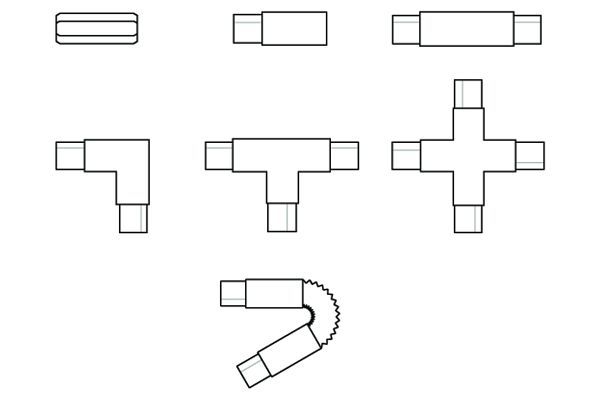

Straight ahead, around the corner or as a geometric shape?

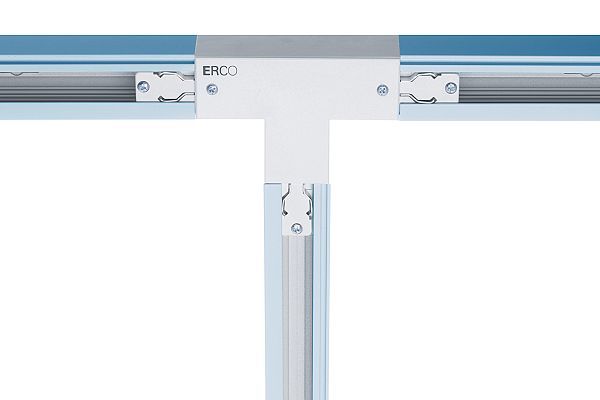

Design your track system without restrictions: corner, X, T and flexible connectors enable diverse geometries. Suitable accessories are always specified on the data sheet of the appropriate track.


ERCO Individual

You'd like to match your track to your corporate design? With our 'ERCO individual' service we offer you extensive options for individualizing your track – e.g. coatings in your desired color.

Become inspired: ERCO projects with track

Do you have any questions?

Here you can find initial help. If these answers are not sufficient, simply contact us using the contact form below:

Where can I purchase track?

ERCO manufactures track to order. In this way you always receive track with state of the art technology. Our lighting consultants will clarify all details with you concerning the ordering process. You can find your regional contact partner at: Contact

How long is the delivery time?

Many ERCO standard products are ready for shipping within 48 hours. Depending on the scope of the project, the quantity and the geographical location of the recipient, the delivery times with shipping are usually only up to two weeks. Delivery times may vary in individual cases, but we will endeavour to meet your desired delivery date. For more information on our delivery times, log in to your myERCO account and request delivery times simply by clicking, or get in touch with your regional contact at: Contact

How long is the ERCO warranty?

ERCO offers a 5-year voluntary manufacturer's warranty on its products. The currently valid warranty conditions are available on request via the e-mail address:

Where can I find prices for the track?

Do you need an offer for a specific planning task? Simply request the prices and availability of your selected articles online via myERCO. To do so, log in to your myERCO account. Our lighting consultants will also be happy to provide you with a project-specific quotation. This, as well as a current gross price list, can be obtained from your regional contact: Contact

Can I get track in other colours and with other mounting solutions?

We would be pleased to check your individual modification wishes. Please contact your ERCO lighting consultant. Exciting sample projects that we have implemented with special solutions can be found at: ERCO individual

Do luminaires from other manufacturers also fit in ERCO track?

ERCO track was primarily designed for operating ERCO spotlights. But with OEM component adapters, you can also equip luminaires from other manufacturers to operate in ERCO track. This makes ERCO track an open system. Simply contact us: Contact

Is track also available for 48V?

Yes. The ERCO Minirail 48V track is the miniaturised track for 48V luminaires. Discover more about Minirail 48V track here.

Can I simply shorten ERCO track on the construction site?

Yes, ERCO track can easily be shortened on site using a miter saw. The conductor paths are not damaged in the process.

Can I flush-install ERCO track?

Yes, ERCO track can be installed flush in the ceiling or wall. We offer a corresponding plaster trim profile as an accessory for this purpose.

Can I hang objects on the track?

Yes. We offer special decorative hooks as accessories which you can hang into ERCO track (120V). You can attach objects with weights up to 22lbs to these.
