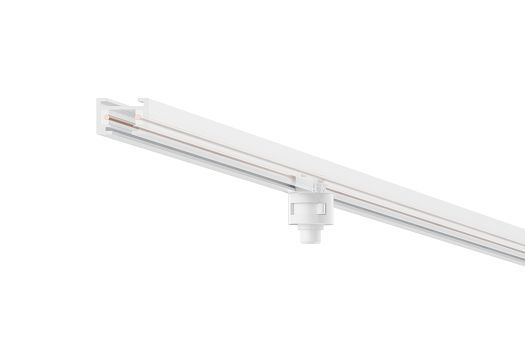

ERCO Minirail 48V track and singlets. Small cross section, large flexibility

The elegant infrastructure for lighting in the digital age

Show products

Special features of ERCO Minirail 48V low voltage track

48V technology

48V technology

Low voltage technology is characterized by very good energy efficiency and also reduces operating costs.

Small profile

Small profile

The small dimensions of the track profile of only 7/8” is highly discreet, thus directing the focus on the light. Compact profiles are particularly advantageous in small rooms.

Control types

Control types

The track can be used for various methods of control like switching, Casambi Bluetooth and 0-10V (via bridge).

Extensive range of accessories

Extensive range of accessories

A comprehensive range of accessories is available for different mounting methods and layout requirements.

Product description

With Minirail, ERCO offers a miniaturized low voltage alternative to the classic ERCO track as the basis for flexible, space-saving lighting installations. Thus Minirail is operated with 48V. The system requires only two conductors and has a profile with a width of just 7/8”. Minirail is thus ideal for all situations requiring the smallest possible system dimensions, whether for aesthetic or technical reasons. In combination with correspondingly compact luminaires for Minirail 48V, you can install high quality lighting in the smallest of spaces. The 48V operating voltage represents an optimum in terms of safety and efficiency. Minirail 48V is suitable for display cases, for ceiling mounting and, with appropriate accessories, for recessing in ceilings and suspended mounting. A wide range of configurations can be created with the various connectors, couplers and feeds. Flexibility is also created by control methods such as Casambi Bluetooth. This makes ERCO Minirail 48V track a very versatile infrastructure for lighting in museums, galleries and shops.

This is why you should implement your next project with Minirail 48V track from ERCO

ERCO Minirail 48V track and singlets

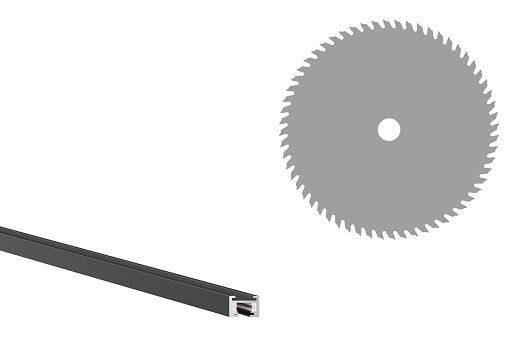

Simply cut to size and install on site
ERCO Minirail 48V track can be easily cut to size on site. There is no danger of damaging the conductor paths in the process. A drilling aid enables holes to be located quick and easy mounting of the Minirail 48V track on ceilings and walls.

ERCO Minirail 48V track and singlets

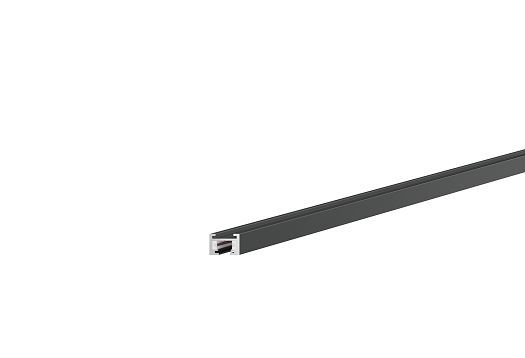

Extremely stable and durable
Minirail 48V track is made of high quality aluminum. It is available in lengths up to 118 1/8" (3m). ERCO developed the adapters to be highly robust for continuous use.

ERCO Minirail 48V track and singlets

High quality powder coating
Suspended track in particular is distinctly noticeable in architecture. That is why we pay great attention to excellently finished surfaces. Minirail 48V track is powder coated to a high standard – including the inside of the track. In addition to standard black or white, Minirail 48V track is also available with anodized surfaces and in 10,000 further colors.

ERCO Minirail 48V track and singlets in the application

Product features in detail

1

2

1

Aluminum profile

  • White (RAL9002), black or silver
  • Powder-coated or anodized

2

Contacts

  • Two isolated copper conductors, AWG11 / 4.15mm²
  • One circuit: max. 2A

Find the right track or singlet for your project

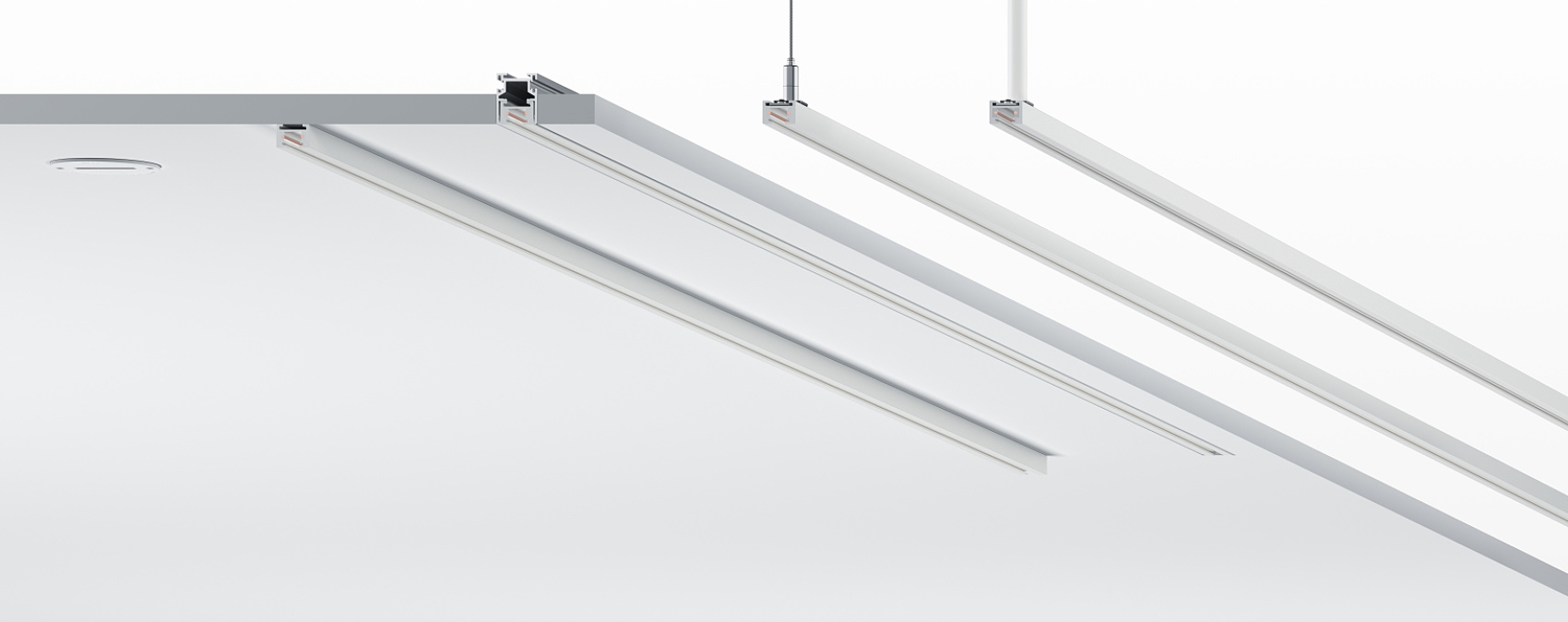

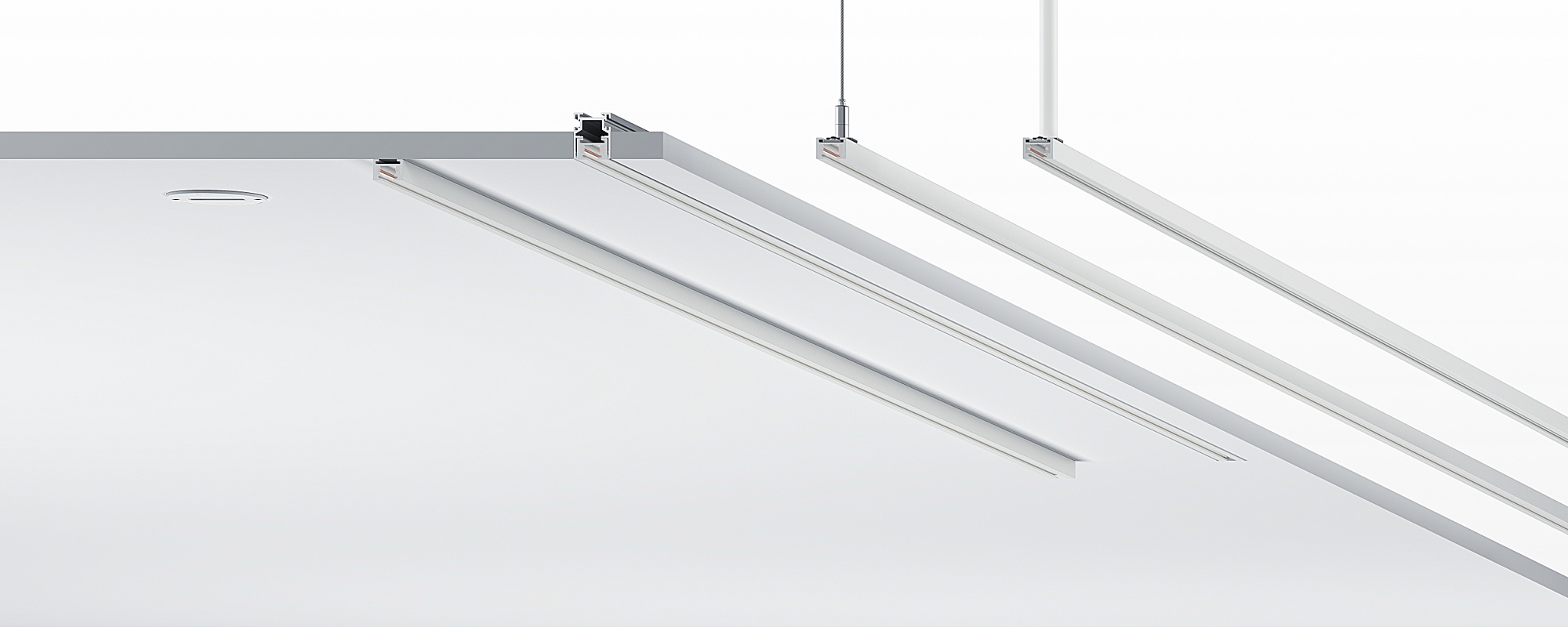

Surface-mounted track

Surface-mounted track

Minirail 48V track can be mounted on ceilings, beams and walls either directly or by using fastening clips available as accessories.

Recessed track

Recessed track

You can integrate Minirail 48V track in the ceiling with plaster trim profiles (accessories).

Pendant track

Pendant track

ERCO Minirail 48V track can be suspended from the ceiling with wires or pendant tubes available as accessories.

Recessed singlet

Recessed singlet

Singlet for recessed mounting for power supply to a luminaire with Minirail adapter.

Arranging track

ERCO Minirail 48V track and singlets

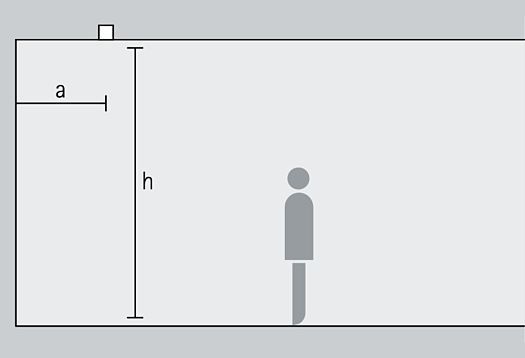

The best arrangement for track is along the walls with a distance to the wall of 1/3 of the room height. In this way you can use spotlights and wallwashers to optimally illuminate the walls of museums, galleries and shops. If furniture such as shelves or cabinets are placed in front of the wall, the distance should be modified according to the front plane of the furniture

Downloads

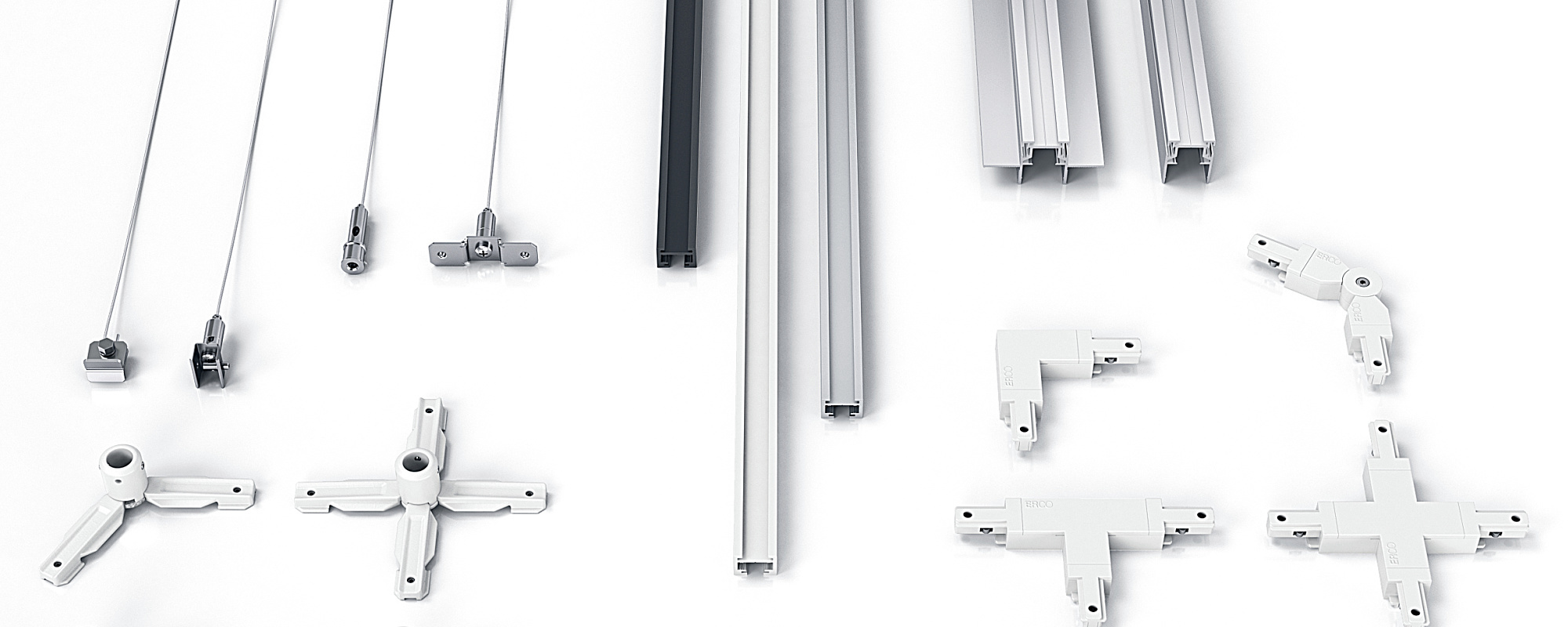

Extensive accessories for universal use

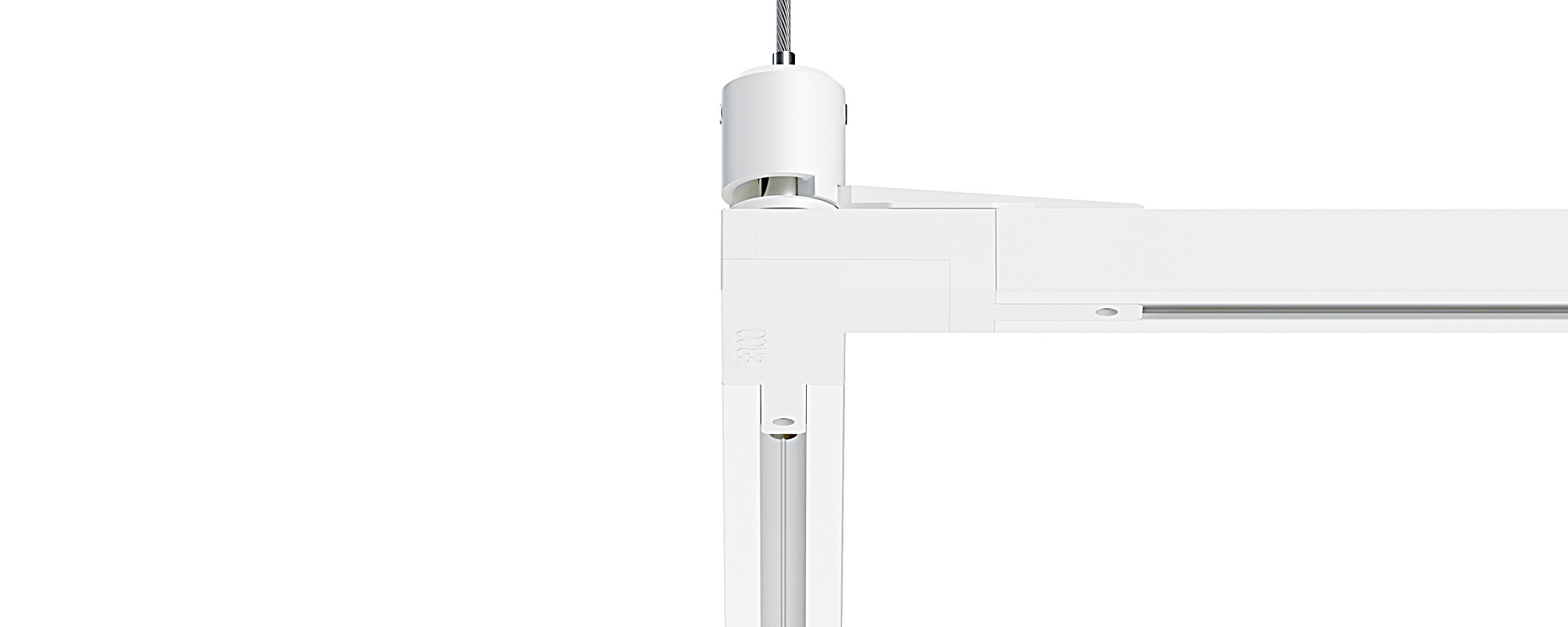

Connectors for various geometries

Connectors for various geometries

Whether straight line, L-shape, rectangle, figure of eight or structures mounted at angles – find accessory connectors suitable for the different geometries on the data sheet of the track.

Accessories for a wide range of installations

Accessories for a wide range of installations

The range includes wires and pendant tubes for suspending Minirail 48V. Rapid connectors enable efficient installation.

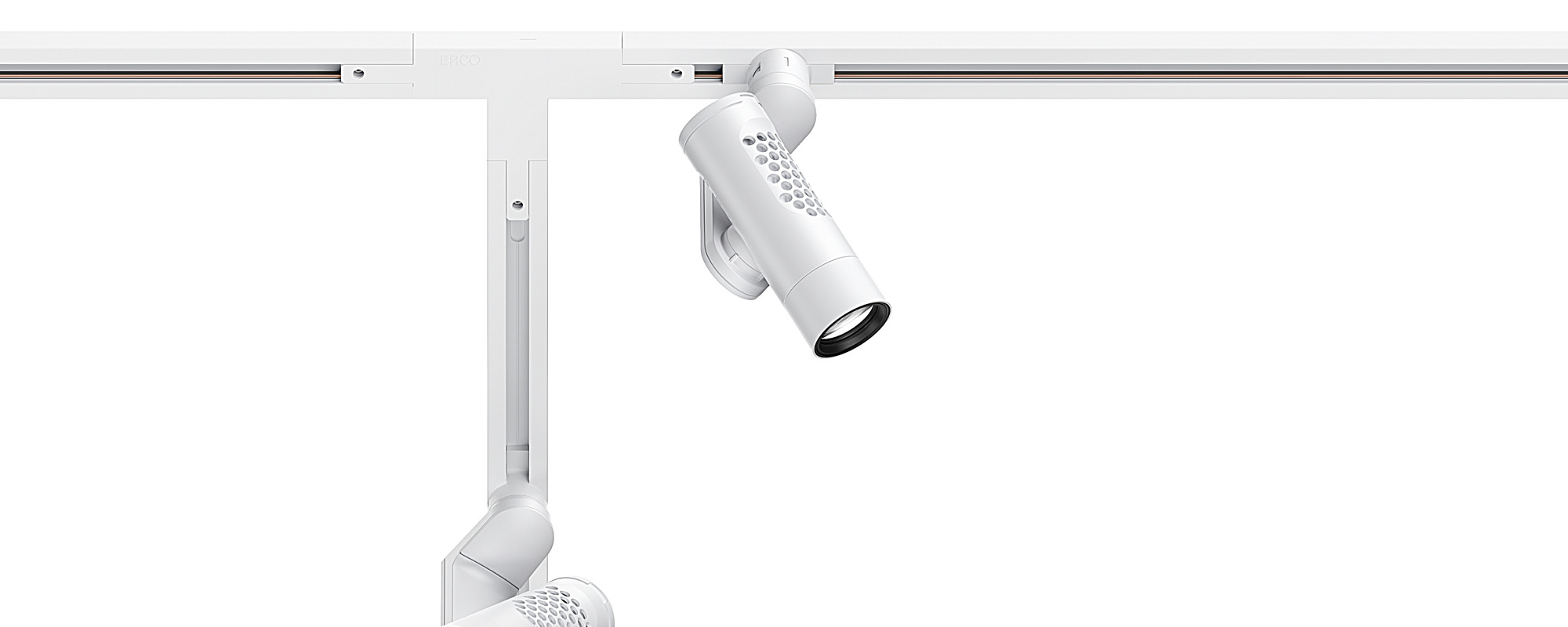

Integration into 0-10V systems

Integration into 0-10V systems

A 0-10V bridge via Casambi provides the connection to an existing light control system such as 0-10V.

How can we support you?

Allow us to approach your new project together.

Select a service:

Your contact data:

free of charge and without obligation

Your data will be handled confidentially. For further information see Data protection declaration.

Configure ERCO Minirail 48V track and singlets

Do you have any questions?

Here you can find initial help. For further questions please contact us via the contact form below.

Where can I purchase track?

Our lighting consultants will clarify all details with you concerning the ordering process. You can find your regional contact partner at: Contact

How long is the delivery time?

Track is ready for shipping within 48 hours. Depending on the scope of the project, the quantity and the geographical location of the recipient, the delivery times with shipping are usually only up to two weeks. Delivery times may vary in individual cases, but we will endeavor to meet your desired delivery date. For further information on our delivery times, please get in touch with your regional contact at: Contact

Where can I find prices for track and accessories?

Do you need an offer for a specific planning task? We would be pleased to prepare an individual project-related offer for you. This, as well as current prices, can be obtained from your local sales representative: Contact

Can I get track in other colors and for other mounting solutions?

We would be pleased to review your individual mounting requirements. Please contact your ERCO lighting consultant. Exciting sample projects that we have implemented with special solutions can be found at: ERCO individual

At what distance should the track be mounted from the wall and from each other?

In general we recommend a distance to the wall of 1/3 of the room height for track along the walls, i.e. 3 1/3 ft. wall distance for a 10ft. high room. If furniture such as shelves or cabinets are present, the distance should be adjusted according to the front plane of the furniture
