Small luminaires are discreet and place the focus on the light itself. Small luminaire dimensions are particularly advantageous in compact room situations.

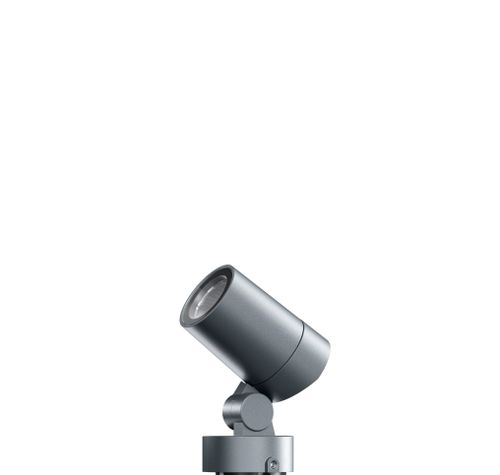

Not every outdoor lighting project requires a powerhouse approach—especially when used in frequently populated urban areas, in parks or around buildings. Kona XS is the smallest outdoor projector in the ERCO range, with a lighting technology reduced to what is essential—brilliant light of the familiar superb quality provided by Spherolit LED lens systems, with a huge range of distribution options. This enables precise and efficient lighting concepts without detracting from the magic of the night. Kona XS adopts the modern, tapered housing design of its larger cousins in the Kona range, with a smooth yet robust aluminum housing designed for easy installation and maintenance.
Sydney Observatory. Museum of Applied Arts & Sciences. Photography: Jackie Chan, Sydney.
Individualize Kona XS for your use case
With our “ERCO individual” service we offer you extensive options for the individualization of series products as well as support in the development of sophisticated special luminaires. In order to match Kona XS even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:
High-power LEDs: 3000K CRI 97 or 2700K, 3500K, 4000K with CRI 92
Housing: 10,000 further colors
Do you have further requirements with the product?
Please contact the consultant team in the following ERCO office:
Very narrow to wide beam, rotationally symmetrical light distribution for accent lighting.
2W - 6W
210lm - 825lm
The ideal angle of tilt (y) for accent lighting with Kona XS projectors is around 30°. This emphasizs the three-dimensionality of architectural details, sculptures or trees, without distorting the spatial impression with excessive shadowing.
Arrangement: α = 30°
Wide-beam illumination of larger objects or spatial zones.
Asymmetrical light distribution for highly uniform wallwashing.
630lm - 825lm
Uniform vertical illuminance in the outdoor area defines spatial borders. Here, the distance (a) of Kona XS lens wallwashers from the wall should be around one third of the room height (h). This results in an angle of tilt (a) of approx. 55°.
Arrangement: a = 1/3 x h or γ = 55°
For good longitudinal uniformity, the spacing (d) of Kona XS lens wallwashers may be up to 1.2 times the offset from the wall (a).
Arrangement: d ≤ 1.2 x a
Optimal wall offset and luminaire spacing values are indicated in the wallwasher tables on the product data sheets.
