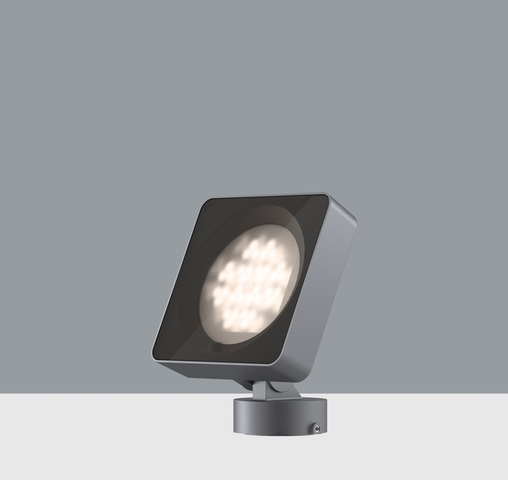

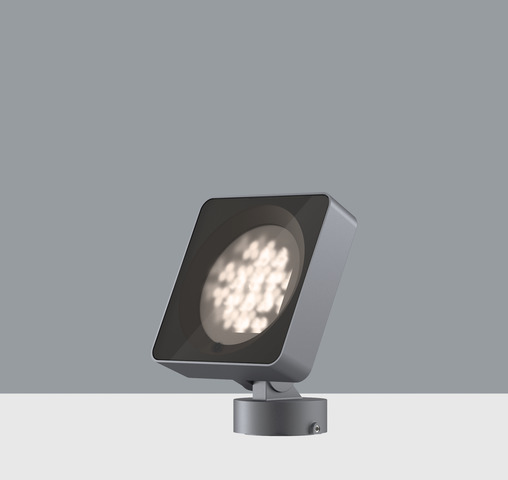

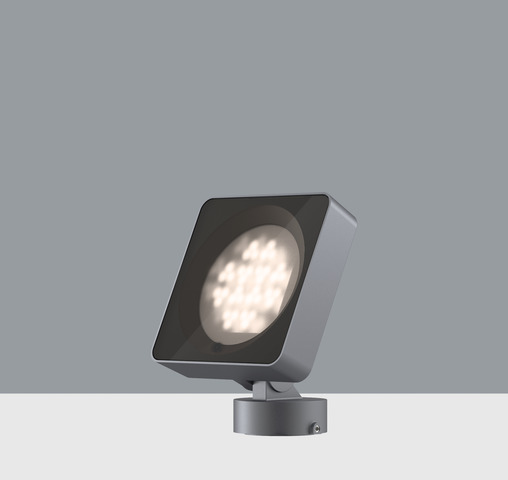

Lightscan. Radiance in digital form

Lightscan for sophisticated lighting tasks in outdoor areas

Lightscan in the application

Individualize Lightscan for your use case

With our “ERCO individual” service we offer you extensive options for the individualization of series products as well as support in the development of sophisticated special luminaires. In order to match Lightscan even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:

  • High-power LEDs: 3000K CRI 97 or 2700K, 3500K, 4000K with CRI 92
  • Housing: 10,000 further colors

Do you have further requirements with the product?

Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}} {{strasse2}}
{{/strasse2}} {{ort}}
{{staat}}

Product features in detail

1

2

3

4

5

1

ERCO Spherolit lens

  • Light distributions: narrow spot, spot, flood, wide flood, extra wide flood, oval flood or wallwash
  • Oval flood 360° rotation

2

ERCO LED-module

  • High-power LEDs: warm white (3000K) or neutral white (4000K)
  • Collimating lens made of optical polymer

3

Housing

  • Graphit m
  • Corrosion-resistant cast aluminum, No-Rinse surface treatment
  • Double powder-coated
  • Optimized surface for reduced accumulation of dirt
  • Cover frame: powder-coated black
  • Safety glass

4

Control gear

  • Switchable or 0-10V dimmable

5

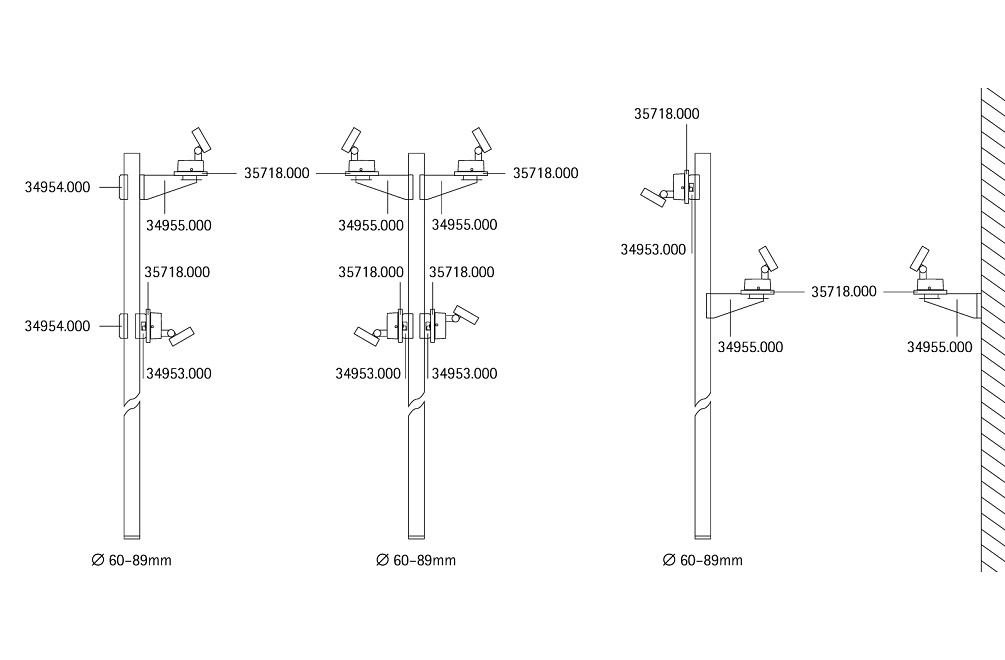

Mounting plate and hinge

  • Corrosion-resistant cast aluminum, No-Rinse surface treatment or polymer
  • Graphite m, double powder-coated or coated
  • 90° tilt, 300° or 360° rotation
  • Internal wiring

Lightscan: Light effect and planning aid

Lighting tool

Light distribution
