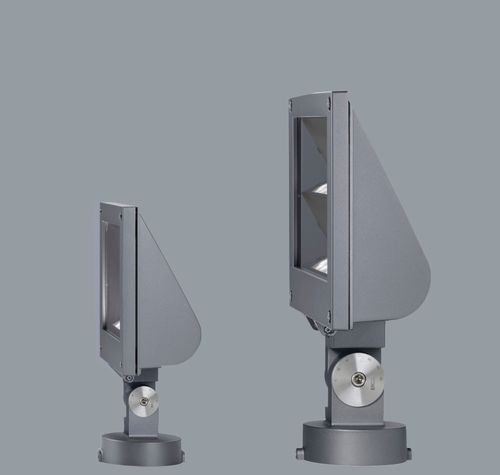

Lightscoop. A floodlight for any purpose

Lightscoop ensures powerful wallwashing and ceiling washlighting in outdoor and indoor areas

Lightscoop in the application

Individualize Lightscoop for your use case

With our “ERCO individual” service we offer you extensive options for the individualization of series products as well as support in the development of sophisticated special luminaires. In order to match Lightscoop even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:

  • High-power LEDs: 3000K CRI 97 or 2700K, 3500K, 4000K with CRI 92
  • Housing: 10,000 further colors

Do you have further requirements with the product?

Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}} {{strasse2}}
{{/strasse2}} {{ort}}
{{staat}}

Product features in detail

1

1

2

2

3

4

5

6

1

ERCO Spherolit lens

  • Light distributions: wide beam or deep beam

2

ERCO LED-module

  • High-power LEDs: warm white (3000K) or neutral white (4000K)
  • Collimating lens made of optical polymer

3

Cover frame

  • Corrosion-resistant cast aluminum, No-Rinse surface treatment
  • Graphit m, double powder-coated
  • Safety glass

4

Housing

  • Graphit m
  • Corrosion-resistant cast aluminum, No-Rinse surface treatment
  • Double powder-coated
  • Optimized surface for reduced accumulation of dirt

5

Control gear

  • Switchable

6

Mounting plate and hinge

  • Corrosion-resistant cast aluminum, No-Rinse surface treatment
  • Graphit m, double powder-coated
  • Mounting plate: rotatable through 300°
  • Hinge: ±90° tilt
  • Internal wiring
  • Dial: corrosion-resistant aluminum

Lightscoop: Light effect and planning aid

Lighting tool

Light distribution
