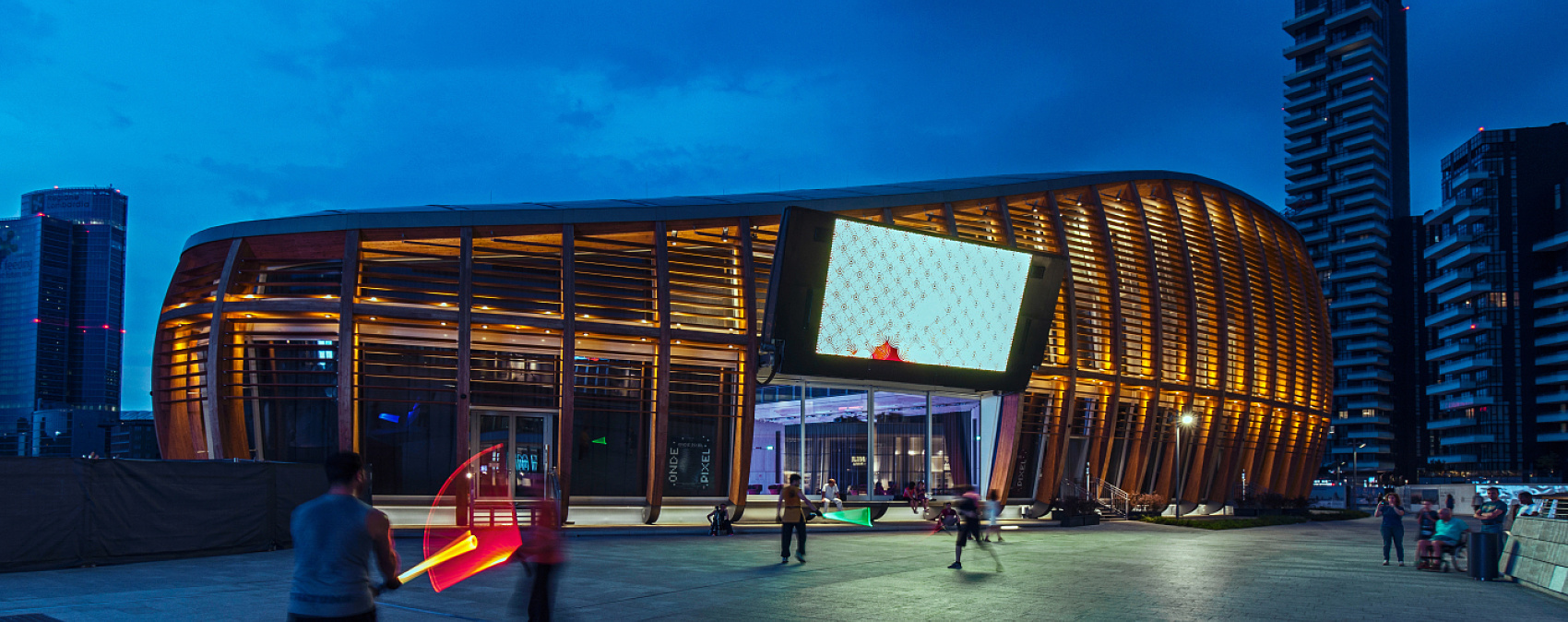

UniCredit Pavilion, Milan, Milan, Italy

Illuminating the heart of Milan: The UniCredit Pavilion

When lighting designers and architects work closely together, the result are structures that stand as emblems of excellence in spatial and urban design. The multifunctional pavilion, conceived by the Italian architect and designer Michele De Lucchi for UniCredit Bank and taking shape in close collaboration with the lighting experts of Gruppo C14 in Milan, today shines like a monumental lantern, lit from within. Illuminated with ERCO lighting tools, the structure’s organic design made of wood and glass almost instantly evolved into a major attraction, encapsulating the poetic heart of Milan’s new, prestigious Porta Nuova district.

Commencing in 2005, the urban development project north of Milan’s historic centre has gradually transformed the area into a prominent district: today, the Zona Porta Nuova Garibaldi shows a new face, made of mirrored skyscrapers and high-tech office complexes that stand symbolic of Milan’s leading role in banking and finance. The modern Torre UniCredit in Piazza Gae Aulenti reaches the lofty height of 218m, and as Italy’s tallest building, dominates the city skyline as a striking architectural feat. On the square adjacent to the mirrored tower, UniCredit also commissioned the studio of Michele De Lucchi with the design of a multifunctional pavilion to serve the bank as a venue for meetings and conferences, but also for public concerts, theatre performances or exhibitions.

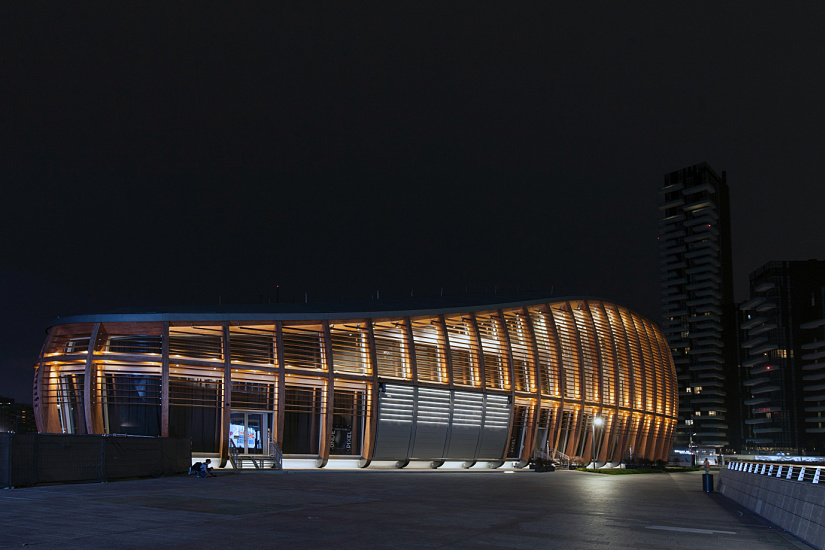

UniCredit Pavilion, Milan

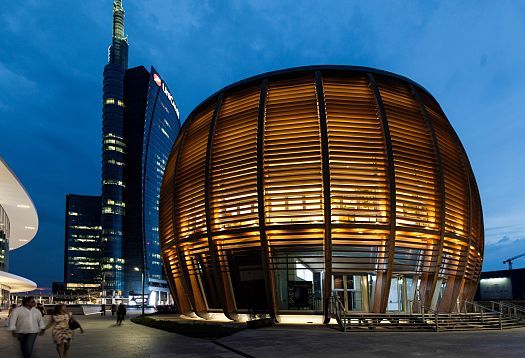

In contrast to the cold, technical style of the neighbouring architecture, De Lucchi designed the pavilion occupying the centre of the square as an organic wooden building, its outline reminiscent of a pebble or seed. The formwork of vertical wooden ribs with horizontally arranged slats made of larch wood embraces a glazed core accommodating the auditorium on the ground floor, a versatile exhibition space on the mezzanine floor, and the "Greenhouse" Lounge under the curved roof. The structure as a whole gives the impression of a monumental lantern that, lit from within, creates a brilliant focal point on the new Piazza. Deliberately set against the surrounding high-tech compositions of steel and glass, the pavilion stands apart in its organic design and natural fabric, intensified by warm white light at 3000K to illuminate its interior and exterior.

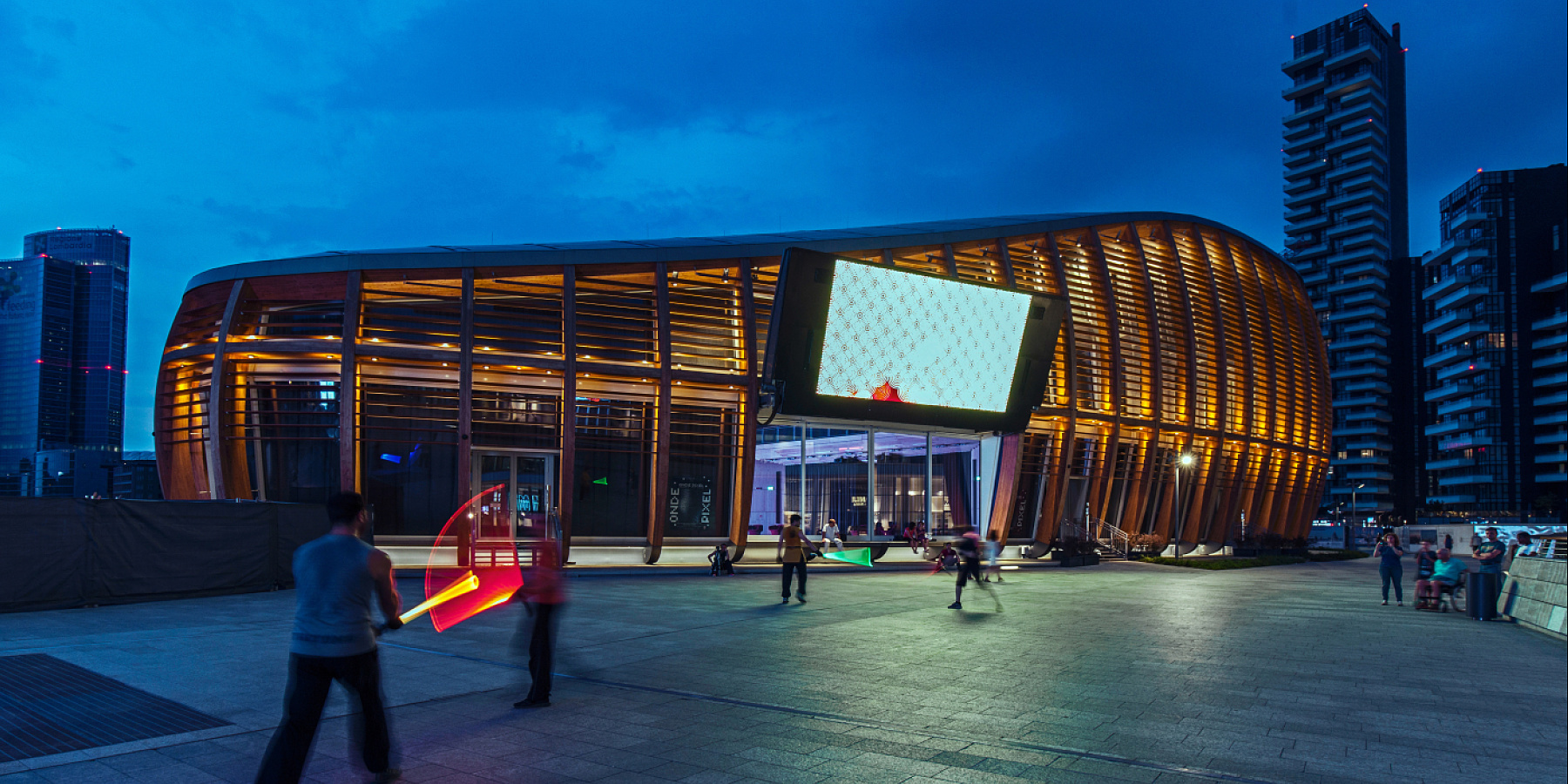

UniCredit Pavilion, Milan

Light and lighting as integral components of the architecture

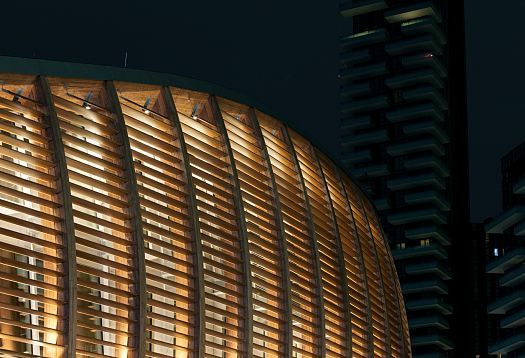

In order to turn the idea of a highly visible and warmly lit wooden walk-in “lantern” into reality, client and architect agreed to bring the lighting experts of Gruppo C14 on board for the planning – studio founder Alexander Bellman had previously provided parts of the interior design as well as the lighting concept for the Torre UniCredit. Collaborating with Studio Michele de Lucchi, Alexander Bellman and his team developed construction details such as the flexible wooden shutters. The larch wood slats control and regulate the daylight illuminating the pavilion, darken the rooms for theatre performances or film showings, and protect sensitive exhibits from harmful UV rays. Further design features include recesses in the vertical girders outside the glass façade, hiding ERCO Grasshopper projectors from the view of the observer. "These powerful projectors with maintenance-free optoelectronics and pinpoint focus are recessed in the beams lining the top and bottom of the building shell," explains lighting designer Alexander Bellman. "Positioned on the outside between framework and glass front, they remain hidden from the view of the observer, whilst illuminating the façade with accent light directed up and down to create intersecting beams that give the building the impression of shining from within."

The Spherolit lenses offer perfect visual control.

Alexander Bellman, GruppoC14, Mailand

UniCredit Pavilion, Milan

Efficient ERCO LED lighting tools for the pavilion façade and core

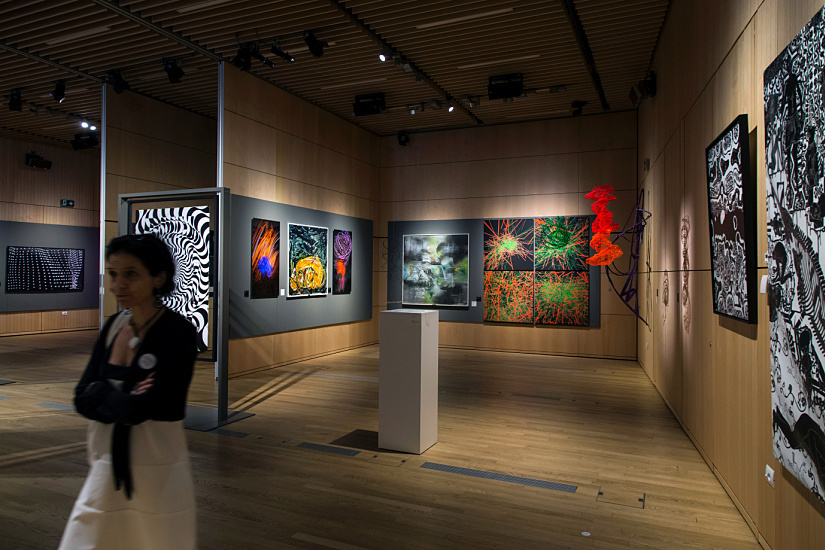

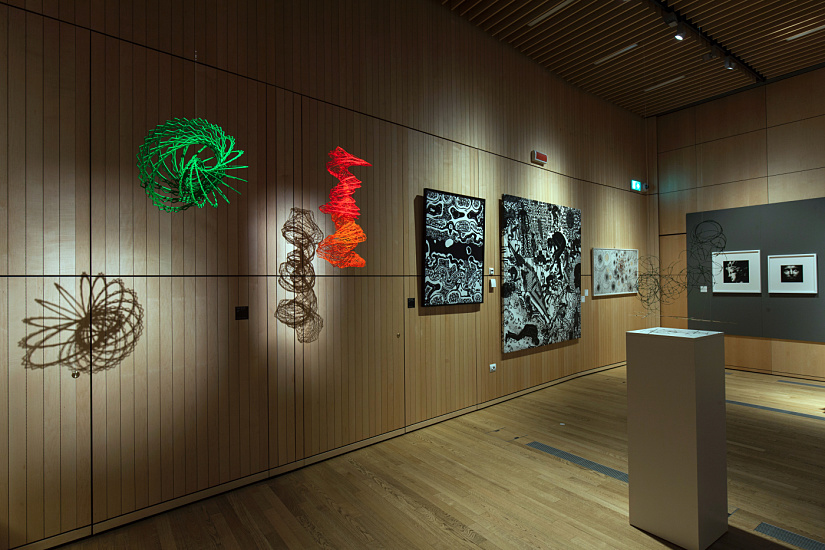

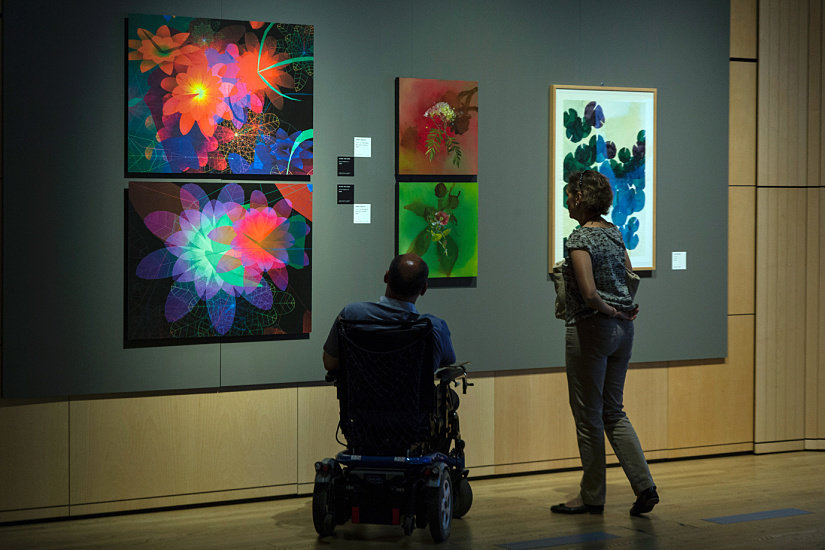

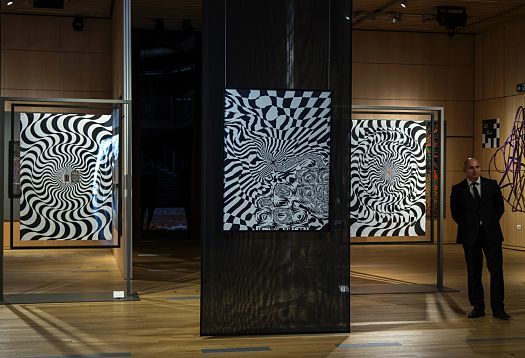

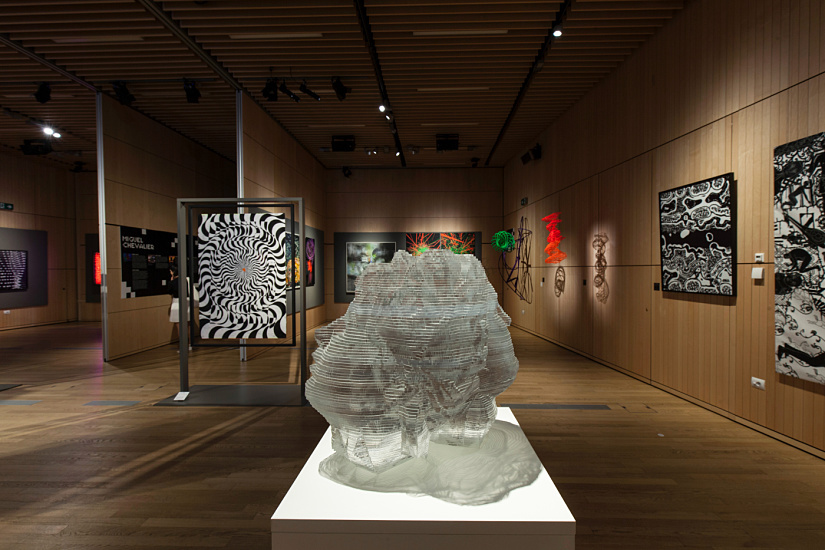

Neben der präzise beleuchteten Fassadenstruktur entschied man sich auch für die Ausleuchtung der hölzernen Dachuntersicht im Innenraum für effiziente und innovative LED-Lichtwerkzeuge von ERCO. Lightboard Einbaufluter in Warmweiß mit 48W, installiert in den seitlichen Trägern, leuchten die gewölbte Decke des Pavillons mit breitem Lichtkegel aus. Die Wandscheiben, die zurückversetzt von der Glasfassade den Kern des Pavillons auf allen Geschossen umfassen, werden mit Hilfe von deckenintegrierten Compact Linsenwandflutern Wallwash in Warmweiß mit 24W und 32W gleichmäßig hell beleuchtet, so dass sich von außen auch nachts oder im Vorbeigehen etwa Exponate einer Ausstellung im Innenraum betrachten lassen.

Lichtplaner Alexander Bellman, der als studierter Architekt im Jahre 2003 sein Büro Gruppo C14 in Mailand gegründet hat und aktuell 20 Mitarbeiter beschäftigt, schätzt die Zusammenarbeit mit ERCO und zeigt sich begeistert von der Qualität der ERCO Lichtwerkzeuge: "Die Energieeffizienz, Langlebigkeit, der niedrige Wartungsaufwand der Produkte sind eine Sache." erklärt der Lichtprofi. "Darüber hinaus ermöglichen die Spherolitlinsen eine perfekte optische Kontrolle, das Licht lässt sich höchst präzise planen und umsetzen – das gibt uns maximale Planungssicherheit. Visualisierung und tatsächliches Ergebnis sind nahezu deckungsgleich."

UniCredit Pavilion, Milan

About the author:

Kristina Raderschad has run an editorial office in Cologne since 2005. A qualified interior designer (Dipl.-Ing.), her articles, reports and interviews on architecture and design are published worldwide—in magazines such as AD Architectural Digest, A&W, ELLE DECORATION, HÄUSER, MARK or WALLPAPER*.
